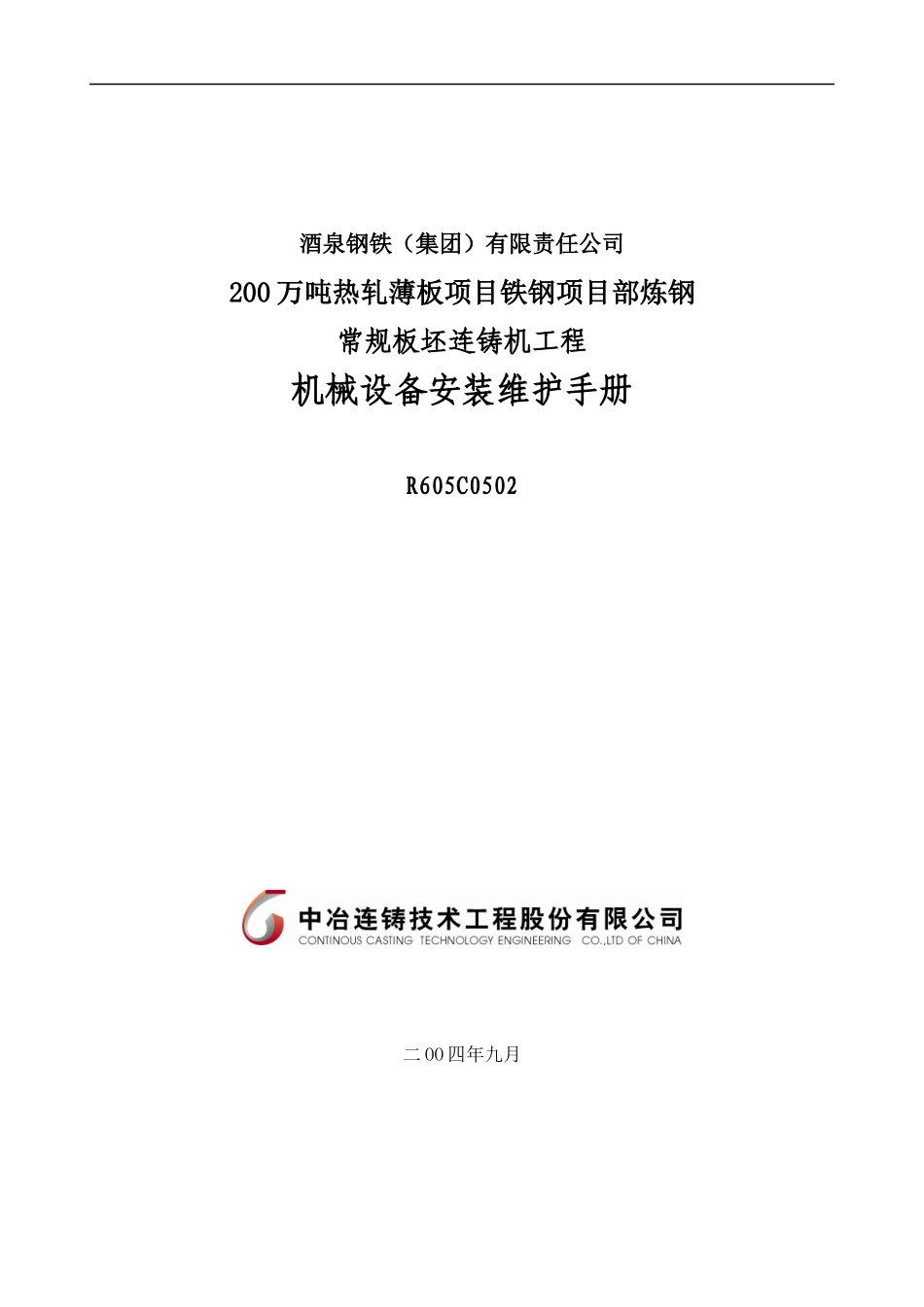

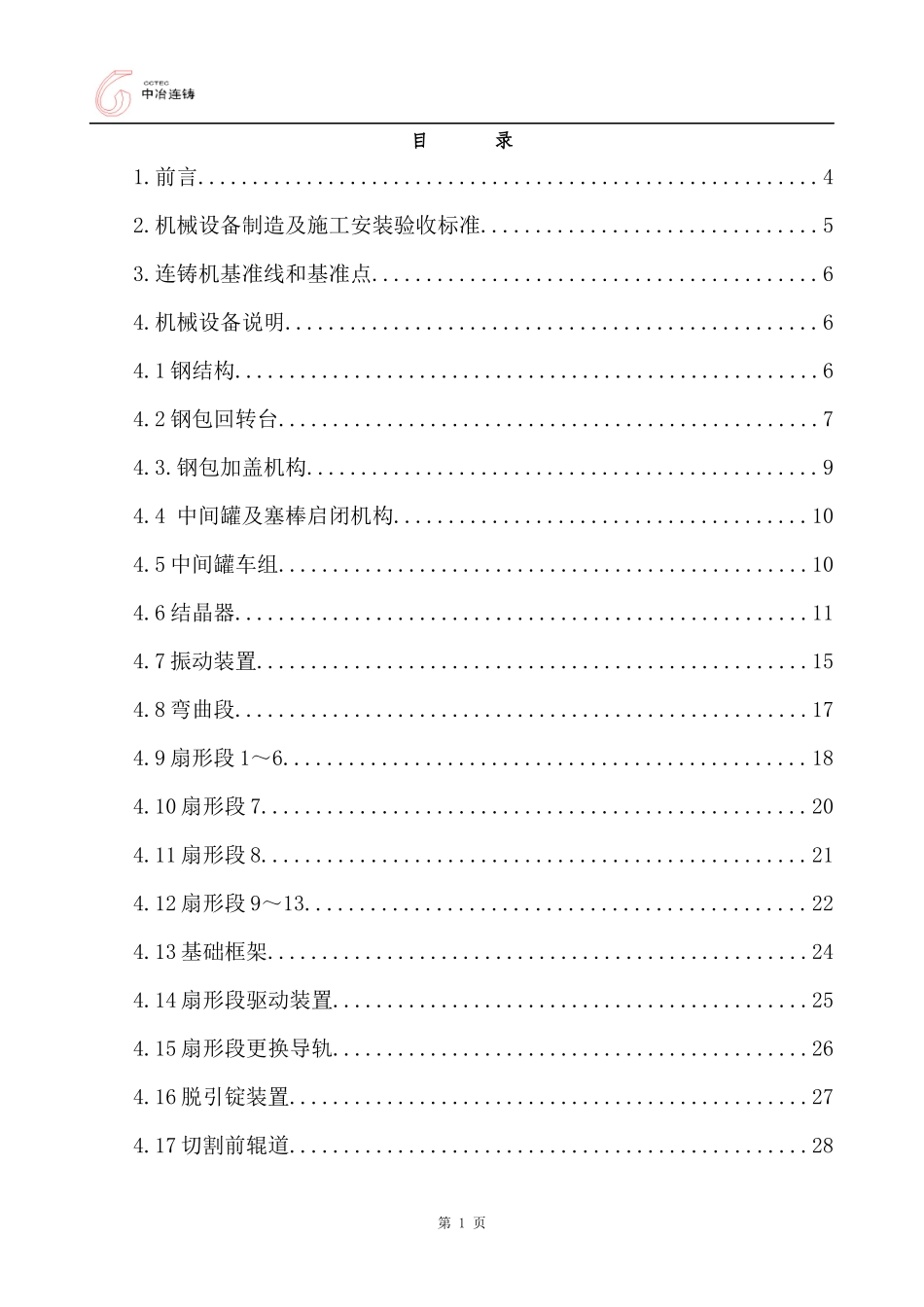

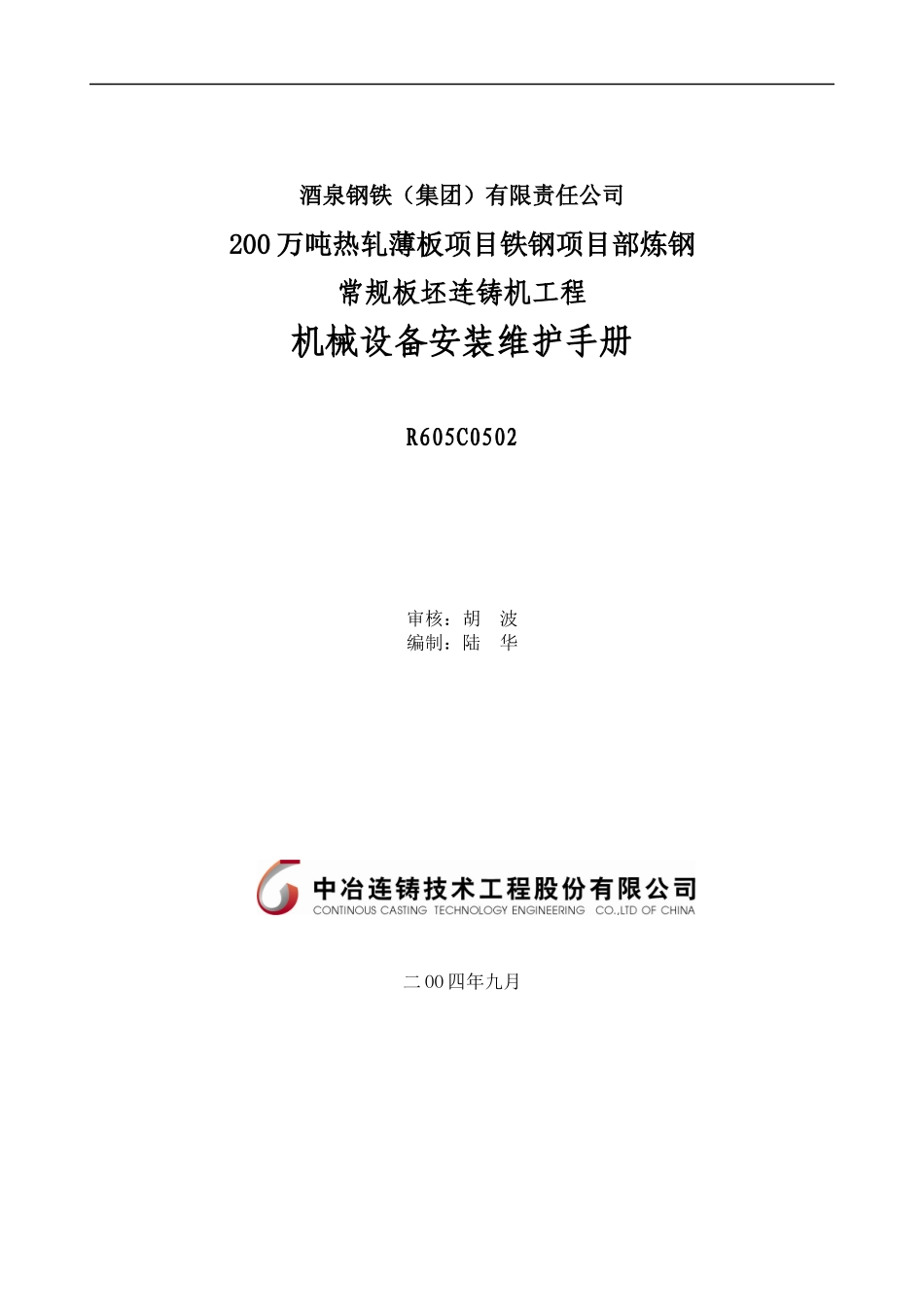

酒泉钢铁（集团）有限责任公司200万吨热轧薄板项目铁钢项目部炼钢常规板坯连铸机工程机械设备安装维护手册R605C0502二OO四年九月酒泉钢铁（集团）有限责任公司200万吨热轧薄板项目铁钢项目部炼钢常规板坯连铸机工程机械设备安装维护手册R605C0502审核：胡波编制：陆华二OO四年九月目录1.前言.........................................................42.机械设备制造及施工安装验收标准...............................53.连铸机基准线和基准点.........................................64.机械设备说明.................................................64.1钢结构......................................................64.2钢包回转台..................................................74.3.钢包加盖机构...............................................94.4中间罐及塞棒启闭机构......................................104.5中间罐车组.................................................104.6结晶器.....................................................114.7振动装置...................................................154.8弯曲段.....................................................174.9扇形段1～6................................................184.10扇形段7..................................................204.11扇形段8..................................................214.12扇形段9～13..............................................224.13基础框架..................................................244.14扇形段驱动装置............................................254.15扇形段更换导轨............................................264.16脱引锭装置................................................274.17切割前辊道................................................28第1页4.18切割下辊道................................................294.19自动火焰切割机...........................................304.20切头筐....................................................304.21切后及引锭存放辊道........................................304.22下线辊道..................................................314.23引锭杆及引锭杆存放装置....................................324.24中间罐烘烤及干燥装置......................................334.25油气润滑系统..............................................354.26液压系统..................................................354.27结晶器维修对弧台..........................................364.28弯曲段对弧台..............................................374.29扇形段内弧和外弧对弧台....................................374.30喷嘴试验台................................................384.31振动单元试验台............................................385.连铸机弧形段设备的定位.....................................436.连铸机整机的试运行.........................................437.连铸机的维护要点...........................................44第2页1.前言1.1本说明书是酒泉钢铁（集团）有限责任公司200万吨热轧薄板项目铁钢项目部炼钢常规板坯连铸机工程设计文件不可分割的一部分,与设计图纸具有同等效力。1.2连铸机主要技术参数机型一机一流直弧型板坯连铸机垂直区高度2392mm铸机主半径9500mm弯曲连续弯曲矫直连续矫直铸坯规格：厚度160、220mm宽度850～1600mm定尺5～14m机械速度0.3～2.5m/min正常拉速0.8～2.2m/min送引锭速度0～5m/min机长31965.9m（液面至末辊外弧弧线长度）铸机高度12778.34mm（液面至出坯辊面高度）引锭装入方式下装式准备时间～48min作业率～80%金属收得率97%产品方案(1)产品大纲类别钢种代表钢号产量比例(%)第3页1碳素结构钢Q195(0.06～0.10%C)102碳素结构钢Q215(0.09～0.14%C)5类别钢种代表钢号产量比例...
