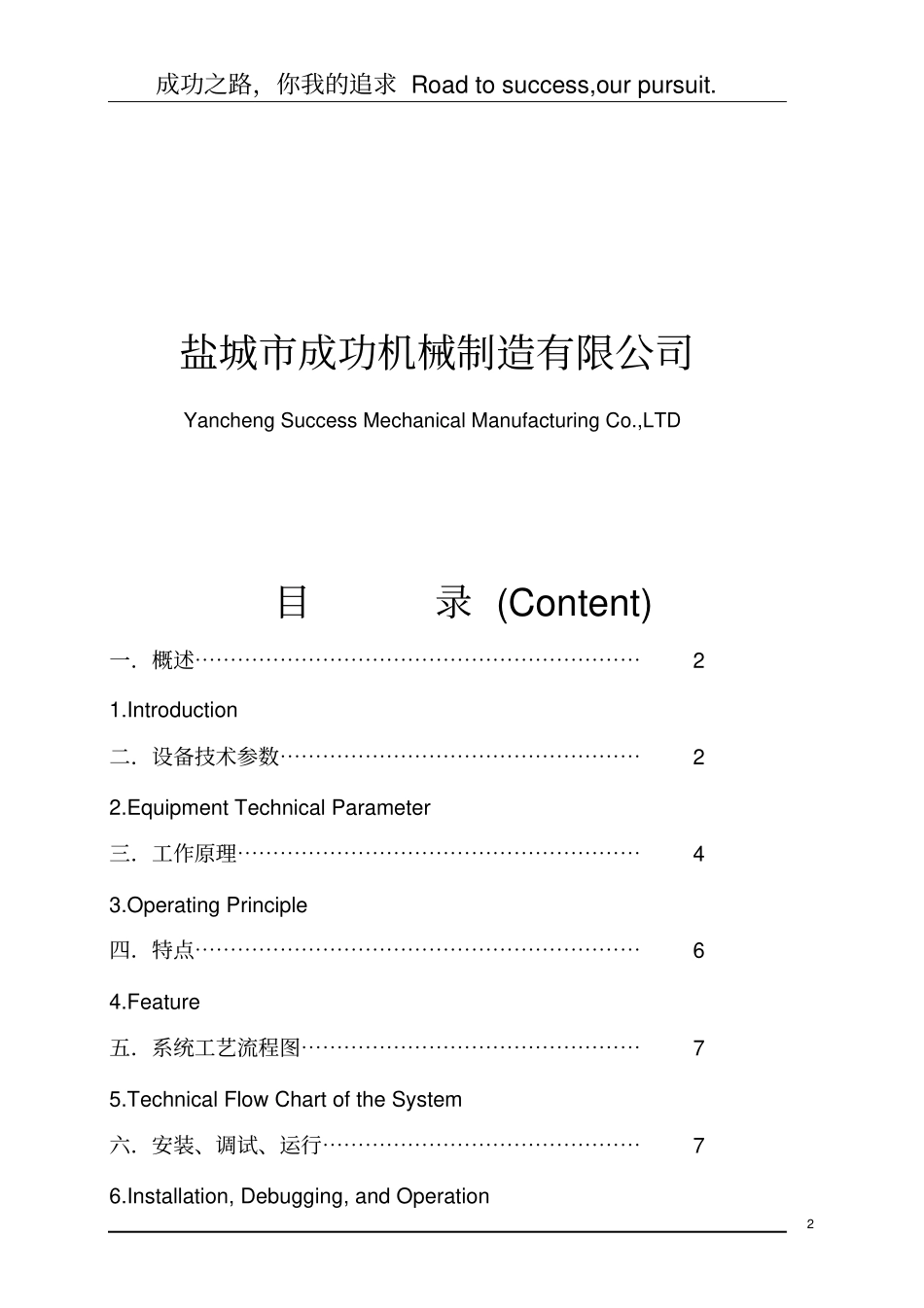

成功之路，你我的追求Roadtosuccess,ourpursuit.1组合拆分式三筒烘干机说明书InstructionfortheCombinationalandDetachableThree-Tube-shapeddryer成功之路，你我的追求Roadtosuccess,ourpursuit.2盐城市成功机械制造有限公司YanchengSuccessMechanicalManufacturingCo.,LTD目录(Content)一．概述⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯21.Introduction二．设备技术参数⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯22.EquipmentTechnicalParameter三．工作原理⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯43.OperatingPrinciple四．特点⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯64.Feature五．系统工艺流程图⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯75.TechnicalFlowChartoftheSystem六．安装、调试、运行⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯76.Installation,Debugging,andOperation成功之路，你我的追求Roadtosuccess,ourpursuit.3七、操作、维护、修理⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯97.Operation,Maintenance,andRepair八．组合可拆式三筒烘干机的保养⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯108.Service/UpkeepofCombinationalandDetachableThree-Tube-shapedDryer一、概述组合可拆式三筒烘干机主要用于烘干一定湿度和粒度范围内的颗粒物料，如干粉砂浆行业所用的黄砂，铸造行业用的各种规格型砂，建材水泥行业用的高炉矿渣，小粒度粘土以及粉煤灰，化工行业用于不起化学变化、不怕高温及烟尘弄脏的小颗粒物料；组合可拆式三筒烘干机不同于传统的三筒烘干机，这是我公司为彻底解决老式三筒烘干机无法检修和维护而开发研制的最新产品，并且获得了国家专利。Mainlyusedforgranularmaterialswithcertainhumidityandparticlesizerange,e.g.yellowsandfordrypowdermortarindustry;castingsandwithdifferentspecificationsforfoundryindustry;shaftfurnacemineralslag,clayofsmallgranularity,andflyashforcementbuildingmaterialindustry,high-temperatureanddustresistancesmallgranularmaterialwithoutchemicalchangeforchemicalindustry.Thenewcominationalanddetachablethree-tube-shapeddryerisalastestproductdevelopedbyourcompanytosolvetheproblemofoverhaulandmaintenancepostedby成功之路，你我的追求Roadtosuccess,ourpursuit.4old-fashionedthree-tube-shapeddryeronceforall,soitisdifferentfromtraditionalonesandpatentedbythenation.对于进入烘干机内的物料要求以不粘筒壁及扬料板为宜，初水份可以在10-25%范围内。进入烘干机内热交换的气体温度不宜高于750℃，如有特殊要求高温烘干，烘干机的入口处内筒及扬料板可用耐热钢板制造；烘干后的物料的终水份，可根据不同行业对物料的要求，含水量可以达到1-0.5%以下Thematerialgoingintothedryermustnotstickthecylinderwallandthescatterplate,andtheoriginalmoisturecanvarybetween10to25percent.Thegasgoingintothedryerforheatexchangemustnotexceed750℃.Tomeetspecificdemandsofhigh-temperaturedrying,theinternalcylinderattheentranceandthescatterplatecanbemanufacturedwithheatresistancesteel.Thefinalmoistureofthematerialafterdryingcanreach1to0.5percentaccordingtothedemandsofdifferentindustries.组合拆分式结构特点简介组合拆分式三筒烘干机是将外筒和中筒在长度方向上分为三段，中部一段分为二半，都采用法兰联接，由于烘干机的两端盖板也都是法兰联接，所以便于烘干内部扬料板的检修，彻底解决了传统式三筒烘干机难以维修的问题。筒体结构图如下：Briefintroductiontothecombinationalanddetachalbestructurefeatures.成功之路，你我的追求Roadtosuccess,ourpursuit.5Thedryerisdividedintothreesectionsalongitslengthintermsoftheexterialcylinderandthemiddlecylinder.Themiddlesectionisdividedintohalvesandjoinedbyflangeconnection.Therefore,itisconvenientandeasytoexaminethescatterplate,whichisinsolvablefortraditionaldryers.Thecylinderstructureisasfollows.Specialnotes:patentsownedbythecompany1.PatentCer...
