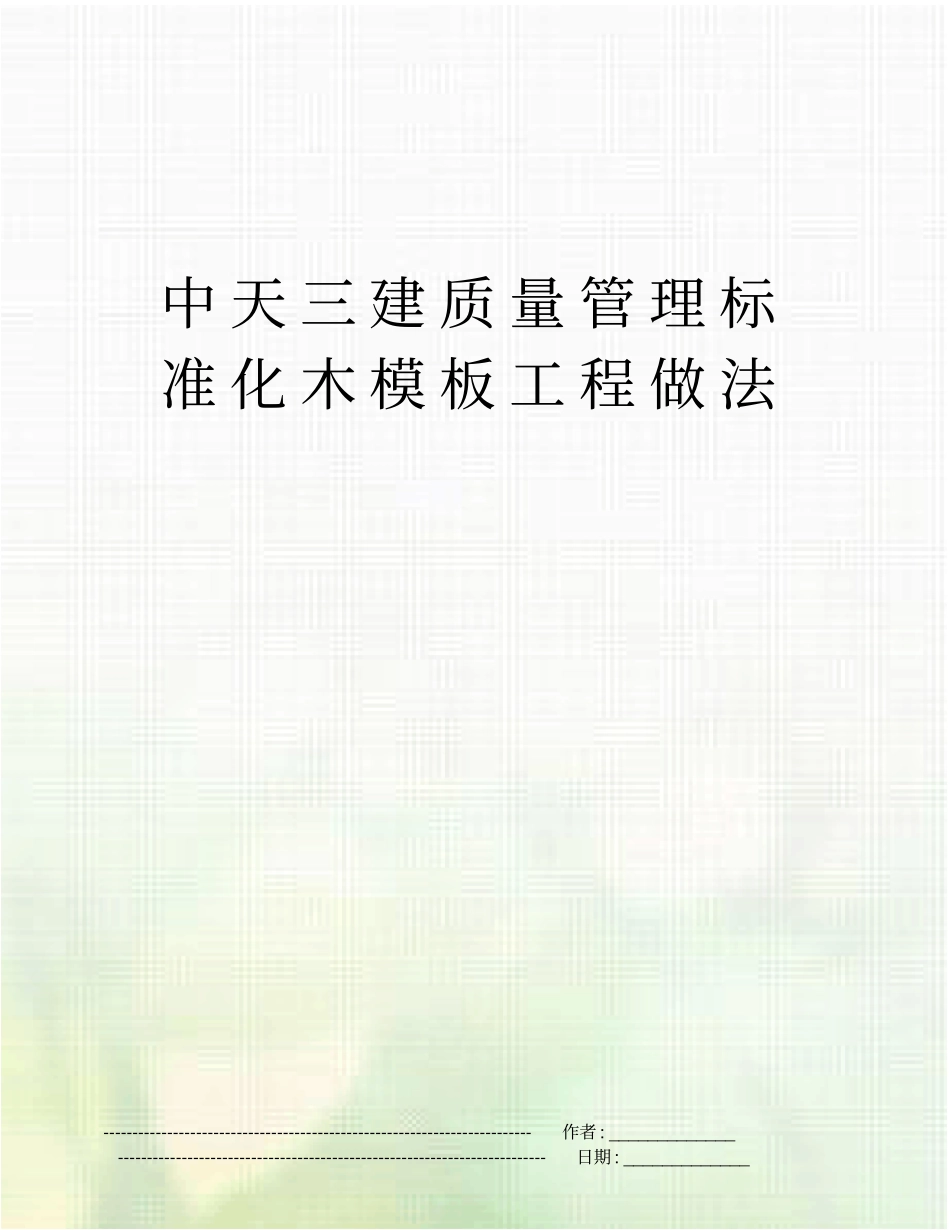

中天三建质量管理标准化木模板工程做法VIP专享VIP免费

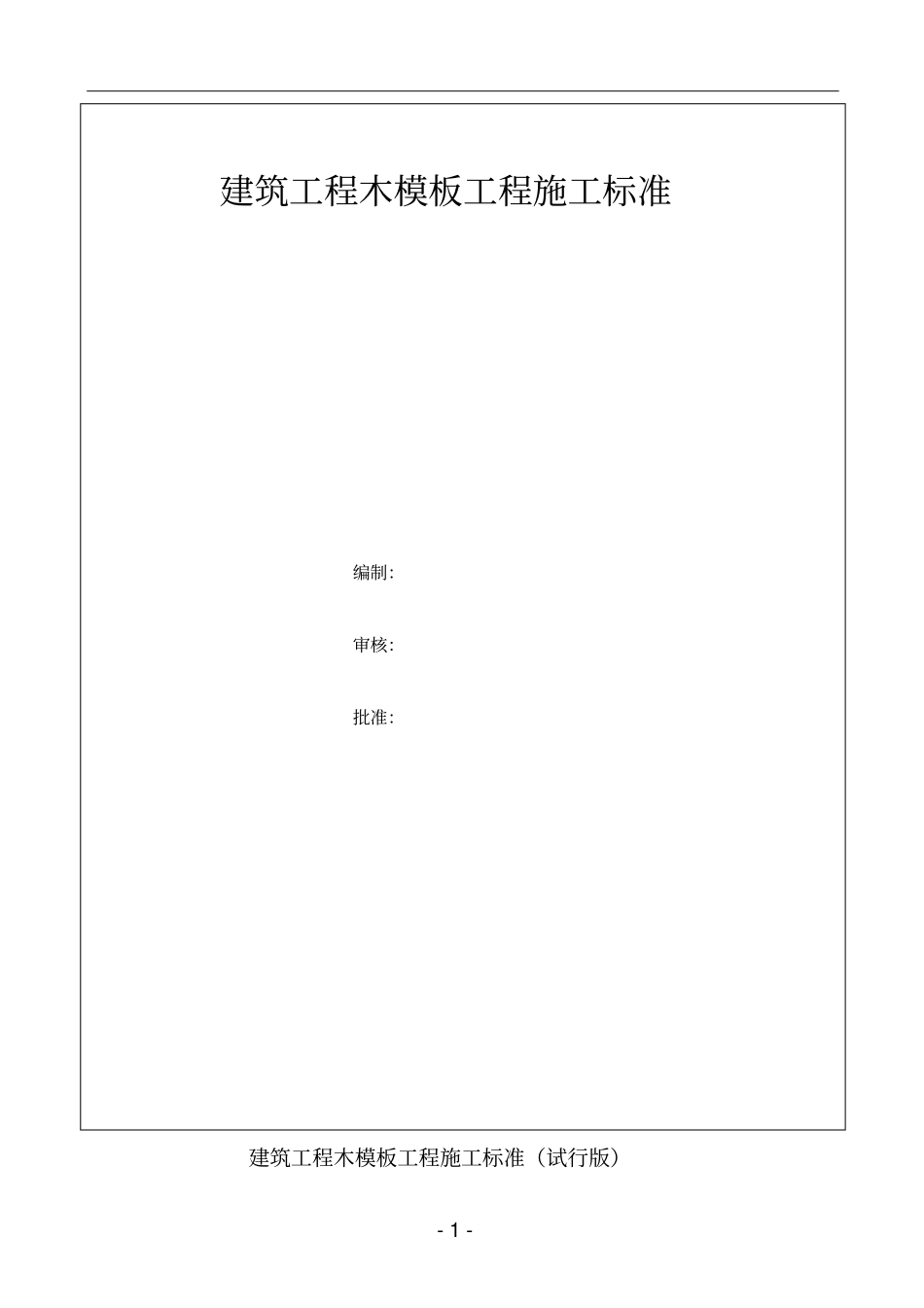

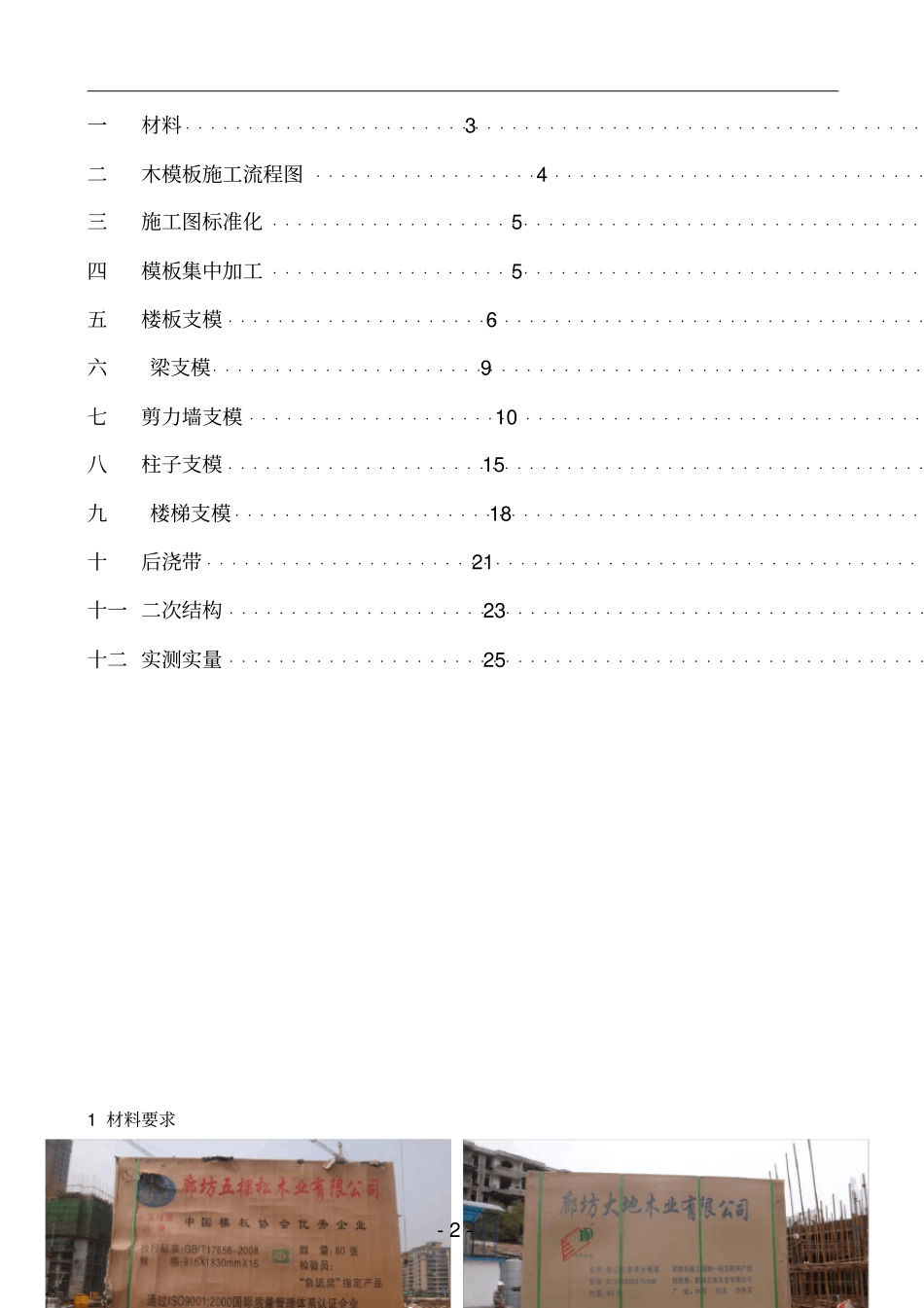

中天三建质量管理标准化木模板工程做法--------------------------------------------------------------------------作者:_____________--------------------------------------------------------------------------日期:_____________-1-建筑工程木模板工程施工标准编制：审核：批准：建筑工程木模板工程施工标准（试行版）-2-一材料···························································································3二木模板施工流程图········································································4三施工图标准化··············································································5四模板集中加工··············································································5五楼板支模····················································································6六梁支模·······················································································9七剪力墙支模················································································10八柱子支模···················································································15九楼梯支模···················································································18十后浇带······················································································21十一二次结构···················································································23十二实测实量···················································································251材料要求-3-1.1模板建议采用廊坊大地或廊坊五棵松覆膜黑板，廊坊五棵松915*1830覆膜黑板价格大约73元/张，廊坊大地覆膜黑板价格大约80元/张。进口方木方木压刨处理1.2加固用内楞龙骨建议采用40（50）*90*3000进口方木或40*60*3.0方管。对没有压光处理的方木进场后应进行压刨处理，做到尺寸准确，外形平直，长期周转使用变形较小，价格大约为2050~2500元/立方。-4-1.3支模架钢管必须采用3.0mm厚以上钢管；顶托直径不得小于36，顶托建议采用U型托板。2木模板施工流程图3施工图标准化3.1模板施工图标准化是以单构件（单构件指单个墙体、单块平板、单个梁等构件）为单位，绘制构件模板支撑体系及配模图，汇总配料清单。主要包括以下三个方面：a、墙体模板加工图：墙体每面均有立面图，并显示与梁板之间的结合关系，标注模板规格、螺杆间距、木方规格尺寸及间距、钢管规格及间距、顶托距离梁板的距离及离地的距离、墙体支撑体系设置等。图纸深化设计、工人加工车间设置、定位放线、找验线支模架搭设、抄梁底板铺检查楼板铺检查柱、剪力墙、楼梯定位、验收-5-b、梁模板...
