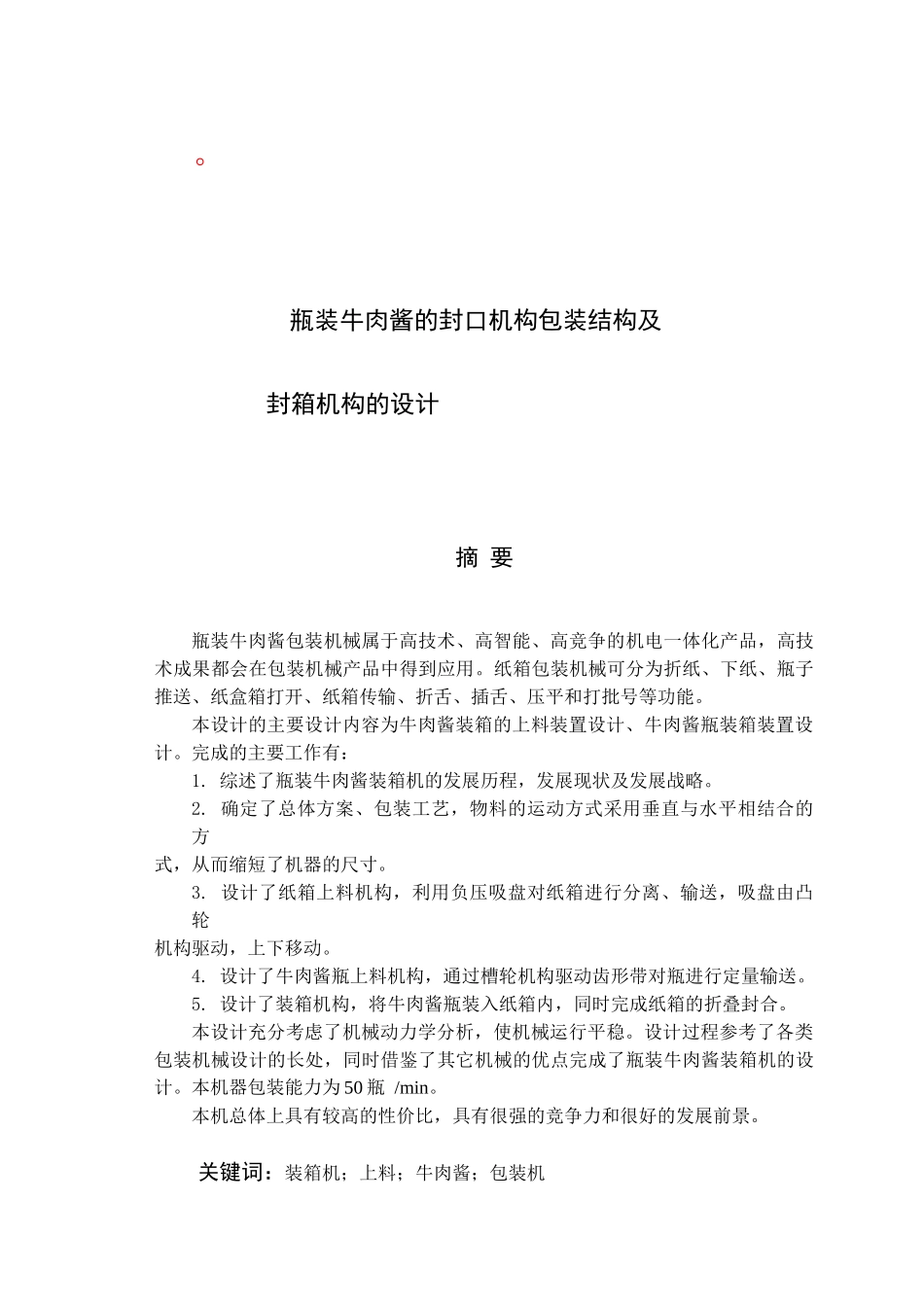

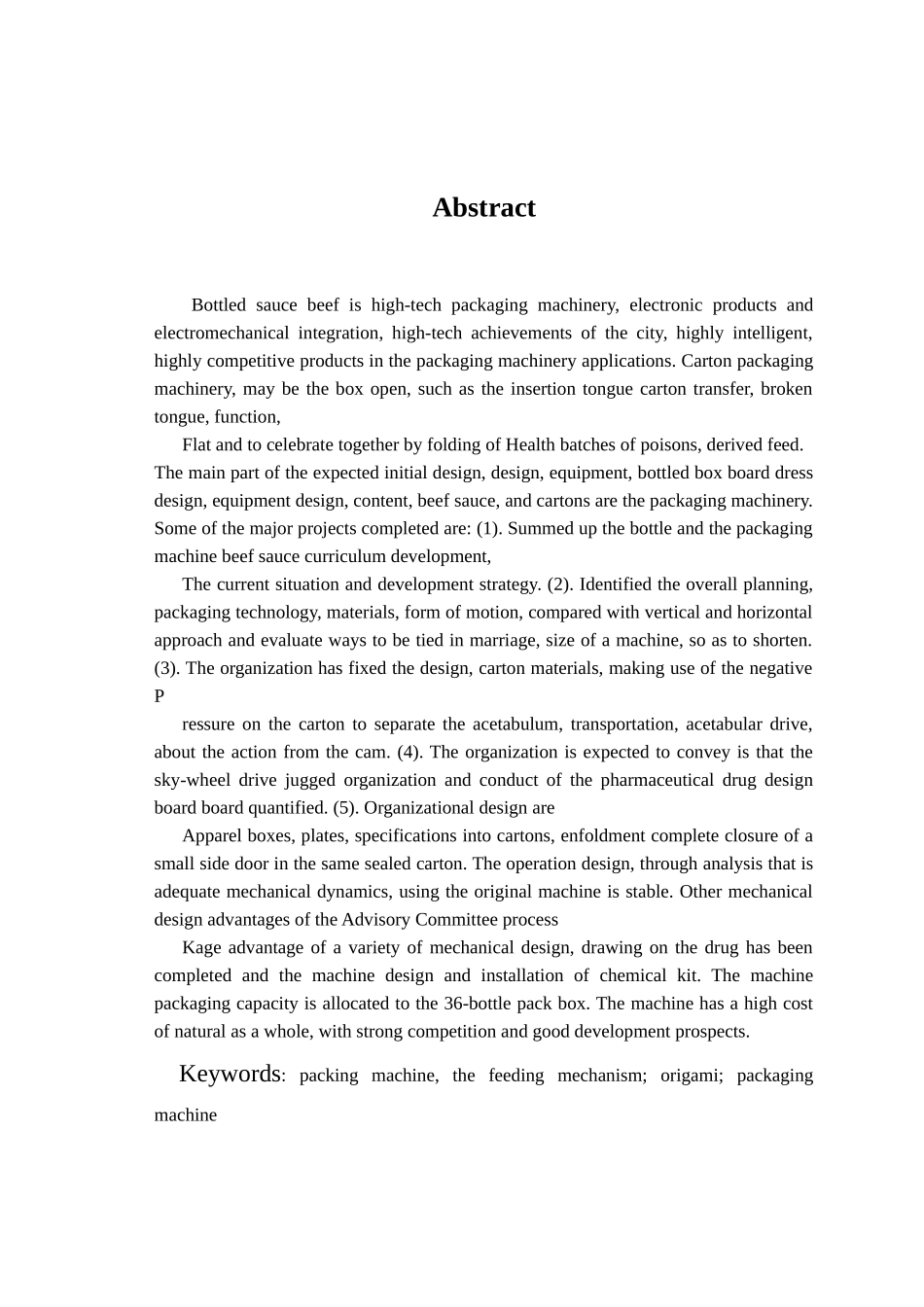

。 瓶装牛肉酱的封口机构包装结构及 封箱机构的设计 摘 要瓶装牛肉酱包装机械属于高技术、高智能、高竞争的机电一体化产品，高技术成果都会在包装机械产品中得到应用。纸箱包装机械可分为折纸、下纸、瓶子推送、纸盒箱打开、纸箱传输、折舌、插舌、压平和打批号等功能。本设计的主要设计内容为牛肉酱装箱的上料装置设计、牛肉酱瓶装箱装置设计。完成的主要工作有：1. 综述了瓶装牛肉酱装箱机的发展历程，发展现状及发展战略。2. 确定了总体方案、包装工艺，物料的运动方式采用垂直与水平相结合的方式，从而缩短了机器的尺寸。3. 设计了纸箱上料机构，利用负压吸盘对纸箱进行分离、输送，吸盘由凸轮机构驱动，上下移动。4. 设计了牛肉酱瓶上料机构，通过槽轮机构驱动齿形带对瓶进行定量输送。5. 设计了装箱机构，将牛肉酱瓶装入纸箱内，同时完成纸箱的折叠封合。本设计充分考虑了机械动力学分析，使机械运行平稳。设计过程参考了各类包装机械设计的长处，同时借鉴了其它机械的优点完成了瓶装牛肉酱装箱机的设计。本机器包装能力为 50 瓶 /min。本机总体上具有较高的性价比，具有很强的竞争力和很好的发展前景。关键词：装箱机；上料；牛肉酱；包装机AbstractBottled sauce beef is high-tech packaging machinery, electronic products and electromechanical integration, high-tech achievements of the city, highly intelligent, highly competitive products in the packaging machinery applications. Carton packaging machinery, may be the box open, such as the insertion tongue carton transfer, broken tongue, function,Flat and to celebrate together by folding of Health batches of poisons, derived feed.The main part of the expected initial design, design, equipment, bottled box board dress design, equipment design, content, beef sauce, and cartons are the packaging machinery. Some of the major projects completed are: (1). Summed up the bottle and the packaging machine beef sauce curriculum development,The current situation and development strategy. (2). Identified the overall planning, packaging technology, materials, form of motion, compare...
