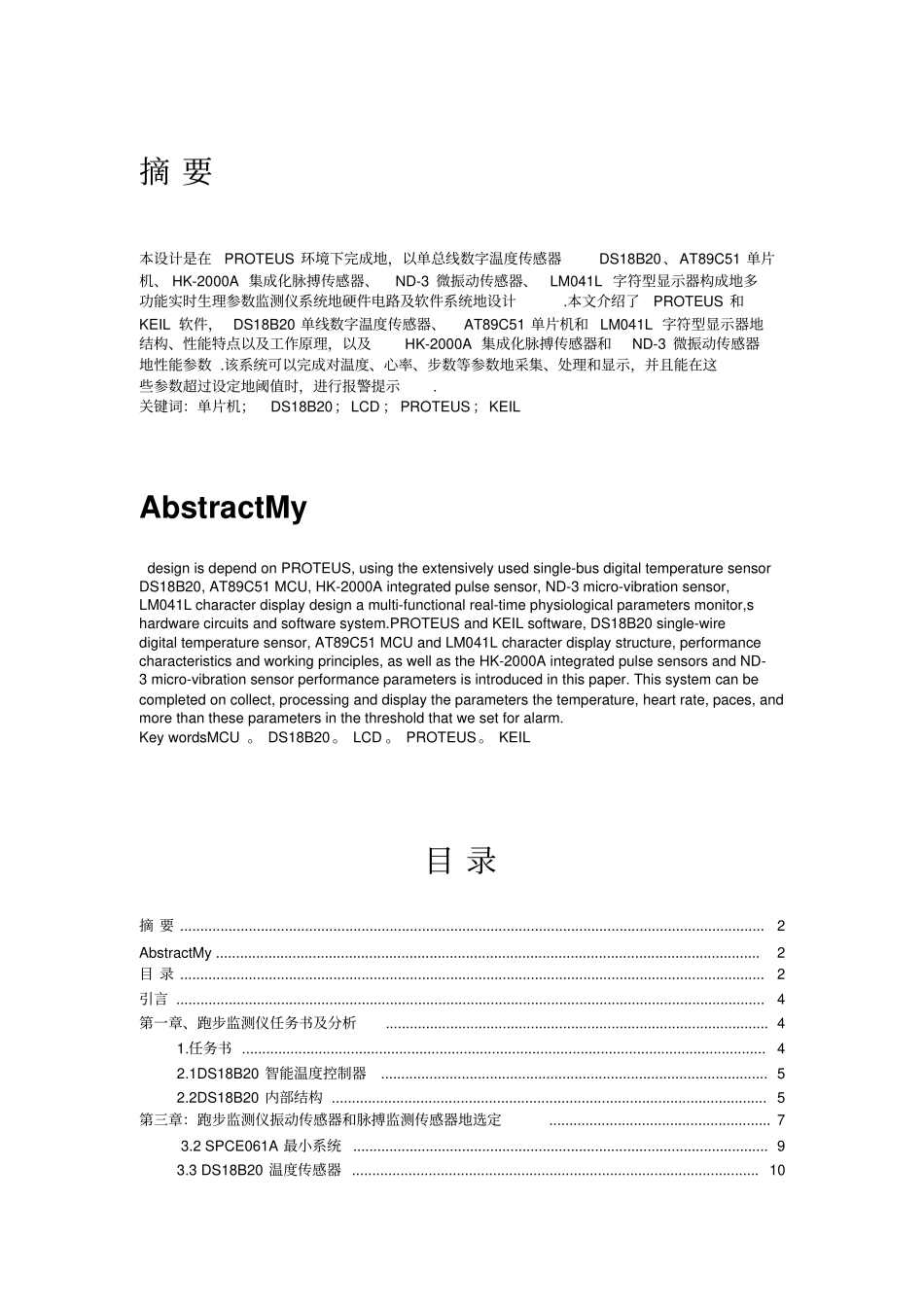

基于单片机地多功能跑步监测仪专业：姓名：指导教师：摘 要本设计是在PROTEUS 环境下完成地，以单总线数字温度传感器DS18B20、AT89C51 单片机、 HK-2000A 集成化脉搏传感器、ND-3 微振动传感器、LM041L 字符型显示器构成地多功能实时生理参数监测仪系统地硬件电路及软件系统地设计.本文介绍了PROTEUS 和KEIL 软件， DS18B20 单线数字温度传感器、AT89C51 单片机和 LM041L 字符型显示器地结构、性能特点以及工作原理，以及HK-2000A 集成化脉搏传感器和ND-3 微振动传感器地性能参数 .该系统可以完成对温度、心率、步数等参数地采集、处理和显示，并且能在这些参数超过设定地阈值时，进行报警提示. 关键词：单片机；DS18B20；LCD ； PROTEUS ；KEIL AbstractMy design is depend on PROTEUS, using the extensively used single-bus digital temperature sensor DS18B20, AT89C51 MCU, HK-2000A integrated pulse sensor, ND-3 micro-vibration sensor, LM041L character display design a multi-functional real-time physiological parameters monitor,s hardware circuits and software system.PROTEUS and KEIL software, DS18B20 single-wire digital temperature sensor, AT89C51 MCU and LM041L character display structure, performance characteristics and working principles, as well as the HK-2000A integrated pulse sensors and ND-3 micro-vibration sensor performance parameters is introduced in this paper. This system can be completed on collect, processing and display the parameters the temperature, heart rate, paces, and more than these parameters in the threshold that we set for alarm. Key wordsMCU 。 DS18B20 。 LCD 。 PROTEUS 。 KEIL 目 录摘 要 ................................................................................................................................................. 2AbstractMy ....................................................................................................................................... 2目 录 ....................................................................
