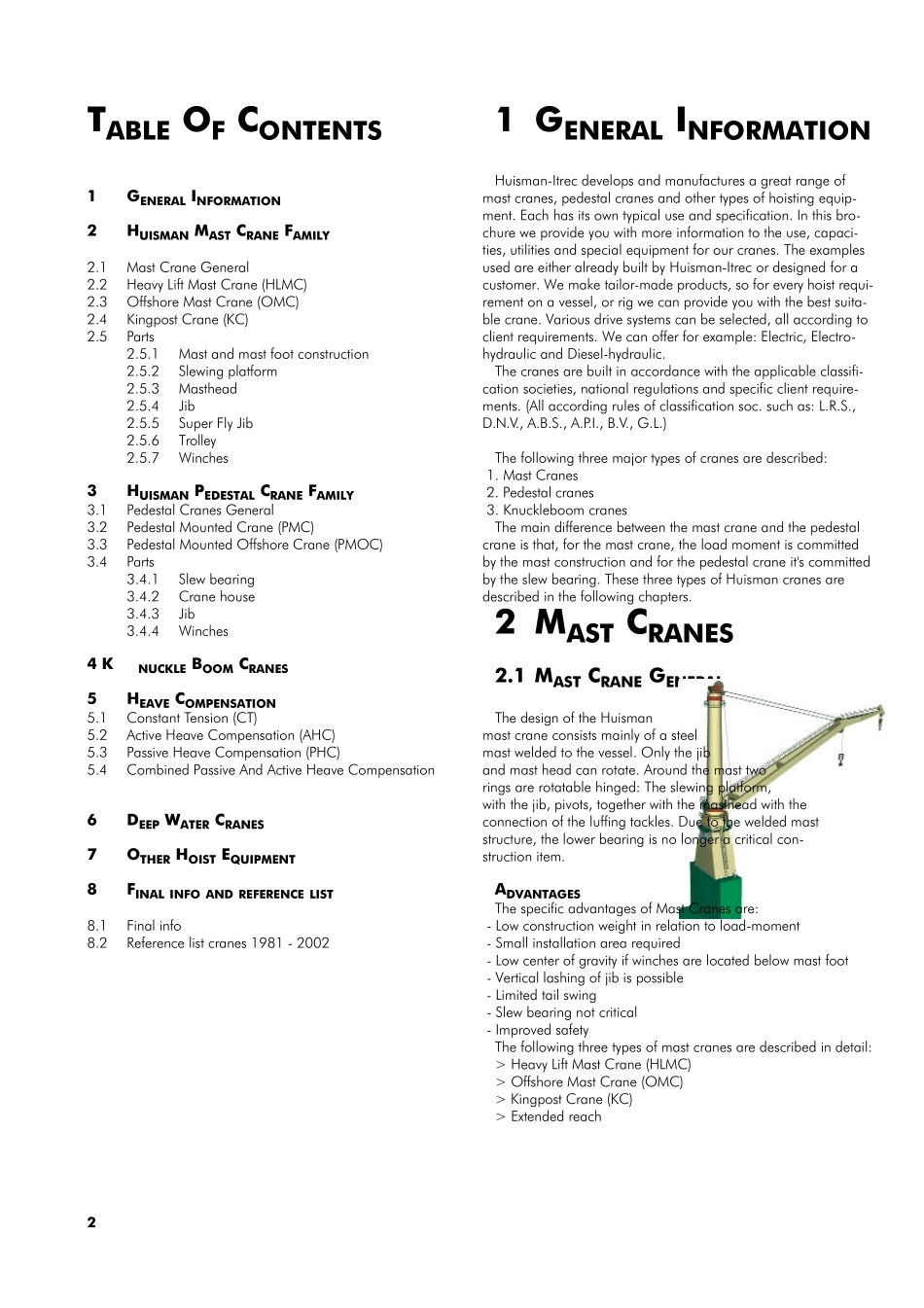

Marine & Offshore CranesMarch 2003Design and manu factu ring of special projectsTABLE OF CONTENTS1GENERAL INFORMATION2HUISMAN MAST CRANE FAMILY2.1Mast Crane General2.2Heavy Lift Mast Crane (HLMC)2.3Offshore Mast Crane (OMC)2.4Kingpost Crane (KC)2.5Parts2.5.1Mast and mast foot construction2.5.2Slewing platform2.5.3Masthead2.5.4Jib2.5.5Super Fly Jib2.5.6Trolley2.5.7Winches3HUISMAN PEDESTAL CRANE FAMILY3.1Pedestal Cranes General3.2Pedestal Mounted Crane (PMC)3.3Pedestal Mounted Offshore Crane (PMOC)3.4Parts3.4.1Slew bearing3.4.2Crane house3.4.3Jib3.4.4Winches4 KNUCKLE BOOM CRANES5HEAVE COMPENSATION5.1Constant Tension (CT)5.2Active Heave Compensation (AHC)5.3Passive Heave Compensation (PHC)5.4Combined Passive And Active Heave Compensation6DEEP WATER CRANES7OTHER HOIST EQUIPMENT8FINAL INFO AND REFERENCE LIST8.1Final info8.2Reference list cranes 1981 - 200221 GENERAL INFORMATIONHuisman-Itrec develops and manufactures a great range ofmast cranes, pedestal cranes and other types of hoisting equip-ment. Each has its own typical use and specification. In this bro-chure we provide you with more information to the use, capaci-ties, utilities and special equipment for our cranes. The examplesused are either already built by Huisman-Itrec or designed for acustomer. We make tailor-made products, so for every hoist requi-rement on a vessel, or rig we can provide you with the best suita-ble crane. Various drive systems can be selected, all according toclient requirements. We can offer for example: Electric, Electro-hydraulic and Diesel-hydraulic.The cranes are built in accordance with the applicable classifi-cation societies, national regulations and specific client require-ments. (All according rules of classification soc. such as: L.R.S.,D.N.V., A.B.S., A.P.I., B.V., G.L.)...
