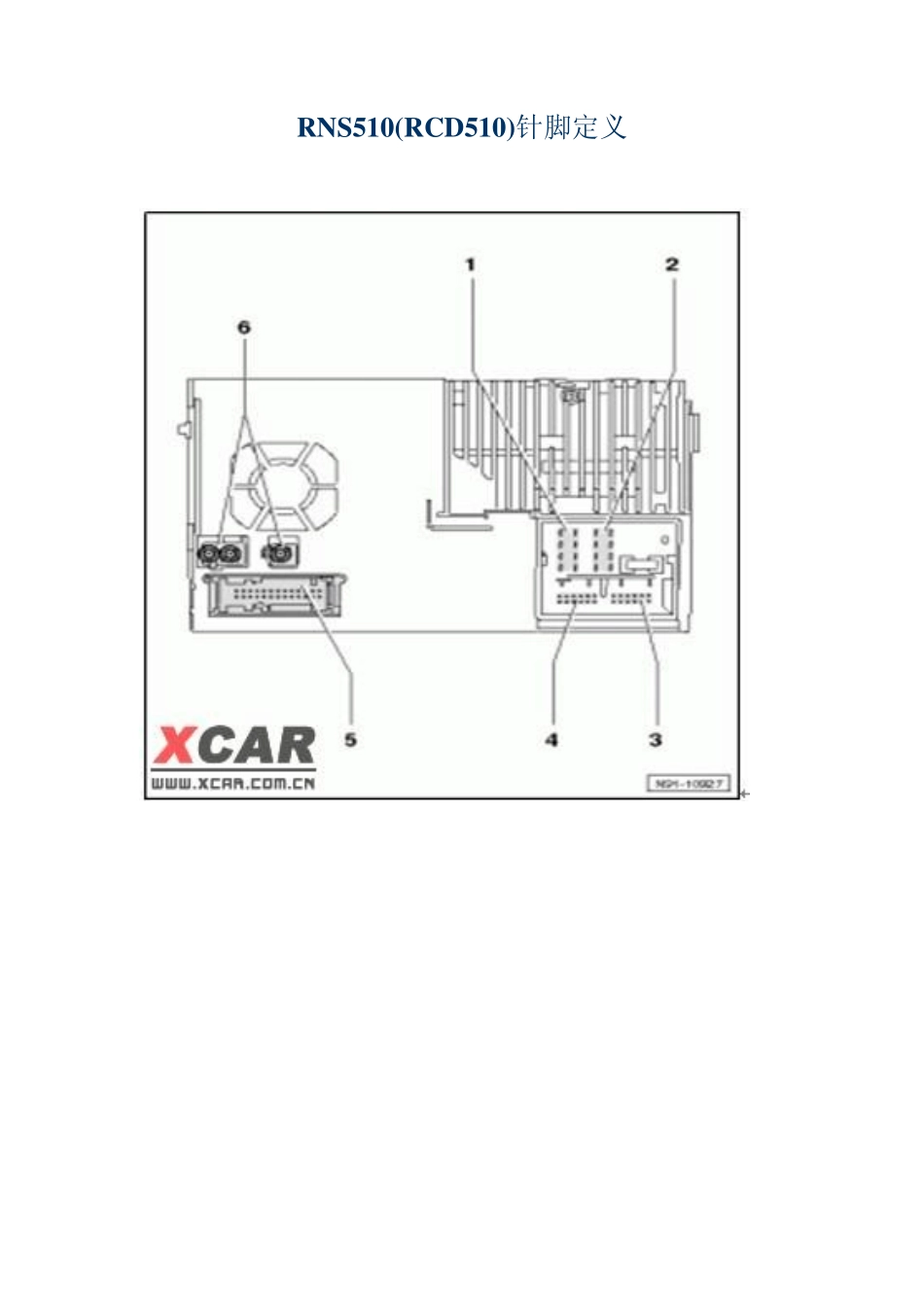

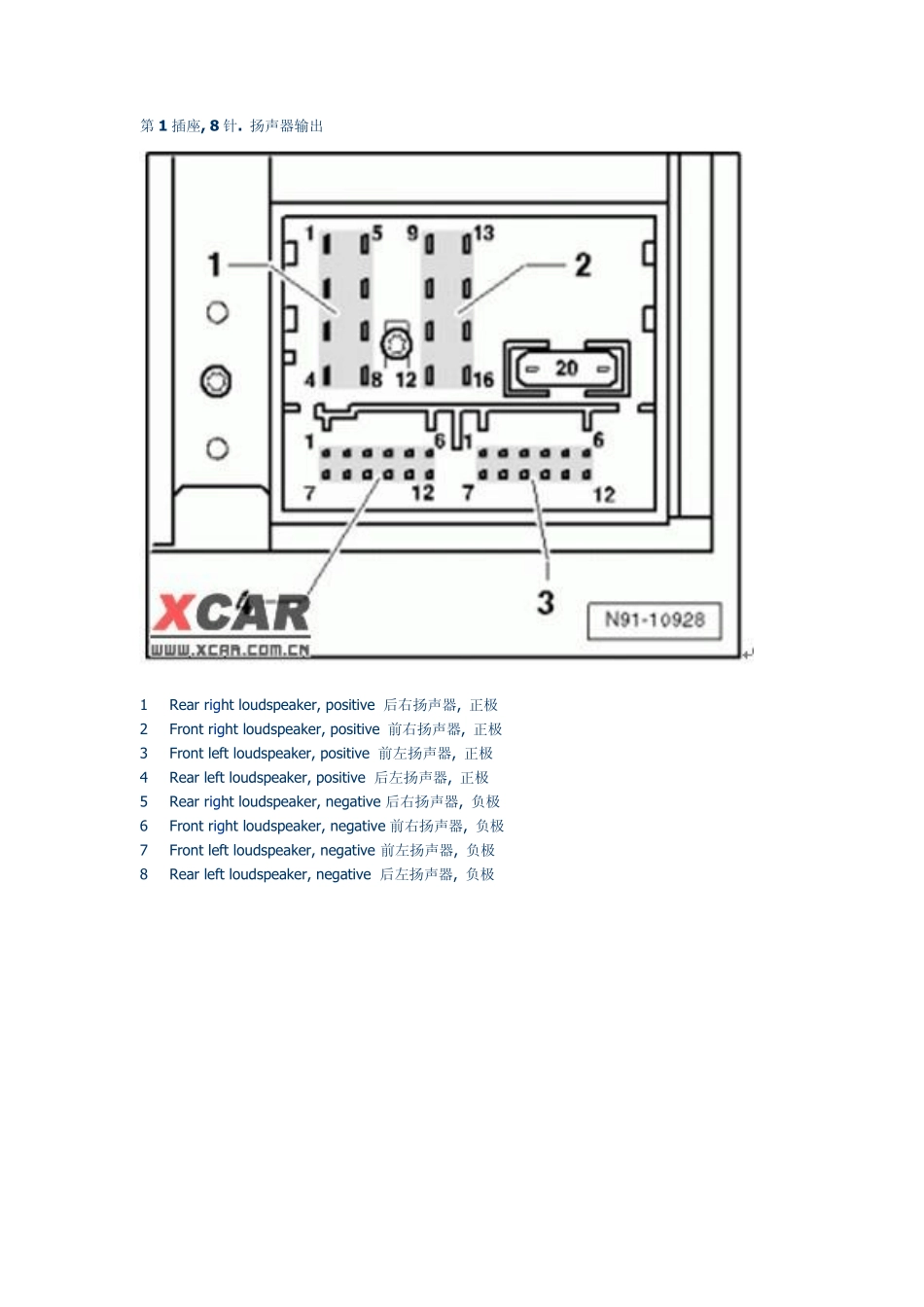

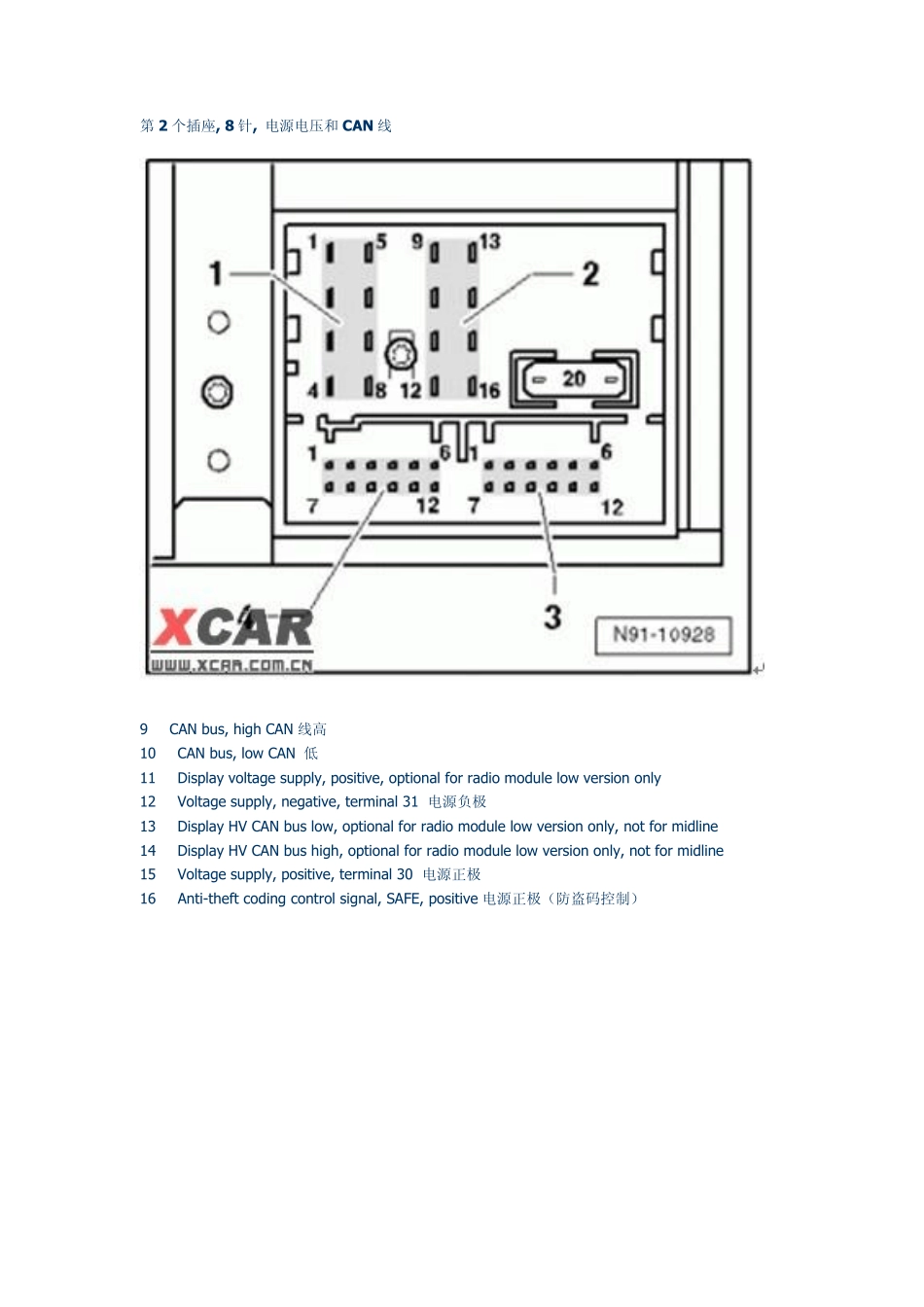

RNS510(RCD510)针脚定义 第1 插座, 8 针. 扬声器输出 1 – Rear right loudspeaker, positive 后右扬声器, 正极 2 – Front right loudspeaker, positive 前右扬声器, 正极 3 – Front left loudspeaker, positive 前左扬声器, 正极 4 – Rear left loudspeaker, positive 后左扬声器, 正极 5 – Rear right loudspeaker, negative 后右扬声器, 负极 6 – Front right loudspeaker, negative 前右扬声器, 负极 7 – Front left loudspeaker, negative 前左扬声器, 负极 8 – Rear left loudspeaker, negative 后左扬声器, 负极 第2 个插座, 8 针, 电源电压和 CAN 线 9 – CAN bus, high CAN 线高 10 – CAN bus, low CAN 低 11 – Display voltage supply, positive, optional for radio module low version only 12 – Voltage supply, negative, terminal 31 电源负极 13 – Display HV CAN bus low, optional for radio module low version only, not for midline 14 – Display HV CAN bus high, optional for radio module low version only, not for midline 15 – Voltage supply, positive, terminal 30 电源正极 16 – Anti-theft coding control signal, SAFE, positive 电源正极（防盗码控制） 第3 插座, 12 针，电话和话筒 1 – Microphone input, negative 话筒输入负极 2 – AUX output, audio, right AUX 输出, 音频, 右 3 – AUX output, common signal earth AUX 输出, 公用地 4 – Microphone output, negative 话筒输出, 负极 5 – Telephone audio input signal left, negative 电话音频输入, 左, 负极 6 – Telephone audio input signal right, negative 电话音频输入, 右, 负极 7 – Microphone input, positive 话筒输入, 正极 8 – AUX output, audio, left AUX 输出, 音频, 左 9 – Microphone output, positive 话筒输出, 正极 10 – Telephone mute (mute sw itch for radio) 电话静音 11 – Telephone audio input signal left, positive 电话音频输入, 左, 正极 12 – Telephone audio input signal right, positive 电...
