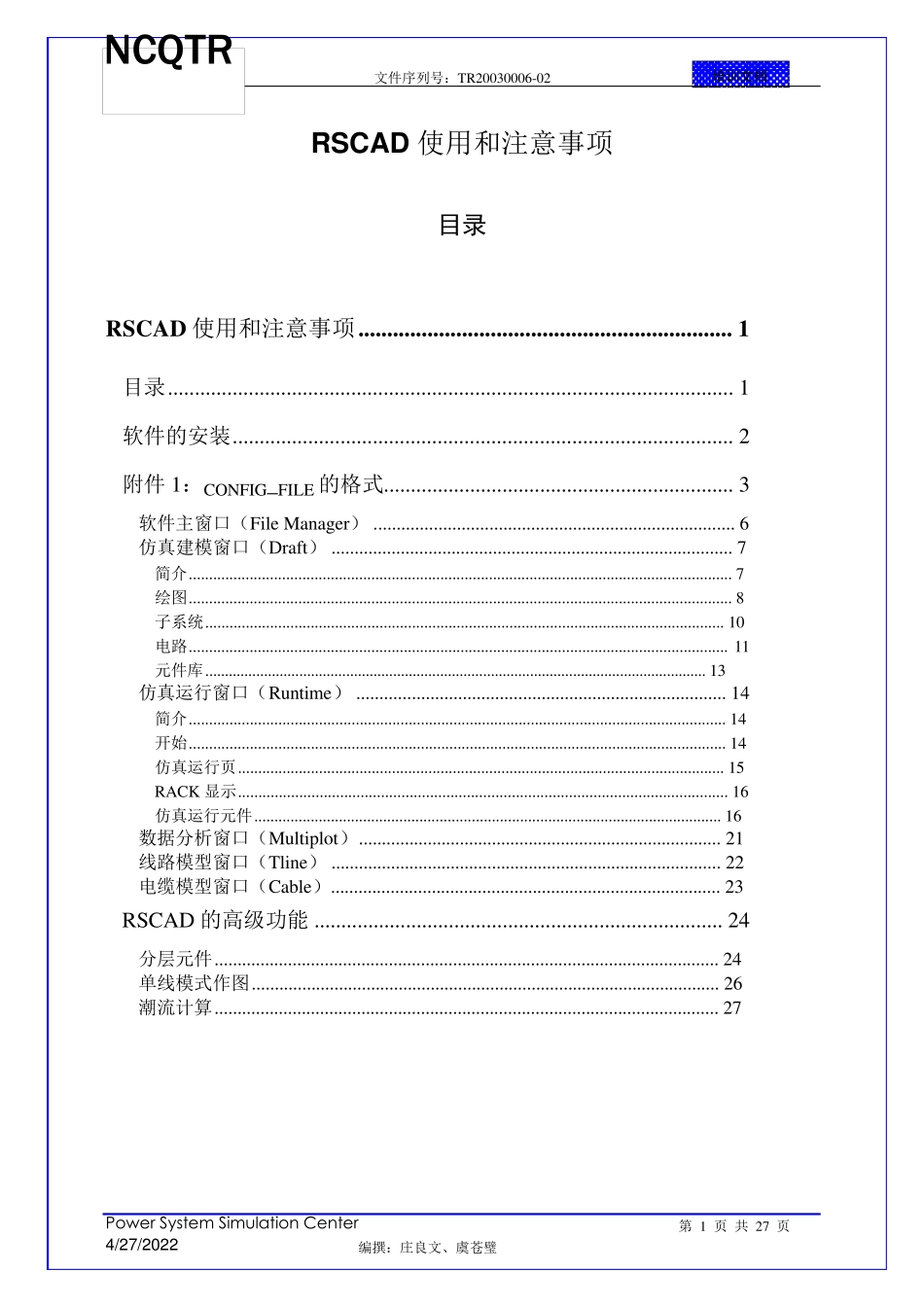

培训文档 文件序列号：TR20030006-02 Power System Simulation Center 第 1 页 共 27 页 4 /2 7 /2 0 2 2 编撰：庄良文、虞苍璧 NCQTR RSCAD 使用和注意事项 目录 RSCAD 使用和注意事项 ................................................................. 1 目录 ......................................................................................................... 1 软件的安装 ............................................................................................. 2 附件1：CONFIG_FILE 的格式................................................................. 3 软件主窗口（File Manager） .............................................................................. 6 仿真建模窗口（Draft） ....................................................................................... 7 简介 ...................................................................................................................................... 7 绘图 ...................................................................................................................................... 8 子系统 ................................................................................................................................ 10 电路 ..................................................................................................................................... 11 元件库 ................................................................................................................................ 13 仿真运行窗口（Ru ntime） ................................................................................ 14 简介 .................................................................................................................................... 14 开始 .................................................................................................................................... 14 仿真运行页 ..................................................
