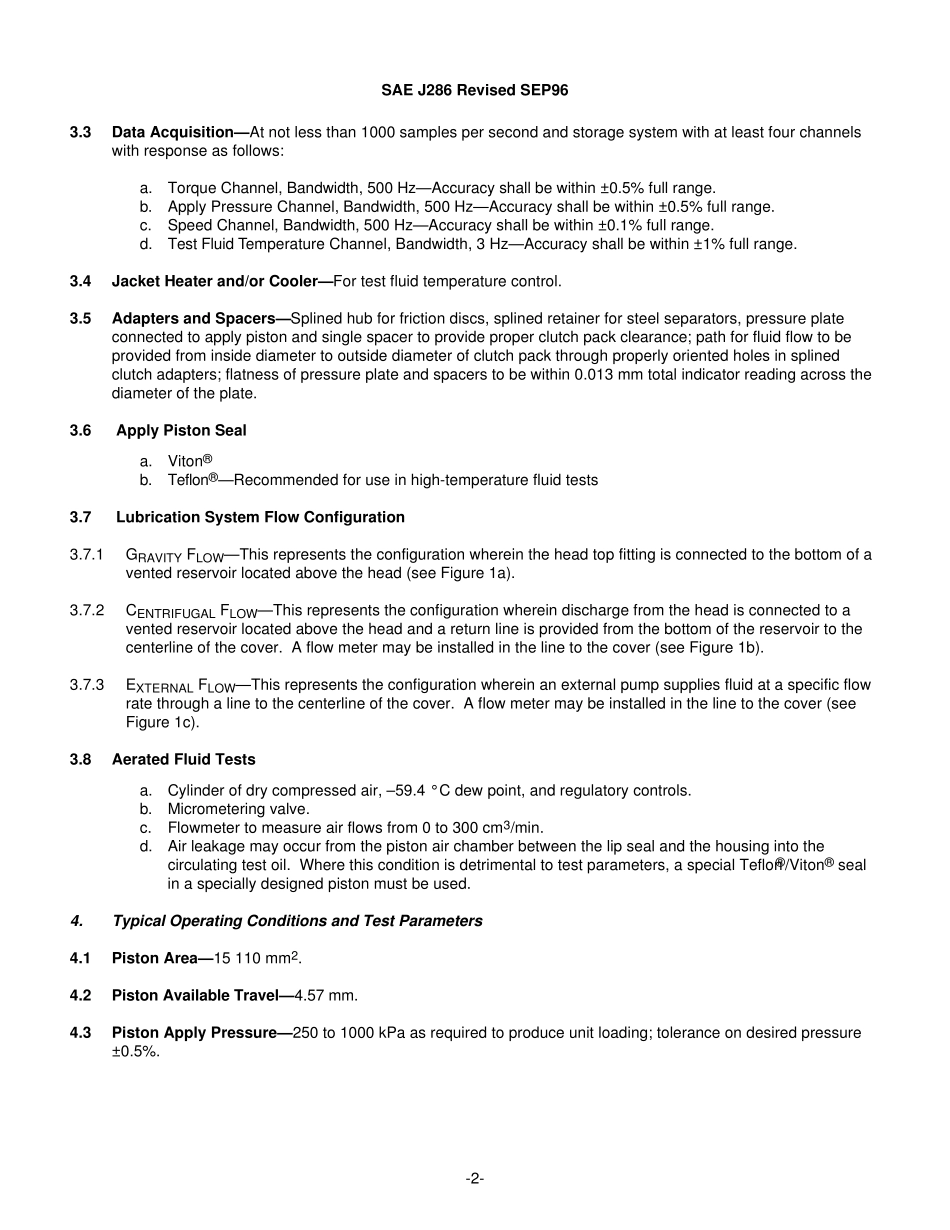

SAE Technical Standards Board Rules provide that: “This report is published by SAE to advance the state of technical and engineering sciences. The use of this report is entirelyvoluntary, and its applicability and suitability for any particular use, including any patent infringement arising therefrom, is the sole responsibility of the user.”SAE reviews each technical report at least every five years at which time it may be reaffirmed, revised, or cancelled. SAE invites your written comments and suggestions.QUESTIONS REGARDING THIS DOCUMENT: (412) 772-8512 FAX: (412) 776-0243TO PLACE A DOCUMENT ORDER; (412) 776-4970 FAX: (412) 776-0790Copyright 1996 Society of Automotive Engineers, Inc.All rights reserved.Printed in U.S.A.SAE J286 Revised SEP96-2-3.3Data Acquisition— At not less than 1000 samples per second and storage system with at least four channelswith response as follows:a.Torque Channel, Bandwidth, 500 Hz—Accuracy shall be within ±0.5% full range.b.Apply Pressure Channel, Bandwidth, 500 Hz—Accuracy shall be within ±0.5% full range.c.Speed Channel, Bandwidth, 500 Hz—Accuracy shall be within ±0.1% full range.d.Test Fluid Temperature Channel, Bandwidth, 3 Hz—Accuracy shall be within ±1% full range.3.4Jacket Heater and/or Cooler— For test fluid temperature control.3.5Adapters and Spacers— Splined hub for friction discs, splined retainer for steel separators, pressure plateconnected to apply piston and single spacer to provide proper clutch pack clearance; path for fluid flow to beprovided from inside diameter to outside diameter of clutch pack through properly oriented holes in splinedclutch adapters; flatness of pressure plate and spacers to be within 0.013 mm total indicator reading across thediameter of the...
