工程图纸英文缩写汉语对照VIP免费

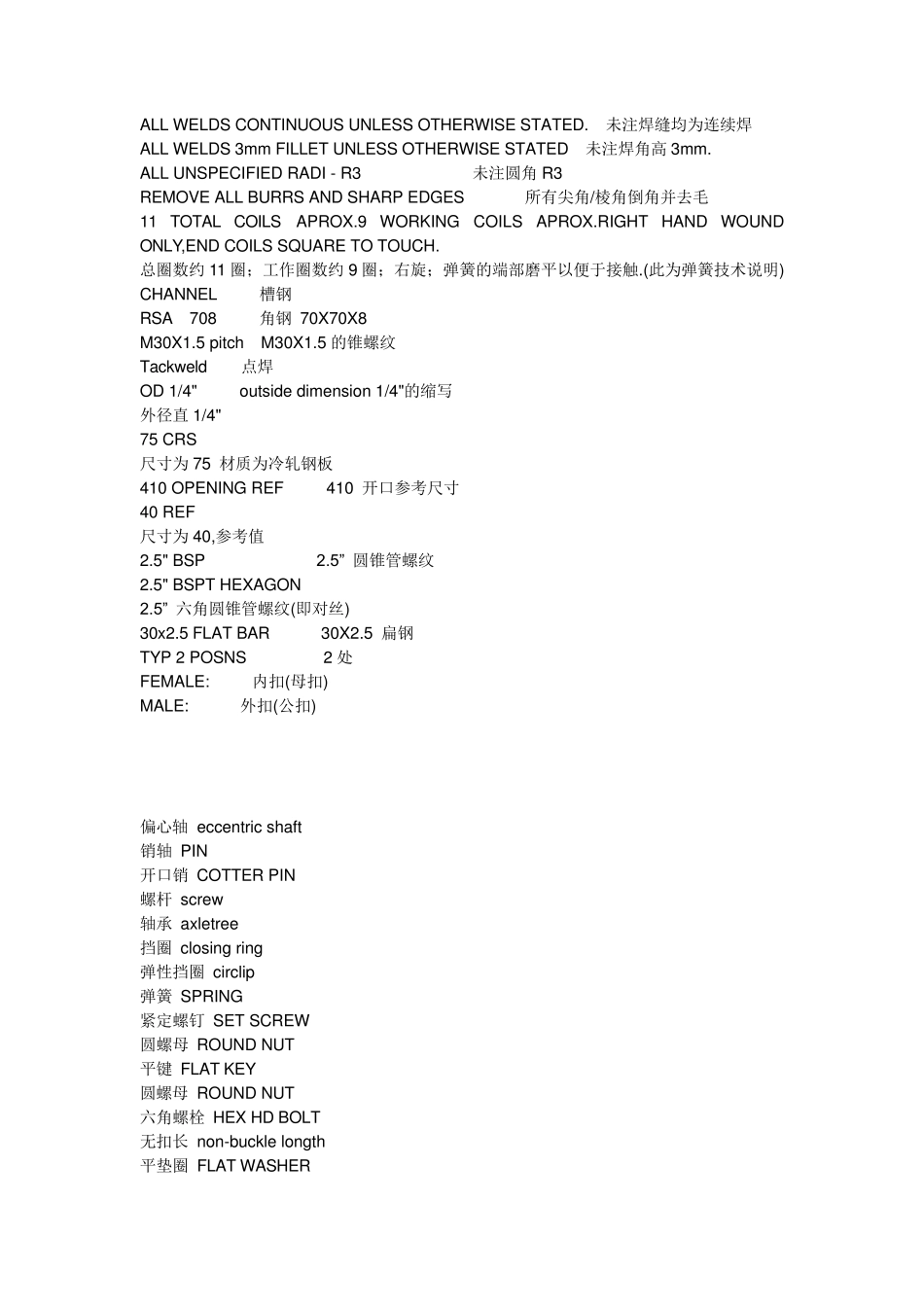

ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED. 未注焊缝均为连续焊 ALL WELDS 3mm FILLET UNLESS OTHERWISE STATED 未注焊角高3mm. ALL UNSPECIFIED RADI - R3 未注圆角R3 REMOVE ALL BURRS AND SHARP EDGES 所有尖角/棱角倒角并去毛 11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUND ONLY,END COILS SQUARE TO TOUCH. 总圈数约11 圈；工作圈数约9 圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明) CHANNEL 槽钢 RSA 708 角钢 70X70X8 M30X1.5 pitch M30X1.5 的锥螺纹 Tackweld 点焊 OD 1/4" outside dimension 1/4"的缩写 外径直1/4" 75 CRS 尺寸为75 材质为冷轧钢板 410 OPENING REF 410 开口参考尺寸 40 REF 尺寸为40,参考值 2.5" BSP 2.5” 圆锥管螺纹 2.5" BSPT HEXAGON 2.5” 六角圆锥管螺纹(即对丝) 30x2.5 FLAT BAR 30X2.5 扁钢 TYP 2 POSNS 2 处 FEMALE: 内扣(母扣) MALE: 外扣(公扣) 偏心轴 eccentric shaft 销轴 PIN 开口销 COTTER PIN 螺杆 screw 轴承 axletree 挡圈 closing ring 弹性挡圈 circlip 弹簧 SPRING 紧定螺钉 SET SCREW 圆螺母 ROUND NUT 平键 FLAT KEY 圆螺母 ROUND NUT 六角螺栓 HEX HD BOLT 无扣长 non-buckle longth 平垫圈 FLAT WASHER 螺母 FULL NYLOCK NUT 吊环螺钉 LIFTING EYE BOLT 内六角螺钉 SOCKET HEAD CAP SCREW 六角螺钉 HEX HD SETSCREW 轴承隔套 distance sleeve of axletree 深沟球轴承 DEEP GROOVE BALL BEARING 开槽盘头螺钉 SLOTTED PAN HEAD SCREW 圆锥滚子轴承 TAPERED ROLLER BEARING 推力球轴承THRUST BALL BEARING 弹簧垫圈 SINGLE COIL SPRING WASHER 缩写 全称 翻译 ACCESS Accessory 附件 ADJ Adjustable,Adjust 调整 ADPT Adapter 使适应 ADV Advance 提前 AL Aluminum 铝 ALLOW Allowance 允许 ALT Alternate 改变 ALY Alloy 合金 AMT Amout 数量 ANL Anneal 锻炼 ANSL Amer Natl Stds Institute APPROX Approximate 大约 ASME Amer Society of Mech Engrs ASSEM Assemble 装配 ASSY Assembly 装配 AUTH Authorized 授权的 AUTO Automatic 自动的 AUX Auxiliary 辅助的 AVG Average 平均 AWG Ameri...
