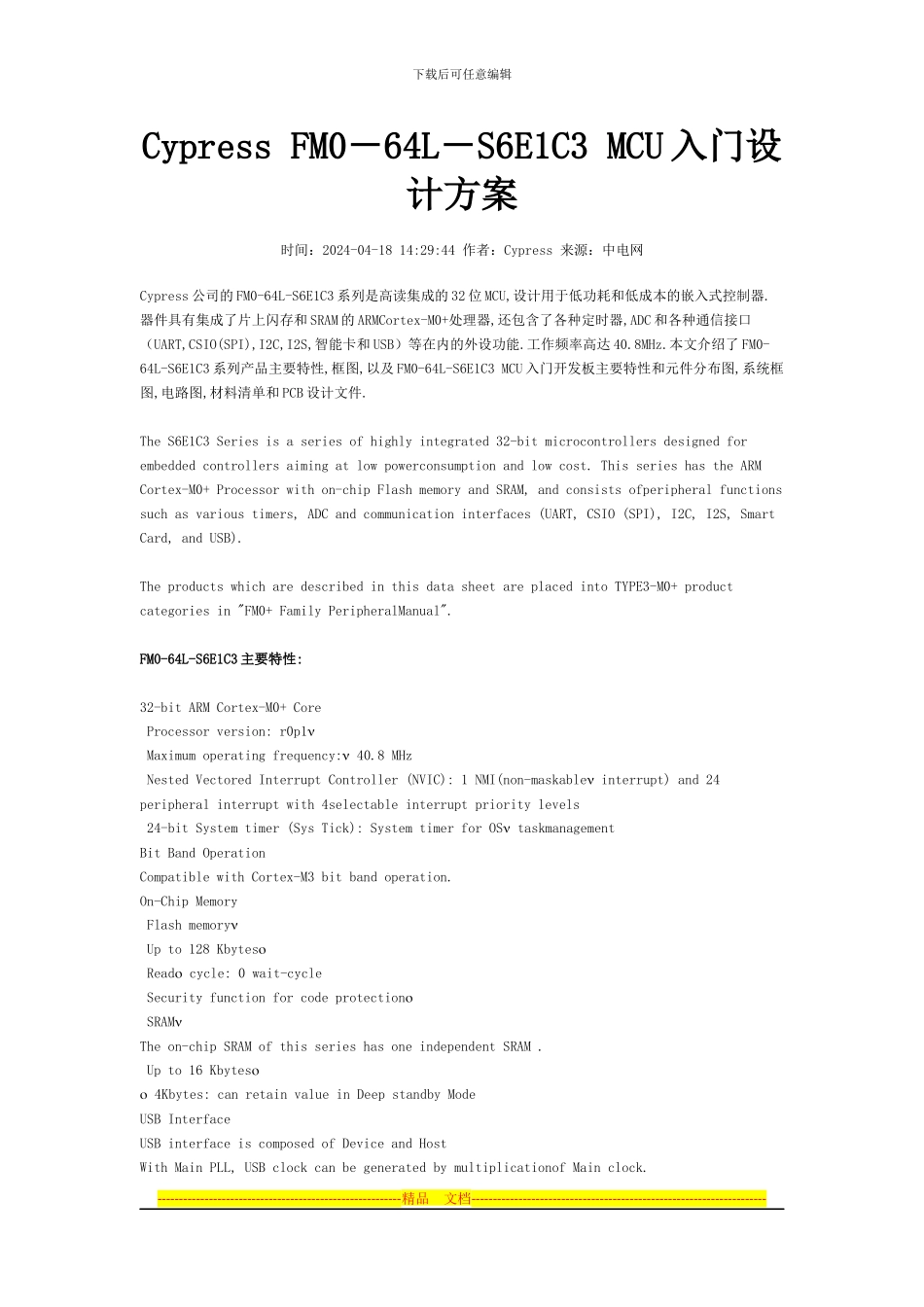

下载后可任意编辑Cypress FM0－64L－S6E1C3 MCU 入门设计方案时间：2024-04-18 14:29:44 作者：Cypress 来源：中电网Cypress 公司的 FM0-64L-S6E1C3 系列是高读集成的 32 位 MCU,设计用于低功耗和低成本的嵌入式控制器.器件具有集成了片上闪存和 SRAM 的 ARMCortex-M0+处理器,还包含了各种定时器,ADC 和各种通信接口（UART,CSIO(SPI),I2C,I2S,智能卡和 USB）等在内的外设功能.工作频率高达 40.8MHz.本文介绍了 FM0-64L-S6E1C3 系列产品主要特性,框图,以及 FM0-64L-S6E1C3 MCU 入门开发板主要特性和元件分布图,系统框图,电路图,材料清单和 PCB 设计文件.The S6E1C3 Series is a series of highly integrated 32-bit microcontrollers designed for embedded controllers aiming at low powerconsumption and low cost. This series has the ARM Cortex-M0+ Processor with on-chip Flash memory and SRAM, and consists ofperipheral functions such as various timers, ADC and communication interfaces (UART, CSIO (SPI), I2C, I2S, Smart Card, and USB).The products which are described in this data sheet are placed into TYPE3-M0+ product categories in "FM0+ Family PeripheralManual".FM0-64L-S6E1C3 主要特性:32-bit ARM Cortex-M0+ Core Processor version: r0p1 Maximum operating frequency: 40.8 MHz Nested Vectored Interrupt Controller (NVIC): 1 NMI(non-maskable interrupt) and 24 peripheral interrupt with 4selectable interrupt priority levels 24-bit System timer (Sys Tick): System timer for OS taskmanagementBit Band OperationCompatible with Cortex-M3 bit band operation.On-Chip Memory Flash memory Up to 128 Kbytes Read cycle: 0 wait-cycle Security function for code protection SRAMThe on-chip SRAM of this series has one independent SRAM . Up to 16 Kbytes 4Kbytes: can retain value in Deep standby ModeUSB InterfaceUSB interface is composed of Device and HostWith Main PLL, USB clock can be generated by multiplicationof Main clock....
