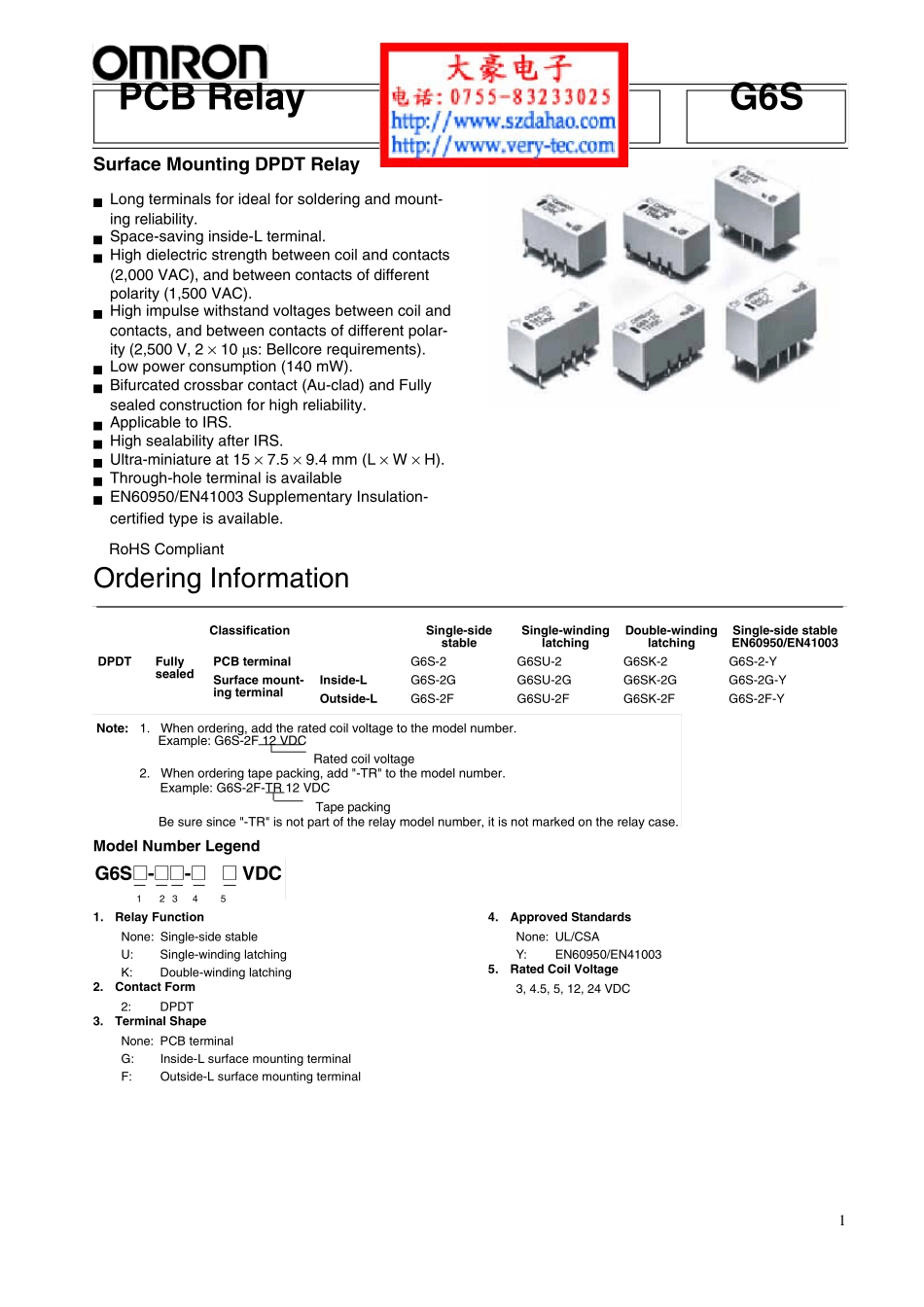

1G6S PCB RelaySurface Mounting DPDT Relay■ Long terminals for ideal for soldering and mount-ing reliability.■ Space-saving inside-L terminal.■ High dielectric strength between coil and contacts (2,000 VAC), and between contacts of different polarity (1,500 VAC).■ High impulse withstand voltages between coil and contacts, and between contacts of different polar-ity (2,500 V, 2 × 10 μs: Bellcore requirements).■ Low power consumption (140 mW).■ Bifurcated crossbar contact (Au-clad) and Fully sealed construction for high reliability.■ Applicable to IRS.■ High sealability after IRS.■ Ultra-miniature at 15 × 7.5 × 9.4 mm (L × W × H).■ Through-hole terminal is available■ EN60950/EN41003 Supplementary Insulation-certified type is available.Ordering InformationModel Number Legend1.Relay FunctionNone: Single-side stableU:Single-winding latchingK:Double-winding latching2.Contact Form2:DPDT3.Terminal ShapeNone: PCB terminalG:Inside-L surface mounting terminalF:Outside-L surface mounting terminal4.Approved StandardsNone: UL/CSAY:EN60950/EN410035.Rated Coil Voltage3, 4.5, 5, 12, 24 VDCRoHS CompliantClassificationSingle-side stableSingle-winding latchingDouble-winding latchingSingle-side stable EN60950/EN41003DPDTFully sealedPCB terminalG6S-2G6SU-2G6SK-2G6S-2-YSurface mount-ing terminalInside-LG6S-2GG6SU-2GG6SK-2GG6S-2G-YOutside-LG6S-2FG6SU-2FG6SK-2FG6S-2F-YRated coil voltageNote: 1. When ordering, add the rated coil voltage to the model number.Example: G6S-2F 12 VDC 2. When ordering tape packing, add "-TR" to the model number.Example: G6S-2F-TR 12 VDC Be sure since "-TR" is not part of the relay model number, it is not marked on the relay case.Tape packingG6S@-@@-@@ VDC1 2 3 4 52G6SG6SSpecifications■ Coil RatingsSingle-side Stable Type (G6S-2, G6S-2F, G6S-2G)N...
