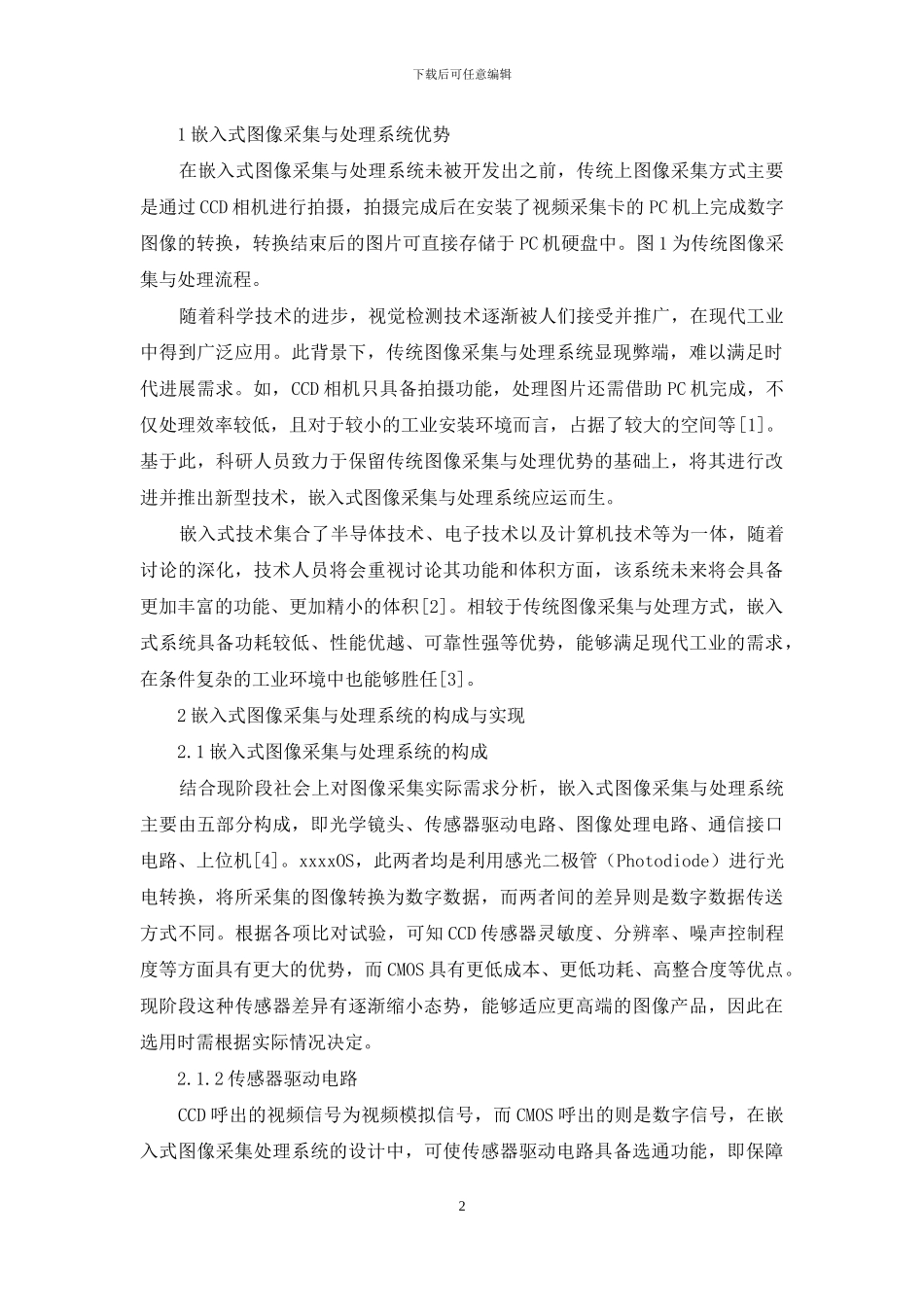

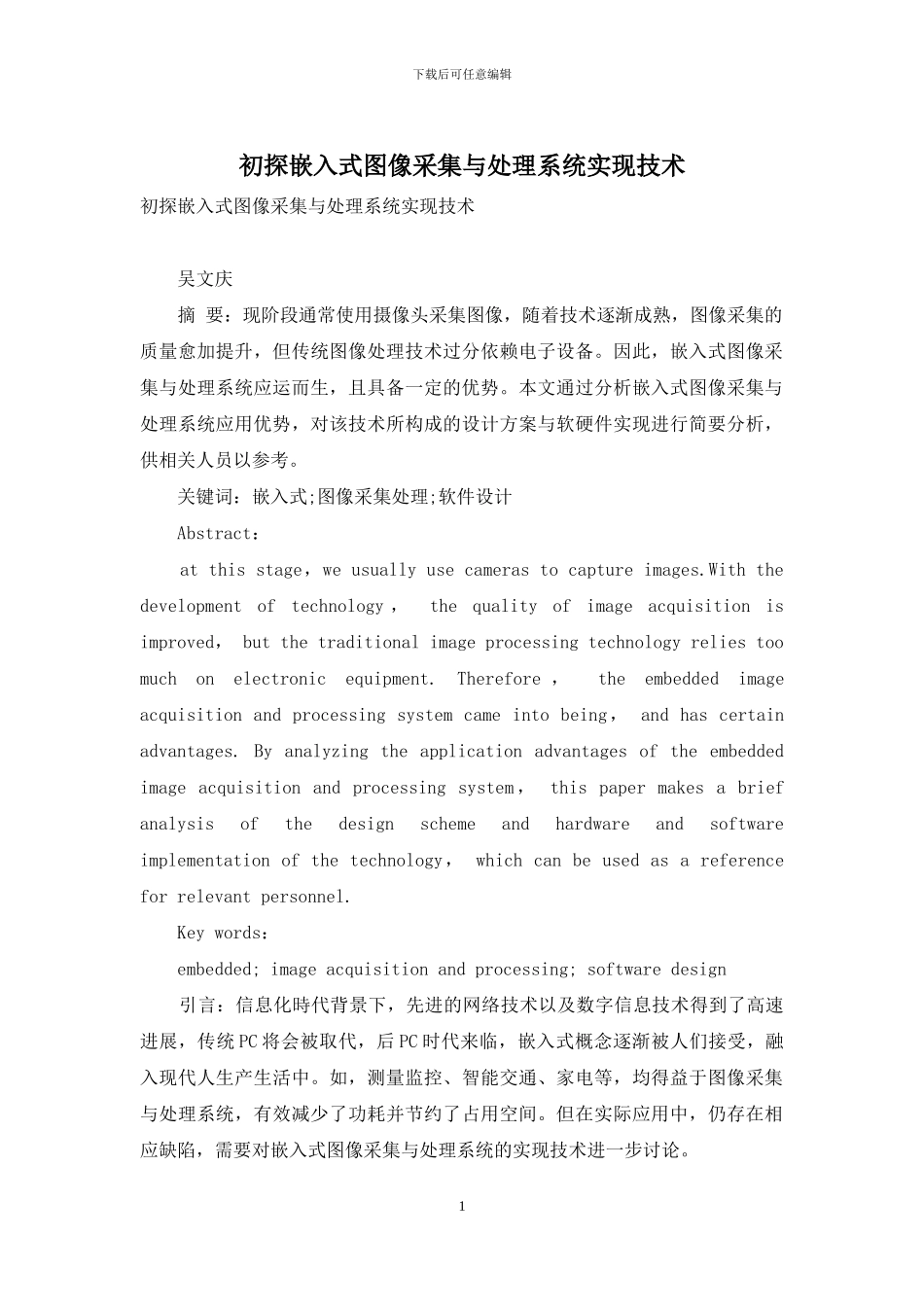

下载后可任意编辑初探嵌入式图像采集与处理系统实现技术初探嵌入式图像采集与处理系统实现技术 吴文庆 摘 要:现阶段通常使用摄像头采集图像,随着技术逐渐成熟,图像采集的质量愈加提升,但传统图像处理技术过分依赖电子设备。因此,嵌入式图像采集与处理系统应运而生,且具备一定的优势。本文通过分析嵌入式图像采集与处理系统应用优势,对该技术所构成的设计方案与软硬件实现进行简要分析,供相关人员以参考。 关键词:嵌入式;图像采集处理;软件设计 Abstract: at this stage,we usually use cameras to capture images.With the development of technology , the quality of image acquisition is improved, but the traditional image processing technology relies too much on electronic equipment. Therefore , the embedded image acquisition and processing system came into being, and has certain advantages. By analyzing the application advantages of the embedded image acquisition and processing system , this paper makes a brief analysis of the design scheme and hardware and software implementation of the technology, which can be used as a reference for relevant personnel. Key words: embedded; image acquisition and processing; software design 引言:信息化時代背景下,先进的网络技术以及数字信息技术得到了高速进展,传统 PC 将会被取代,后 PC 时代来临,嵌入式概念逐渐被人们接受,融入现代人生产生活中。如,测量监控、智能交通、家电等,均得益于图像采集与处理系统,有效减少了功耗并节约了占用空间。但在实际应用中,仍存在相应缺陷,需要对嵌入式图像采集与处理系统的实现技术进一步讨论。 1下载后可任意编辑 1 嵌入式图像采集与处理系统优势 在嵌入式图像采集与处理系统未被开发出之前,传统上图像采集方式主要是通过 CCD 相机进行拍摄,拍摄完成后在安装了视频采集卡的 PC 机上完成数字图像的转换,转换结束后的图片可直接存储于 PC 机硬盘中。图 1 为传统图像采集与处理流程。 随着科学技术的进步,视觉检测技术逐渐被人们接受并推广,在现代工业中得到广泛应用。此背景下,传统图像采集与处理系统显现弊端,难以满足时代进展需求。如,CCD 相...
