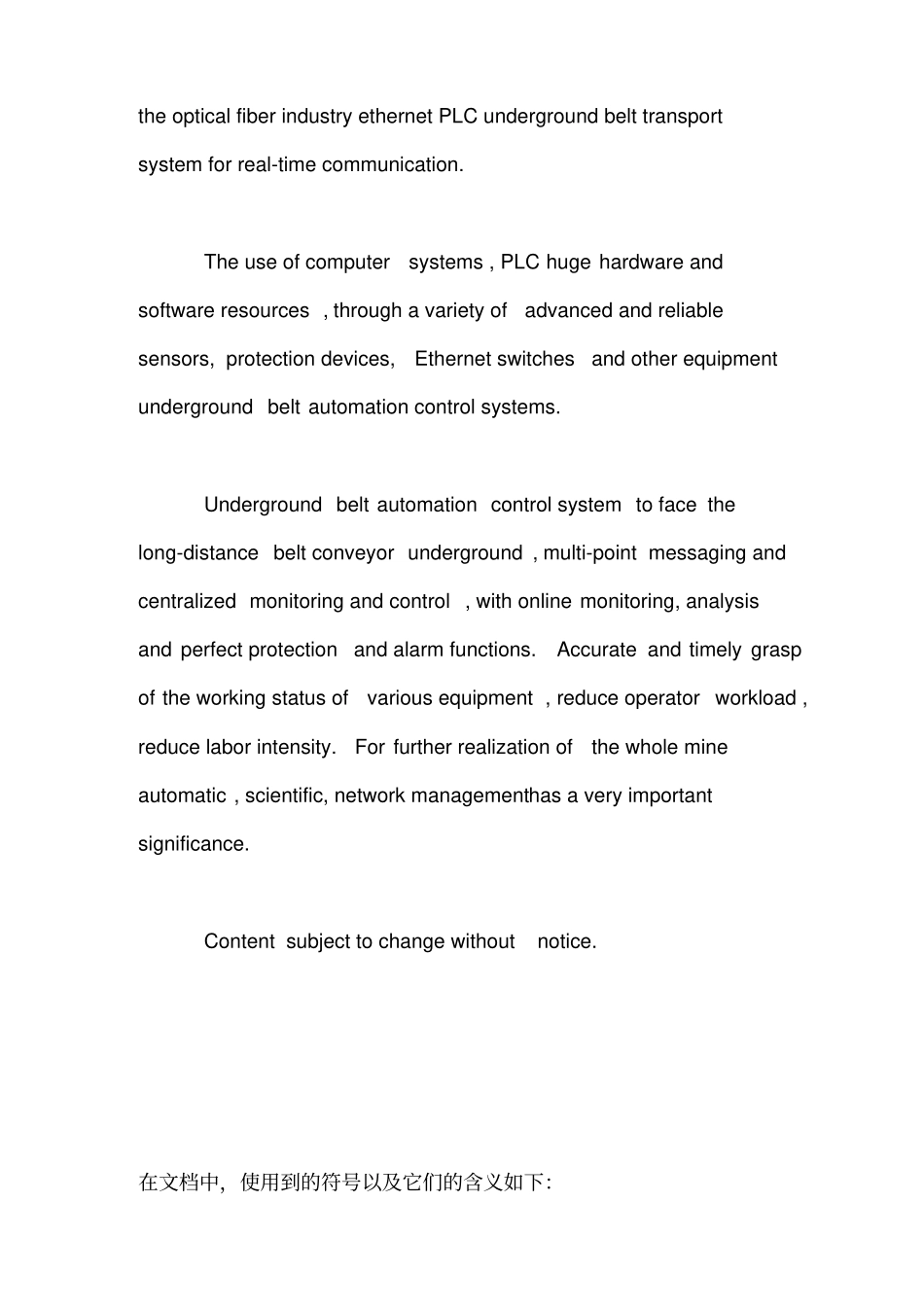

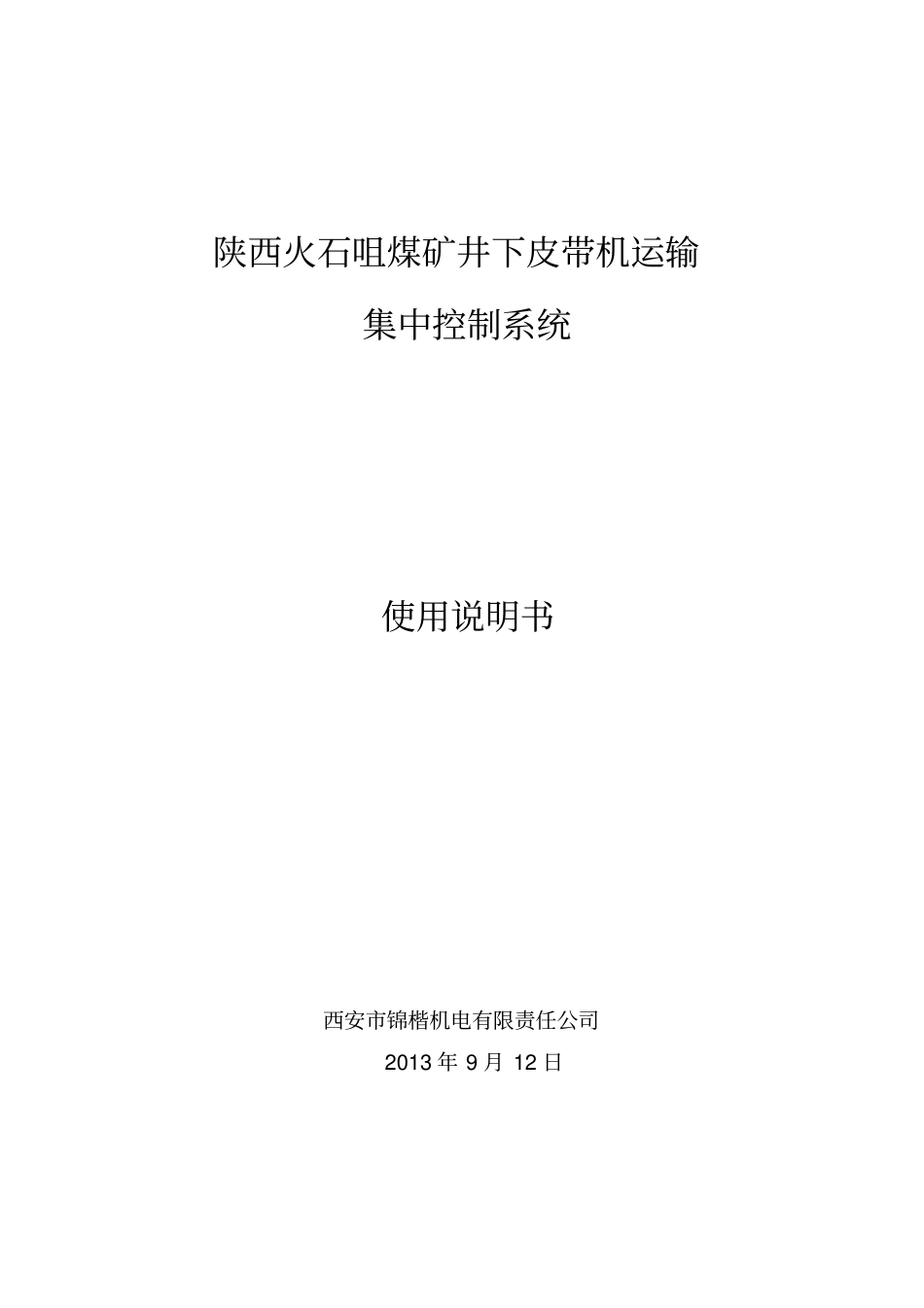

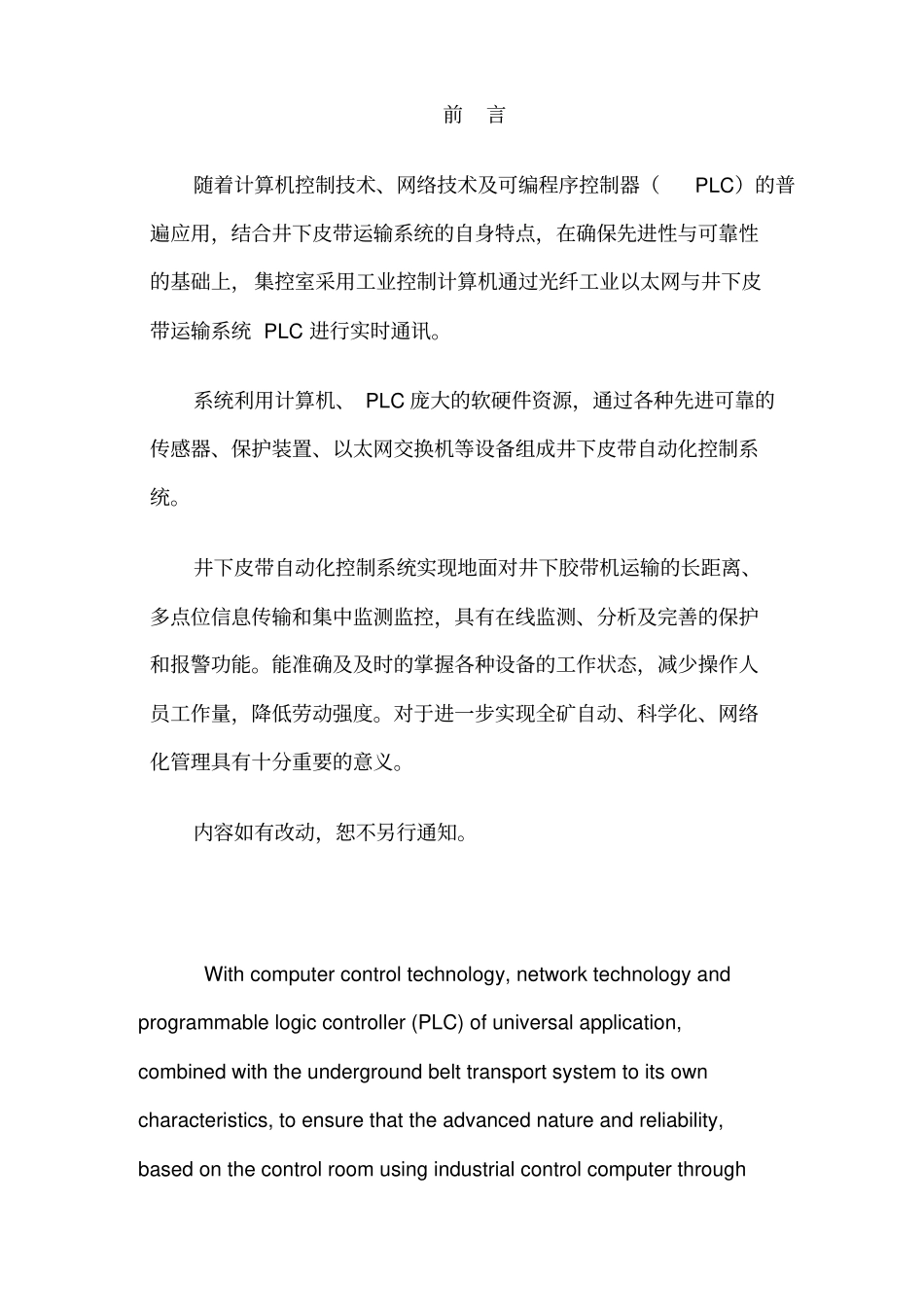

陕西火石咀煤矿井下皮带机运输集中控制系统使用说明书西安市锦楷机电有限责任公司2013 年 9 月 12 日前言随着计算机控制技术、网络技术及可编程序控制器(PLC)的普遍应用,结合井下皮带运输系统的自身特点,在确保先进性与可靠性的基础上,集控室采用工业控制计算机通过光纤工业以太网与井下皮带运输系统 PLC 进行实时通讯。系统利用计算机、 PLC 庞大的软硬件资源,通过各种先进可靠的传感器、保护装置、以太网交换机等设备组成井下皮带自动化控制系统。井下皮带自动化控制系统实现地面对井下胶带机运输的长距离、多点位信息传输和集中监测监控,具有在线监测、分析及完善的保护和报警功能。能准确及及时的掌握各种设备的工作状态,减少操作人员工作量,降低劳动强度。对于进一步实现全矿自动、科学化、网络化管理具有十分重要的意义。内容如有改动,恕不另行通知。With computer control technology, network technology and programmable logic controller (PLC) of universal application, combined with the underground belt transport system to its own characteristics, to ensure that the advanced nature and reliability, based on the control room using industrial control computer through the optical fiber industry ethernet PLC underground belt transport system for real-time communication. The use of computersystems , PLC huge hardware and software resources , through a variety ofadvanced and reliablesensors, protection devices,Ethernet switchesand other equipmentunderground belt automation control systems. Underground belt automation control system to face thelong-distance belt conveyor underground , multi-point messaging andcentralized monitoring and control , with online monitoring, analysisand perfect protection and alarm functions.Accurate and timely grasp of the working status ofvarious equipment , reduce operator workload , reduce labor intensity.For further realization ofthe whole mineautomatic , scientific, network management has a very importantsignificance. Content subject to...
