电脑连接器冲压模具设计说明书模板

电脑连接器冲压模具设计说明书模板_第1页
1/54
电脑连接器冲压模具设计说明书模板_第2页
2/54

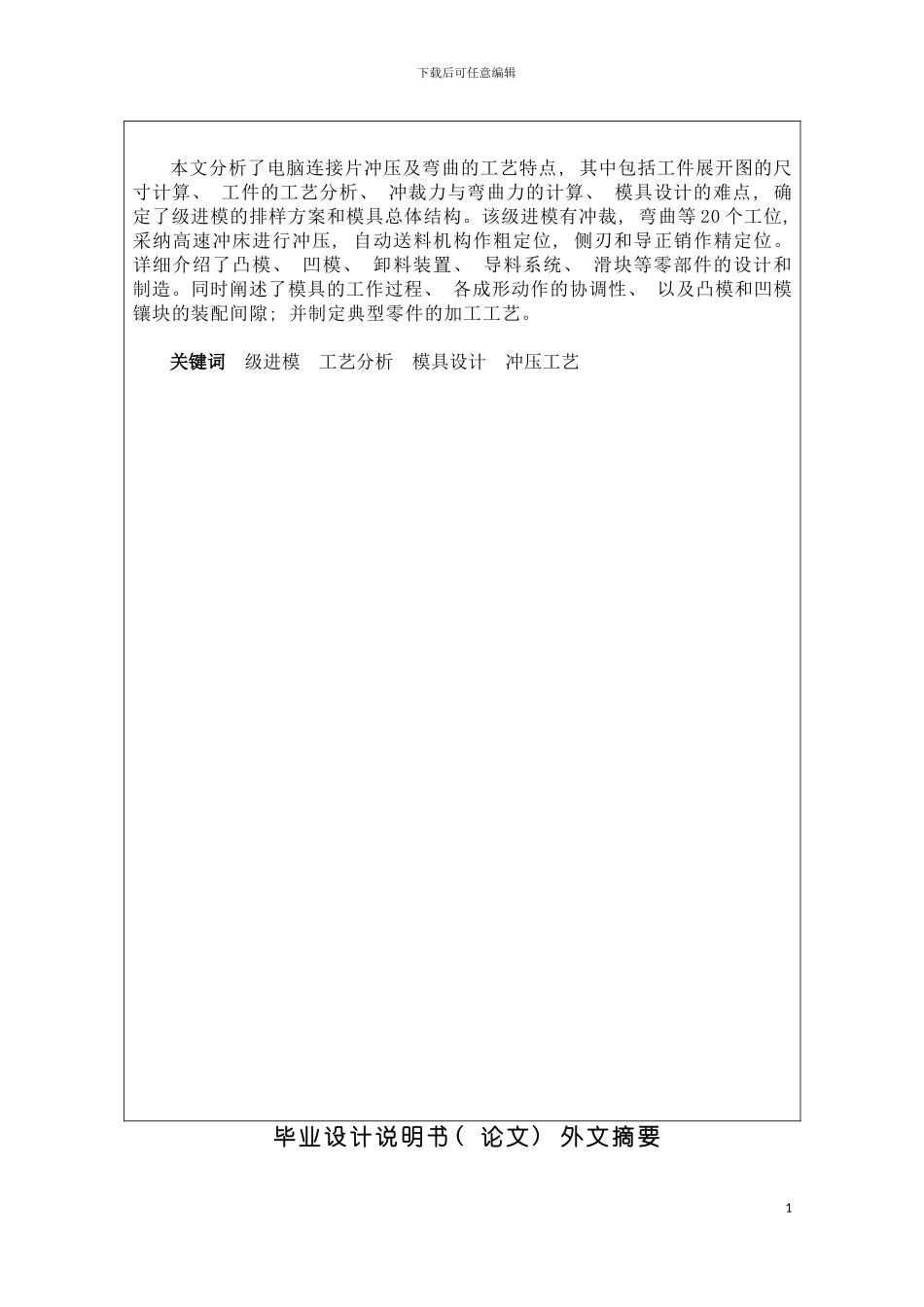

电脑连接器冲压模具设计说明书模板_第3页
3/54
下载后可任意编辑电脑连接器冲压模具设计说明书1下载后可任意编辑南 京 工 程 学 院毕业设计说明书(论文)作 者: 学 号: 学院( 系、 部) : 材料工程学院 专 业: 材料成型及控制工程 ( 模具设计 ) 题 目: 电脑连接器冲压模具设计 指导者: 评阅者: 4 月 南 京毕业设计说明书( 论文) 中文摘要0下载后可任意编辑本文分析了电脑连接片冲压及弯曲的工艺特点, 其中包括工件展开图的尺寸计算、 工件的工艺分析、 冲裁力与弯曲力的计算、 模具设计的难点, 确定了级进模的排样方案和模具总体结构。该级进模有冲裁, 弯曲等 20 个工位, 采纳高速冲床进行冲压, 自动送料机构作粗定位, 侧刃和导正销作精定位。详细介绍了凸模、 凹模、 卸料装置、 导料系统、 滑块等零部件的设计和制造。同时阐述了模具的工作过程、 各成形动作的协调性、 以及凸模和凹模镶块的装配间隙; 并制定典型零件的加工工艺。关键词 级进模 工艺分析 模具设计 冲压工艺毕业设计说明书( 论文) 外文摘要1下载后可任意编辑Title: Design of the stamping mould for the connecter of the computer Abstract: This paper analyzed the technological characteristics of the connecter of the computer, including the size calculation of the part blank development, technical analyzes, the calculation of the punching force and bending force, the difficulty of die design, then the layout project and the die general structure were decisided. The progressive die could complete twenty processes that include punching, bending, and so on. The high-speed punching machine in adoption proceeds to press, the automatic feeding system fixed position imprecisely, the edge knife and the leading pin fixed position accurately. It detailly introduced the design and manufacture of the punch, the die, the stripping device, the guiding system, and slippery piece. And it expatiated the work process of the die, the coordination of each figuration’s motion, and the assemble cleft of the punch and die. Also it established th...
