是德科技keysightn9320b射频频谱分析仪使用手册说明书技术指标,原安捷伦agilent

是德科技keysightn9320b射频频谱分析仪使用手册说明书技术指标,原安捷伦agilent_第1页
1/11
是德科技keysightn9320b射频频谱分析仪使用手册说明书技术指标,原安捷伦agilent_第2页
2/11
是德科技keysightn9320b射频频谱分析仪使用手册说明书技术指标,原安捷伦agilent_第3页
3/11

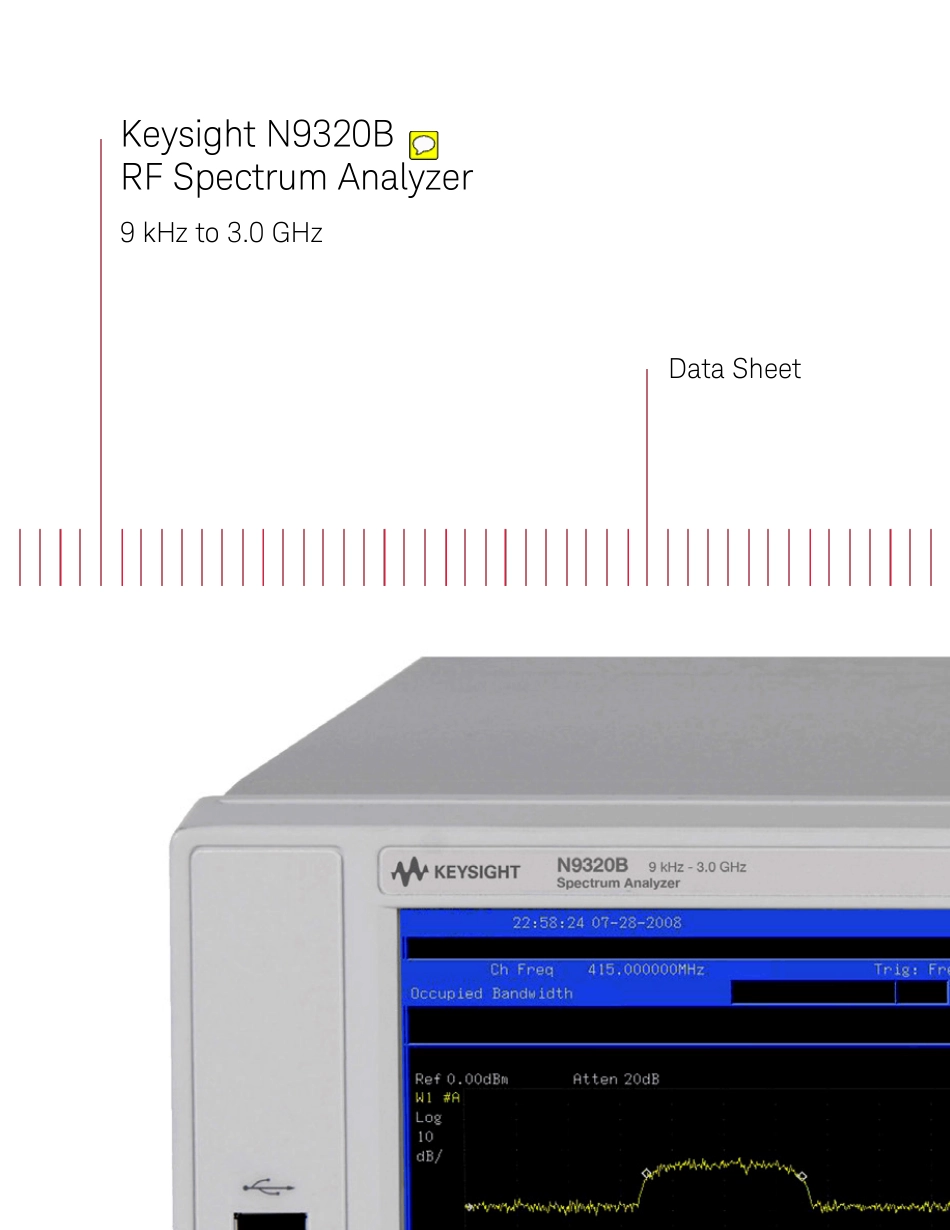

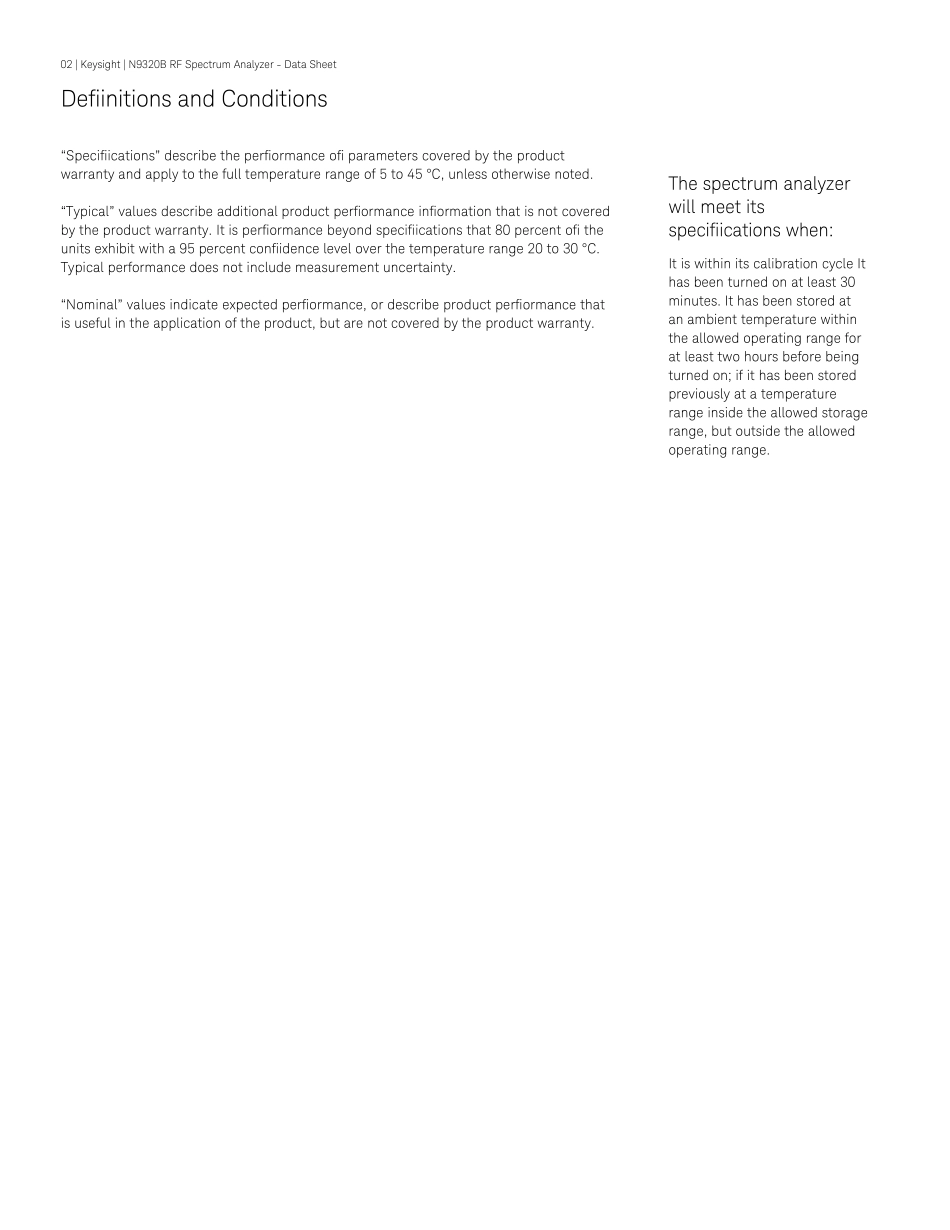

Keysight N9320B RF Spectrum Analyzer9 kHz to 3.0 GHzData Sheet02 | Keysight | N9320B RF Spectrum Analyzer - Data SheetThe spectrum analyzer will meet its specifications when:It is within its calibration cycle It has been turned on at least 30 minutes. It has been stored at an ambient temperature within the allowed operating range for at least two hours before being turned on; if it has been stored previously at a temperature range inside the allowed storage range, but outside the allowed operating range.“Specifications” describe the performance of parameters covered by the product warranty and apply to the full temperature range of 5 to 45 ° C, unless otherwise noted.“Typical” values describe additional product performance information that is not covered by the product warranty. It is performance beyond specifications that 80 percent of the units exhibit with a 95 percent confidence level over the temperature range 20 to 30 °C. Typical performance does not include measurement uncertainty.“Nominal” values indicate expected performance, or describe product performance that is useful in the application of the product, but are not covered by the product warranty. Definitions and Conditions 03 | Keysight | N9320B RF Spectrum Analyzer - Data SheetSupplemental InformationFrequencyRange9 kHz to 3 GHzAC coupled100 kHz to 3 GHzPreamp onResolution1 HzInternal 10 MHz frequency referenceAging rate± 1 ppm/yearTemperature stability± 1 ppm5 to +45 °C, reference 25 °C Supply voltage stability± 0.3 ppmResidual FM≤ 100 Hz p-p in 100 ms nominalRBW = 1 kHz, VBW = 1 kHzFrequency readout accuracy (start, stop, center, marker)Marker resolution(freq span)/(number of sweep point -1)Uncertainty ± (freq indication x freq...
