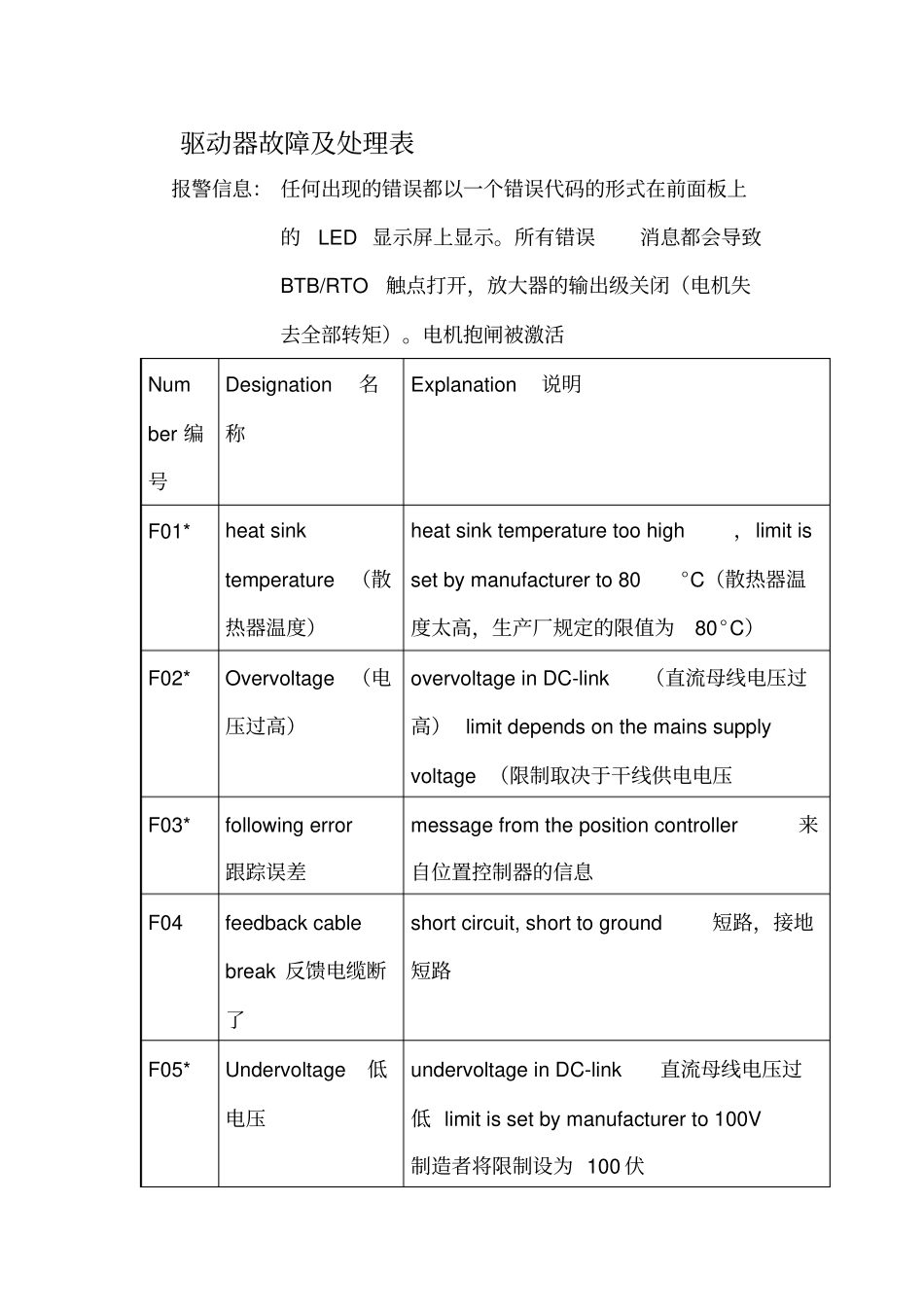

驱动器故障及处理表

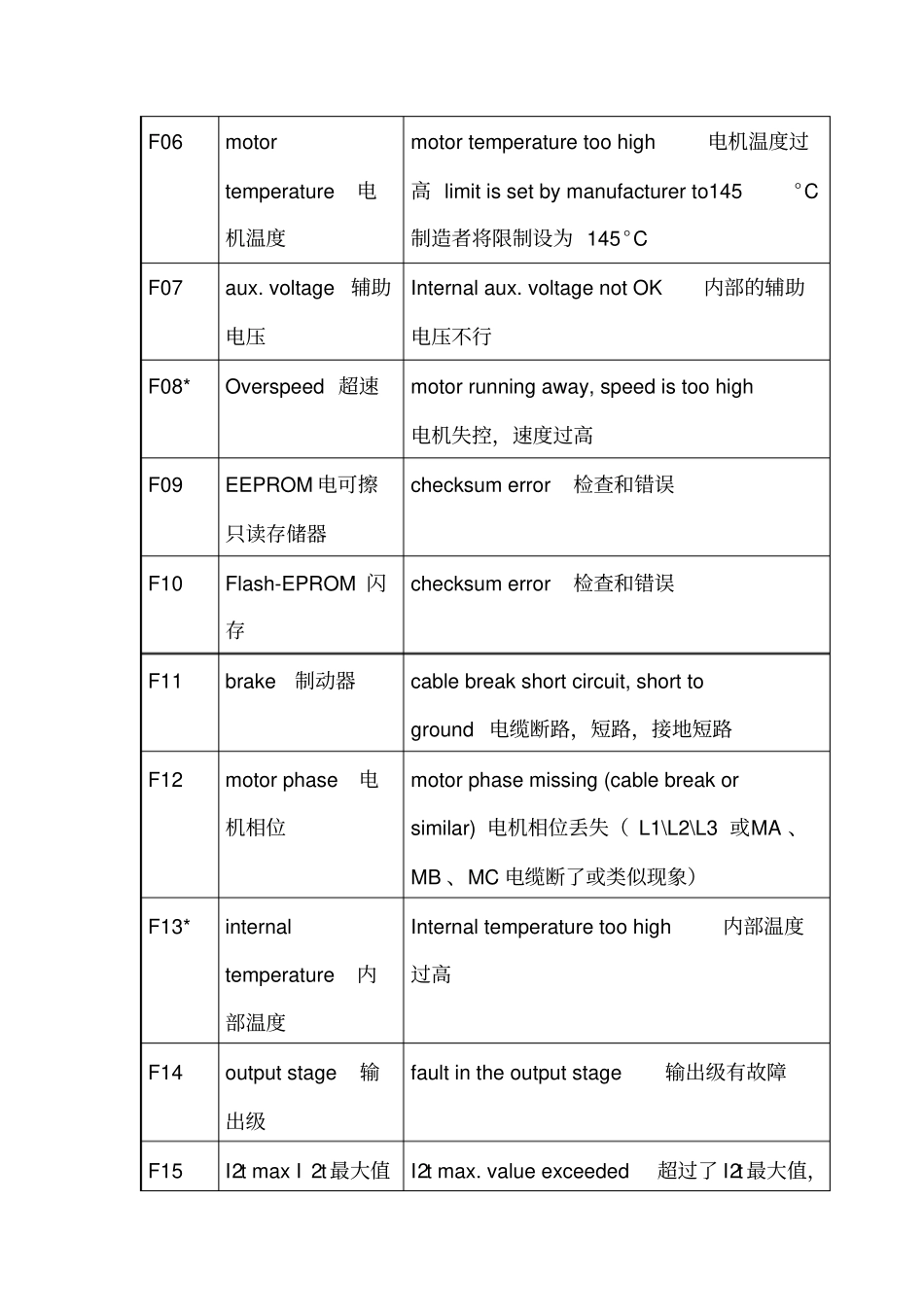

驱动器故障及处理表报警信息： 任何出现的错误都以一个错误代码的形式在前面板上的LED 显示屏上显示。所有错误消息都会导致BTB/RTO 触点打开，放大器的输出级关闭（电机失去全部转矩）。电机抱闸被激活Number 编号Designation名称Explanation说明F01* heat sink temperature （散热器温度）heat sink temperature too high，limit is set by manufacturer to 80°C（散热器温度太高，生产厂规定的限值为80°C）F02* Overvoltage （电压过高）overvoltage in DC-link（直流母线电压过高） limit depends on the mains supply voltage （限制取决于干线供电电压F03*following error跟踪误差message from the position controller来自位置控制器的信息F04 feedback cable break 反馈电缆断了short circuit, short to ground短路，接地短路F05* Undervoltage低电压undervoltage in DC-link直流母线电压过低 limit is set by manufacturer to 100V制造者将限制设为 100 伏F06 motor temperature电机温度motor temperature too high电机温度过高 limit is set by manufacturer to145°C制造者将限制设为 145°C F07 aux. voltage 辅助电压Internal aux. voltage not OK内部的辅助电压不行F08* Overspeed 超速motor running away, speed is too high电机失控，速度过高F09 EEPROM 电可擦只读存储器checksum error检查和错误F10 Flash-EPROM 闪存checksum error检查和错误F11 brake 制动器cable break short circuit, short to ground 电缆断路，短路，接地短路F12 motor phase电机相位motor phase missing (cable break or similar) 电机相位丢失（ L1\L2\L3 或MA 、MB 、MC 电缆断了或类似现象）F13* internal temperature内部温度Internal temperature too high内部温度过高F14 output stage输出级fault in the output stage输出级有故障F15 I2t max I 2t 最大值I2t max. value exceeded超过了 I2t 最大值，电机电流过大， 可能是电动缸动作时遇到较大的阻力。F16* supply - BTB/RTO 电源 - BTB/RTO 2 or 3 phases missing in the supply feed电源输入过程中 2或3个相位丢失F17 A/D converter A/D 转换器error in the analog-digital conversion, usually caused by excessive E...
