罗斯蒙特1056双通道变送器中文说明书

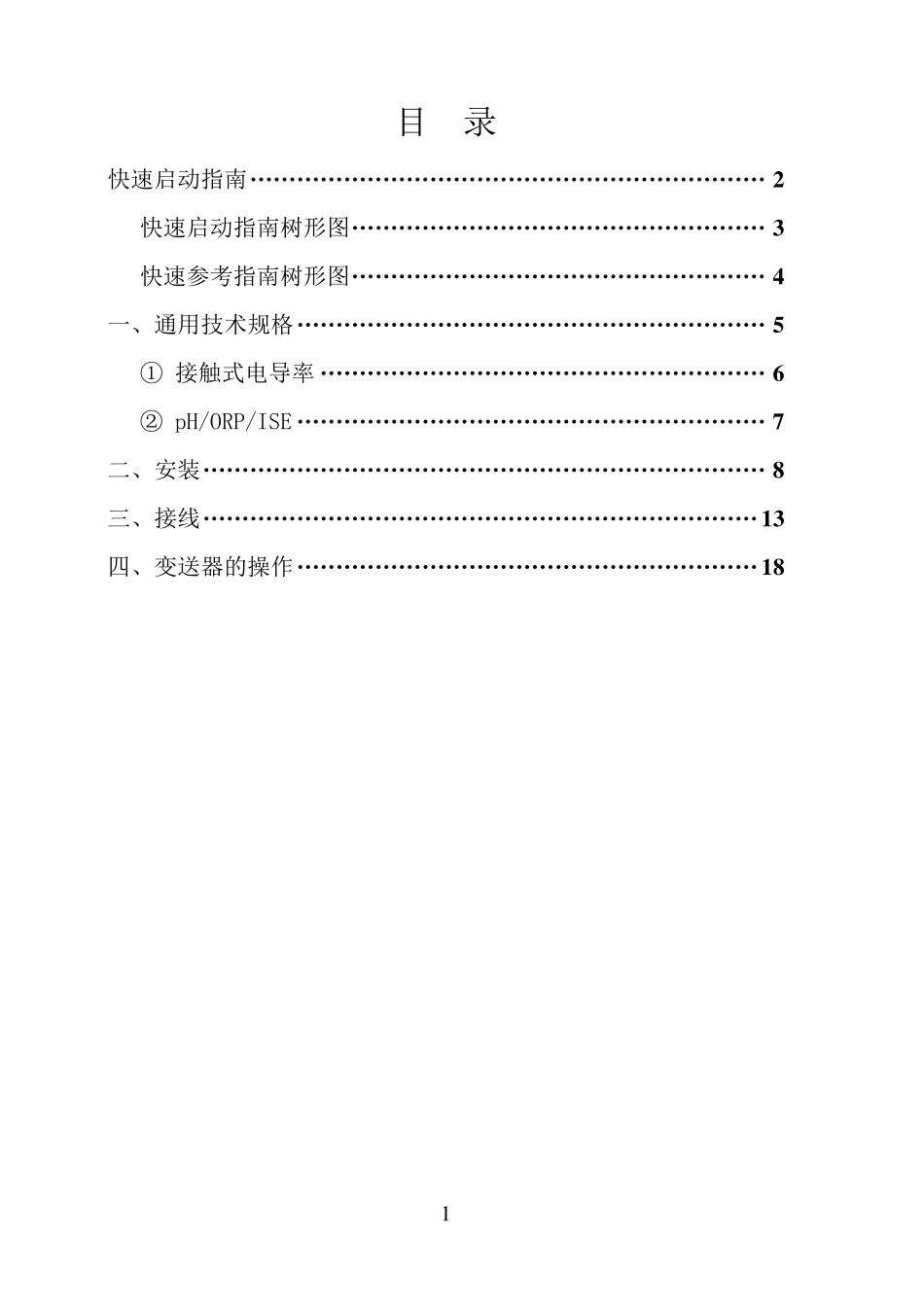

使用说明书 Mo del 1056 双通道智能分析仪 1 目 录 快速启动指南 ·································································· 2 快速启动指南树形图 ····················································· 3 快速参考指南树形图 ····················································· 4 一、通用技术规格 ···························································· 5 ① 接触式电导率 ························································· 6 ② pH/ORP/ISE ···························································· 7 二、安装 ········································································ 8 三、接线 ······································································· 13 四、变送器的操作 ··························································· 18 2 快速启动指南 1．安装方式，请参见2.0 章节。 2．传感器与信号板之间的接线，请参见3.0 章节和有关传感器的说明。同时，要求准确连接电源线和输出信号线。 3．只有在检查分析仪接线准确无误的情况下，才能给分析仪供电。 4．分析器第一次通电，快速启动（Quick Start）画面就会出现。快速启动程序的使用非常简单。 A．闪烁区表示光标当前所在位置。 B．使用“左”、“右”箭头键，可以左右移动光标或改变小数点的位置。使用“上”、“下” 箭头键，可以上下移动光标或增加、减少数字。 C．按 ENTER 键，保存组态设置；按 EXIT 键，退出且不保存变更设置。在快速启动过程中，按 EXIT 键也可以使显示器回到初始画面（选择语言）。 5．按照快速启动指南的组态树形菜单结构图（图...
