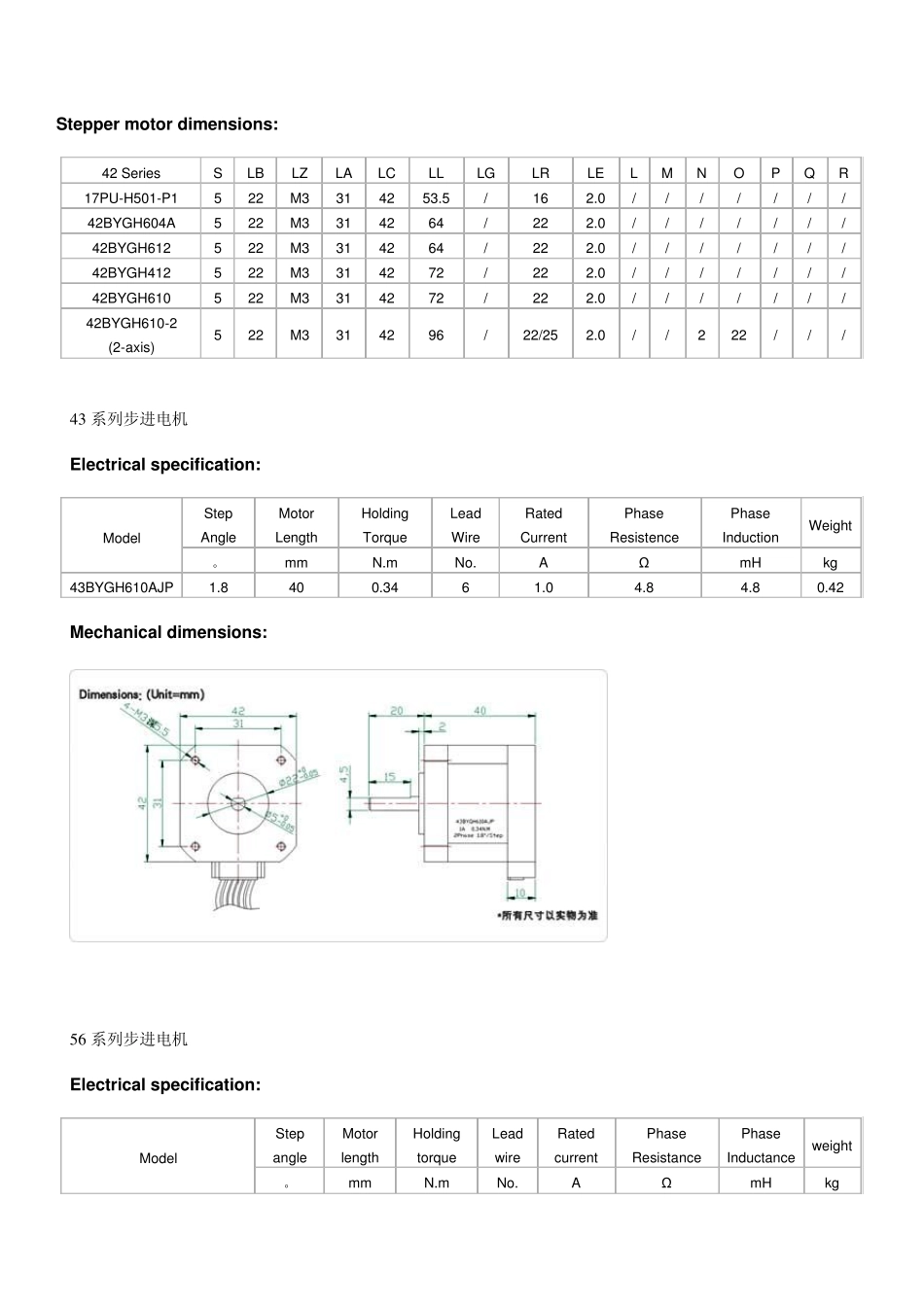

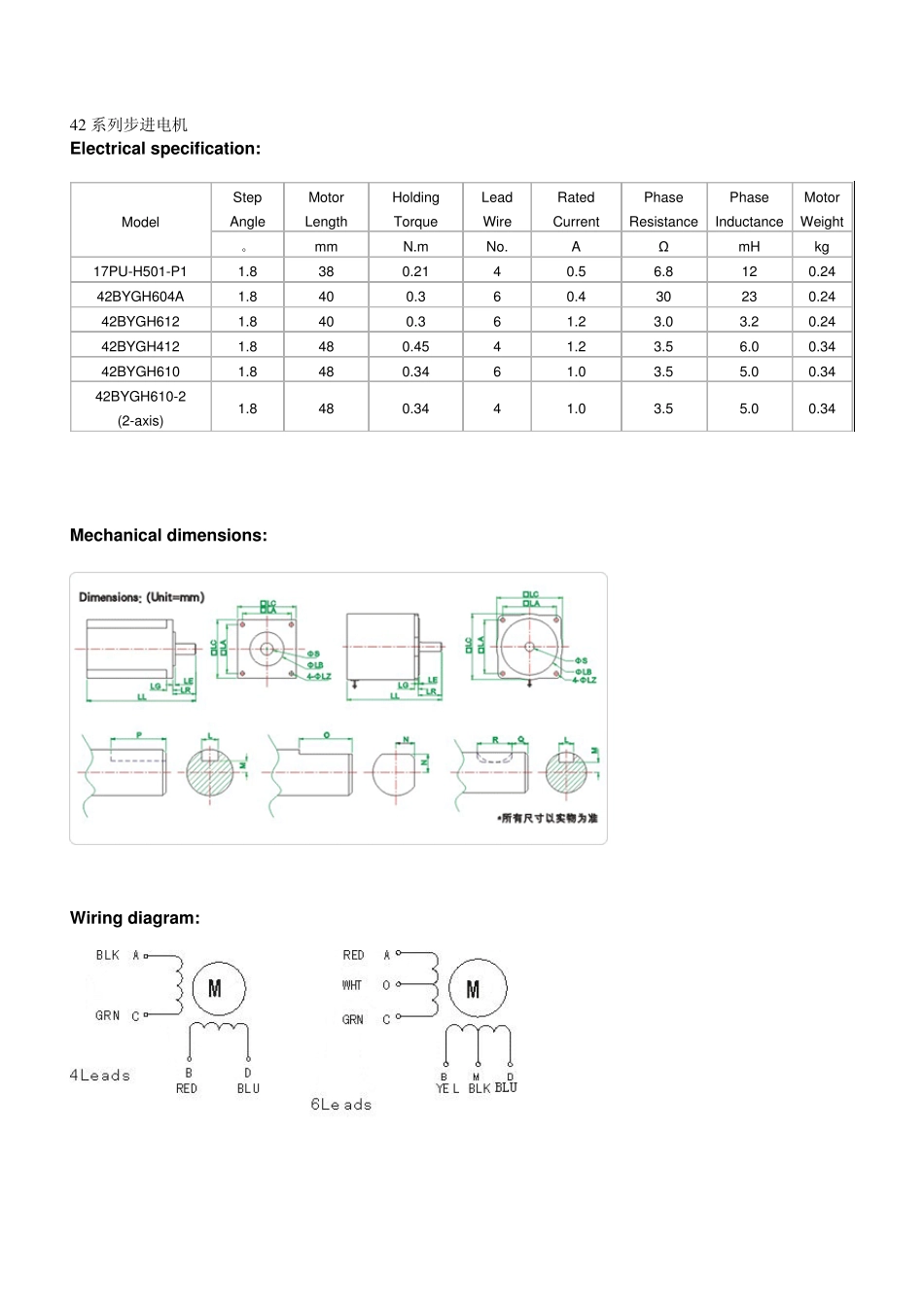

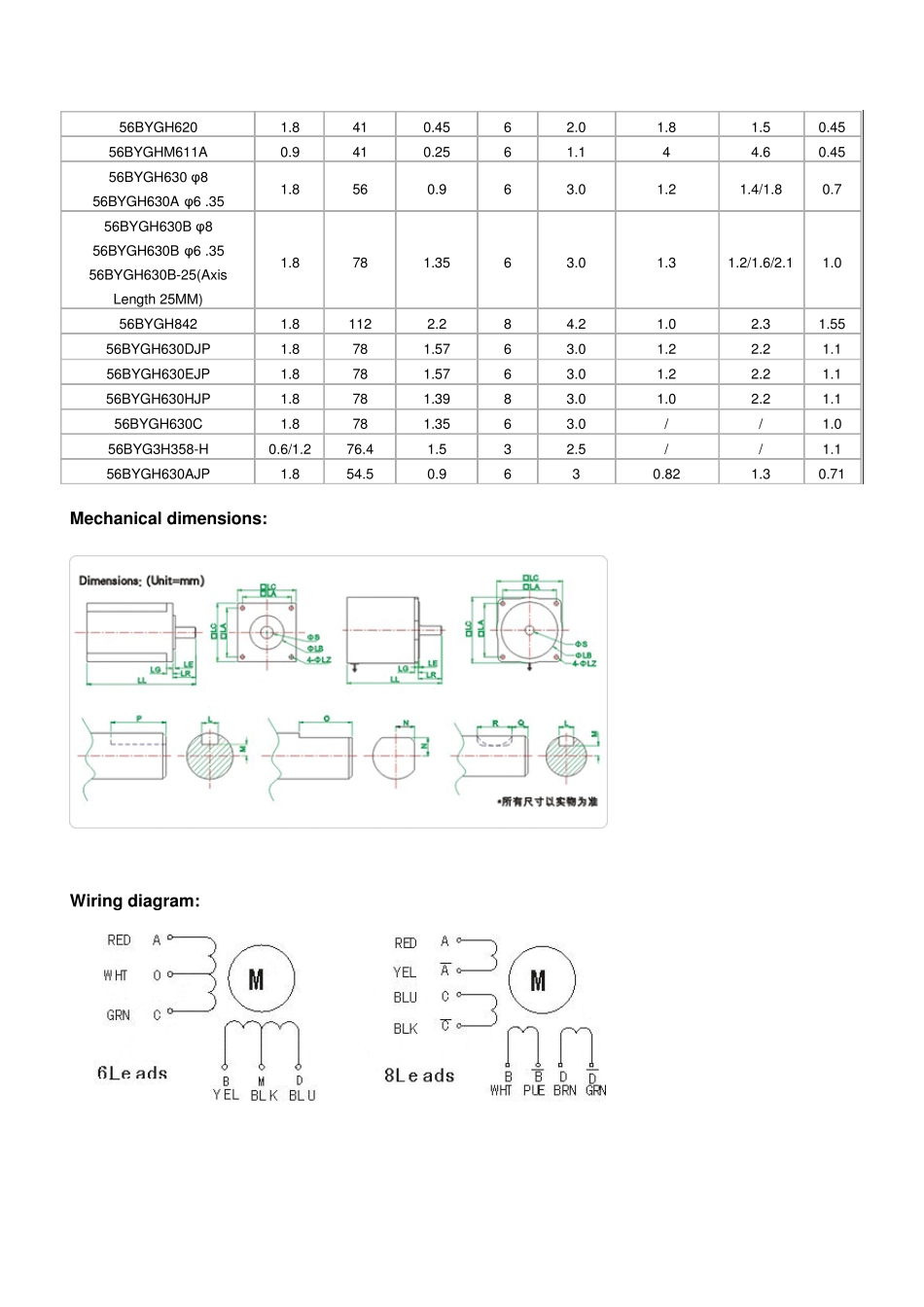

4 2 系列步进电机 Electrical specification: Model Step Angle Motor Length Holding Torque Lead Wire Rated Current Phase Resistance Phase Inductance Motor Weight 。 mm N.m No. A Ω mH kg 17PU-H501-P1 1.8 38 0.21 4 0.5 6.8 12 0.24 42BYGH604A 1.8 40 0.3 6 0.4 30 23 0.24 42BYGH612 1.8 40 0.3 6 1.2 3.0 3.2 0.24 42BYGH412 1.8 48 0.45 4 1.2 3.5 6.0 0.34 42BYGH610 1.8 48 0.34 6 1.0 3.5 5.0 0.34 42BYGH610-2 (2-axis) 1.8 48 0.34 4 1.0 3.5 5.0 0.34 Mechanical dimensions: Wiring diagram: Stepper motor dimensions: 42 Series S LB LZ LA LC LL LG LR LE L M N O P Q R 17PU-H501-P1 5 22 M3 31 42 53.5 / 16 2.0 / / / / / / / 42BYGH604A 5 22 M3 31 42 64 / 22 2.0 / / / / / / / 42BYGH612 5 22 M3 31 42 64 / 22 2.0 / / / / / / / 42BYGH412 5 22 M3 31 42 72 / 22 2.0 / / / / / / / 42BYGH610 5 22 M3 31 42 72 / 22 2.0 / / / / / / / 42BYGH610-2 (2-axis) 5 22 M3 31 42 96 / 22/25 2.0 / / 2 22 / / / 4 3 系列步进电机 Electrical specification: Model Step Angle Motor Length Holding Torque Lead Wire Rated Current Phase Resistence Phase Induction Weight 。 mm N.m No. A Ω mH kg 43BYGH610AJP 1.8 40 0.34 6 1.0 4.8 4.8 0.42 Mechanical dimensions: 5 6 系列步进电机 Electrical specification: Model Step angle Motor length Holding torque Lead wire Rated current Phase Resistance Phase Inductance weight 。 mm N.m No. A Ω mH kg 56BYGH620 1.8 41 0.45 6 2.0 1.8 1.5 0.45 56BYGHM611A 0.9 41 0.25 6 1.1 4 4.6 0.45 56BYGH630 φ8 56BYGH630A φ6 .35 1.8 56 0.9 6 3.0 1.2 1.4/1.8 0.7 56BYGH630B φ8 56BYGH630B φ6 .35 56BYGH630B-25(Ax is Length 25MM) 1.8 78 1.35 6 3.0 1.3 1.2/1.6/2.1 1.0 56BYGH842 1.8 112 2.2 8 4.2 1.0 2.3 1.55 56BYGH630DJP 1.8 78 1.57 6 3.0 1.2 2.2 1.1 56BYGH630EJP ...
