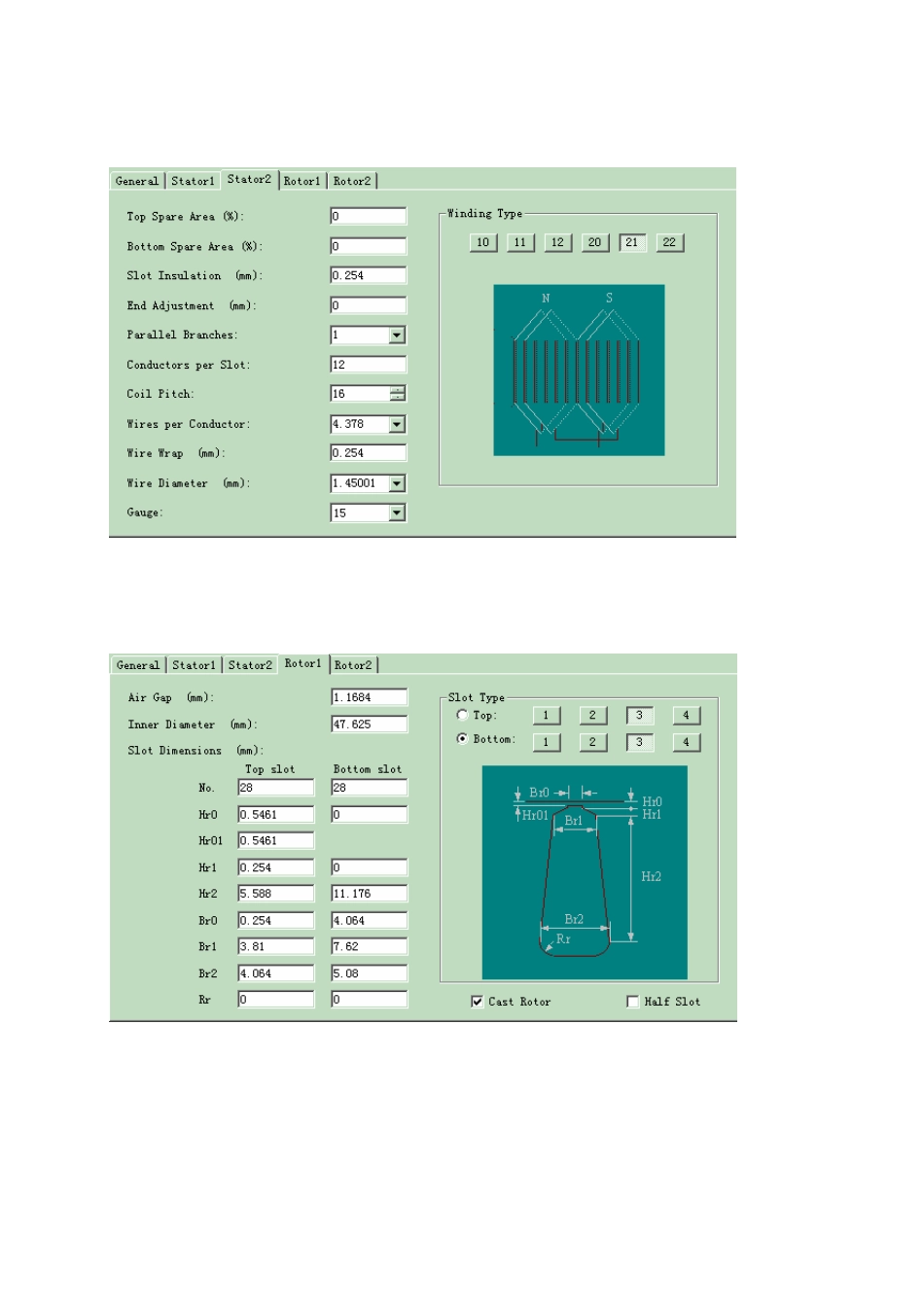

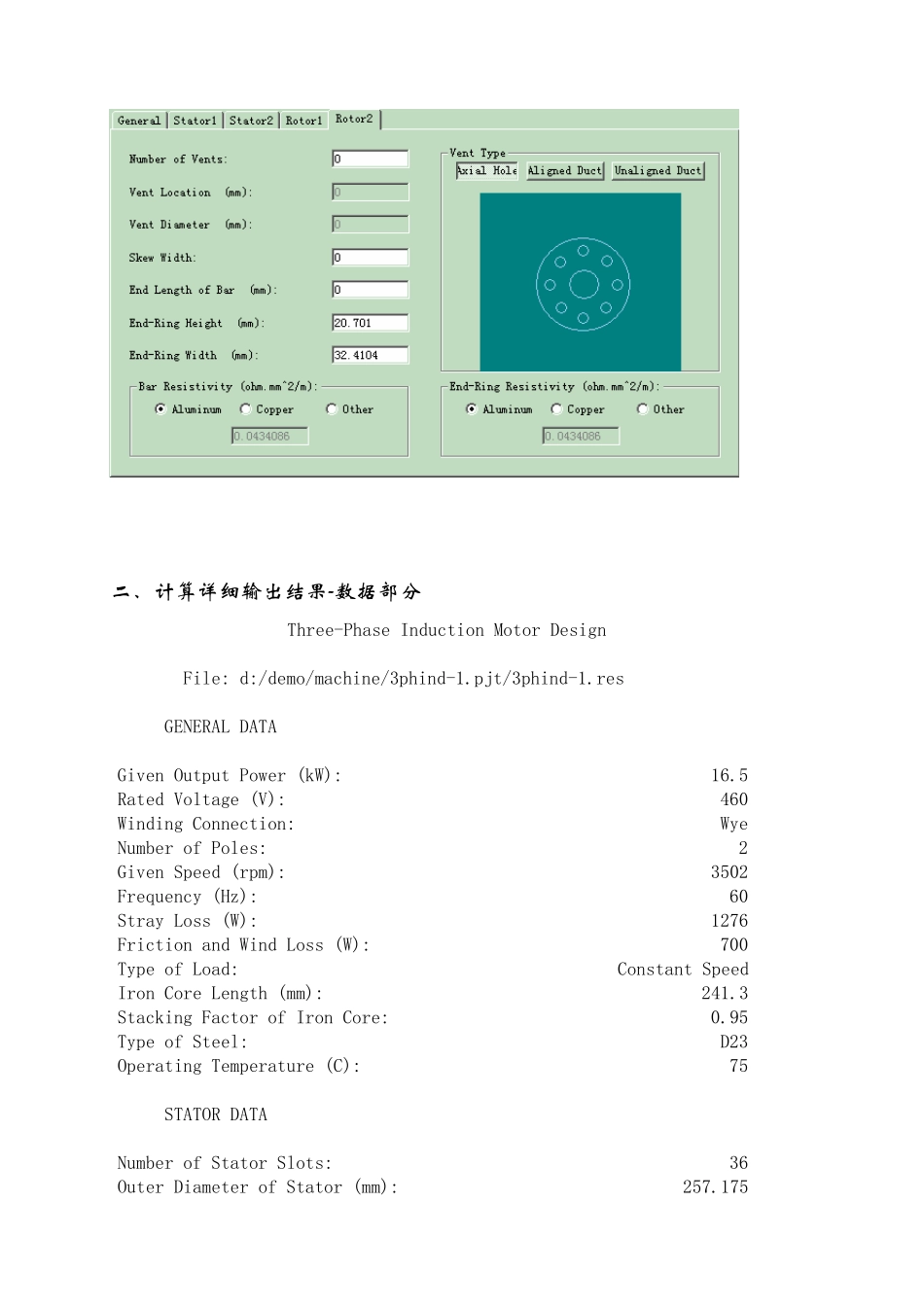

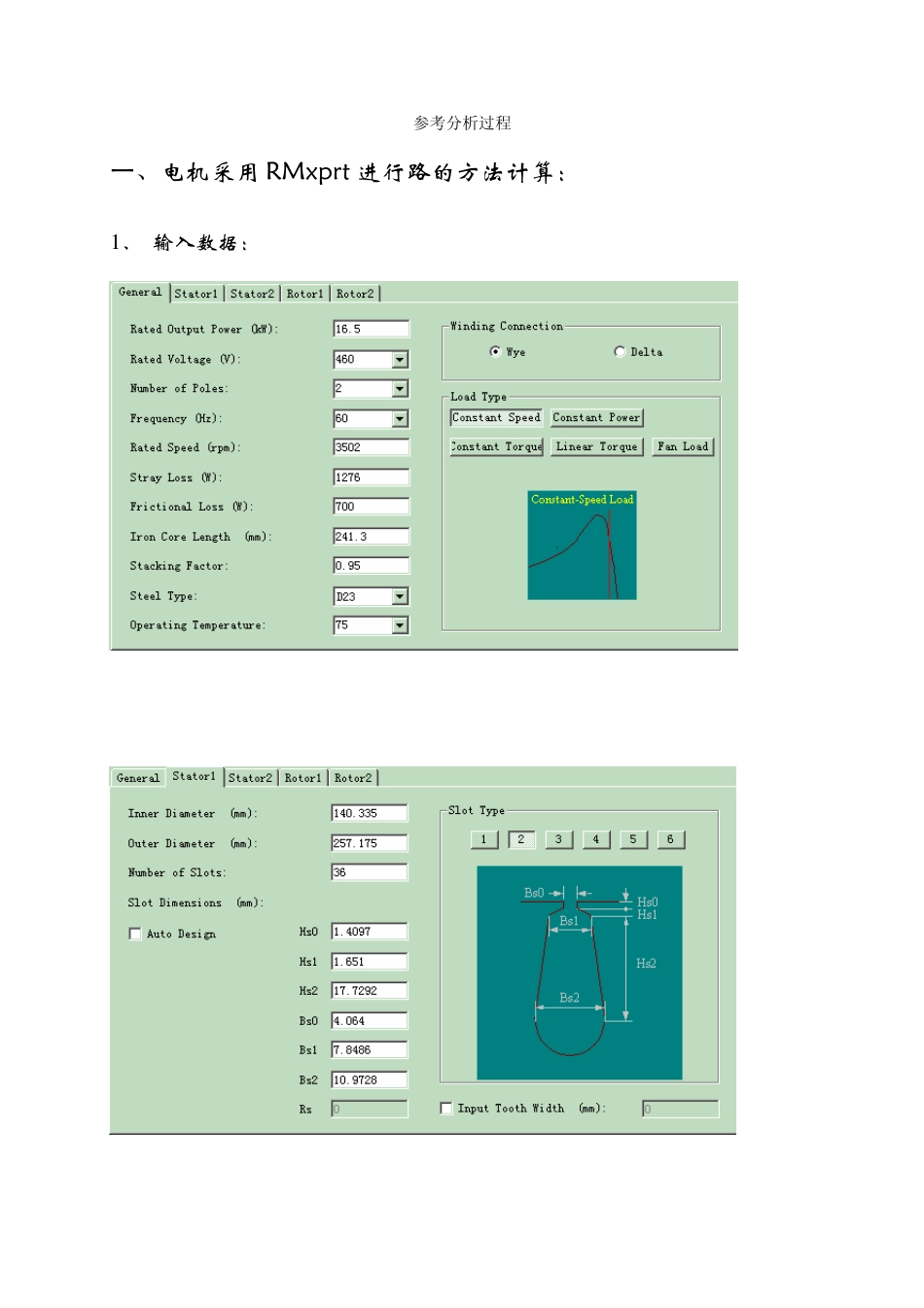

参考分析过程 一、电 机 采 用 RMxprt 进 行 路 的 方 法 计 算 ： 1、 输 入 数 据 ： 二 、 计 算 详 细 输 出 结 果 -数 据 部 分 Three-Phase Induction Motor Design File: d:/demo/machine/3phind-1.pjt/3phind-1.res GENERAL DATA Given Output Power (kW): 16.5 Rated Voltage (V): 460 Winding Connection: Wye Number of Poles: 2 Given Speed (rpm): 3502 Frequency (Hz): 60 Stray Loss (W): 1276 Friction and Wind Loss (W): 700 Type of Load: Constant Speed Iron Core Length (mm): 241.3 Stacking Factor of Iron Core: 0.95 Type of Steel: D23 Operating Temperature (C): 75 STATOR DATA Number of Stator Slots: 36 Outer Diameter of Stator (mm): 257.175 Inner Diameter of Stator (mm): 140.335 Type of Stator Slot: 2 Dimension of Stator Slot hs0_stator (mm): 1.4097 hs1_stator (mm): 1.651 hs2_stator (mm): 17.7292 bs0_stator (mm): 4.064 bs1_stator (mm): 7.8486 bs2_stator (mm): 10.9728 Top Tooth Width (mm): 4.93213 Bottom Tooth Width (mm): 4.90226 Number of Conductors per Slot: 12 Number of Parallel Branches: 1 Number of Wires per Conductor: 4.378 Type of Coils: 21 Coil Pitch: 16 Wire Diameter (mm): 1.45001 Wire Wrap Thickness (mm): 0.254 Slot Insulation Thickness (mm): 0.254 Top Free Space in Slot (%): 0 Bottom Free Space in Slot (%): 0 Conductor Length Adjustment (mm): 0 ROTOR DATA Number of Rotor Slots: 28 Air Gap (mm): 1.1684 Inner Diameter of Rotor (mm): 47.625 Type of Rotor Slot: 3 Dimension of Rotor Slot hr0_top (mm): 0.5461 hr01_top (mm): 0.5461 hr1_top (mm): 0.254 hr2_top (mm): 5.588 br0_top (mm): 0.254 br1_top (mm): 3.81 br2_top (mm): 4.064 rr_top (mm): 0 Type of Bottom Rotor Slot: 3 Dimension of Bottom Rotor Slot hr0_bottom (mm): 0 hr1_bottom (mm): 0 hr2_bottom (mm): 11.176 br0_bottom (mm): 4.064 br1_botto...
