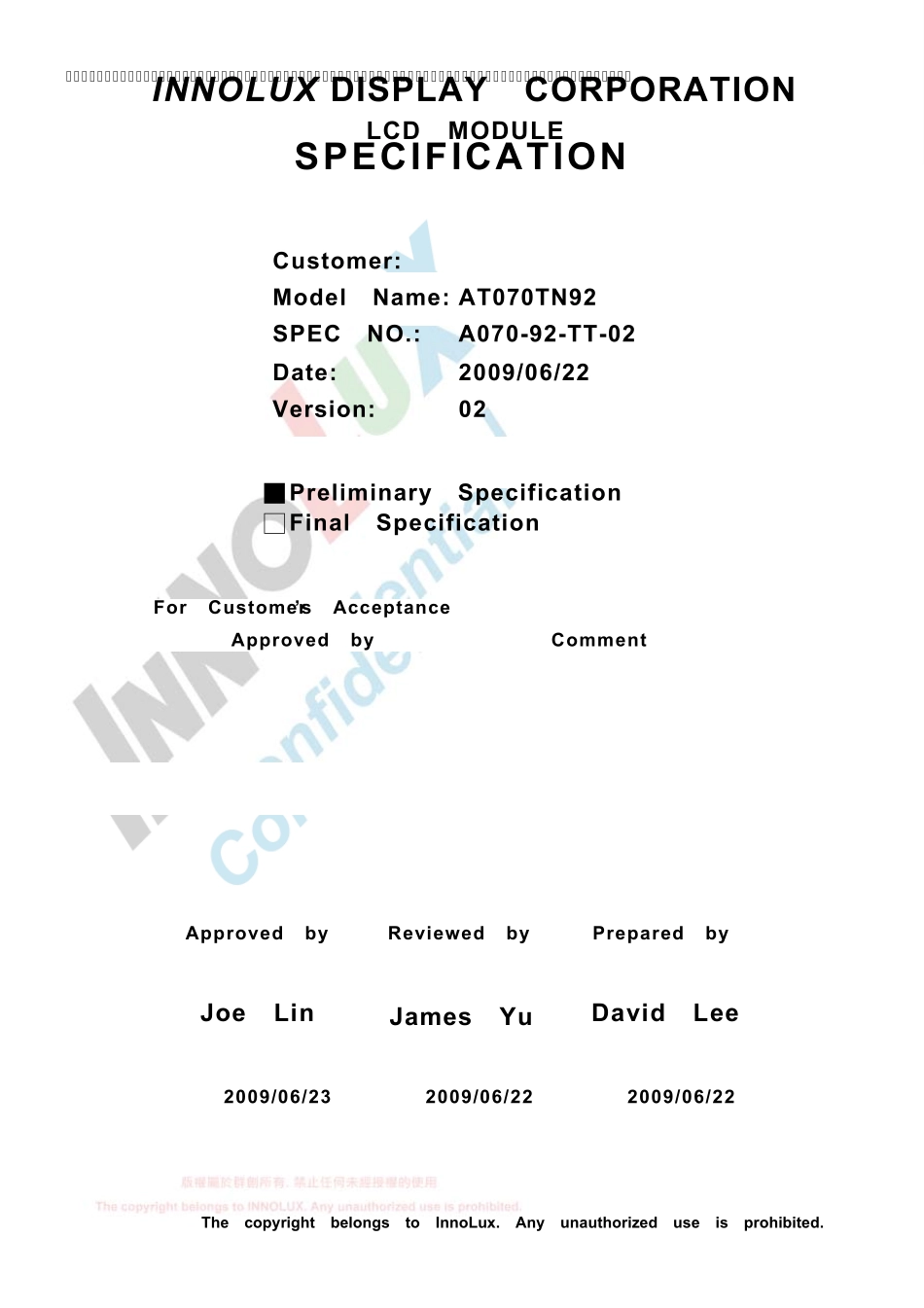

The copyright belongs to InnoLux. Any unauthorized use is prohibited. INNOLUX DISPLAY CORPORATION LCD MODULE SPECIFICATION Customer: Model Name: AT070TN92 SPEC NO.: A070-92-TT-02 Date: 2009/06/22 Version: 02 ■ Preliminary Specification □ Final Specification For Customer’s Acceptance Approved by Comment Approved by Reviewed by Prepared by Joe Lin 2009/06/23 James Yu 2009/06/22 David Lee 2009/06/22 The copyright belongs to InnoLux. Any unauthorized use is prohibited. InnoLux copyright 2004 All rights reserved, Copying forbidden. Record of Revision Version Revise Date Page Content Pre-Spec.01 2009/01/12 Initial Release 02 2009/06/22 1 Add B/L & Panel power consumption. 6 Add Vcom value. 7 Add current consumption. Update backlight driving condition. INNOLUX The copyright belongs to InnoLux. Any unauthorized use is prohibited. Contents 1. General Specifications............................................................................................................1 2. Pin Assignment.......................................................................................................................2 3. Operation Specifications.........................................................................................................5 3.1. Absolute Maximum Rating..............................................................................................5 3.1.1. Typical Operation Conditions..................................................................................6 3.1.2. Current Consumption.............................................................................................7 3.1.3. Backlight Driving Conditions...................................................................................7 3.2. Power Sequence.....................................................................................................
