Chart各个属性详细解析、应用

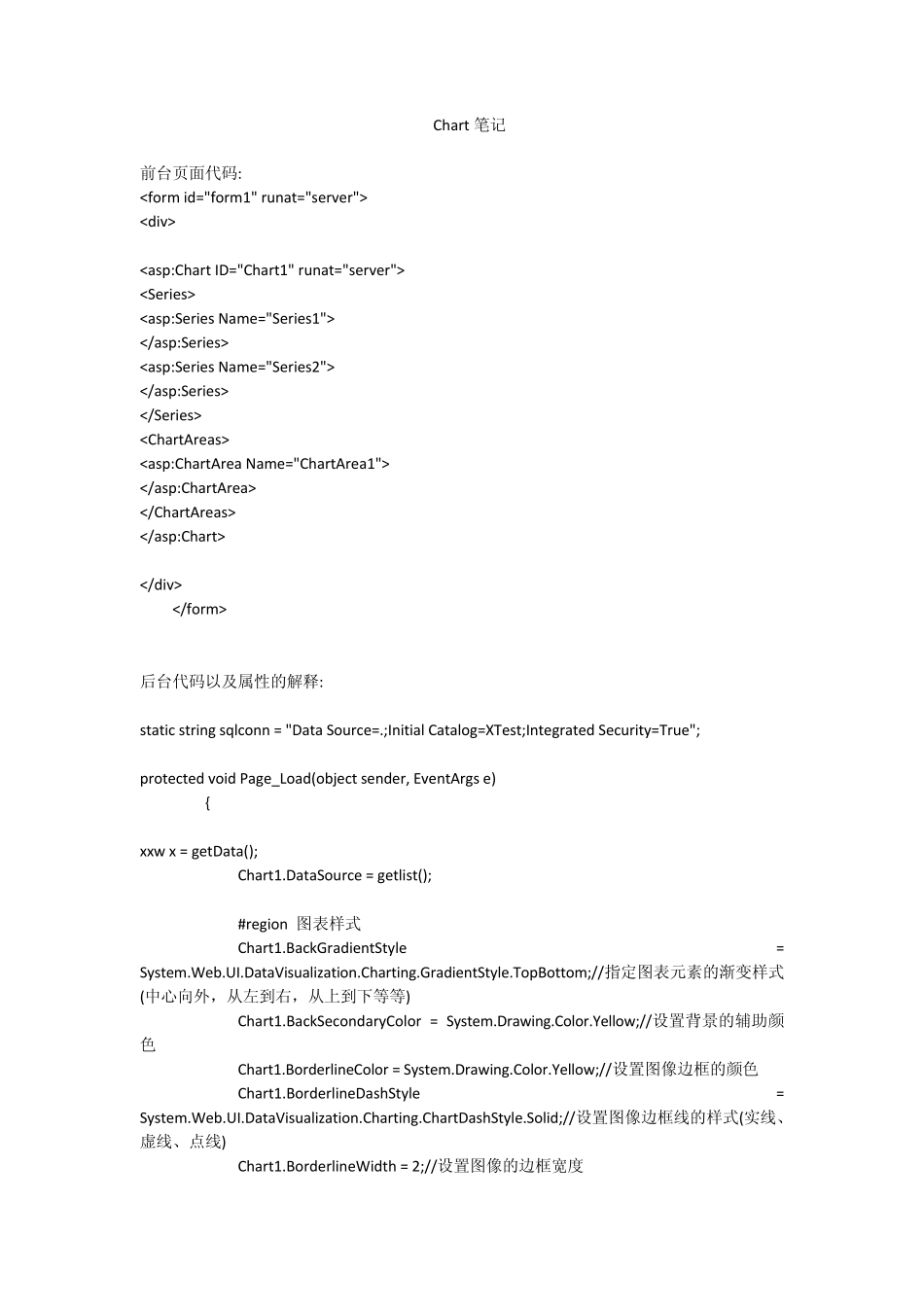

Chart 笔记 前台页面代码:

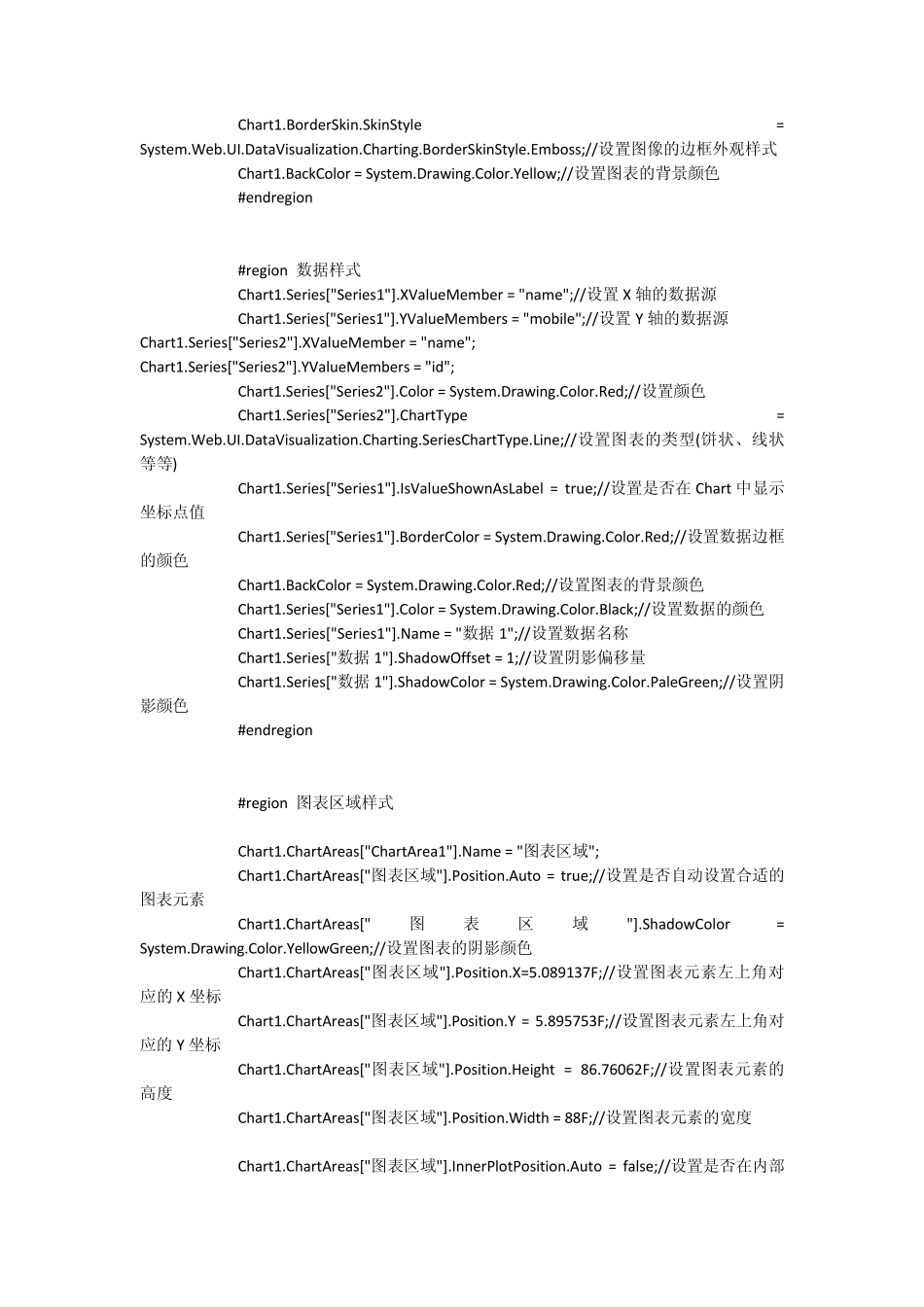

后台代码以及属性的解释: static string sqlconn = "Data Source=.;Initial Catalog=XTest;Integrated Security=True"; protected void Page_Load(object sender, EventArgs e) { xxw x = getData(); Chart1.DataSource = getlist(); #region 图表样式 Chart1.BackGradientStyle = System.Web.UI.DataVisualization.Charting.GradientStyle.TopBottom;//指定图表元素的渐变样式(中心向外，从左到右，从上到下等等) Chart1.BackSecondaryColor = System.Drawing.Color.Yellow;//设置背景的辅助颜色 Chart1.BorderlineColor = System.Drawing.Color.Yellow;//设置图像边框的颜色 Chart1.BorderlineDashStyle = System.Web.UI.DataVisualization.Charting.ChartDashStyle.Solid;//设置图像边框线的样式(实线、虚线、点线) Chart1.BorderlineWidth = 2;//设置图像的边框宽度 Chart1.BorderSkin.SkinStyle = System.Web.UI.DataVisualization.Charting.BorderSkinStyle.Emboss;//设置图像的边框外观样式 Chart1.BackColor = System.Drawing.Color.Yellow;//设置图表的背景颜色 #endregion #region 数据样式 Chart1.Series["Series1"].XValueMember = "name";//设置X 轴的数据源 Chart1.Series["Series1"].YValueMembers = "mobile";//设置Y 轴的数据源 Chart1.Series["Series2"].XValueMember = "name"; Chart1.Series["Series2"].YValueMembers = "id"; Chart1.Series["Series2"].Color = System.Drawing.Color.Red;//设置颜色 Chart1.Series["Series2"].ChartType = System.Web.UI.DataVisualization.Charting.SeriesChartType.Line;//设置图表的类型(饼状、线状等等) Chart1.Series["Series1"].IsValueShownAsLabel = true;//设置是否在 Chart 中显示坐标点值 Chart1.Series["Series1"].BorderColor = System.Drawing.Color.Red;//设置数据边框的颜色 Chart1.BackColor = System.Drawing.Color.Red;//...
