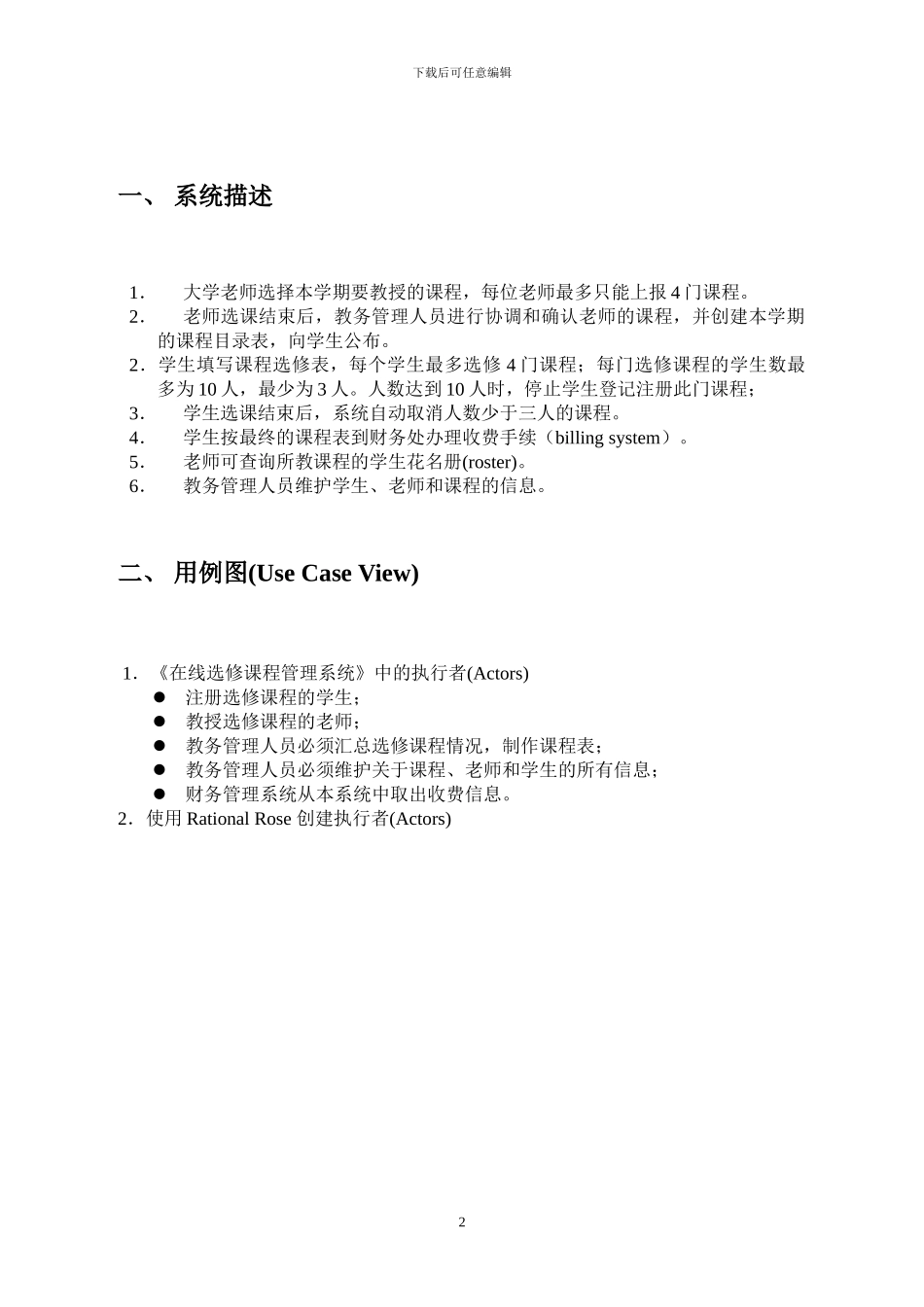

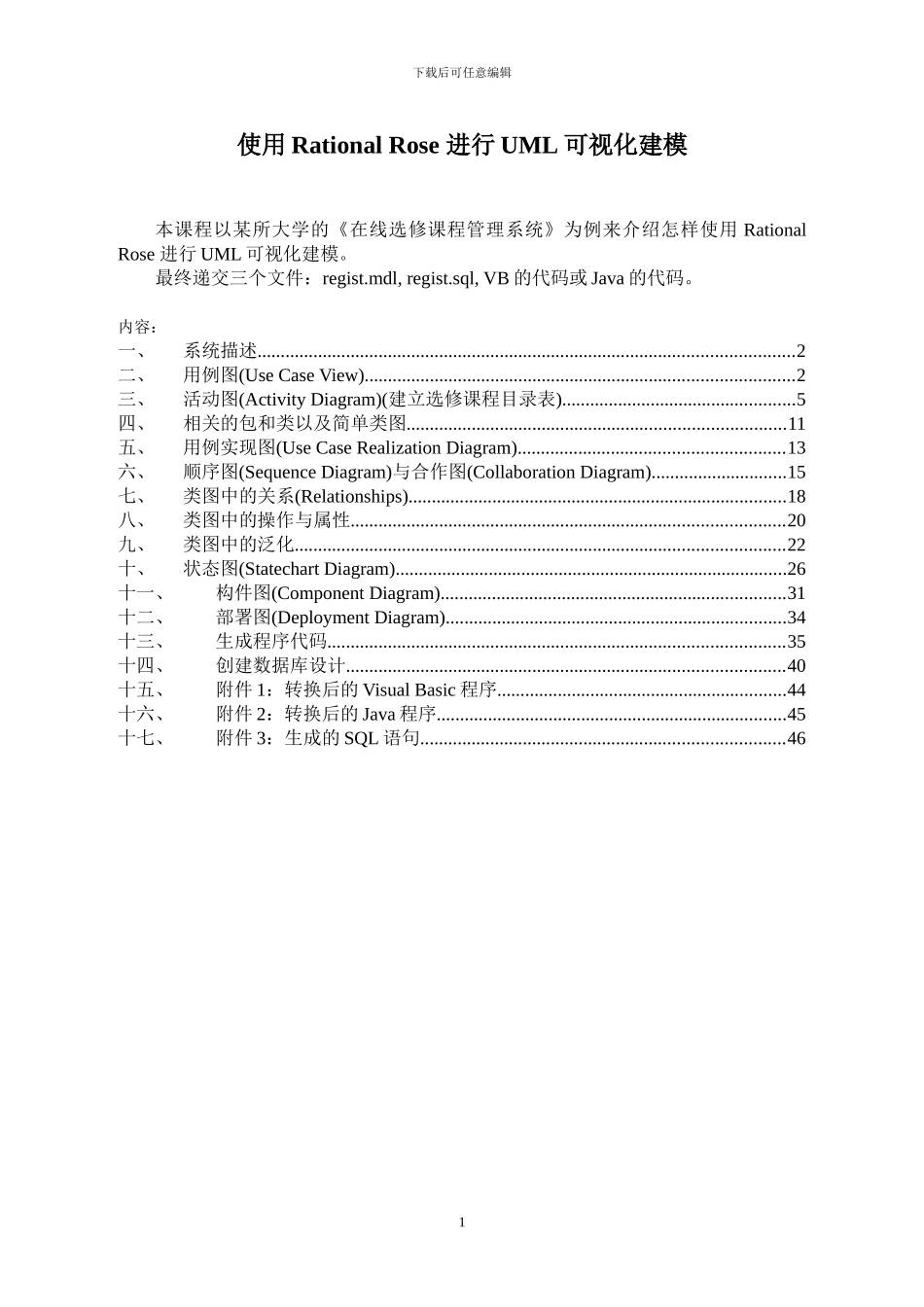

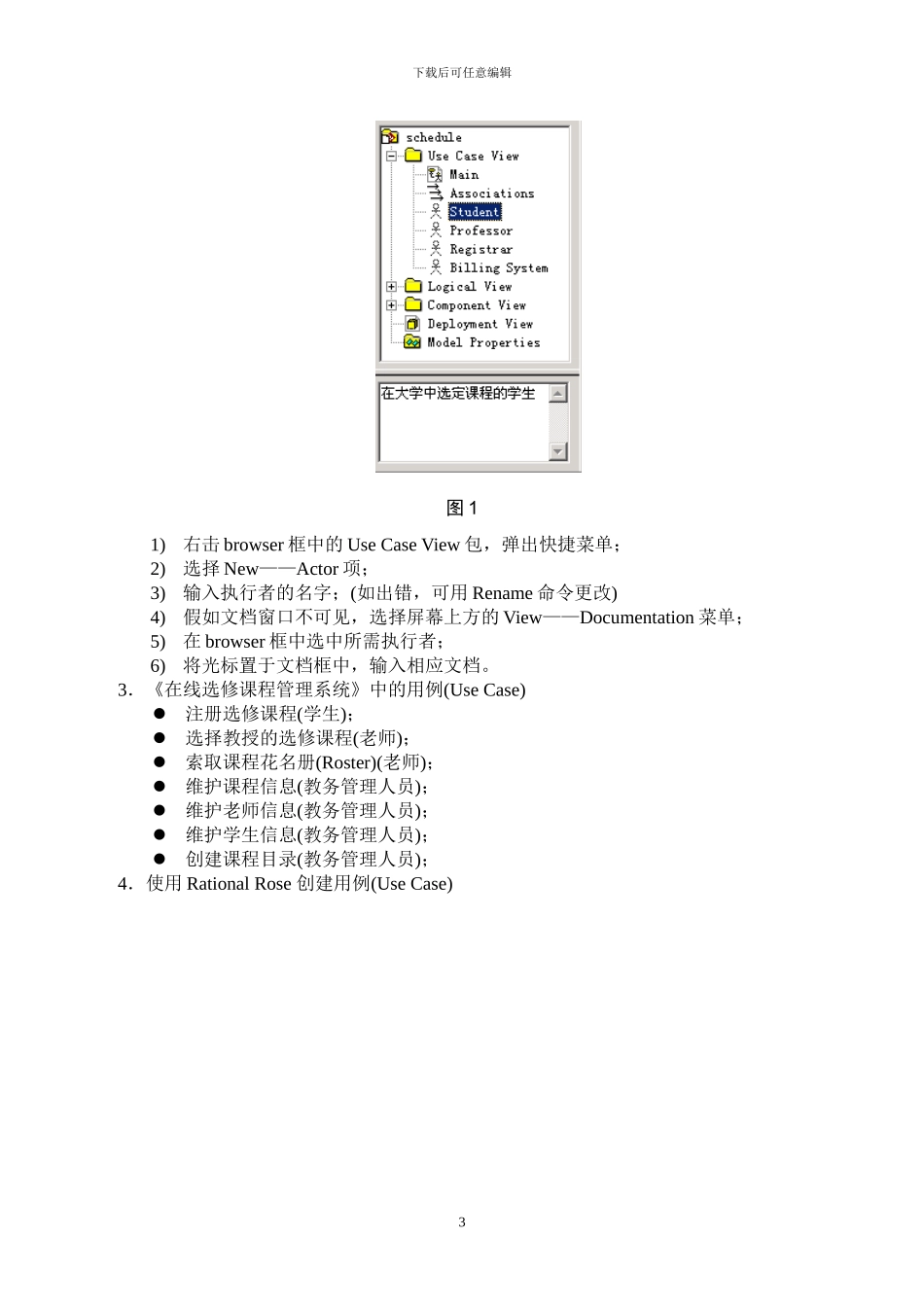

下载后可任意编辑使用 Rational Rose 进行 UML 可视化建模 本课程以某所大学的《在线选修课程管理系统》为例来介绍怎样使用 Rational Rose 进行 UML 可视化建模。最终递交三个文件：regist.mdl, regist.sql, VB 的代码或 Java 的代码。内容：一、系统描述...................................................................................................................2二、用例图(Use Case View)............................................................................................2三、活动图(Activity Diagram)(建立选修课程目录表)..................................................5四、相关的包和类以及简单类图.................................................................................11五、用例实现图(Use Case Realization Diagram).........................................................13六、顺序图(Sequence Diagram)与合作图(Collaboration Diagram).............................15七、类图中的关系(Relationships).................................................................................18八、类图中的操作与属性.............................................................................................20九、类图中的泛化.........................................................................................................22十、状态图(Statechart Diagram)....................................................................................26十一、构件图(Component Diagram)..........................................................................31十二、部署图(Deployment Diagram).........................................................................34十三、生成程序代码..................................................................................................35十四、创建数据库设计..............................................................................................40十五、附件 1：转换后的 Visual Basic 程序..............................................................44十六、附件 2：转换后的 Java 程序.......................................
