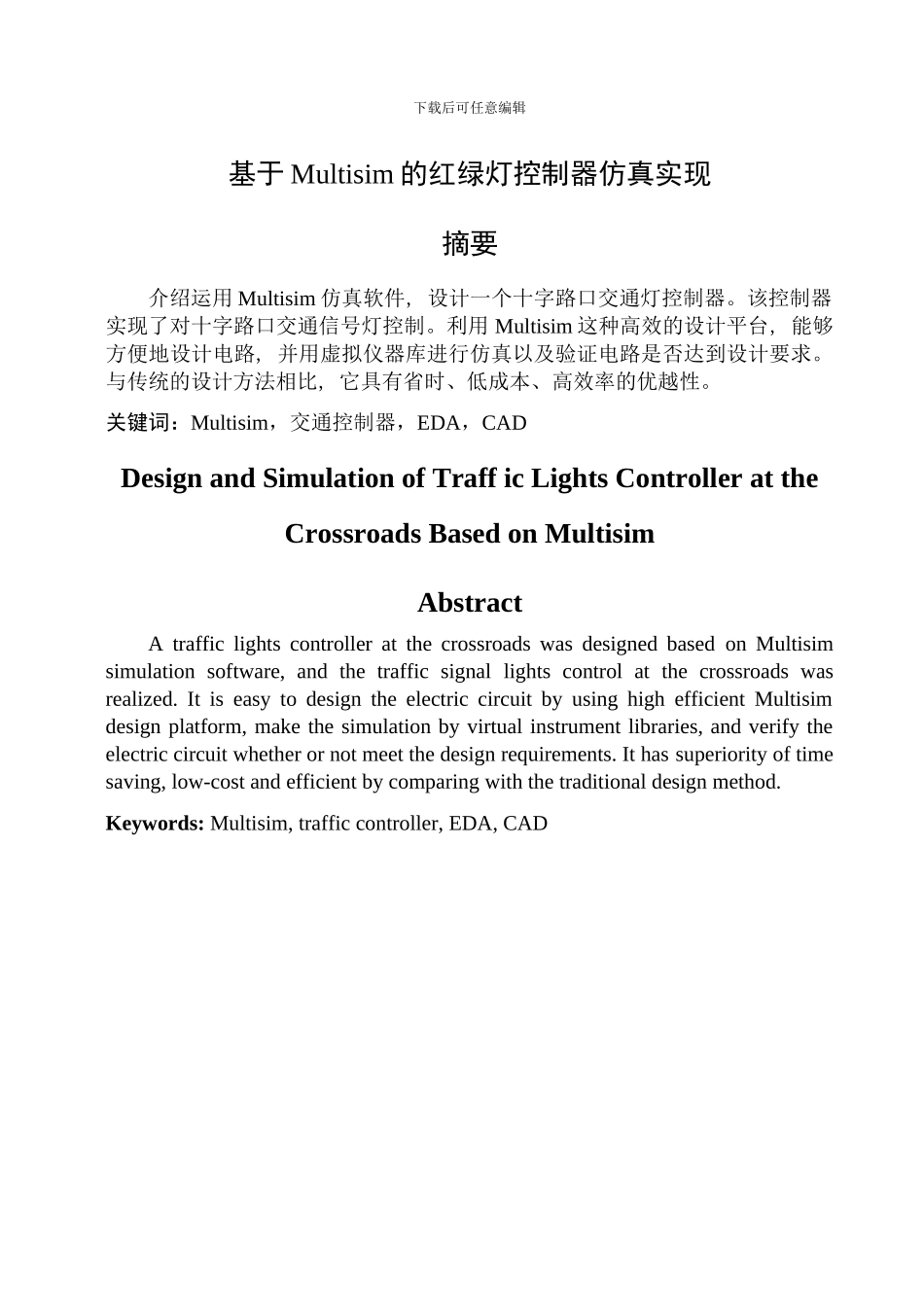

基于Multisim的红绿灯控制器仿真实现

下载后可任意编辑基于 Multisim 的红绿灯控制器仿真实现摘要介绍运用 Multisim 仿真软件, 设计一个十字路口交通灯控制器。该控制器实现了对十字路口交通信号灯控制。利用 Multisim 这种高效的设计平台, 能够方便地设计电路, 并用虚拟仪器库进行仿真以及验证电路是否达到设计要求。与传统的设计方法相比, 它具有省时、低成本、高效率的优越性。关键词：Multisim，交通控制器，EDA，CADDesign and Simulation of Traff ic Lights Controller at the Crossroads Based on MultisimAbstractA traffic lights controller at the crossroads was designed based on Multisim simulation software, and the traffic signal lights control at the crossroads was realized. It is easy to design the electric circuit by using high efficient Multisim design platform, make the simulation by virtual instrument libraries, and verify the electric circuit whether or not meet the design requirements. It has superiority of time saving, low-cost and efficient by comparing with the traditional design method.Keywords: Multisim, traffic controller, EDA, CAD下载后可任意编辑目录 1 绪论.............................................11.1 引言..........................................................11.2 交通信号灯控制电路的概述......................................12 单元模块..........................................32.1 电源模块......................................................32.2 秒脉冲发生模块................................................32.3 计数模块......................................................42.4 逻辑电路模块..................................................52.5 分频器模块....................................................63 数字电子钟电路的仿真与调试.............................83.1 交通信号灯控制电路的仿真......................................83.2 交通信号灯控制电路的实现......................................83.3 调试方法......................................................94 调试中出现的问题和解决方法......
