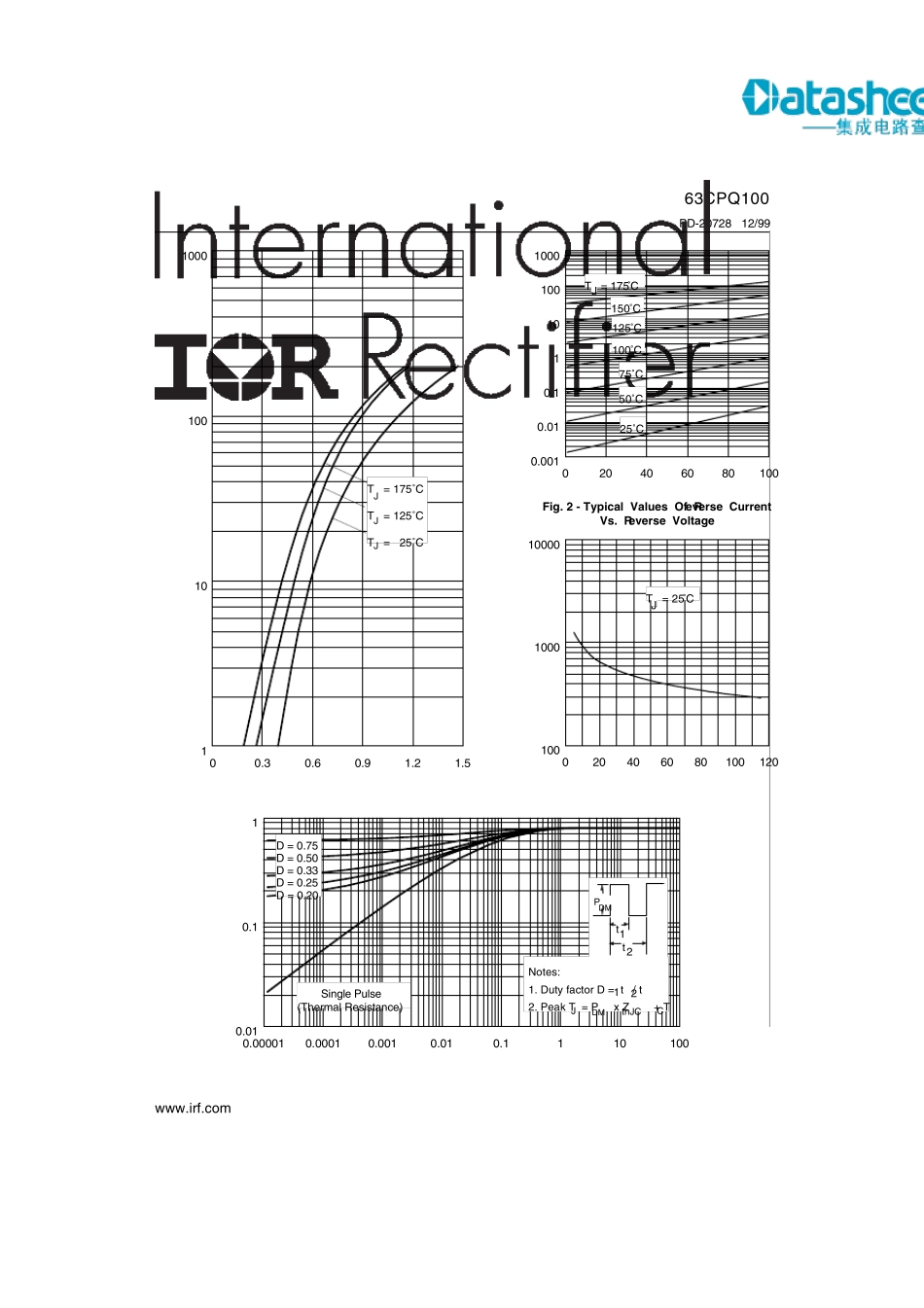

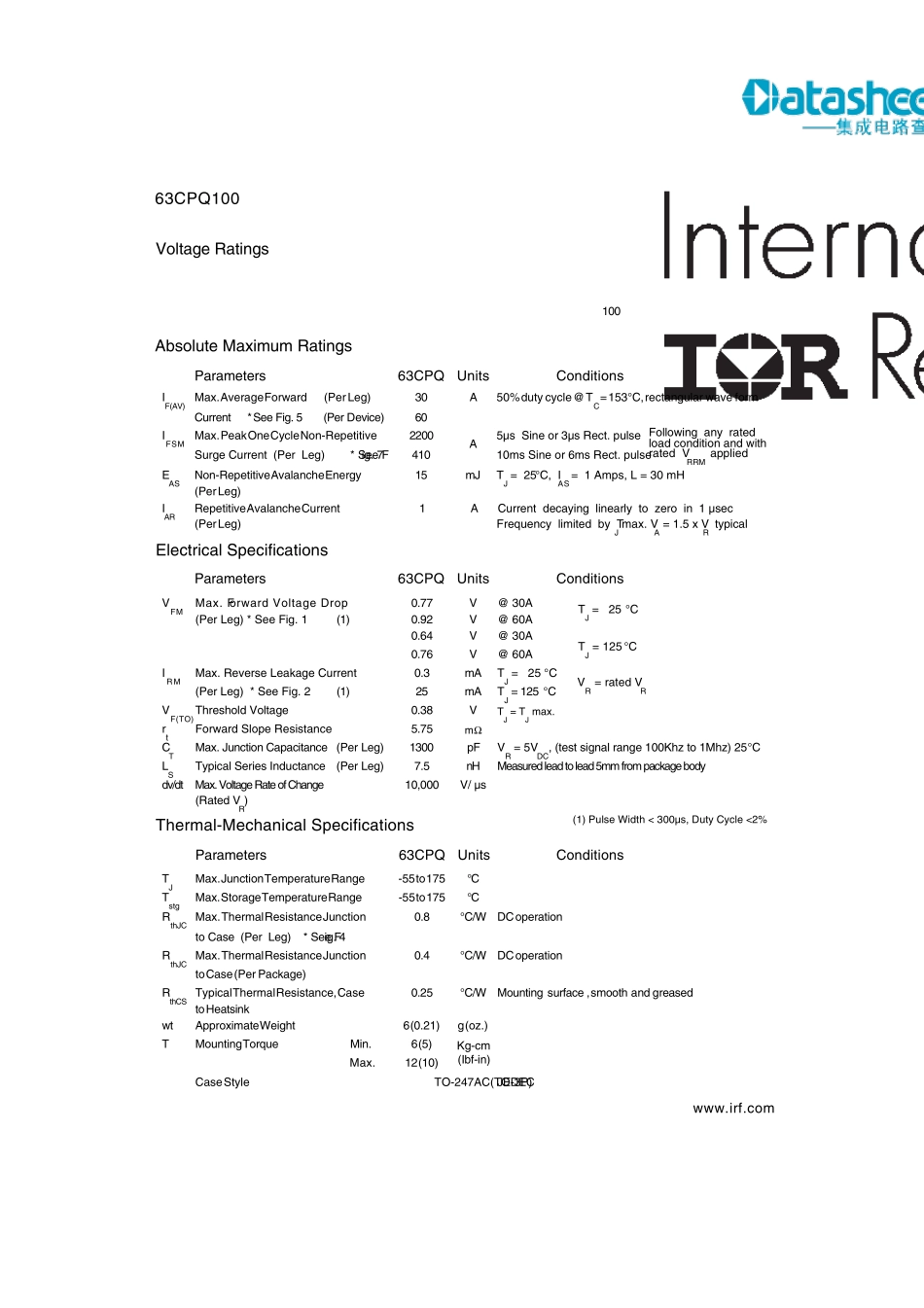

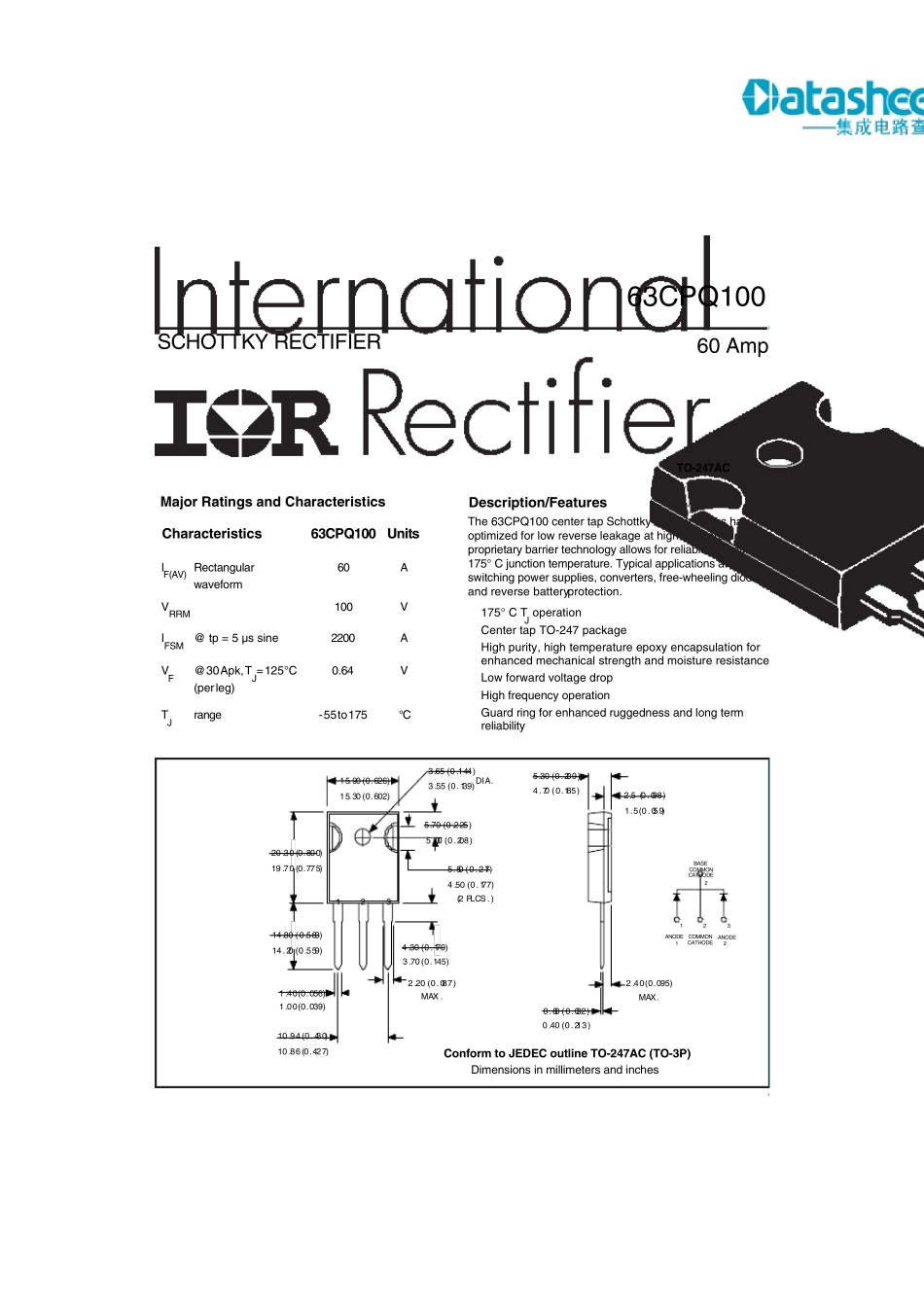

IF(AV) Rectangular60AwaveformVRRM100VIFSM@ tp = 5 µs sine2200AVF@ 30 Apk, TJ= 125°C0.64V(per leg)TJrange- 55 to 175°CCharacteristics63CPQ100 UnitsMajor Ratings and CharacteristicsDescription/Featu resThe 63CPQ100 center tap Schottky rectifier series has beenoptimized for low reverse leakage at high temperature. Theproprietary barrier technology allows for reliable operation up to175° C junction temperature. Typical applications are inswitching power supplies, converters, free-wheeling diodes,and reverse battery protection.175° C TJ operationCenter tap TO-247 packageHigh purity, high temperature epoxy encapsulation forenhanced mechanical strength and moisture resistanceLow forward voltage dropHigh frequency operationGuard ring for enhanced ruggedness and long termreliabilityDimensions in millimeters and inchesConform to JEDEC ou tline TO-247AC (TO-3P)2BASECOMMONCATHODE123ANODECOMMONCATHODEANODE1215.90 (0.626)15.30 (0.602)14.20 (0 .559)14.80 (0.583)3 .70 (0.145)4 .30 (0.170)5.30 (0.208)5.70 (0 .225)5.50 (0.217)4 .50 (0.177) (2 PLCS . )3 .55 (0.139)3.65 (0 .144)2 .20 (0.087)MAX .1 .00(0.039)1 .40(0.056)0 .40 (0.213)0.80 (0.032)4.70 (0.185)5.30 (0.209)1.5 (0.059)2.5 (0.098)2 .40(0.095)MAX.10 .86 (0.427)10 .94 (0.430)20 .30 (0.800)19 .70 (0.775)DIA.123TO-247ACSCHOTTKY RECTIFIER60 Amp63CPQ10063CPQ100www.irf.comVoltage Ratings100VFMMax. Forward Voltage Drop0.77V@ 30A(Per Leg) * See Fig. 1(1)0.92V@ 60A0.64V@ 30A0.76V@ 60AIR MMax. Reverse Leakage Current0.3mATJ = 25 °C(Per Leg) * See Fig. 2(1)25mATJ = 125 °CVF(TO)Threshold Voltage0.38VTJ = TJ max.rtForward Slope Resistance5.75mΩCTMax. Junction Capacitance (Per Leg)1300pFVR = 5VDC, (test signal range 100Khz to 1Mhz) 25°CLSTypical Series Inductance(Per Leg)7.5nHMeasured lead to lead 5mm from package bodydv/dtMax. Volt...
