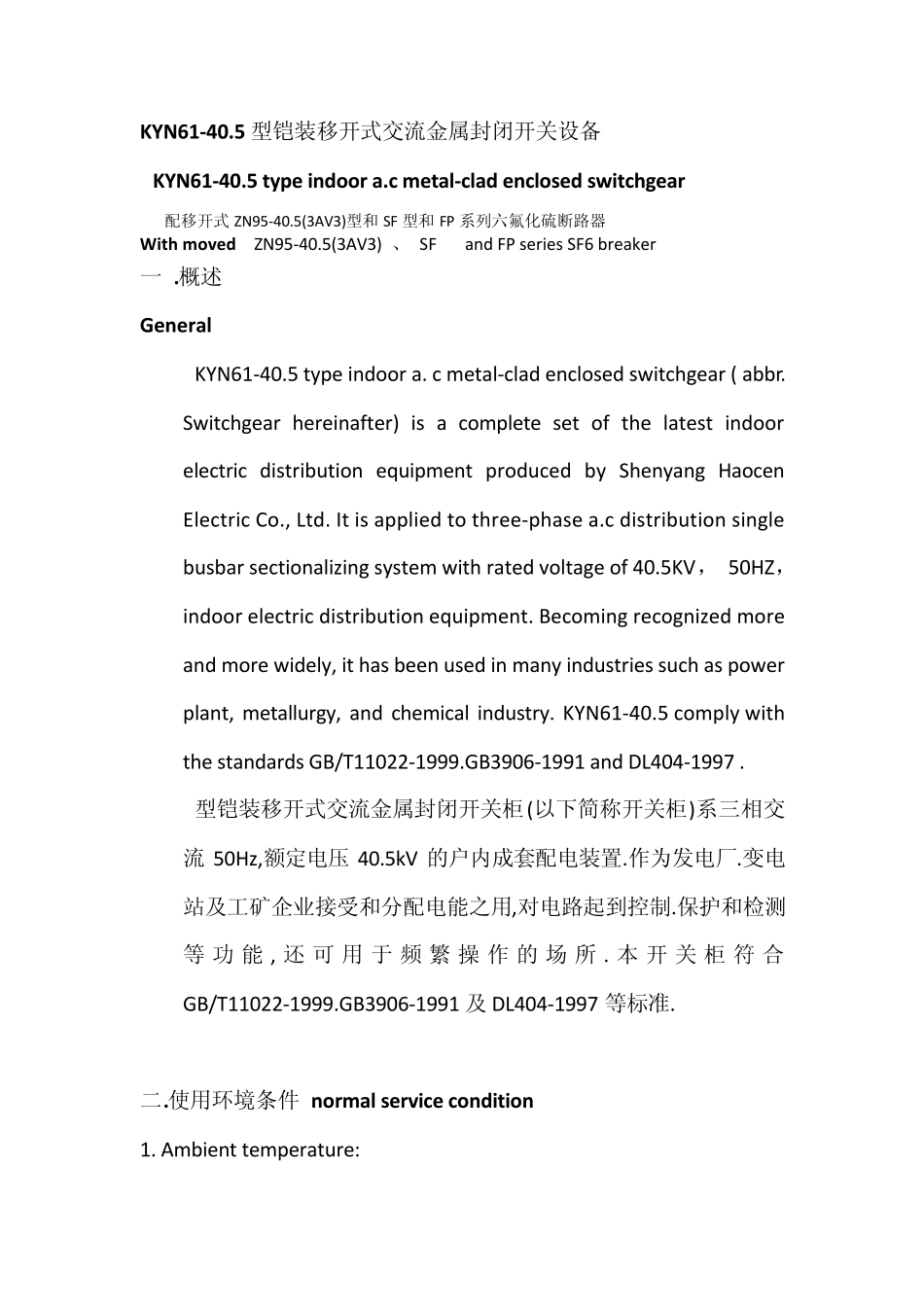

KYN61-40.5 型铠装移开式交流金属封闭开关设备 KYN61-40.5 type indoor a.c metal-clad enclosed switchgear 配移开式ZN95-40.5(3AV3)型和SF 型和FP 系列六氟化硫断路器 With moved ZN95-40.5(3AV3) 、 SF and FP series SF6 breaker 一 .概述 General KYN61-40.5 type indoor a. c metal-clad enclosed switchgear ( abbr. Switchgear hereinafter) is a complete set of the latest indoor electric distribution equipment produced by Shenyang Haocen Electric Co., Ltd. It is applied to three-phase a.c distribution single busbar sectionalizing system with rated voltage of 40.5KV， 50HZ，indoor electric distribution equipment. Becoming recognized more and more widely, it has been used in many industries such as power plant, metallurgy, and chemical industry. KYN61-40.5 comply with the standards GB/T11022-1999.GB3906-1991 and DL404-1997 . 型铠装移开式交流金属封闭开关柜(以下简称开关柜)系三相交流50Hz,额定电压 40.5kV 的户内成套配电装置.作为发电厂.变电站及工矿企业接受和分配电能之用,对电路起到控制.保护和检测等 功 能 , 还 可 用 于 频 繁 操 作 的 场 所 . 本 开关柜 符 合GB/T11022-1999.GB3906-1991 及 DL404-1997 等标准. 二.使用环境条件 normal service condition 1. Ambient temperature: Maximum +40℃～ -15℃ the average temperature within 24 hours ambient temperature shall not be greater than +35℃, the lowest ambient temperature shall not be smaller than -15℃ 环境温度: 上限+40C,且24 小时内测得的平均值不超过35C,下限-15C. 2. Height above sea level shall not exceed 1000m 海拔高度: 海拔不超过1000m 3. humidity : the average relative humidity should not exceed 90% within a day. The average relative humidity should not exceed 95% within a month. 相对湿度: 日平均值不超过95%, 月平均值不超过90%. 4. earthquake intensity should not be greater than 8 degrees. 地震烈度: 不超过8 度 5.the vapor pressure s...
