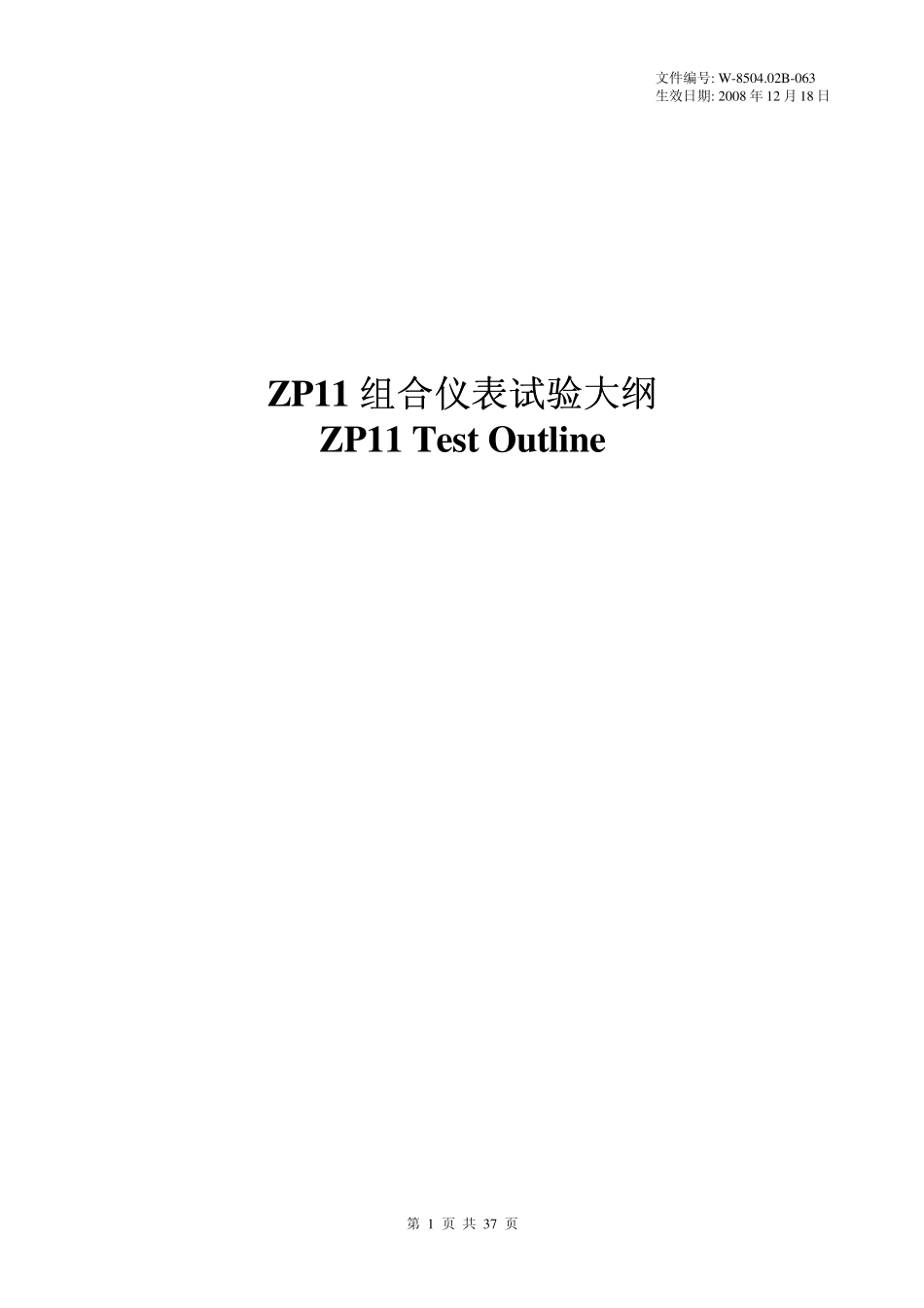

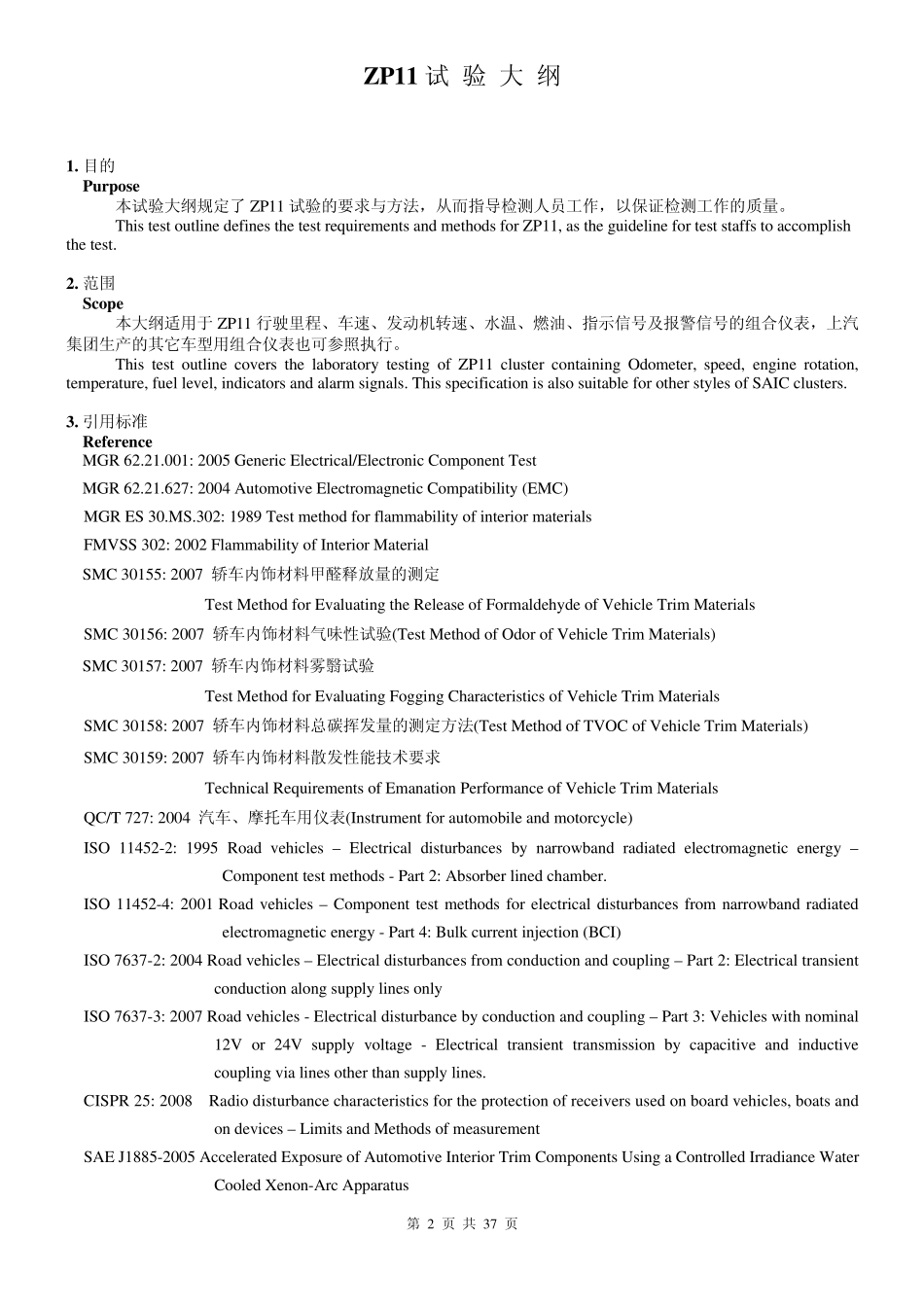

文件编号: W -8504.02B-063 生效日期: 2008 年12 月18 日 第 1 页 共 37 页 ZP11 组合仪表组合仪表试验大纲试验大纲 ZP11 Test Ou tline ZP11 试 验 大 纲 第 2 页 共 37 页 1. 目的 Pu rpose 本试验大纲规定了ZP11 试验的要求与方法，从而指导检测人员工作，以保证检测工作的质量。 This test outline defines the test requirements and methods for ZP11, as the guideline for test staffs to accomplish the test. 2. 范围 Scope 本大纲适用于ZP11 行驶里程、车速、发动机转速、水温、燃油、指示信号及报警信号的组合仪表，上汽集团生产的其它车型用组合仪表也可参照执行。 This test outline covers the laboratory testing of ZP11 cluster containing Odometer, speed, engine rotation, temperature, fuel level, indicators and alarm signals. This specification is also suitable for other styles of SAIC clusters. 3. 引用标准 Reference MGR 62.21.001: 2005 Generic Electrical/Electronic Component Test MGR 62.21.627: 2004 Automotive Electromagnetic Compatibility (EMC) MGR ES 30.MS.302: 1989 Test method for flammability of interior materials FMVSS 302: 2002 Flammability of Interior Material SMC 30155: 2007 轿车内饰材料甲醛释放量的测定 Test Method for Evaluating the Release of Formaldehyde of Vehicle Trim Materials SMC 30156: 2007 轿车内饰材料气味性试验(Test Method of Odor of Vehicle Trim Materials) SMC 30157: 2007 轿车内饰材料雾翳试验 Test Method for Evaluating Fogging Characteristics of Vehicle Trim Materials SMC 30158: 2007 轿车内饰材料总碳挥发量的测定方法(Test Method of TVOC of Vehicle Trim Materials) SMC 30159: 2007 轿车内饰材料散发性能技术要求 Technical Requirements of Emanation Performance of Vehicle Trim Materials QC/T 727: 2004 汽车、摩托车用仪表(Instrument for automobile and motorcycle) ISO 11452-2: 1995 Road vehicles – Electrical disturbances by narrowband radiated electromagnetic energy – Com...
