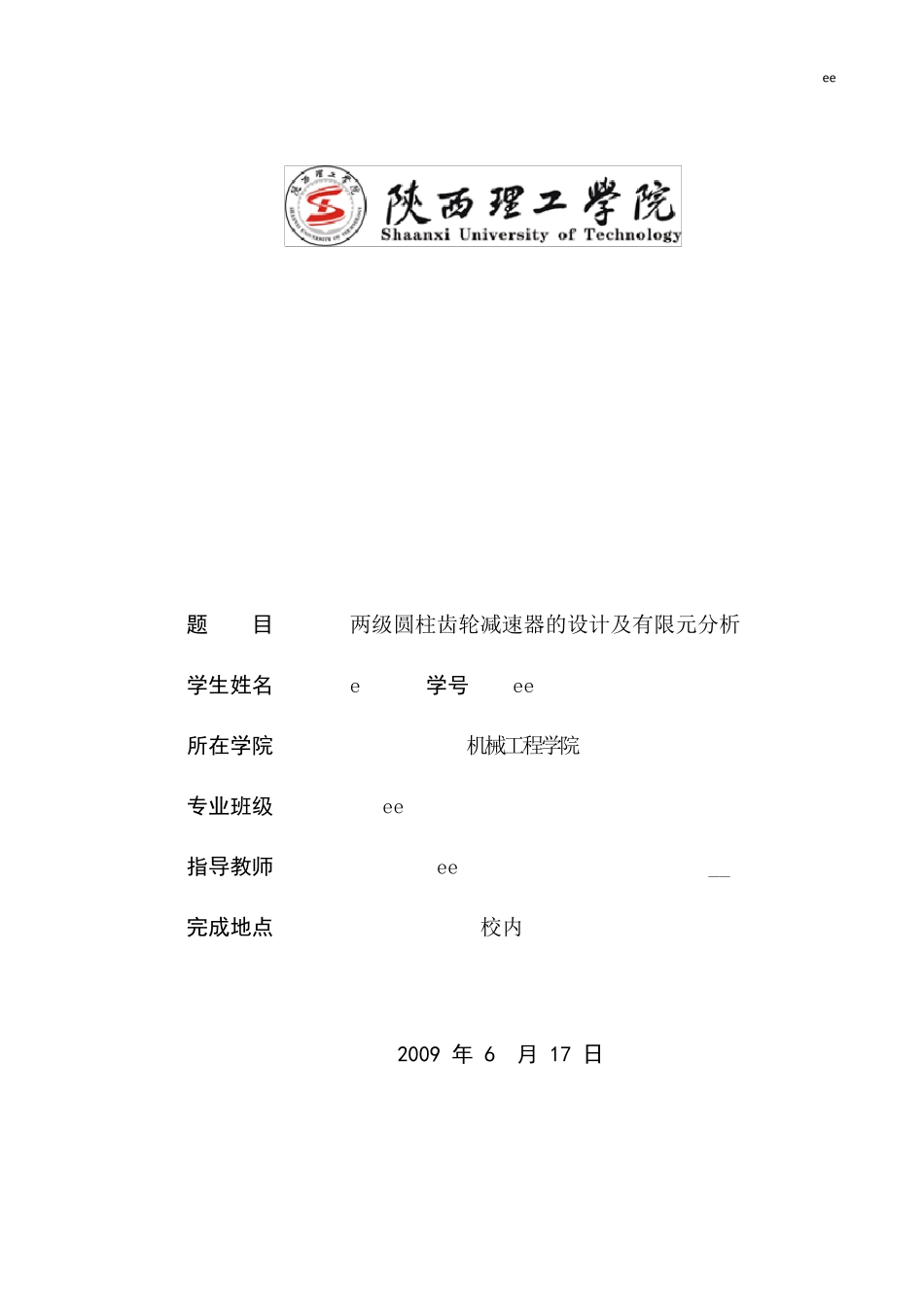

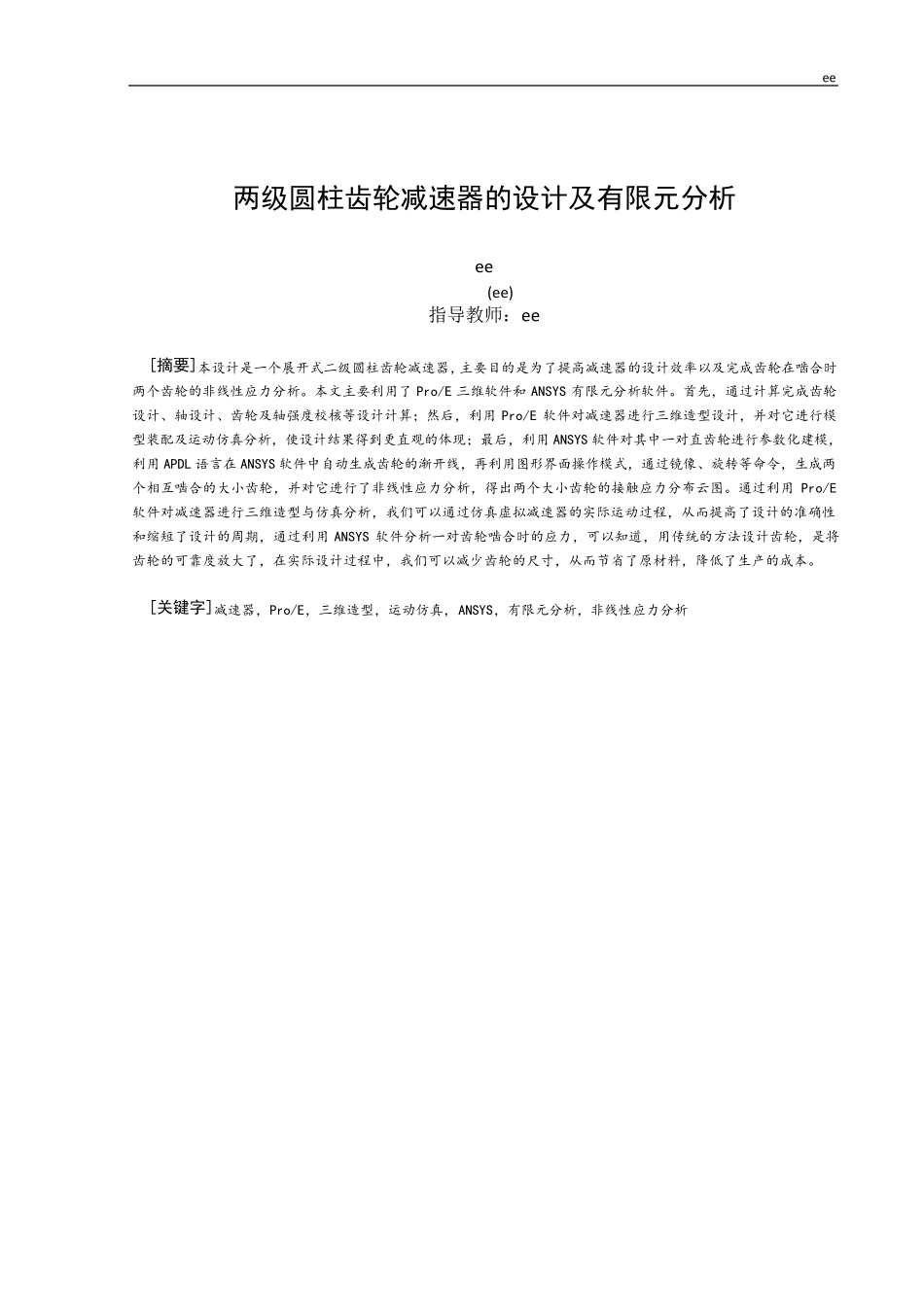

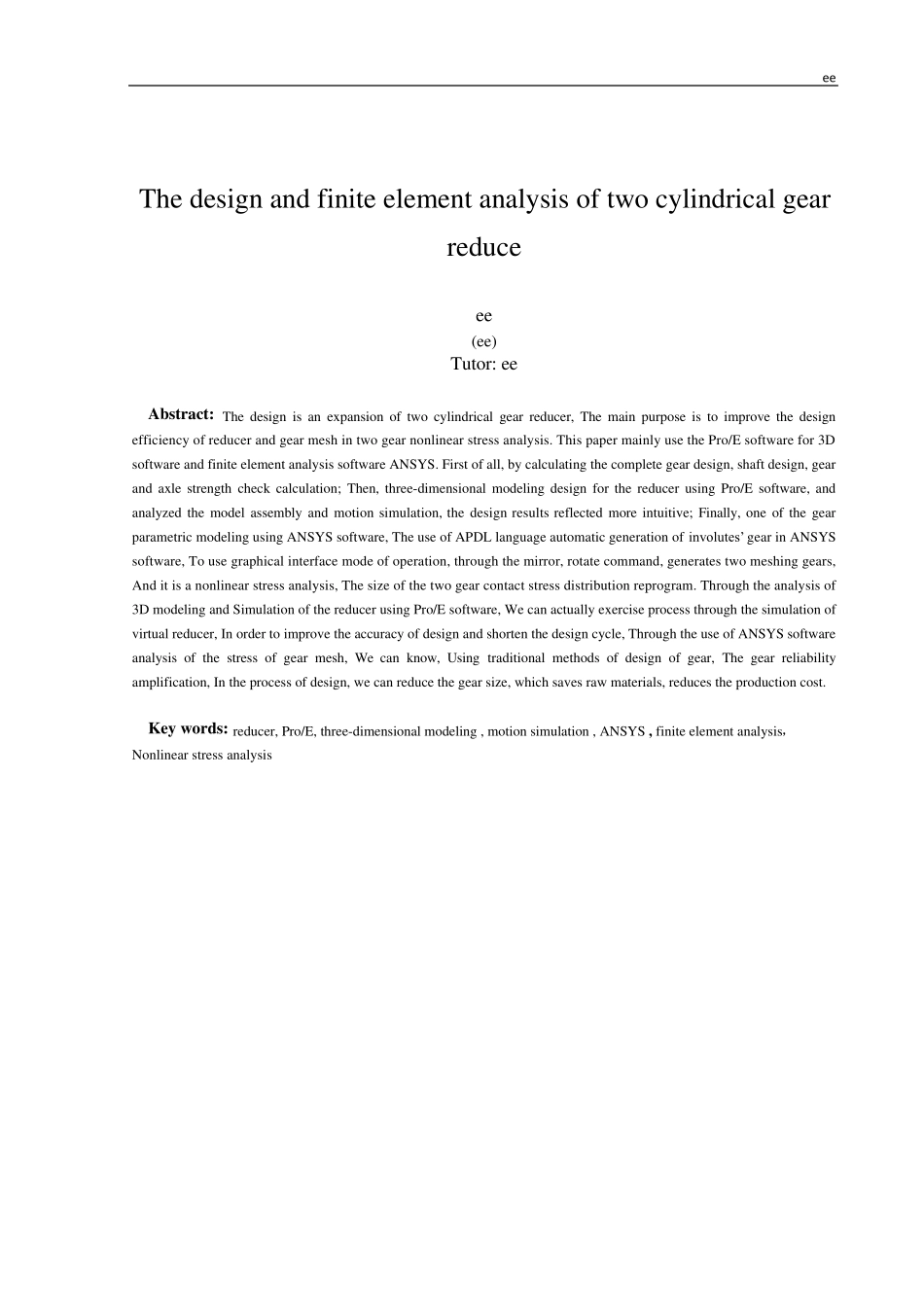

e e 题 目 两级圆柱齿轮减速器的设计及有限元分析 学生姓名 e 学号 ee 所在学院 机械工程学院 专业班级 ee 指导教师 ee __ 完成地点 校内 2009 年 6 月 17 日 e e 两级圆柱齿轮减速器的设计及有限元分析 e e (e e ) 指导教师:e e [摘要]本设计是一个展开式二级圆柱齿轮减速器,主要目的是为了提高减速器的设计效率以及完成齿轮在啮合时两个齿轮的非线性应力分析。本文主要利用了Pro/E 三维软件和ANSYS 有限元分析软件。首先,通过计算完成齿轮设计、轴设计、齿轮及轴强度校核等设计计算;然后,利用Pro/E 软件对减速器进行三维造型设计,并对它进行模型装配及运动仿真分析,使设计结果得到更直观的体现;最后,利用ANSYS 软件对其中一对直齿轮进行参数化建模,利用APDL 语言在ANSYS 软件中自动生成齿轮的渐开线,再利用图形界面操作模式,通过镜像、旋转等命令,生成两个相互啮合的大小齿轮,并对它进行了非线性应力分析,得出两个大小齿轮的接触应力分布云图。通过利用Pro/E软件对减速器进行三维造型与仿真分析,我们可以通过仿真虚拟减速器的实际运动过程,从而提高了设计的准确性和缩短了设计的周期,通过利用ANSYS 软件分析一对齿轮啮合时的应力,可以知道,用传统的方法设计齿轮,是将齿轮的可靠度放大了,在实际设计过程中,我们可以减少齿轮的尺寸,从而节省 了原 材 料 ,降 低 了生产 的成本。 [关键字]减速器,Pro/E,三维造型,运动仿真,ANSYS,有限元分析,非线性应力分析 e e The design and finite element analysis of two cylindrical gear reduce ee (ee) Tutor: ee Abstract: The design is an expansion of two cylindrical gear reducer, The main purpose is to improve the design efficiency of reducer and gear mesh in two gear nonlinear stress analysis. This paper mainly use the Pro/E software for 3D software and finite element analysis software ANSYS. First of all, by calculating the complete gear design, shaft design, gear and axle strength check calculation; Then, three-dimensional modeling design for the reducer using Pro/E software, and analyzed the model assembly and motion simulation, the design results refle...
