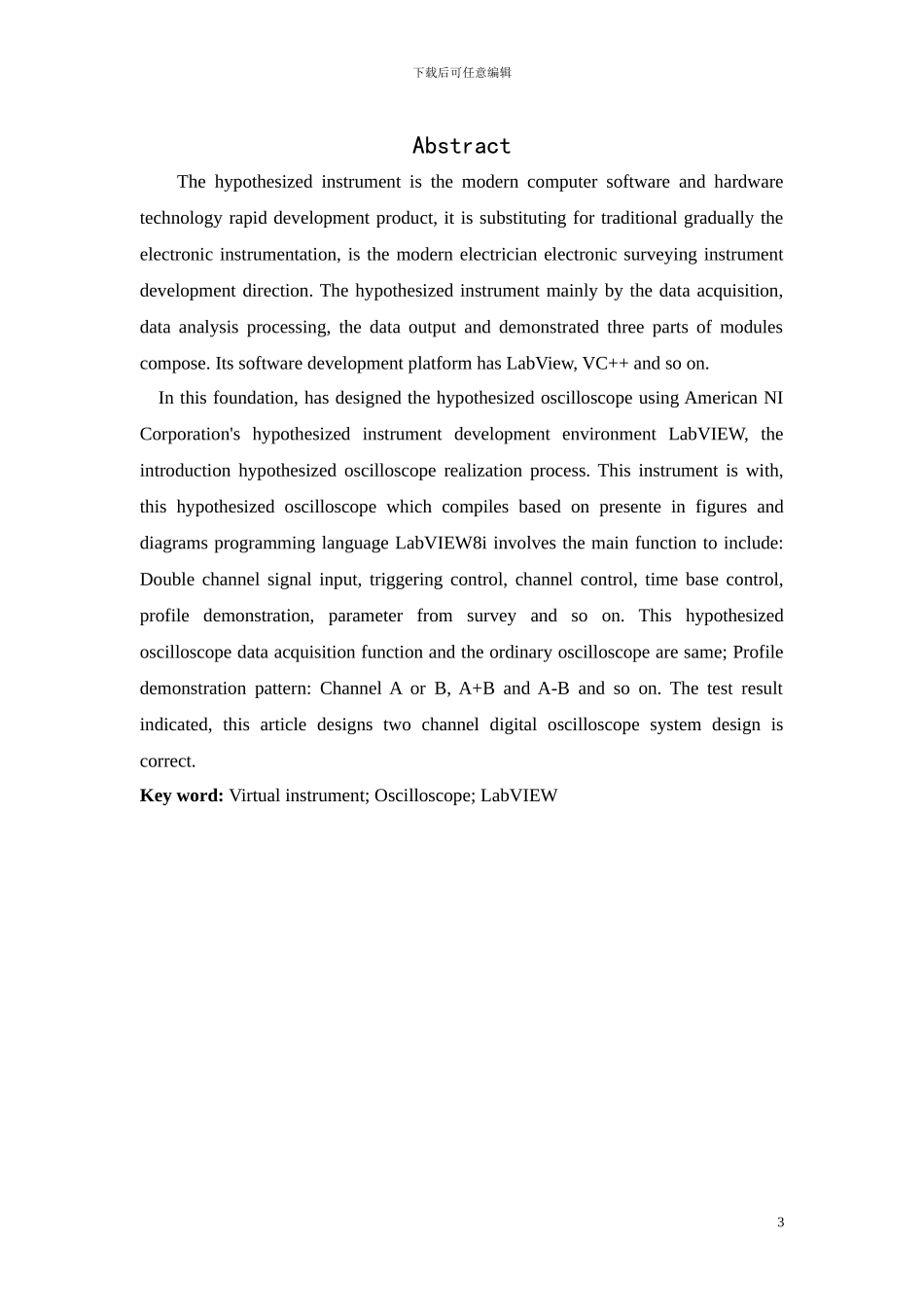

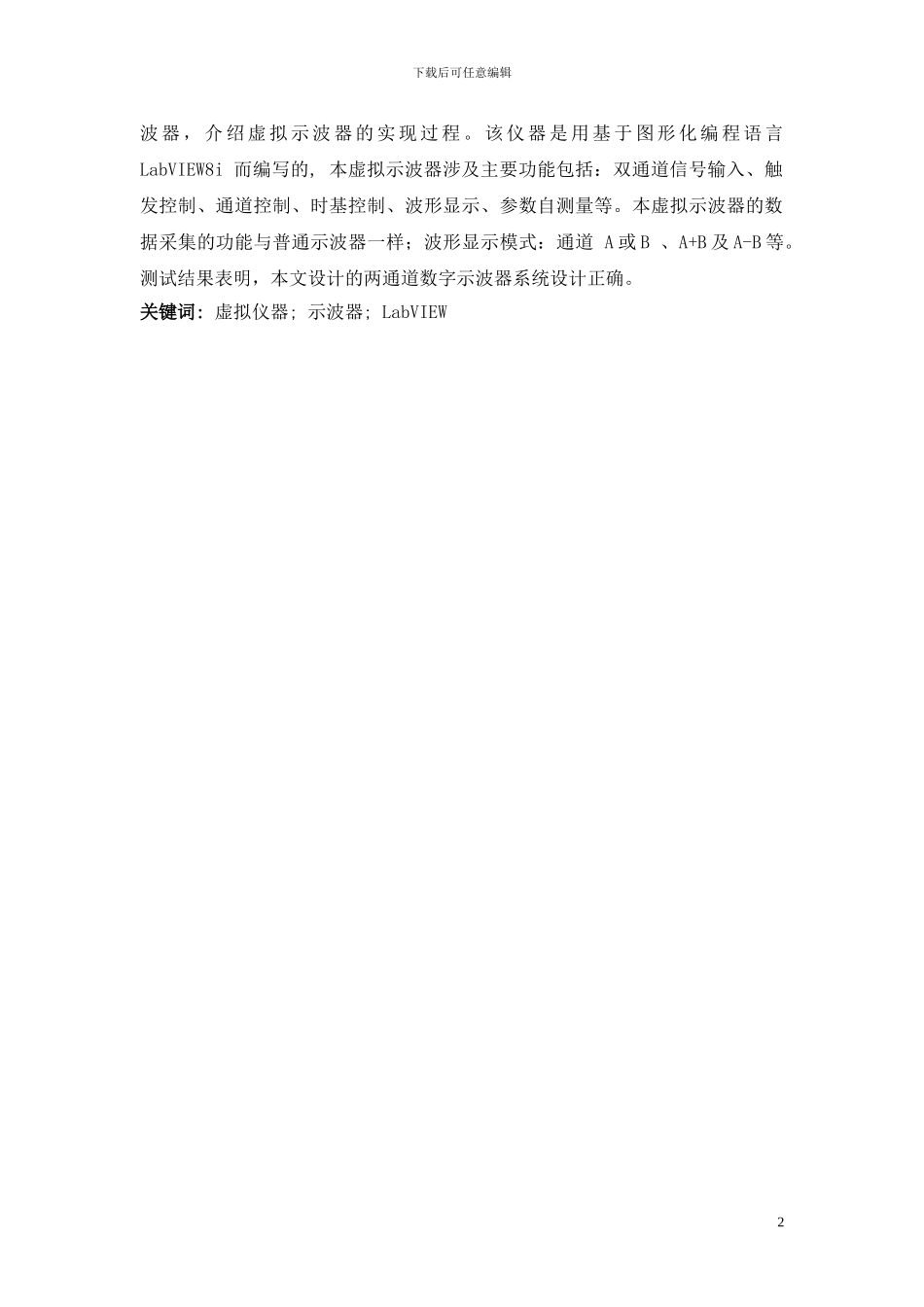

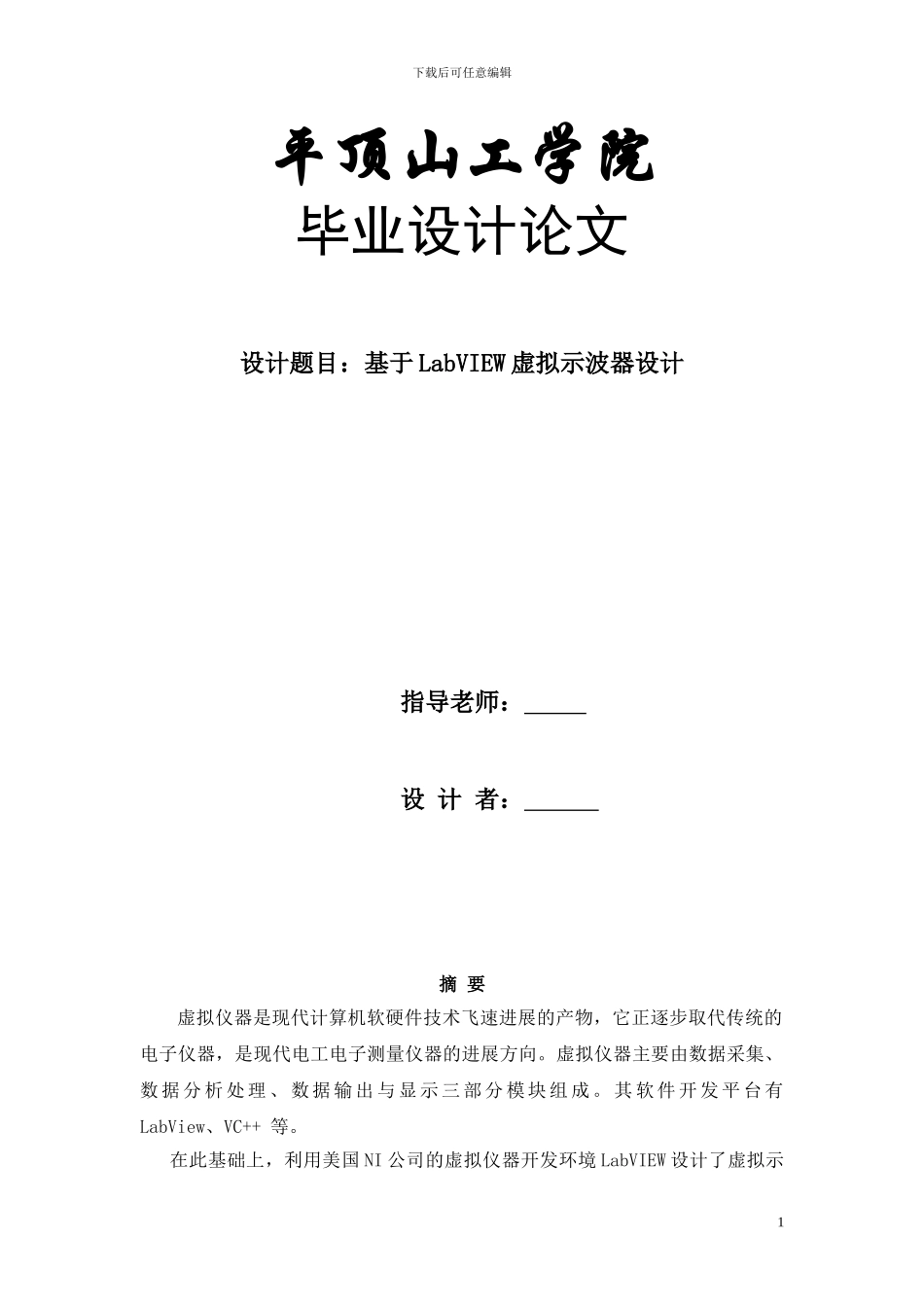

下载后可任意编辑平顶山工学院毕业设计论文设计题目:基于 LabVIEW 虚拟示波器设计 指导老师: 设 计 者: 摘 要虚拟仪器是现代计算机软硬件技术飞速进展的产物,它正逐步取代传统的电子仪器,是现代电工电子测量仪器的进展方向。虚拟仪器主要由数据采集、数 据 分 析 处 理 、 数 据 输 出 与 显 示 三 部 分 模 块 组 成 。 其 软 件 开 发 平 台 有LabView、VC++ 等。 在此基础上,利用美国 NI 公司的虚拟仪器开发环境 LabVIEW 设计了虚拟示1下载后可任意编辑波 器 , 介 绍 虚 拟 示 波 器 的 实 现 过 程 。 该 仪 器 是 用 基 于 图 形 化 编 程 语 言LabVIEW8i 而编写的, 本虚拟示波器涉及主要功能包括:双通道信号输入、触发控制、通道控制、时基控制、波形显示、参数自测量等。本虚拟示波器的数据采集的功能与普通示波器一样;波形显示模式:通道 A 或 B 、A+B 及 A-B 等。测试结果表明,本文设计的两通道数字示波器系统设计正确。关键词: 虚拟仪器; 示波器; LabVIEW2下载后可任意编辑AbstractThe hypothesized instrument is the modern computer software and hardware technology rapid development product, it is substituting for traditional gradually the electronic instrumentation, is the modern electrician electronic surveying instrument development direction. The hypothesized instrument mainly by the data acquisition, data analysis processing, the data output and demonstrated three parts of modules compose. Its software development platform has LabView, VC++ and so on. In this foundation, has designed the hypothesized oscilloscope using American NI Corporation's hypothesized instrument development environment LabVIEW, the introduction hypothesized oscilloscope realization process. This instrument is with, this hypothesized oscilloscope which compiles based on presente in figures and diagrams programming language LabVIEW8i involves the main function to include: Double channel signal input, triggering control, channel control, time b...
