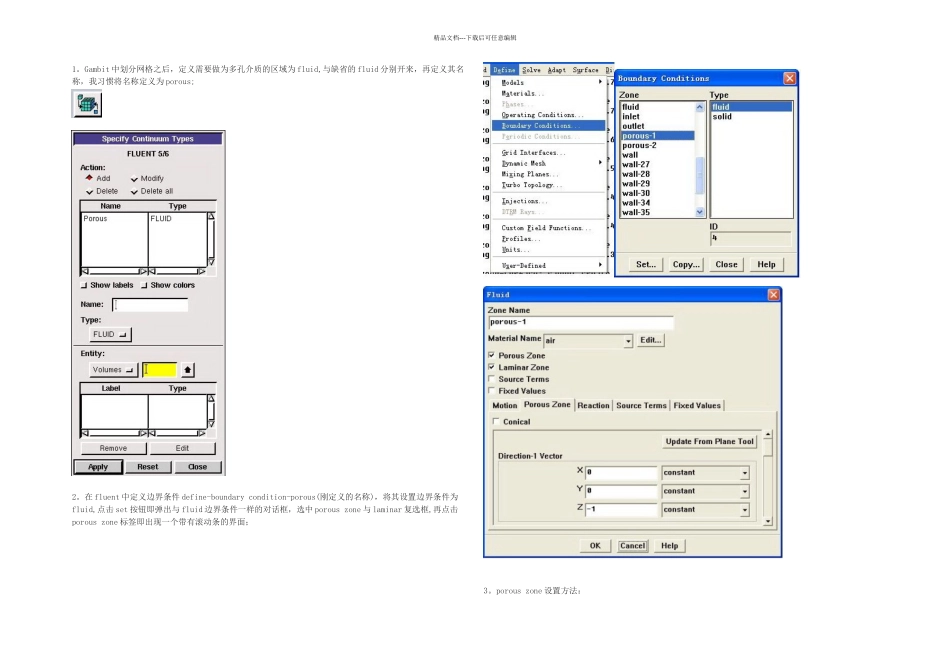

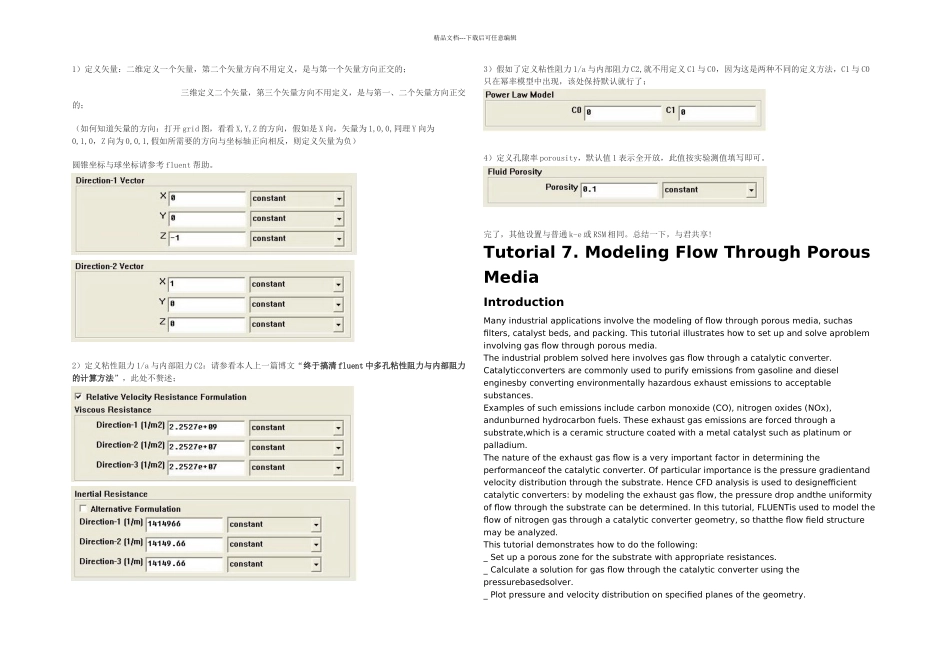

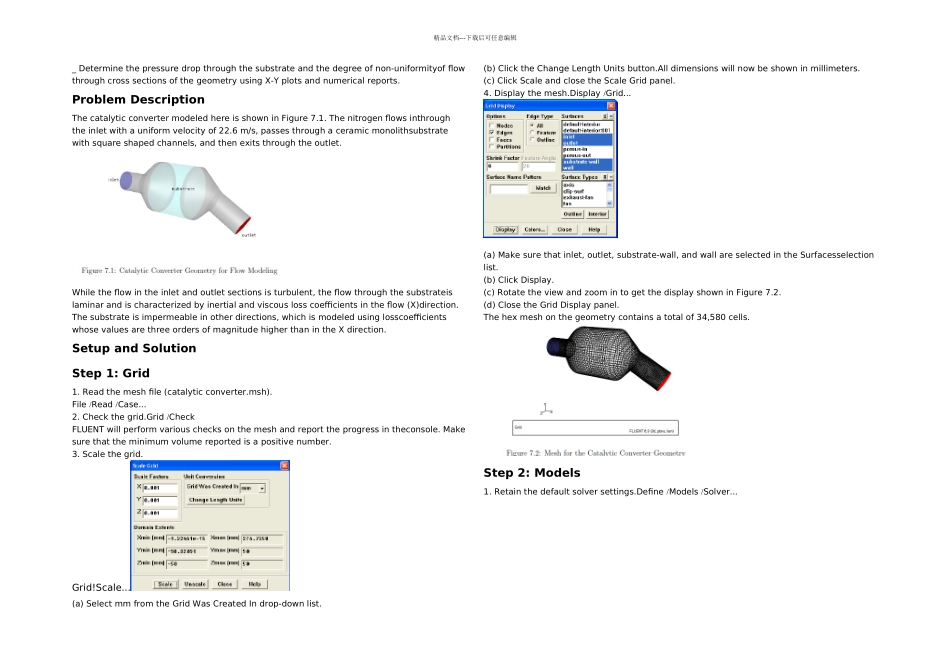

精品文档---下载后可任意编辑1。Gambit 中划分网格之后,定义需要做为多孔介质的区域为 fluid,与缺省的 fluid 分别开来,再定义其名称,我习惯将名称定义为 porous;2。在 fluent 中定义边界条件 define-boundary condition-porous(刚定义的名称),将其设置边界条件为fluid,点击 set 按钮即弹出与 fluid 边界条件一样的对话框,选中 porous zone 与 laminar 复选框,再点击porous zone 标签即出现一个带有滚动条的界面;3。porous zone 设置方法:精品文档---下载后可任意编辑1)定义矢量:二维定义一个矢量,第二个矢量方向不用定义,是与第一个矢量方向正交的; 三维定义二个矢量,第三个矢量方向不用定义,是与第一、二个矢量方向正交的;(如何知道矢量的方向:打开 grid 图,看看 X,Y,Z 的方向,假如是 X 向,矢量为 1,0,0,同理 Y 向为0,1,0,Z 向为 0,0,1,假如所需要的方向与坐标轴正向相反,则定义矢量为负)圆锥坐标与球坐标请参考 fluent 帮助。2)定义粘性阻力 1/a 与内部阻力 C2:请参看本人上一篇博文“终于搞清 fluent 中多孔粘性阻力与内部阻力的计算方法”,此处不赘述;3)假如了定义粘性阻力 1/a 与内部阻力 C2,就不用定义 C1 与 C0,因为这是两种不同的定义方法,C1 与 C0只在幂率模型中出现,该处保持默认就行了;4)定义孔隙率 porousity,默认值 1 表示全开放,此值按实验测值填写即可。完了,其他设置与普通 k-e 或 RSM 相同。总结一下,与君共享!Tutorial 7. Modeling Flow Through Porous MediaIntroductionMany industrial applications involve the modeling of flow through porous media, suchas filters, catalyst beds, and packing. This tutorial illustrates how to set up and solve aproblem involving gas flow through porous media.The industrial problem solved here involves gas flow through a catalytic converter. Catalyticconverters are commonly used to purify emissions from gasoline and diesel enginesby converting environmentally hazardous exhaust emissions to acceptable substances.Examples of such emissions include carbon monoxide (CO), nitrogen oxides (NOx), andunburned hydrocarbon fuels. These exhaust gas emissions...
