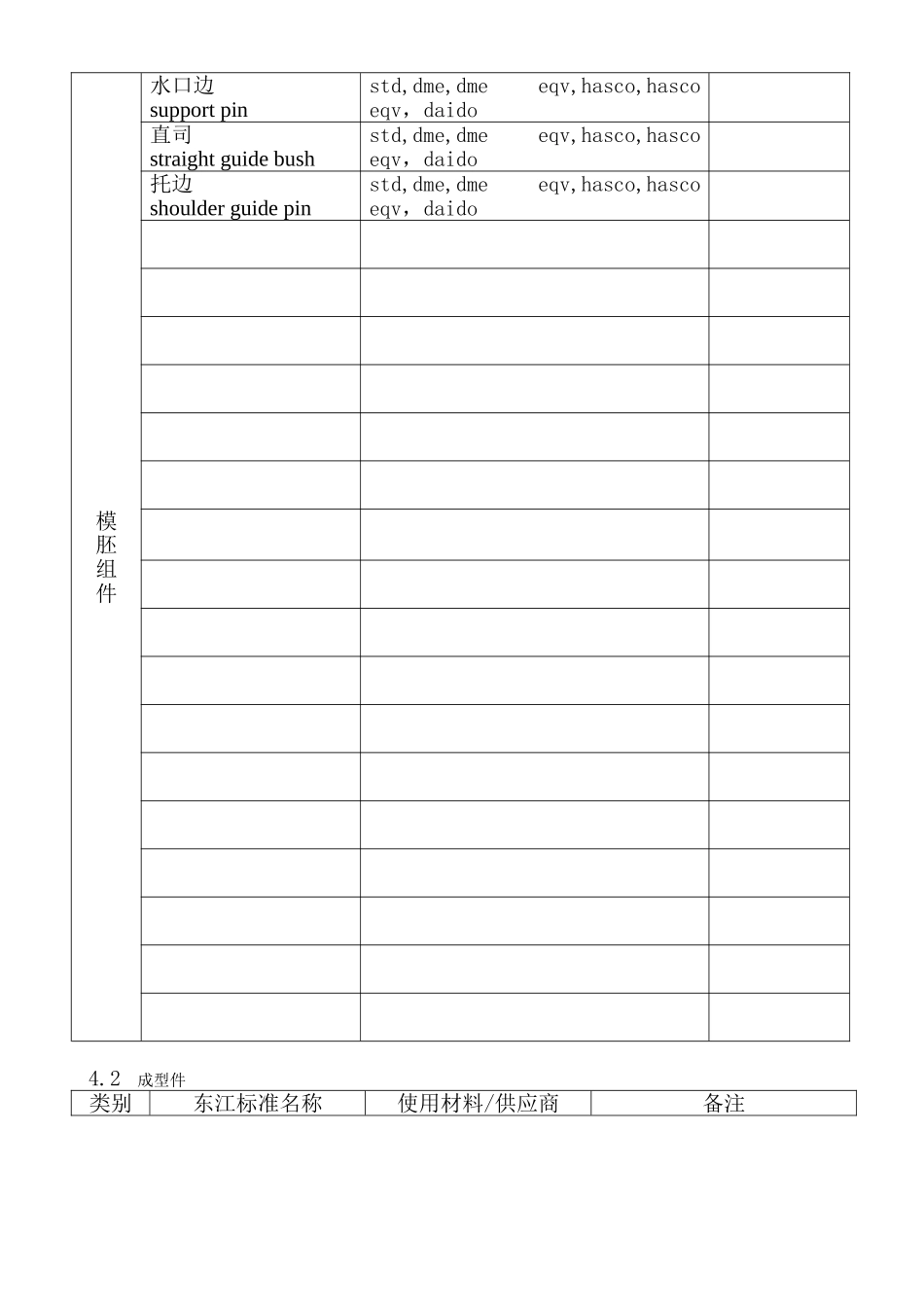

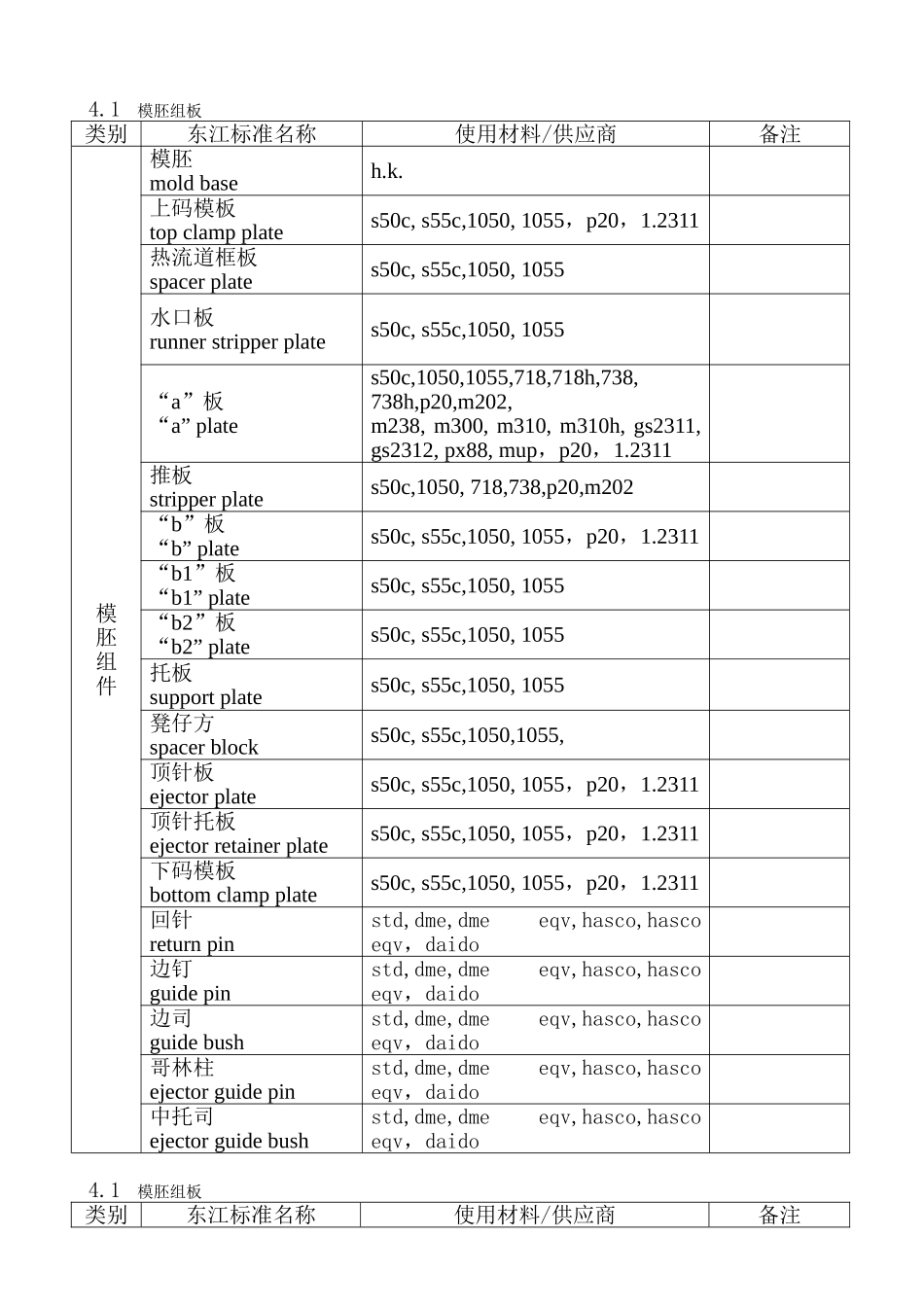

4.1模胚组板类别东江标准名称使用材料/供应商备注模胚组件模胚moldbaseh.k.上码模板topclampplates50c,s55c,1050,1055，p20，1.2311热流道框板spacerplates50c,s55c,1050,1055水口板runnerstripperplates50c,s55c,1050,1055“a”板“a”plates50c,1050,1055,718,718h,738,738h,p20,m202,m238,m300,m310,m310h,gs2311,gs2312,px88,mup，p20，1.2311推板stripperplates50c,1050,718,738,p20,m202“b”板“b”plates50c,s55c,1050,1055，p20，1.2311“b1”板“b1”plates50c,s55c,1050,1055“b2”板“b2”plates50c,s55c,1050,1055托板supportplates50c,s55c,1050,1055凳仔方spacerblocks50c,s55c,1050,1055,顶针板ejectorplates50c,s55c,1050,1055，p20，1.2311顶针托板ejectorretainerplates50c,s55c,1050,1055，p20，1.2311下码模板bottomclampplates50c,s55c,1050,1055，p20，1.2311回针returnpinstd,dme,dmeeqv,hasco,hascoeqv，daido边钉guidepinstd,dme,dmeeqv,hasco,hascoeqv，daido边司guidebushstd,dme,dmeeqv,hasco,hascoeqv，daido哥林柱ejectorguidepinstd,dme,dmeeqv,hasco,hascoeqv，daido中托司ejectorguidebushstd,dme,dmeeqv,hasco,hascoeqv，daido4.1模胚组板类别东江标准名称使用材料/供应商备注模胚组件水口边supportpinstd,dme,dmeeqv,hasco,hascoeqv，daido直司straightguidebushstd,dme,dmeeqv,hasco,hascoeqv，daido托边shoulderguidepinstd,dme,dmeeqv,hasco,hascoeqv，daido4.2成型件类别东江标准名称使用材料/供应商备注成型件上模肉cavityinsert下模肉coreinsert上模镶件cavitysmallinsert下模镶件coresmallinsert行位slideblock行位镶件slideinsert可换镶件exchangeableinsert水口镶件runnerinsert斜顶镶件caminsertassab:718,718h,s136h,s7,s136,635,8407,618german:gs711,gs638,gs738,gs767,gs2311,gs2312,gs2083,gs2083h,gs2316,gs2344esr,gs2344efs,gs307,gs316,gs316esrbohler:m202,m238,m300,m310,m310h,m461daido:nak55,nak80,pak90,px88,pds3,skd11,skd61,dh2fp20,738h,mup,h13,pm35,420,420h,sm.v3,m.e.k4becumax30(铍铜)，becumax40(铍铜)，ampco940(合金铜)s136,8407,:gs2083esr,gs2344,h13:淬火后二次回火，硬度hrc48~52．hardened，hrc48~52gs2083var,420:淬火后二次回火，硬度hrc52~56．hardened，hrc52~56氮化0.15深，硬度hrc68~70nitrided0.15dep，hrc68~70上模镶针cavityinsertpin下模镶针coreinsertpin行位镶针slideinsertpin斜顶镶针caminsertpinstd,dme,dmeeqv,hasco,hascoeqv,rabourdin,daido,daidoeqv,正钢puch,misumi采用标准顶针改做上模肉压块cavityclamp下模肉压块coreclamps50c,1050,p20日期镶针dateindicator环保镶针recyclemarkedpinstd,dme,dmeeqv,hasco,hascoeqv,daido,daidoeqv,puch,misumi哥针corepindaido,daidoeqv,dme,dmeeqv疏气针gasexpellerdaido4.3浇注系统类别东江标准名称使用材料/供应商备注浇注系统法兰locatingrings50c,1050唧咀spruebushing法兰唧咀spruebushinglocating唧咀头spruegates50c,1050,420,o1，p20s50c,1050:渗碳0.3深，硬度hrc52~56carburized0.3dep，hrc52~56o1:淬火后二次回火，硬度hrc52~56．hardened，hrc52~56加长唧咀extendspruebushing浇口套gatebush420唧咀身spruebodys50c,1050,420,becumax40,o1s50c,1050:渗碳0.3深，硬度hrc52~56carburized0.3dep，hrc52~56o1:淬火后二次回火，硬度hrc52~56．hardened，hrc52~56唧咀套spruebushs50c铁管steelpipes50c4.4发热元件、热流道系统类别东江标准名称使用材料/供应商备注发热元件、热流道系统钢“o”令steelo-ringdme热流道板hotmanifold420,dme,隔热板hightemp.insulatorsheetdme,hasco隔热垫riserpad420,dme,hasco,mold-master,yudo中心垫centersupportpad420,dme,hasco,mold-master,yudo阀针系统valvegatesystemdme,hasco,mold-master,yudo热唧咀heaternozzledme,hasco,mold-master,yudo热唧咀定位套nozzlebushdme,hasco,mold-master,yudo热唧咀头heaterspruegatedme,hasco,mold-master,yudo封针closedpindme,hasco,mold-master,yudo...
