安捷伦电子负载仪技术资料

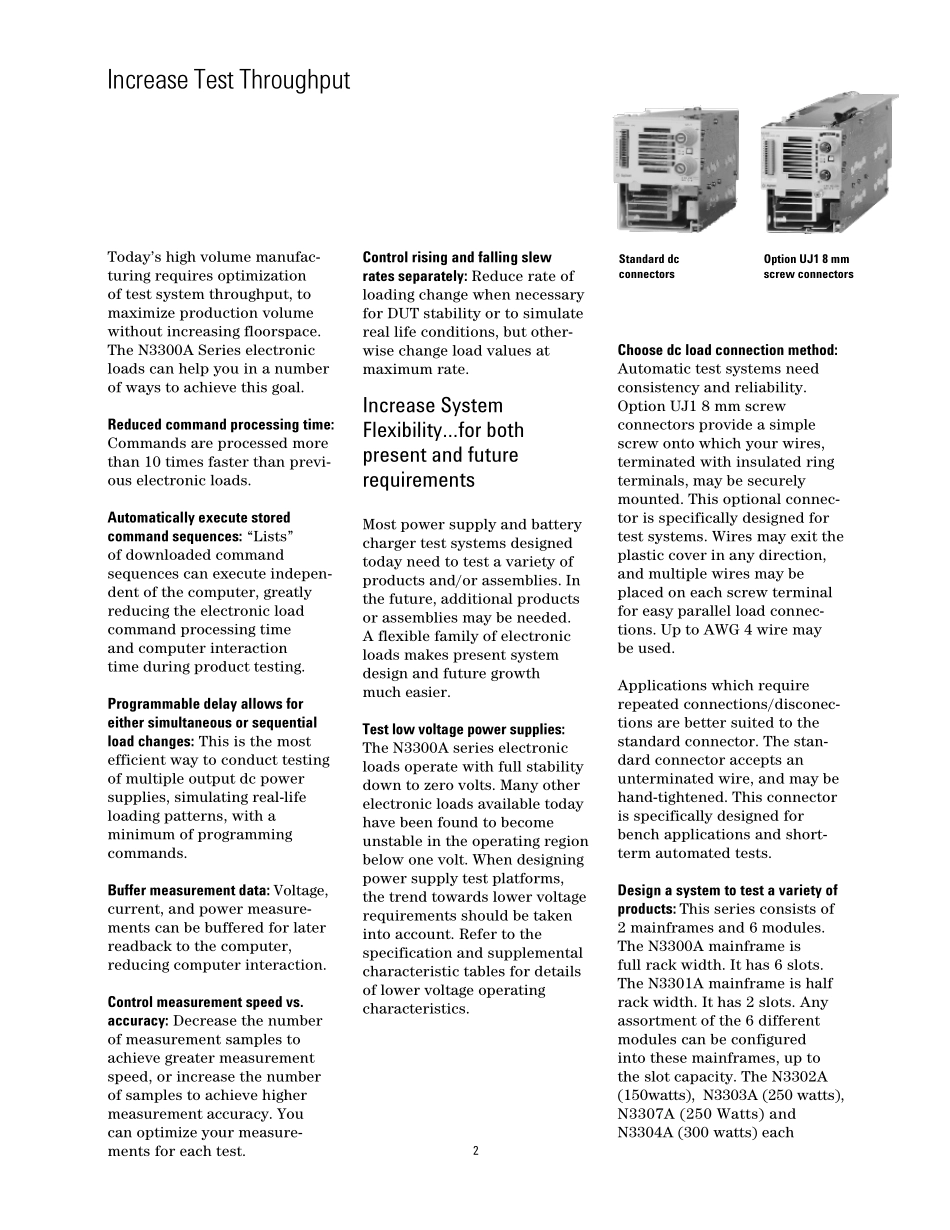

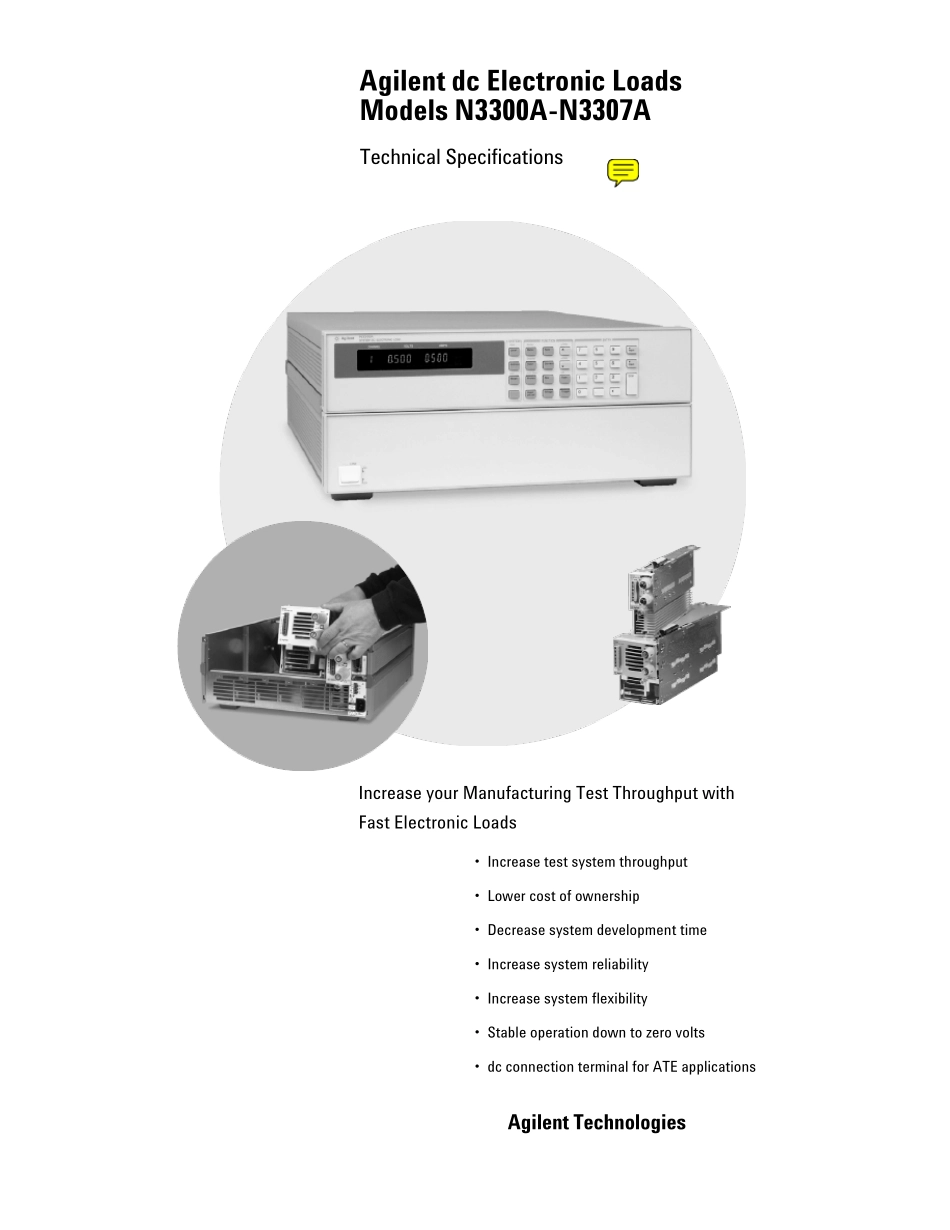

Agilent dc Electronic Loads Models N3300A-N3307ATechnical SpecificationsIncrease your Manufacturing Test Throughput with Fast Electronic Loads• Increase test system throughput• Lower cost of ownership• Decrease system development time• Increase system reliability• Increase system flexibility• Stable operation down to zero volts• dc connection terminal for ATE applicationsAgilent Technologies2Today’s high volume manufac-turing requires optimization of test system throughput, tomaximize production volumewithout increasing floorspace.The N3300A Series electronicloads can help you in a numberof ways to achieve this goal.Reduced command processing time:Commands are processed morethan 10 times faster than previ-ous electronic loads.Automatically execute stored command sequences: “Lists” of downloaded commandsequences can execute indepen-dent of the computer, greatlyreducing the electronic loadcommand processing time and computer interaction time during product testing.Programmable delay allows foreither simultaneous or sequentialload changes: This is the mostefficient way to conduct testingof multiple output dc powersupplies, simulating real-lifeloading patterns, with a minimum of programming commands.Buffer measurement data: Voltage,current, and power measure-ments can be buffered for laterreadback to the computer,reducing computer interaction.Control measurement speed vs.accuracy: Decrease the numberof measurement samples toachieve greater measurementspeed, or increase the numberof samples to achieve highermeasurement accuracy. You can optimize your measure-ments for each test.Control rising and falling slew rates separately: Reduce rate ofloading change when necessaryfor DUT stability or to simulatereal life conditions, but other-wise change load valu...
