气液纠偏系统

气液纠偏系统_第1页
1/14
气液纠偏系统_第2页
2/14
气液纠偏系统_第3页
3/14

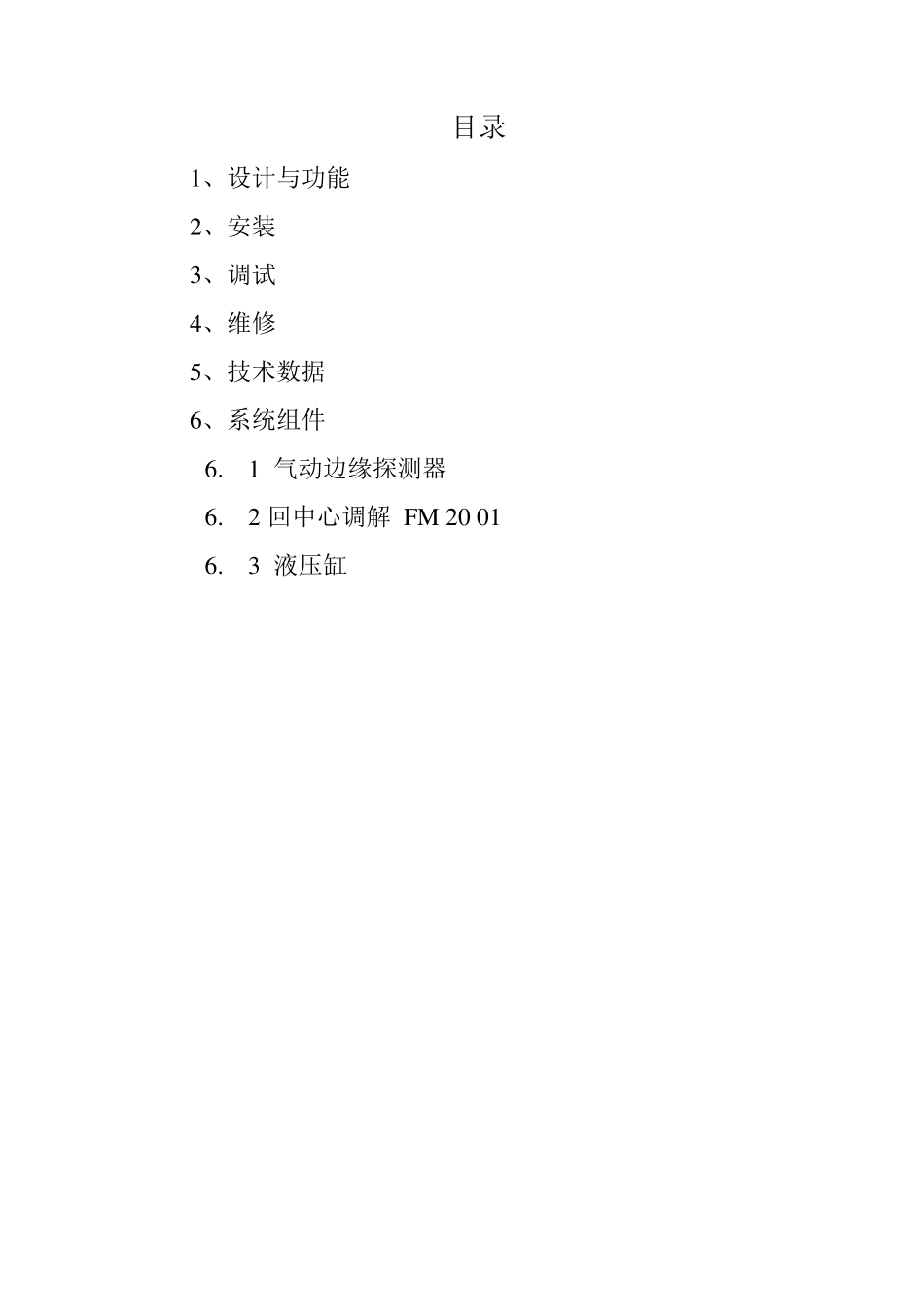

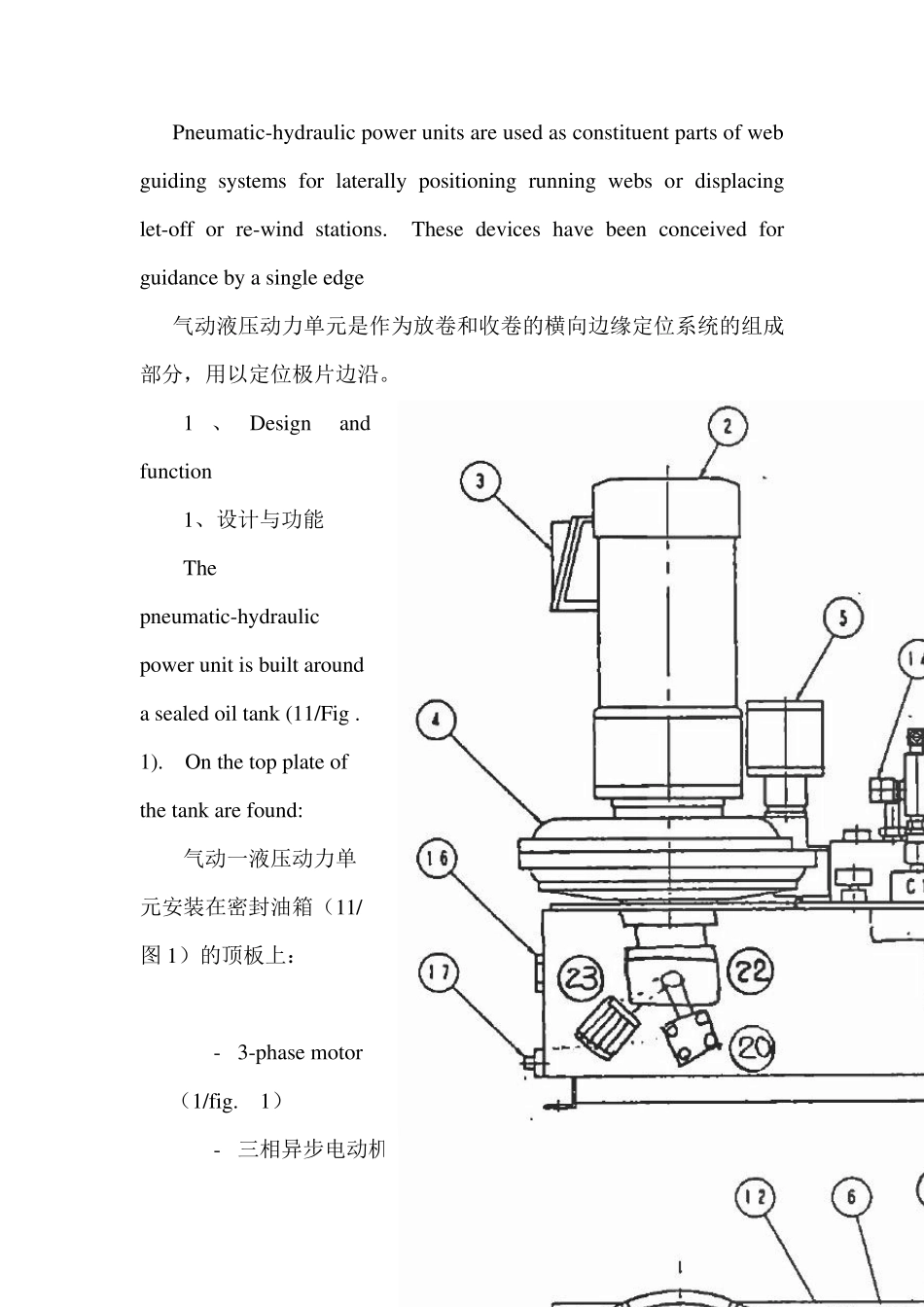

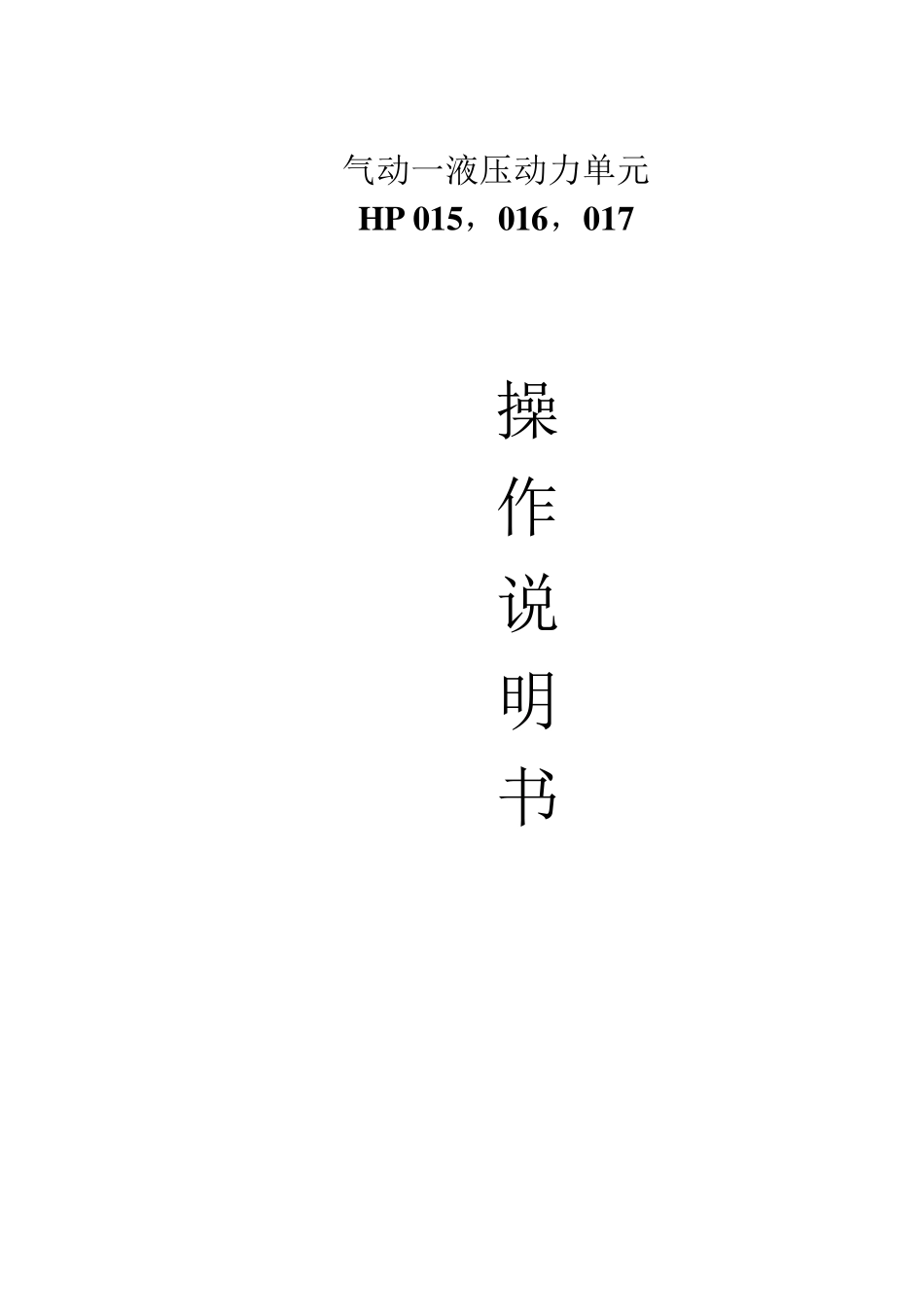

气动一液压动力单元 HP 015,016,017 操 作 说 明 书 目录 1、设计与功能 2、安装 3、调试 4、维修 5、技术数据 6、系统组件 6. 1 气动边缘探测器 6. 2 回中心调解 FM 20 01 6. 3 液压缸 Pneumatic-hydraulic power units are used as constituent parts of web guiding systems for laterally positioning running webs or displacing let-off or re-wind stations. These devices have been conceived for guidance by a single edge 气动液压动力单元是作为放卷和收卷的横向边缘定位系统的组成部分,用以定位极片边沿。 1 、 Design and function 1、设计与功能 The pneumatic-hydraulic power unit is built around a sealed oil tank (11/Fig . 1). On the top plate of the tank are found: 气动一液压动力单元安装在密封油箱(11/图 1)的顶板上: - 3-phase motor(1/fig. 1) - 三相异步电动机(1/图 1) - Side channel blower - 鼓风机(4) - Air inlet filter - 空气进气过滤器(5) - Oil pressure filter - 压力油过滤器(20) - Air manifold - 空气歧管(11) - Servo-valve - 伺服阀(21) - 2/2 way valve for when setting the dis-placement guider assembly via pushbuttons or lock-out. - 2/2 油阀(通过按钮设置位移导向组件或锁定)(10/图4) - 2/2way valve(9/Fi g. 1)for air signal connections. - 2/2 阀,空气信号连接(9) The hydraulic gear wheel pump (22 Fig . 1) together with the oil intake filter (23/Fi g . 1) and the pressure regulating valve (xx /Fi g . 1) are found in the oil tank(1/Fi g. 1) 液压齿轮泵(22 图0. 1)进油过滤器(23 图1)和压力调节阀(XX/ FIĞ . 1)一起安装油箱(1/Fig0. 1) A、B Hydraulic cylinder connection 液压缸连接口 GL Bias valve for synchronisation of cylinder positioning speed 偏置阀,同步气缸定位速度 OIL Oil inlet with air filter 进油口与空气过滤器 R Valve for reponse sensitivity adjustment 调节响应灵敏度阀门 S1 Connections detector for high air pressure(emitter) 连接探测器...
