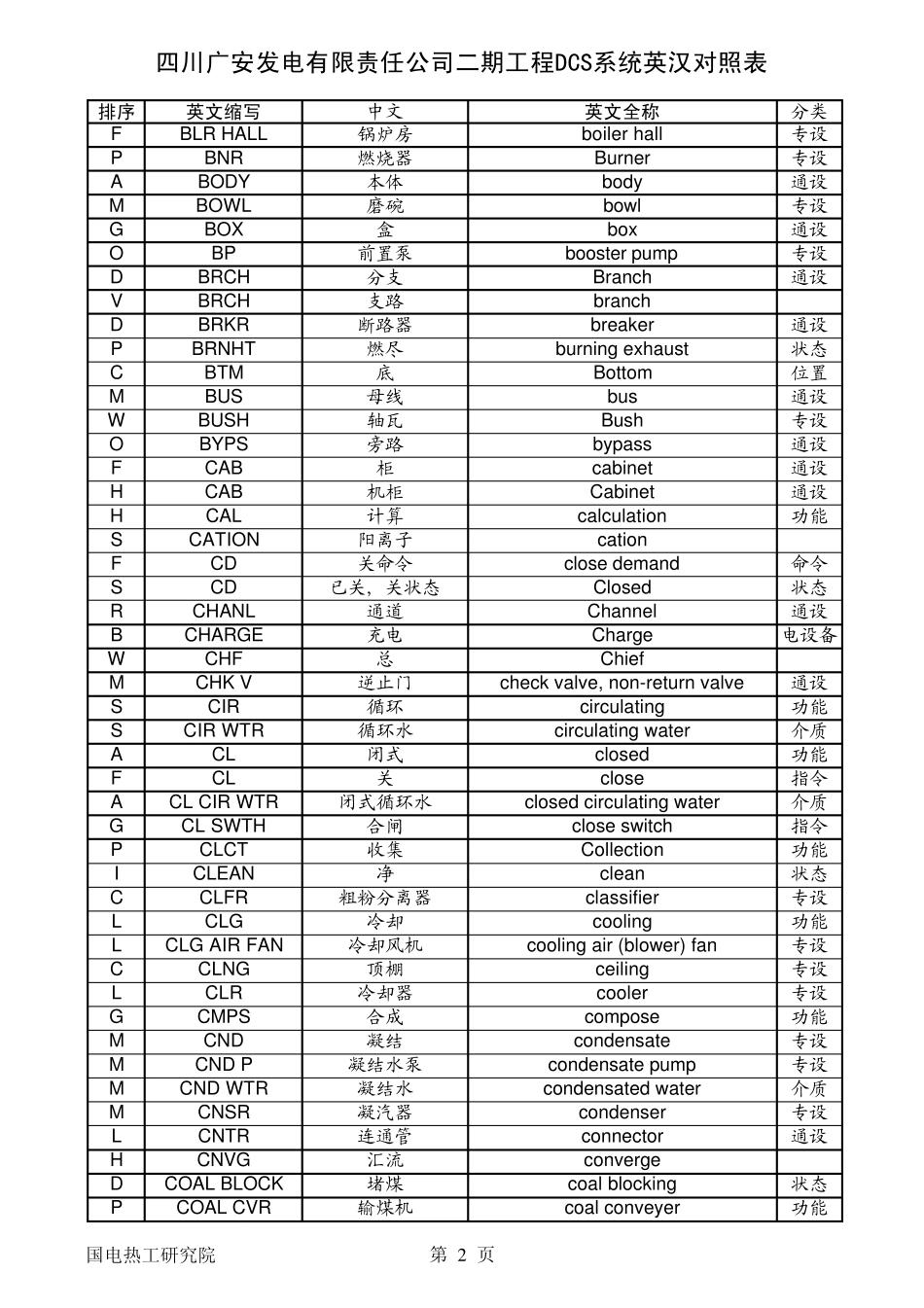

四川广安发电有限责任公司二期工程DCS系统英汉对照表排序英文缩写中文英文全称分类D#段Section位置0#3B#3 (锅)炉#3 boiler专设1#3T#3 (汽)机#3 turbine专设U+正的positive状态C<低于<状态S<小于<状态C>大于>状态M0_SEQ零序zero sequence功能S1ST EXTR一段抽汽1st extraction介质O3 PH全相all phases功能SA_PW有功功率active power单位SABNM异常abnormal状态IAC交流alternating current单位PACK确认acknowledge功能CACT动作act功能HACTIVE激励active功能CADJ调整adjusting功能LAIR空气Air介质EAIR FLOW风量Air flow单位LAIR_S空侧air side位置AALM报警alarm功能FALM WIN光字牌alarm window专设LAPH空预器air preheater专设DAREA分区area位置OAREA区area位置HASH HOP灰斗ash hopper专设RATM雾化atomizing功能DATM REL VLV对空排汽门atmospheric relief valve专设WAUTO自动automatic状态EAUX辅助Auxiliary功能WAXI DISP轴向位移axial displacement功能GBA后Back位置SBATTERY蓄电池storage battery电设备RBBIN筒体bobbin位置RBCHTZ瓦斯buchholtz介质VBEAR轴承bearing通设OBELT皮带belt专设SBFPT小汽机boiler feeder water pump turbine专设CBFV蝶阀butterfly valve通设TBH在…的后面behind位置CBIG PLTN大屏( front ) big platen专设DBIN粉仓bin, pulverized coal bunker专设MBIN煤粉仓bin专设OBLDN排污Blowdown功能DBLOCK堵塞blocking功能FBLR锅炉Boiler专设国电热工研究院第 1 页四川广安发电有限责任公司二期工程DCS系统英汉对照表排序英文缩写中文英文全称分类FBLR HALL锅炉房boiler hall专设PBNR燃烧器Burner专设ABODY本体body通设MBOWL磨碗bowl专设GBOX盒box通设OBP前置泵booster pump专设DBRCH分支Branch通设VBRCH支路branchDBRKR断路器breaker通设PBRNHT燃尽burning exhaust状态CBTM底Bottom位置MBUS母线bus通设WBUSH轴瓦Bush专设OBYPS旁路bypass通设FCAB柜cabinet通设HCAB机柜Cabinet通设HCAL计算calculation功能SCATION阳离子cationFCD关命令close demand命令SCD已关, 关状态Closed状态RCHANL通道Channel通设BCHARGE充电Charge电设备WCHF总ChiefMCHK V逆止门check valve, non-return valve通设SCIR循环circulating功能SCIR WTR循环水circulating water介质ACL闭式closed功能FCL关close指令ACL CIR WTR闭式循环水closed circulating water介质GCL SWTH合闸close switch指令PCLCT...
