空冷器吊装方案

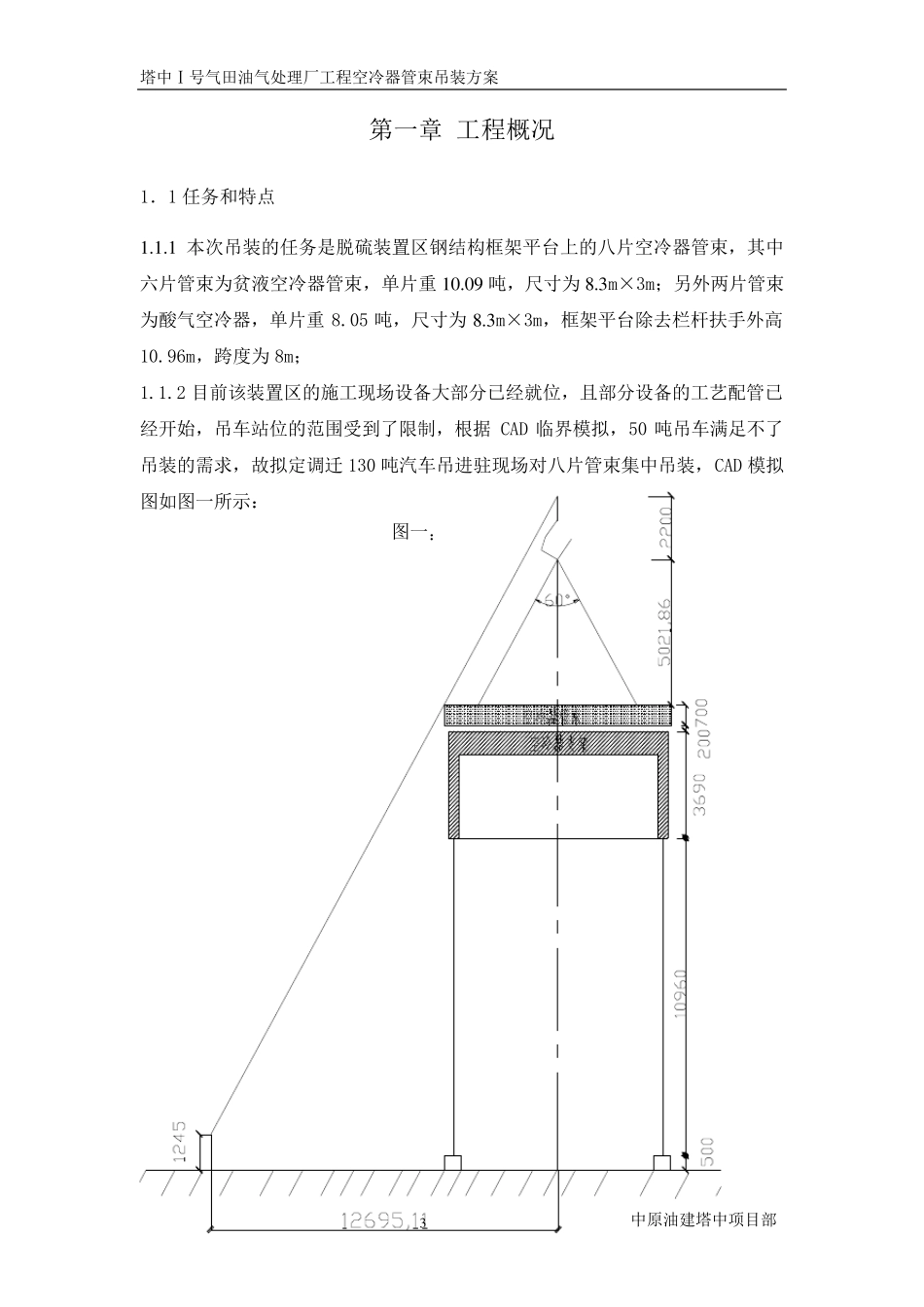

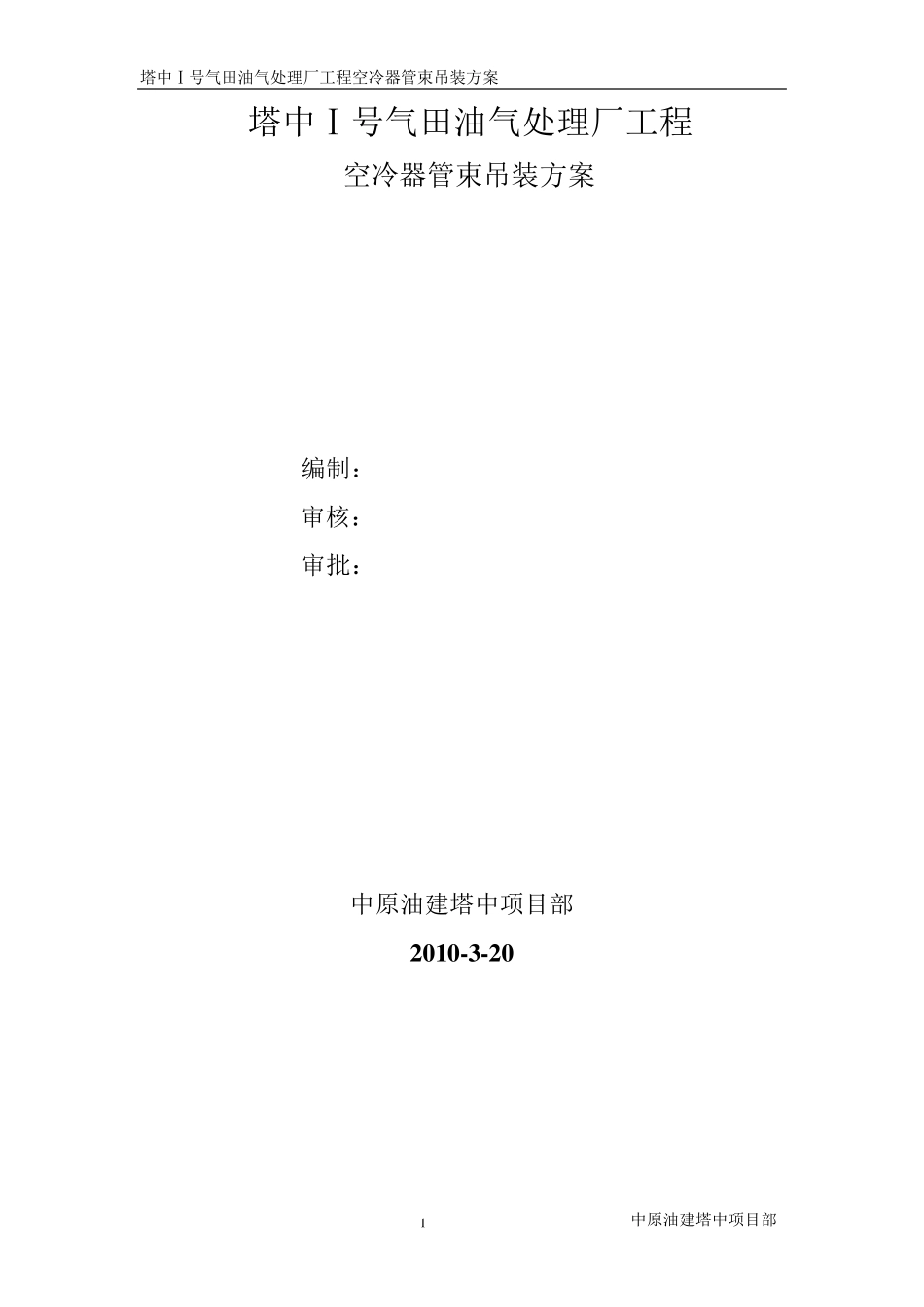

塔中Ⅰ号气田油气处理厂工程空冷器管束吊装方案 1 中原油建塔中项目部 塔中Ⅰ号气田油气处理厂工程 空冷器管束吊装方案 编制： 审核： 审批： 中原油建塔中项目部 2 0 1 0 -3 -2 0 塔中Ⅰ号气田油气处理厂工程空冷器管束吊装方案 2 中原油建塔中项目部 目录 第一章 工程概况 ························································· 3 1．1 任务和特点 ······················································ 3 1.2 编制依据 ·························································· 4 1.3 场地处理要求 ···················································· 4 第二章 工艺设计 ························································ 6 2.1 设备吊装工艺要求 ·············································· 6 2.2 吊装附件的选择 ················································· 6 2.3 起重机具工艺要求 ·············································· 7 2.4 吊装过程 ·························································· 7 第三章 施工安全管理 ··················································· 9 3.1 领导组织机构 ···················································· 9 3.2 安全质量规定 ···················································· 9 塔中Ⅰ号气田油气处理厂工程空冷器管束吊装方案 3 中原油建塔中项目部 第一章 工程概况 1．1 任务和特点 1 .1 .1 本次吊装的任务是脱硫装置区钢结构框架平台上的八片空冷器管束，其中六片管...
