雷尼绍探针头程序

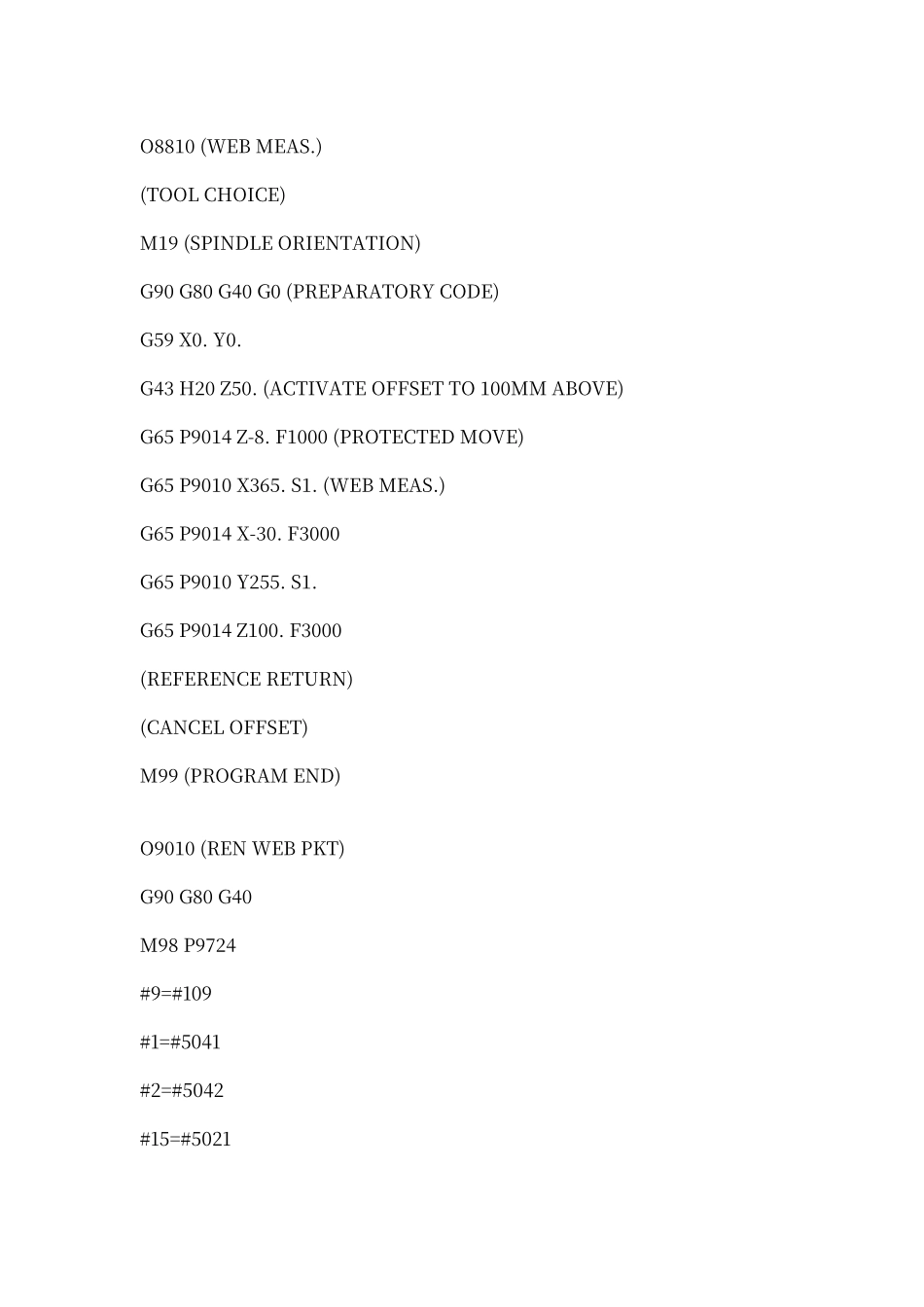

O8810 (WEB MEAS.) (TOOL CHOICE)M19 (SPINDLE ORIENTATION) G90 G80 G40 G0 (PREPARATORY CODE)G59 X0. Y0.G43 H20 Z50. (ACTIVATE OFFSET TO 100MM ABOVE) G65 P9014 Z-8. F1000 (PROTECTED MOVE)G65 P9010 X365. S1. (WEB MEAS.)G65 P9014 X-30. F3000 G65 P9010 Y255. S1. G65 P9014 Z100. F3000 (REFERENCE RETURN) (CANCEL OFFSET)M99 (PROGRAM END)O9010 (REN WEB PKT) G90 G80 G40M98 P9724 #9=#109#1=#5041 #2=#5042 #15=#5021#16=#5022#118=#0IF[#24 EQ #0] GOTO3 IF[#25 NE #0] GOTO16#7=#24 #4=#500IF[#26 EQ #0] GOTO2 IF[#18 NE #0] GOTO1 #18=*#9 N1 #118=#24/2+#4+#18N2 G65 P9705 D[#24] Q[#17] Z[#26] F[#9]GOTO6N3 IF[#25 EQ #0] GOTO16#7=#25 #4=#502IF[#26 EQ #0] GOTO5 IF[#18 NE #0] GOTO4 #18=*#9 N4 #118=#25/2+#4+#18N5 G65 P9704 D[#25] Q[#17] Z[#26] F[#9]N6 IF[#145 NE ] GOTO17IF[#26 EQ #0] GOTO7 #3=#131-#130-#4*2#6=#3-#7 GOTO8N7 #3=#131-#130+#4*2#6=#7-#3 N8 IF[#22 EQ #0] GOTO9 G65 P9730 M[#13] V[#22] D[#7] H[#11] E[#6] N9 IF[#13 EQ #0] GOTO10#[+#13]=#6 N10 IF[#19 EQ #0] GOTO14IF[#19 NE 0] GOTO11 IF[#24 EQ #0] GOTO12#2500=#2500+[#132+#504-#1] GOTO14 N11 IF[#24 EQ #0] GOTO12#[#105]=[#15-#1]+[#132+#504-#1]-#2500GOTO14 N12 IF[#19 NE 0] GOTO13 #2600=#2600+[#133+#505-#2] GOTO14 N13 #[#106]=[#16-#2]+[#133+#505-#2]-#2600N14 IF[#20 EQ #0] GOTO15G65 P9732 T#20 C[#6/2]IF[#26 NE #0] GOTO15IF[#104 LT [#7/2]] GOTO15 G0 X#1 Y#2 #3000=96 (DIA OFFSET TOO LARGE) N15 IF[#11 EQ #0] GOTO19IF[ABS[#6] LT ABS[#11]] GOTO19G0 X#1 Y#2 #3000=90 (OUT OF TOLERANCE) N16 #3000=91 (FORMAT ERROR) N17 G0 X#1 Y#2 IF[#145 EQ ] GOTO18#3000=92 (PROBE OPEN) N18 #3000=93 (PROBE FAIL) N19 G0 X#1 Y#2 M99O9014 (REN PROTECTED POSN)G90 G80 G40M98 P9724 M98 P9723 IF[#4111 NE 0] GOTO1#3000=89 (NO TOOL LENGTH) N1 IF[#9 NE #0] GOTO3IF[#102 NE #0] GOTO2#3000=88 (NO FEED RATE) N2 #9=#102N3 #102=#9N4 G31 X...
