基于STM32的室内温度控制系统

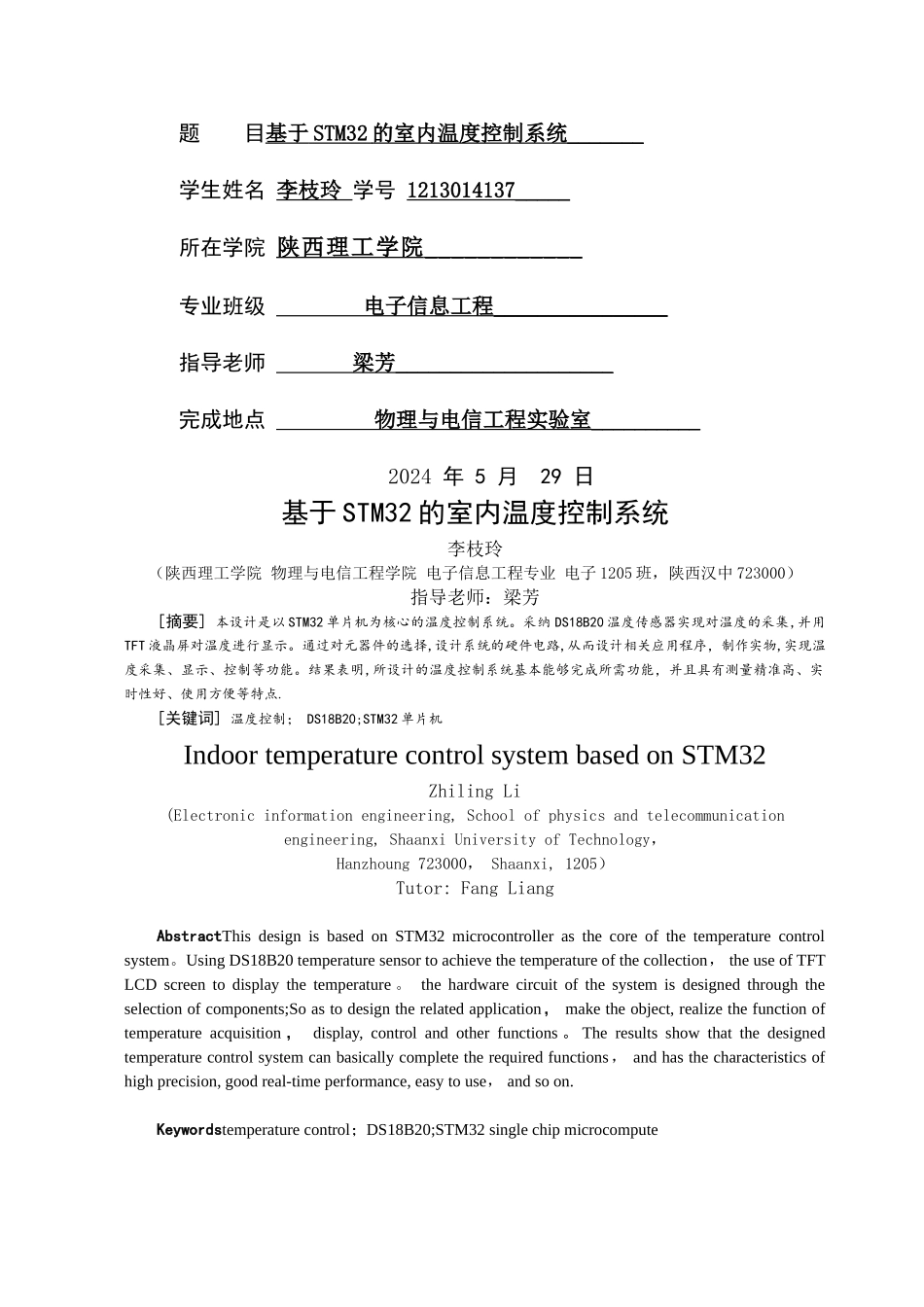

基于STM32的室内温度控制系统_第1页
1/53

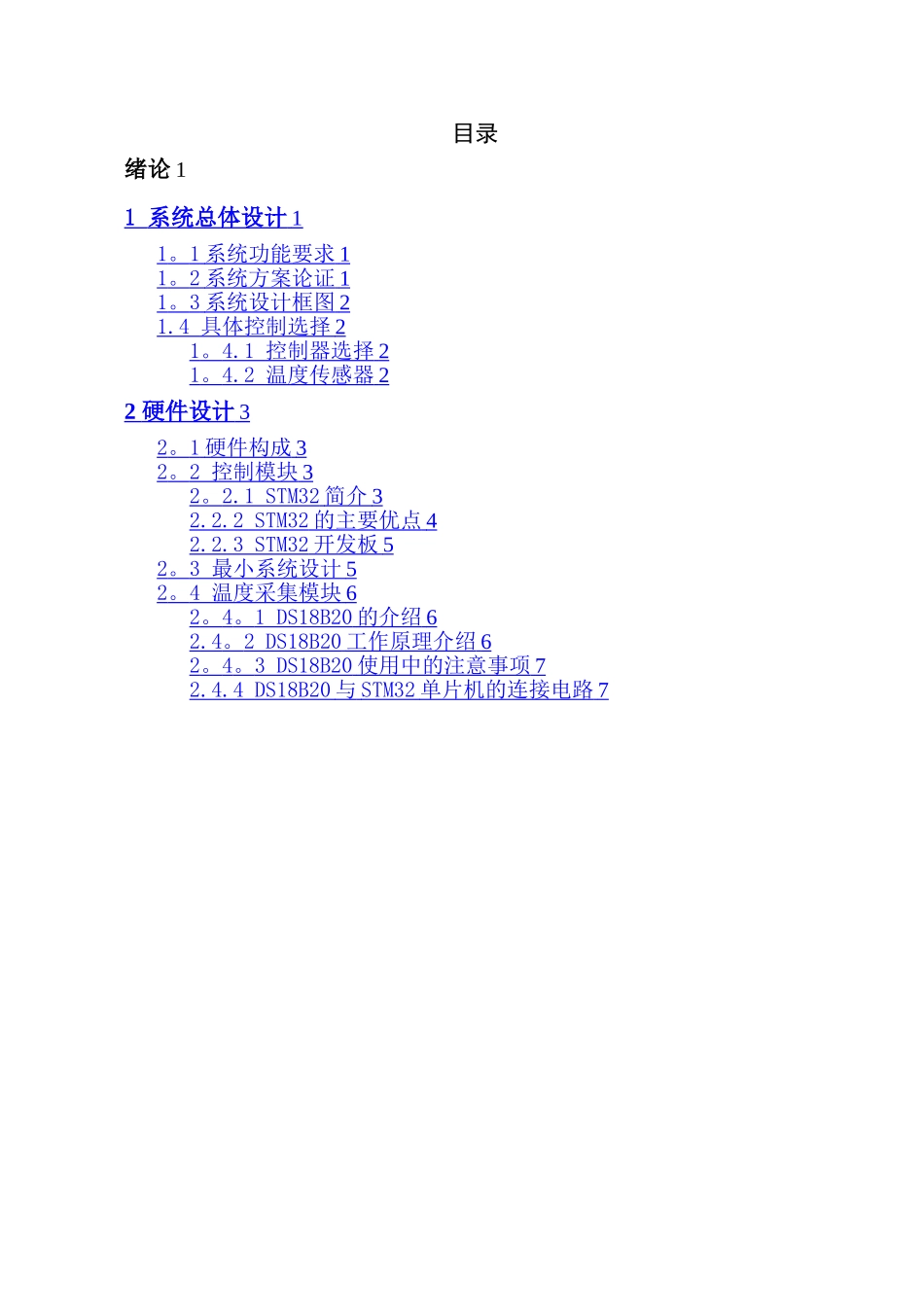

基于STM32的室内温度控制系统_第2页
2/53

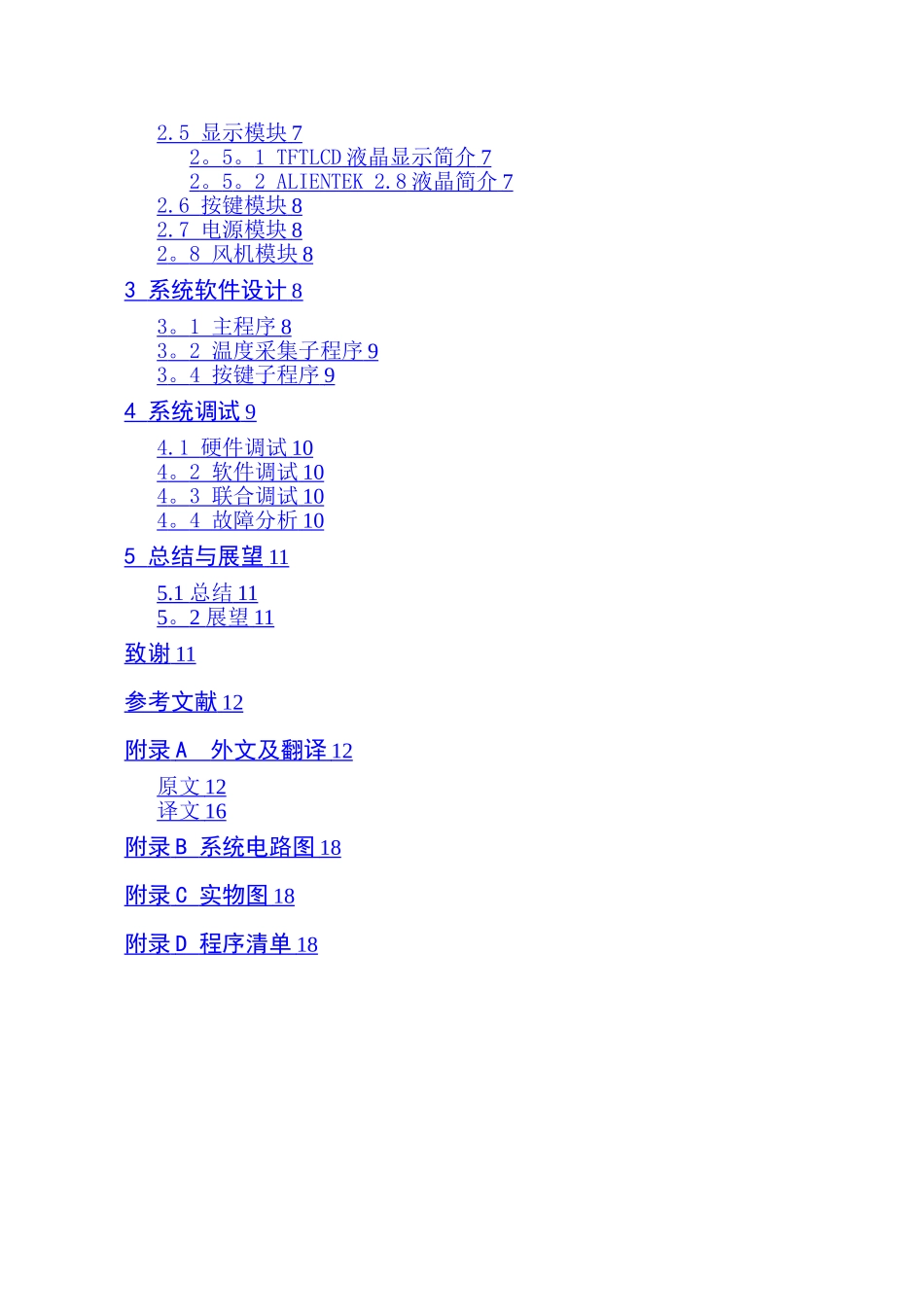

基于STM32的室内温度控制系统_第3页
3/53
题 目基于 STM32 的室内温度控制系统 _______ 学生姓名 李枝玲 学号 1213014137_____所在学院 陕西理工学院 ____________ 专业班级 电子信息工程 ________________ 指导老师 梁芳 ____________________ 完成地点 物理与电信工程实验室 __________ 2024 年 5 月 29 日基于 STM32 的室内温度控制系统李枝玲(陕西理工学院 物理与电信工程学院 电子信息工程专业 电子 1205 班,陕西汉中 723000)指导老师:梁芳 [摘要] 本设计是以 STM32 单片机为核心的温度控制系统。采纳 DS18B20 温度传感器实现对温度的采集,并用TFT 液晶屏对温度进行显示。通过对元器件的选择,设计系统的硬件电路,从而设计相关应用程序,制作实物,实现温度采集、显示、控制等功能。结果表明,所设计的温度控制系统基本能够完成所需功能,并且具有测量精准高、实时性好、使用方便等特点. [关键词] 温度控制; DS18B20;STM32 单片机 Indoor temperature control system based on STM32Zhiling Li (Electronic information engineering, School of physics and telecommunication engineering, Shaanxi University of Technology,Hanzhoung 723000, Shaanxi, 1205)Tutor: Fang LiangAbstractThis design is based on STM32 microcontroller as the core of the temperature control system。Using DS18B20 temperature sensor to achieve the temperature of the collection, the use of TFT LCD screen to display the temperature 。 the hardware circuit of the system is designed through the selection of components;So as to design the related application, make the object, realize the function of temperature acquisition , display, control and other functions 。 The results show that the designed temperature control system can basically complete the required functions, and has the characteristics of high precision, good real-time performance, easy to use, and so on.Keywordstemperature control;DS18B20;STM32 single chip microcompute目录绪论 11 系统总体设计 1 1 。 1 系统功能要求 1 1 。 2 系统方案论证 1 1 。 3 系统设...
