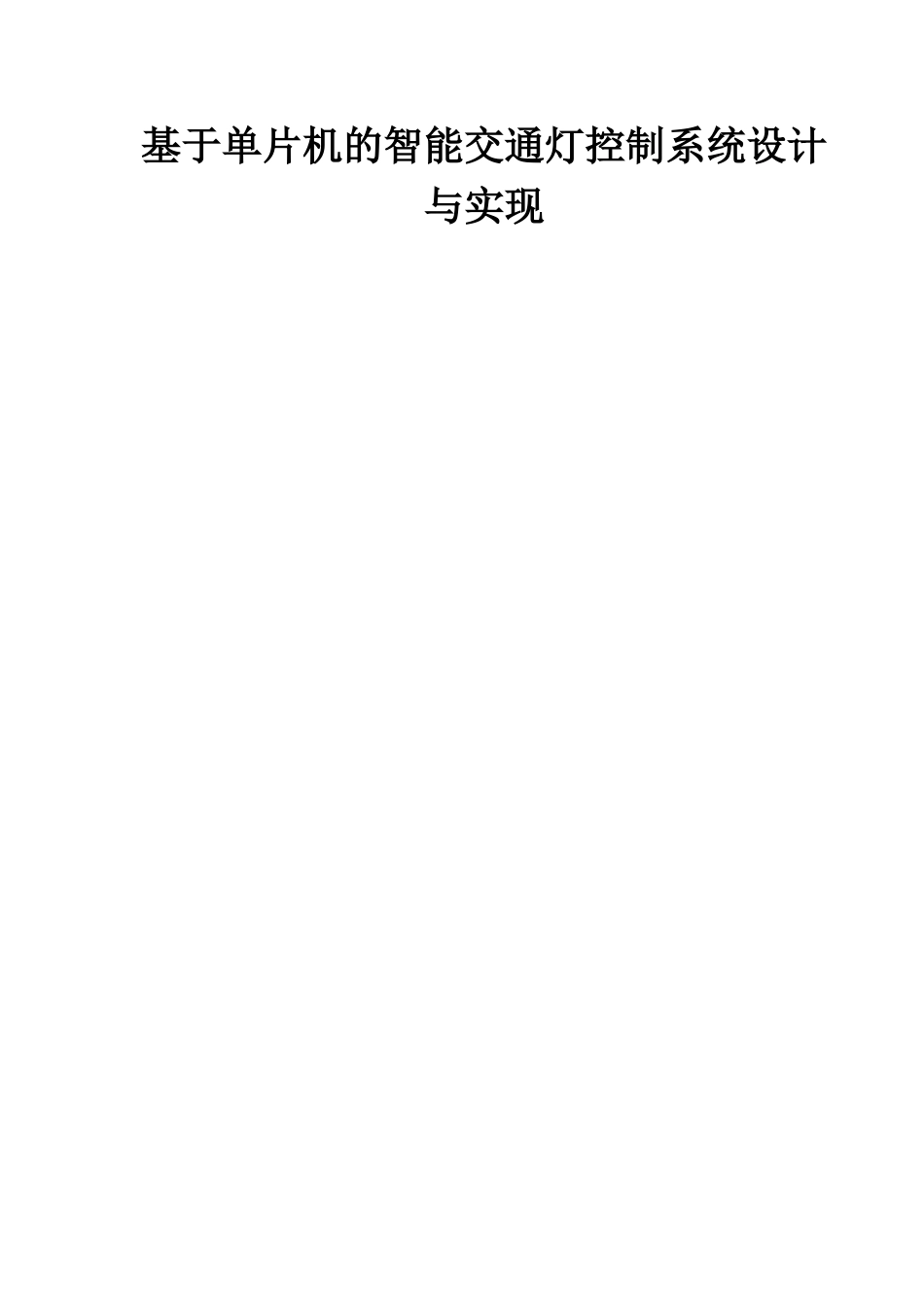

基于单片机的智能交通灯控制系统设计

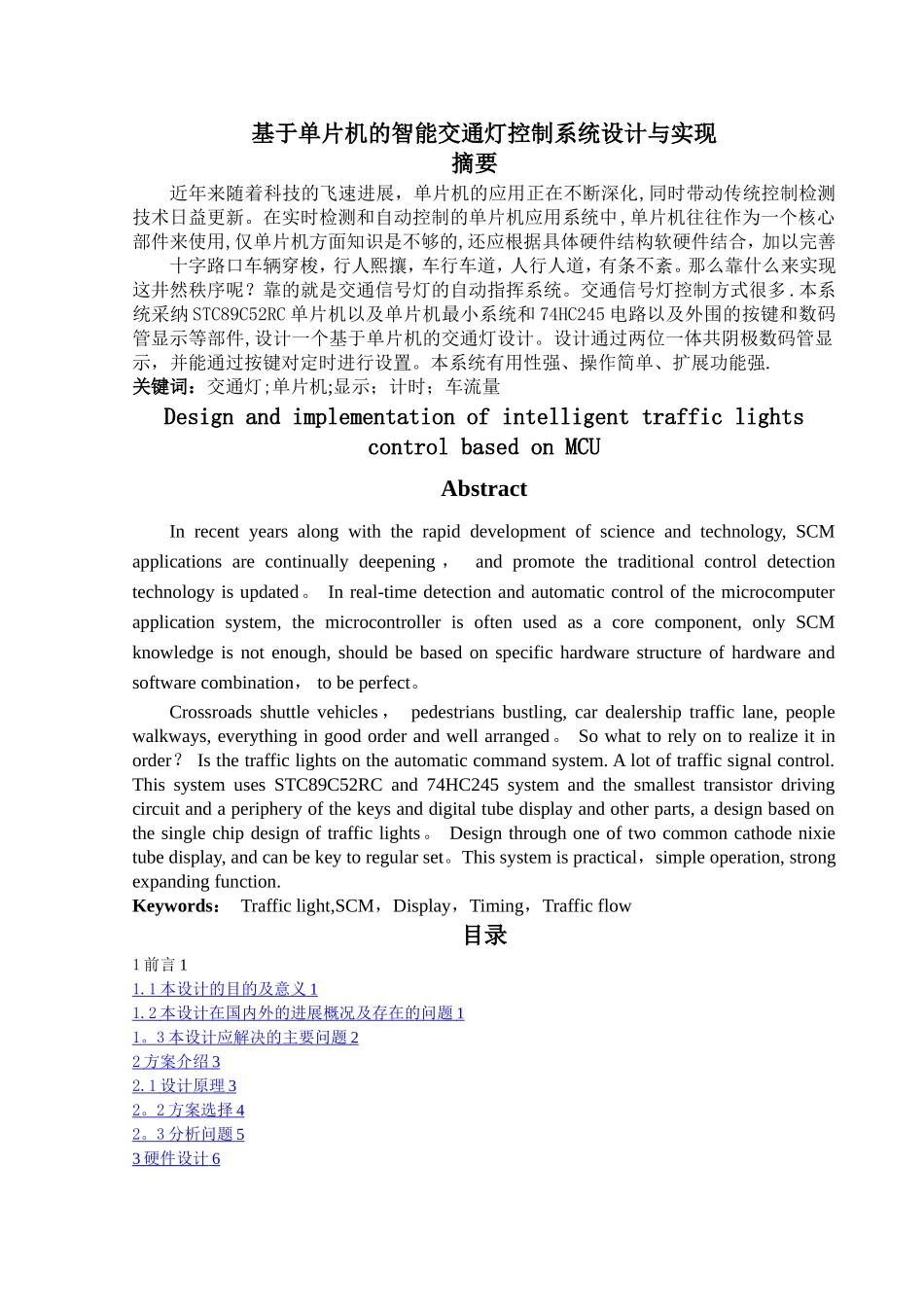

基于单片机的智能交通灯控制系统设计与实现基于单片机的智能交通灯控制系统设计与实现摘要近年来随着科技的飞速进展，单片机的应用正在不断深化,同时带动传统控制检测技术日益更新。在实时检测和自动控制的单片机应用系统中,单片机往往作为一个核心部件来使用,仅单片机方面知识是不够的,还应根据具体硬件结构软硬件结合，加以完善十字路口车辆穿梭，行人熙攘，车行车道，人行人道，有条不紊。那么靠什么来实现这井然秩序呢？靠的就是交通信号灯的自动指挥系统。交通信号灯控制方式很多 .本系统采纳 STC89C52RC 单片机以及单片机最小系统和 74HC245 电路以及外围的按键和数码管显示等部件,设计一个基于单片机的交通灯设计。设计通过两位一体共阴极数码管显示，并能通过按键对定时进行设置。本系统有用性强、操作简单、扩展功能强.关键词：交通灯;单片机;显示；计时；车流量Design and implementation of intelligent traffic lights control based on MCUAbstractIn recent years along with the rapid development of science and technology, SCM applications are continually deepening ， and promote the traditional control detection technology is updated。 In real-time detection and automatic control of the microcomputer application system, the microcontroller is often used as a core component, only SCM knowledge is not enough, should be based on specific hardware structure of hardware and software combination， to be perfect。Crossroads shuttle vehicles ， pedestrians bustling, car dealership traffic lane, people walkways, everything in good order and well arranged。 So what to rely on to realize it in order？ Is the traffic lights on the automatic command system. A lot of traffic signal control. This system uses STC89C52RC and 74HC245 system and the smallest transistor driving circuit and a periphery of the keys and digital tube display and other parts, a design based on the single chip design of traffic lights。 Design through one of two common cathode nixie tube displa...
