昆明市花果公共服务楼设计

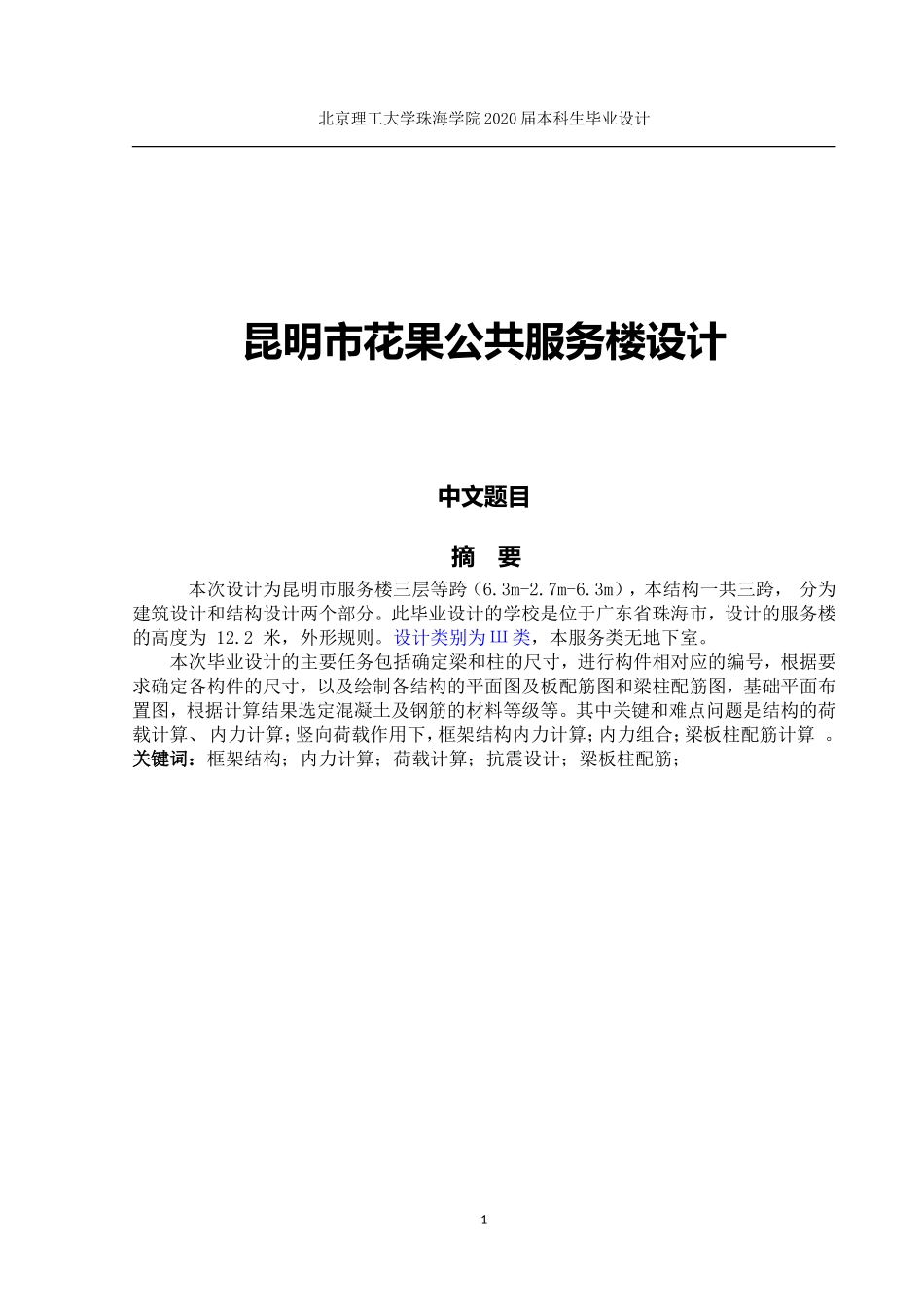

昆明市花果公共服务楼设计_第1页
1/65
昆明市花果公共服务楼设计_第2页
2/65

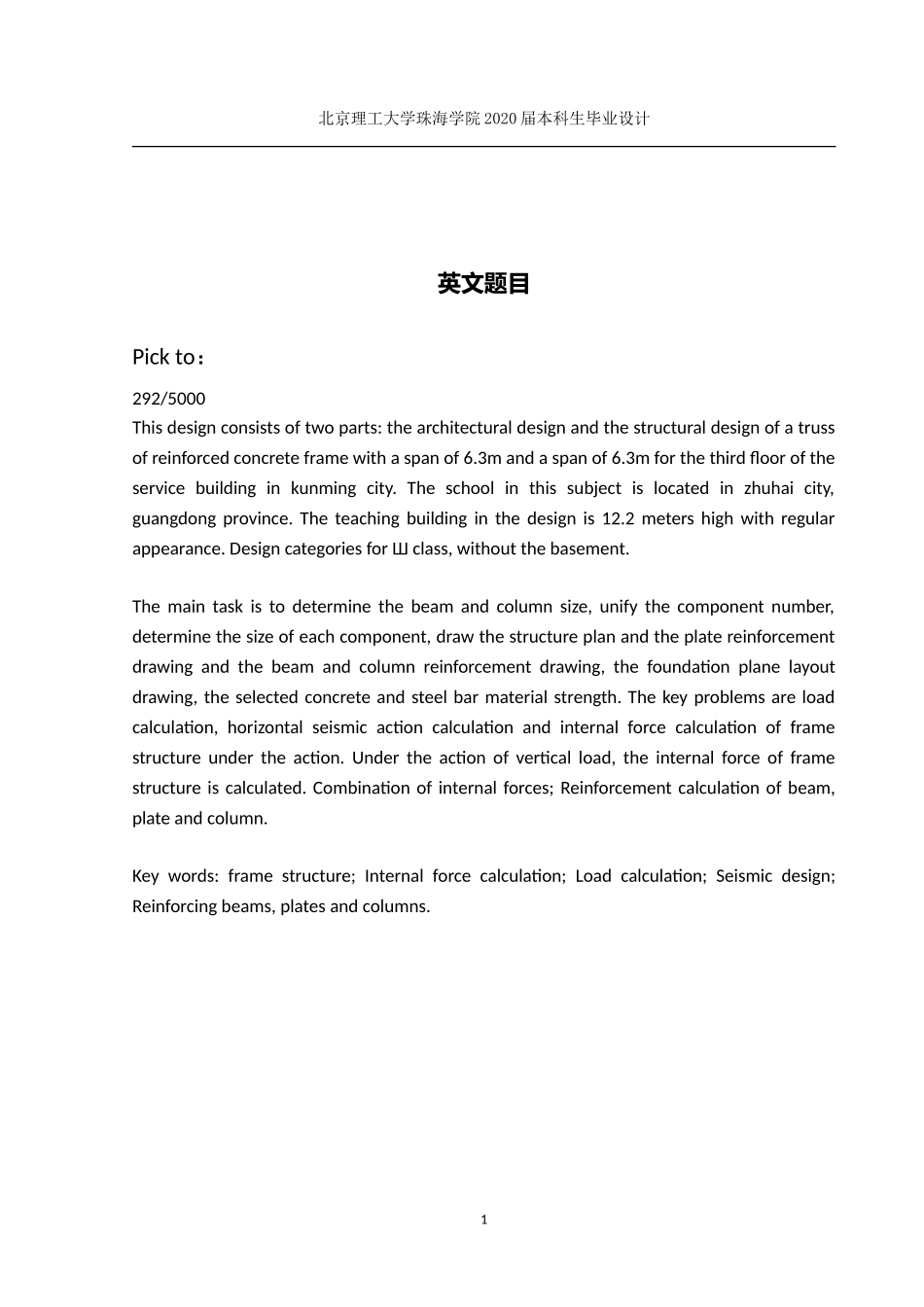

昆明市花果公共服务楼设计_第3页
3/65
1北京理工大学珠海学院 2020 届本科生毕业设计昆明市花果公共服务楼设计中文题目摘 要本次设计为昆明市服务楼三层等跨(6.3m-2.7m-6.3m),本结构一共三跨, 分为建筑设计和结构设计两个部分。此毕业设计的学校是位于广东省珠海市,设计的服务楼的高度为 12.2 米,外形规则。设计类别为 Ш 类,本服务类无地下室。 本次毕业设计的主要任务包括确定梁和柱的尺寸,进行构件相对应的编号,根据要求确定各构件的尺寸,以及绘制各结构的平面图及板配筋图和梁柱配筋图,基础平面布置图,根据计算结果选定混凝土及钢筋的材料等级等。其中关键和难点问题是结构的荷载计算、 内力计算;竖向荷载作用下,框架结构内力计算;内力组合;梁板柱配筋计算 。 关键词:框架结构;内力计算;荷载计算;抗震设计;梁板柱配筋;2北京理工大学珠海学院 2020 届本科生毕业设计1北京理工大学珠海学院 2020 届本科生毕业设计英文题目Pick to:292/5000 This design consists of two parts: the architectural design and the structural design of a truss of reinforced concrete frame with a span of 6.3m and a span of 6.3m for the third floor of the service building in kunming city. The school in this subject is located in zhuhai city, guangdong province. The teaching building in the design is 12.2 meters high with regular appearance. Design categories for Ш class, without the basement.The main task is to determine the beam and column size, unify the component number, determine the size of each component, draw the structure plan and the plate reinforcement drawing and the beam and column reinforcement drawing, the foundation plane layout drawing, the selected concrete and steel bar material strength. The key problems are load calculation, horizontal seismic action calculation and internal force calculation of frame structure under the action. Under the action of vertical load, the internal force of frame structure is calculated. Combination of internal forces; Reinforcement calculation o...
