基于单片机的数字时钟的设计

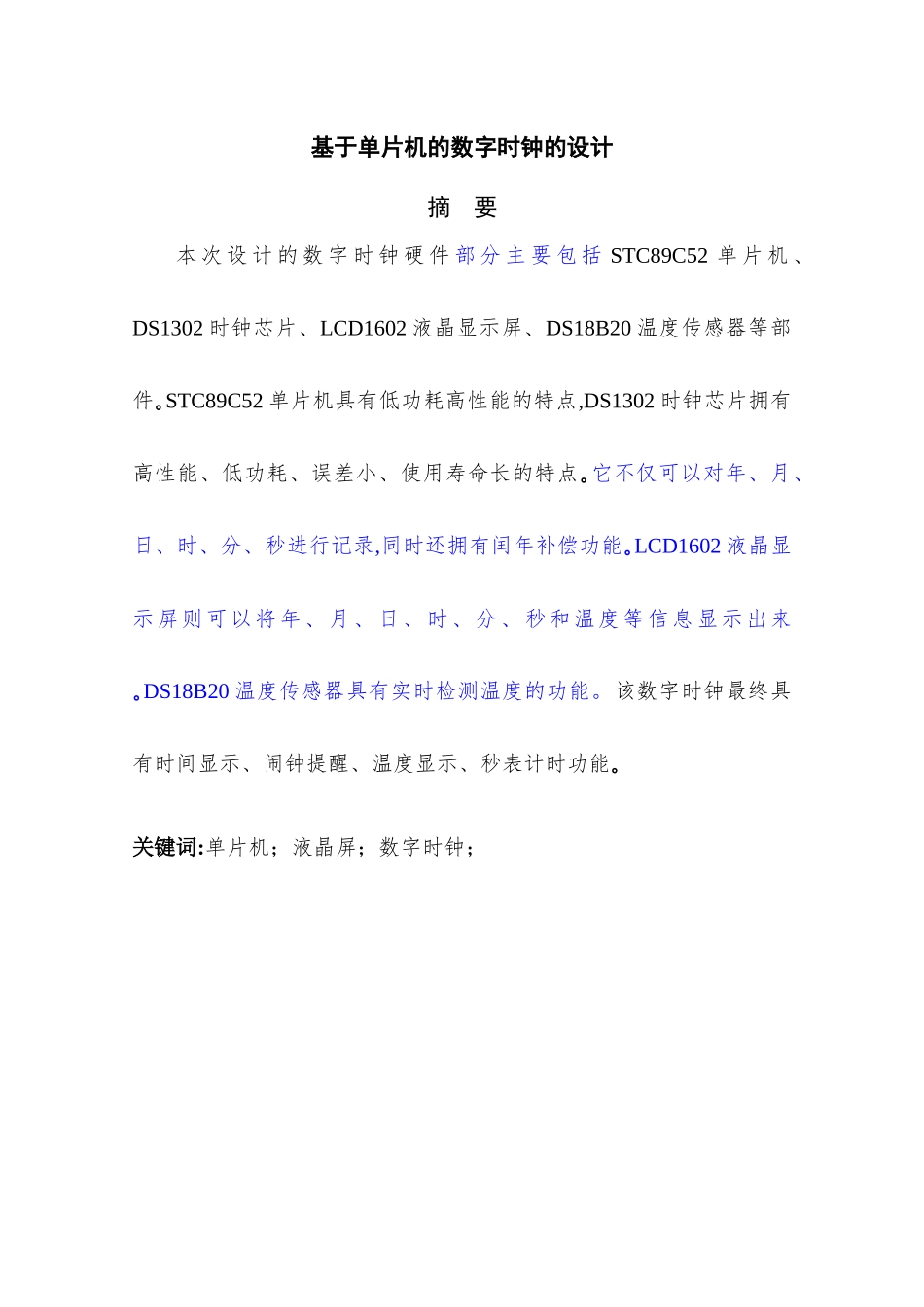

基于单片机的数字时钟的设计_第1页
1/27

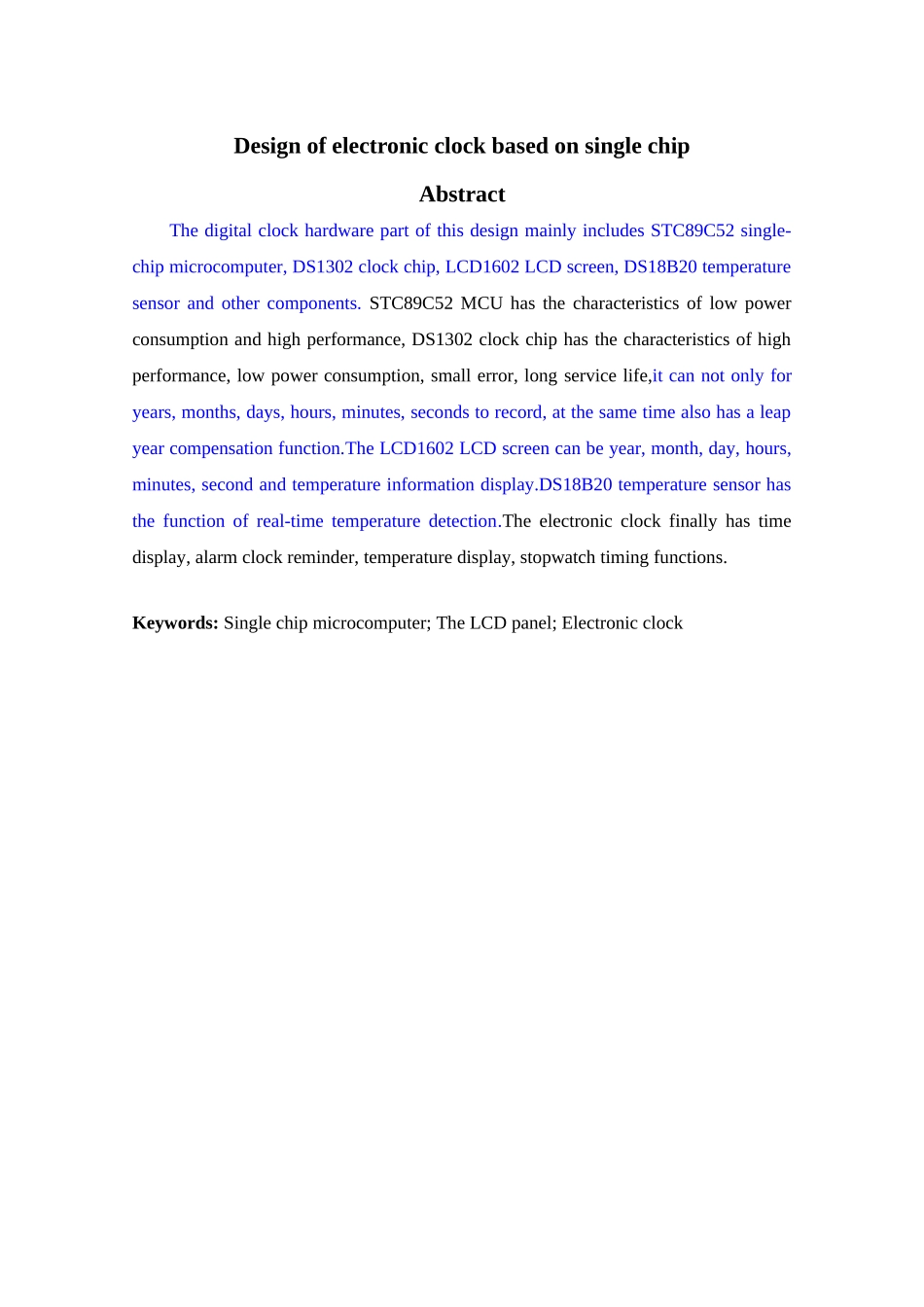

基于单片机的数字时钟的设计_第2页
2/27

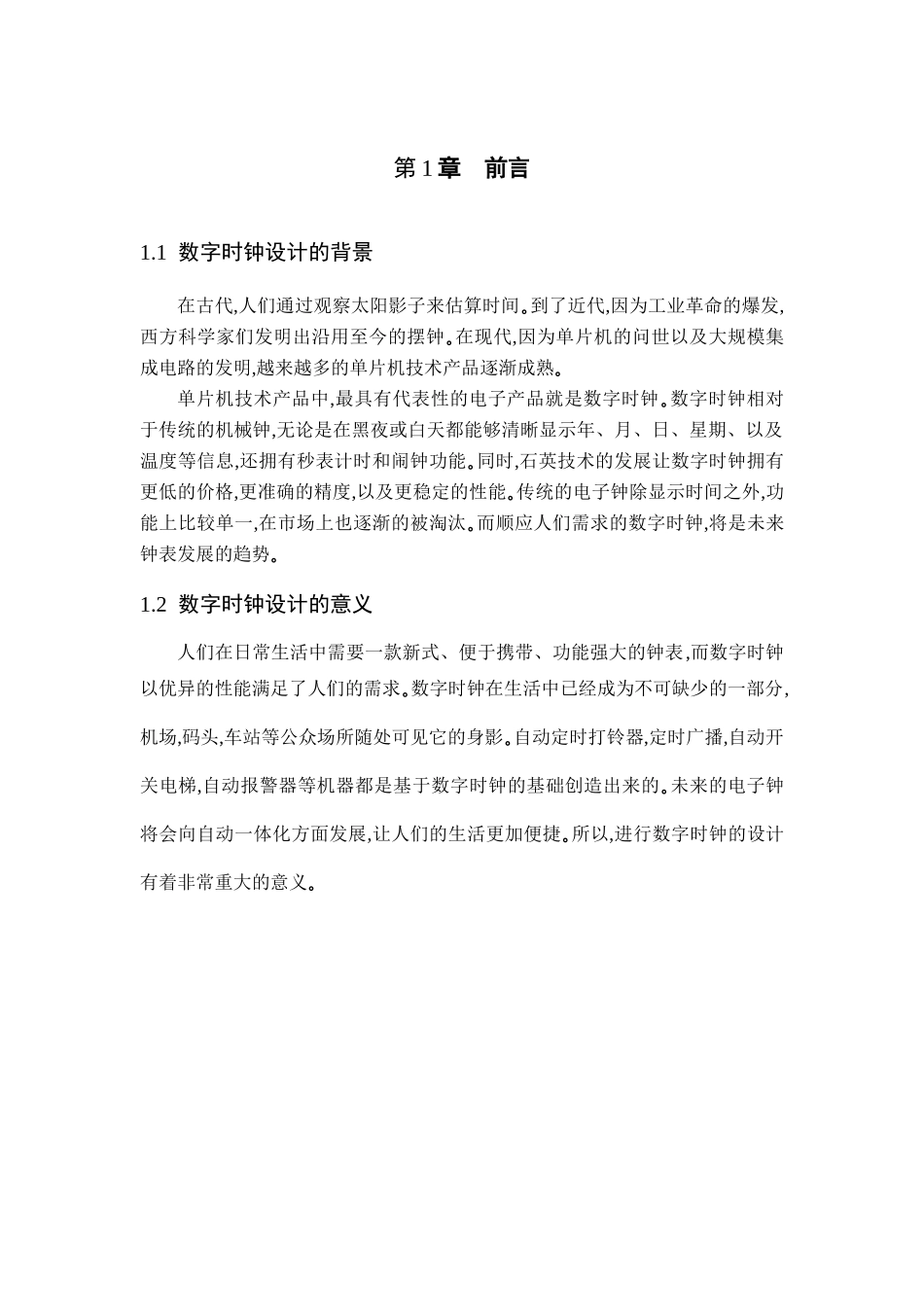

基于单片机的数字时钟的设计_第3页
3/27
基于单片机的数字时钟的设计摘 要本 次 设 计 的 数 字 时 钟 硬 件 部 分 主 要 包 括 STC89C52 单 片 机 、DS1302 时钟芯片、LCD1602 液晶显示屏、DS18B20 温度传感器等部件。STC89C52 单片机具有低功耗高性能的特点,DS1302 时钟芯片拥有高性能、低功耗、误差小、使用寿命长的特点。它不仅可以对年、月、日、时、分、秒进行记录,同时还拥有闰年补偿功能。LCD1602 液晶显示屏则可以将年、月、日、时、分、秒和温度等信息 显示出来。DS18B20 温度传感器具有实时检测温度的功能。该数字时钟最终具有时间显示、闹钟提醒、温度显示、秒表计时功能。关键词:单片机;液晶屏;数字时钟;Design of electronic clock based on single chipAbstractThe digital clock hardware part of this design mainly includes STC89C52 single-chip microcomputer, DS1302 clock chip, LCD1602 LCD screen, DS18B20 temperature sensor and other components. STC89C52 MCU has the characteristics of low power consumption and high performance, DS1302 clock chip has the characteristics of high performance, low power consumption, small error, long service life,it can not only for years, months, days, hours, minutes, seconds to record, at the same time also has a leap year compensation function.The LCD1602 LCD screen can be year, month, day, hours, minutes, second and temperature information display.DS18B20 temperature sensor has the function of real-time temperature detection.The electronic clock finally has time display, alarm clock reminder, temperature display, stopwatch timing functions.Keywords: Single chip microcomputer; The LCD panel; Electronic clock第 1 章 前言1.1 数字时钟设计的背景在古代,人们通过观察太阳影子来估算时间。到了近代,因为工业革命的爆发,西方科学家们发明出沿用至今的摆钟。在现代,因为单片机的问世以及大规模集成电路的发明,越来越多的单片机技术产品逐渐成熟。单片机技术产品中,最具有代表性的电子产品就是数字时钟。数字时钟相对于传统的机械钟,无论是在黑夜或白天都能够清晰显示年、月、日、星期...
