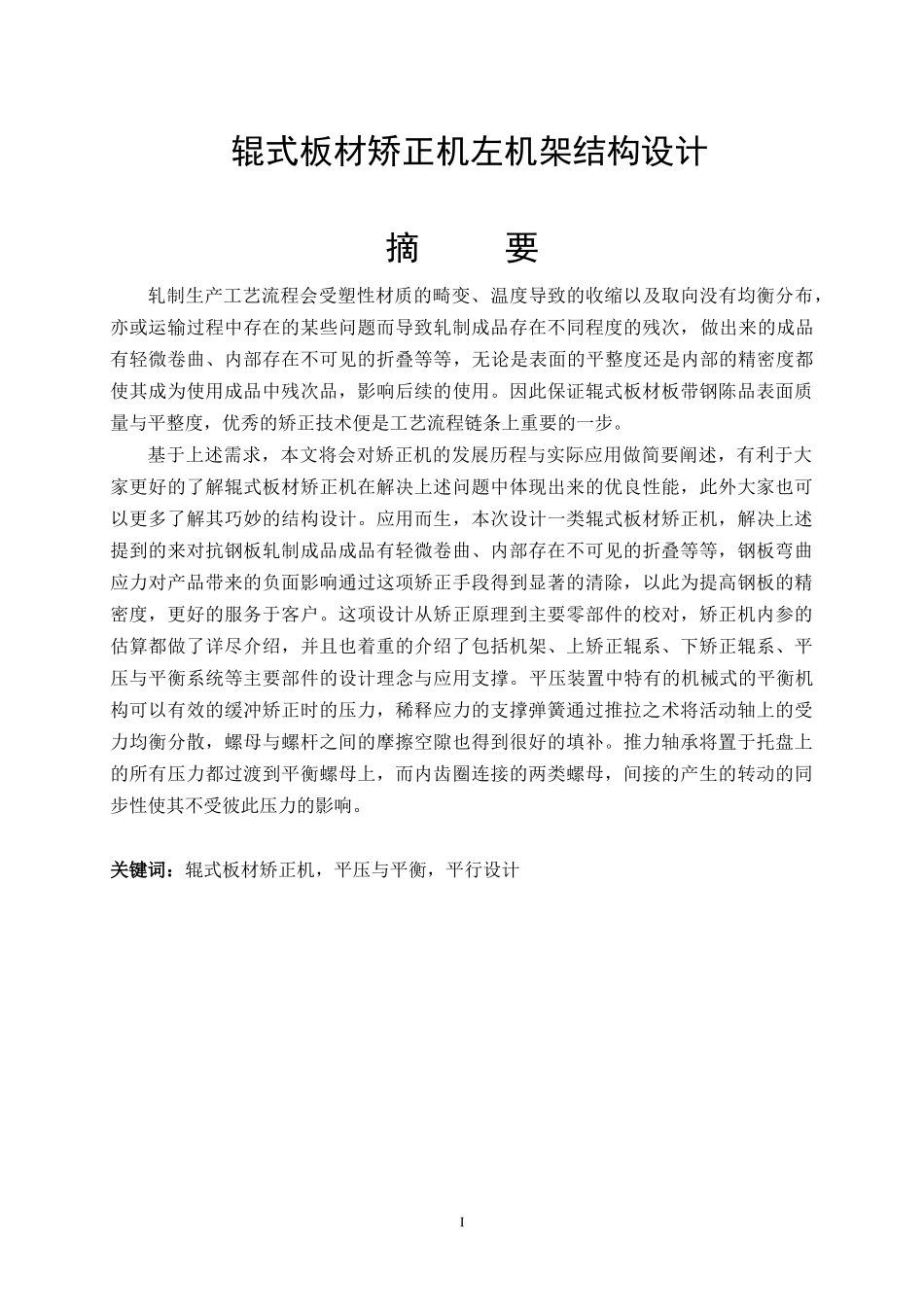

辊式板材矫正机左机架结构设计摘 要轧制生产工艺流程会受塑性材质的畸变、温度导致的收缩以及取向没有均衡分布,亦或运输过程中存在的某些问题而导致轧制成品存在不同程度的残次,做出来的成品有轻微卷曲、内部存在不可见的折叠等等,无论是表面的平整度还是内部的精密度都使其成为使用成品中残次品,影响后续的使用。因此保证辊式板材板带钢陈品表面质量与平整度,优秀的矫正技术便是工艺流程链条上重要的一步。基于上述需求,本文将会对矫正机的发展历程与实际应用做简要阐述,有利于大家更好的了解辊式板材矫正机在解决上述问题中体现出来的优良性能,此外大家也可以更多了解其巧妙的结构设计。应用而生,本次设计一类辊式板材矫正机,解决上述提到的来对抗钢板轧制成品成品有轻微卷曲、内部存在不可见的折叠等等,钢板弯曲应力对产品带来的负面影响通过这项矫正手段得到显著的清除,以此为提高钢板的精密度,更好的服务于客户。这项设计从矫正原理到主要零部件的校对,矫正机内参的估算都做了详尽介绍,并且也着重的介绍了包括机架、上矫正辊系、下矫正辊系、平压与平衡系统等主要部件的设计理念与应用支撑。平压装置中特有的机械式的平衡机构可以有效的缓冲矫正时的压力,稀释应力的支撑弹簧通过推拉之术将活动轴上的受力均衡分散,螺母与螺杆之间的摩擦空隙也得到很好的填补。推力轴承将置于托盘上的所有压力都过渡到平衡螺母上,而内齿圈连接的两类螺母,间接的产生的转动的同步性使其不受彼此压力的影响。关键词:辊式板材矫正机,平压与平衡,平行设计IStructural design of left frame of roller plate straightening machineAbstractThe rolling production process will be affected by the distortion of the plastic material, the shrinkage caused by temperature, and the uneven distribution of the orientation, or some problems in the transportation process, resulting in different degrees of inferiority of the rolled product, and the finished product is slightly Curls, invisible folds inside, etc., whether it is the flatness of the surface or the precision of the inside, make it a defective product in the finished product, which affects the subsequent use. Therefore, to ensure the surfa...
