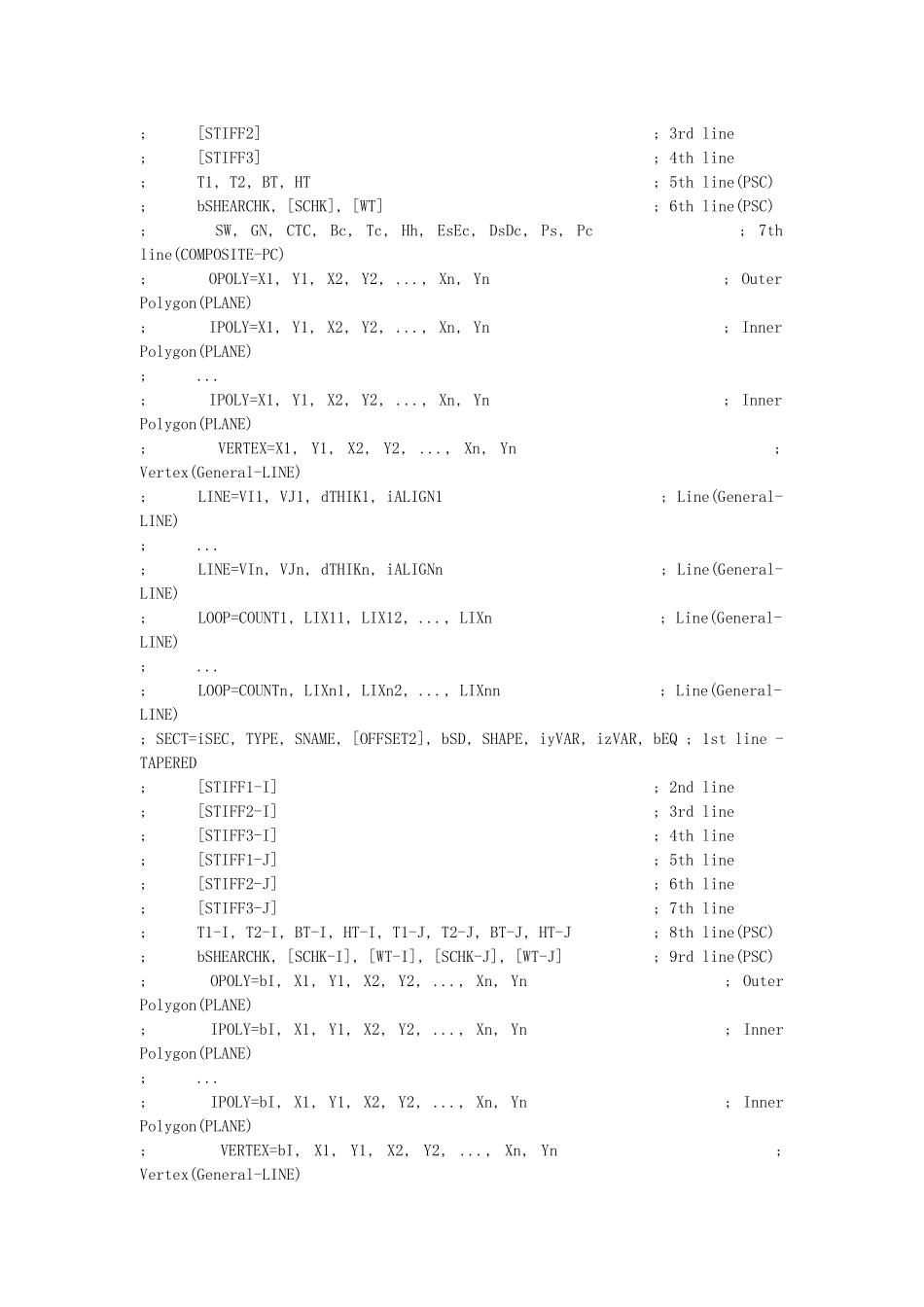

;---------------------------------------------------------------------------; MIDAS/Civil Text(MCT) File.; Date : 2024/11/10;---------------------------------------------------------------------------*VERSION 8.3.2*UNIT ; Unit System; FORCE, LENGTH, HEAT, TEMPER KN , M, KJ, C*PROJINFO ; Project Information USER=Microsoft ADDRESS=Microsoft*REBAR-MATL-CODE ; Rebar Material Code; CONC_CODE, CONC_MDB, SRC_CODE, SRC_MDB JTG04(RC), HRB335, JTG04(RC), HRB335*NODE ; Nodes; iNO, X, Y, Z 1, 0, 0, 0 2, 2, 0, 0 3, 4, 0, 0 4, 6, 0, 0 5, 8, 0, 0 6, 10, 0, 0 7, 12, 0, 0 8, 14, 0, 0 9, 16, 0, 0 10, 18, 0, 0 11, 20, 0, 0 12, 22, 0, 0 13, 24, 0, 0 14, 26, 0, 0 15, 28, 0, 0 16, 30, 0, 0 17, 32, 0, 0*ELEMENT ; Elements; iEL, TYPE, iMAT, iPRO, iN1, iN2, ANGLE, iSUB, EXVAL, iOPT(EXVAL2) ; Frame Element; iEL, TYPE, iMAT, iPRO, iN1, iN2, ANGLE, iSUB, EXVAL, EXVAL2, bLMT ; Comp/Tens Truss; iEL, TYPE, iMAT, iPRO, iN1, iN2, iN3, iN4, iSUB, iWID ; Planar Element; iEL, TYPE, iMAT, iPRO, iN1, iN2, iN3, iN4, iN5, iN6, iN7, iN8 ; Solid Element; iEL, TYPE, iMAT, iPRO, iN1, iN2, REF, RPX, RPY, RPZ, iSUB, EXVAL ; Frame(Ref. Point) 1, BEAM , 1, 1, 1, 2, 0 2, BEAM , 1, 1, 2, 3, 0 3, BEAM , 1, 1, 3, 4, 0 4, BEAM , 1, 1, 4, 5, 0 5, BEAM , 1, 1, 5, 6, 0 6, BEAM , 1, 1, 6, 7, 0 7, BEAM , 1, 1, 7, 8, 0 8, BEAM , 1, 1, 8, 9, 0 9, BEAM , 1, 1, 9, 10, 0 10, BEAM , 1, 1, 10, 11, 0 11, BEAM , 1, 1, 11, 12, 0 12, BEAM , 1, 1, 12, 13, 0 13, BEAM , 1, 1, 13, 14, 0 14, BEAM , 1, 1, 14, 15, 0 15, BEAM , 1, 1, 15, 16, 0 16, BEAM , 1, 1, 16, 17, 0*MATERIAL ; Material; iMAT, TYPE, MNAME, SPHEAT, HEATCO, PLAST, TUNIT, bMASS, DAMPRATIO, [DATA1] ; STEEL, CONC, USER; iMAT, TYPE, MNAME, SPHEAT, HE...
