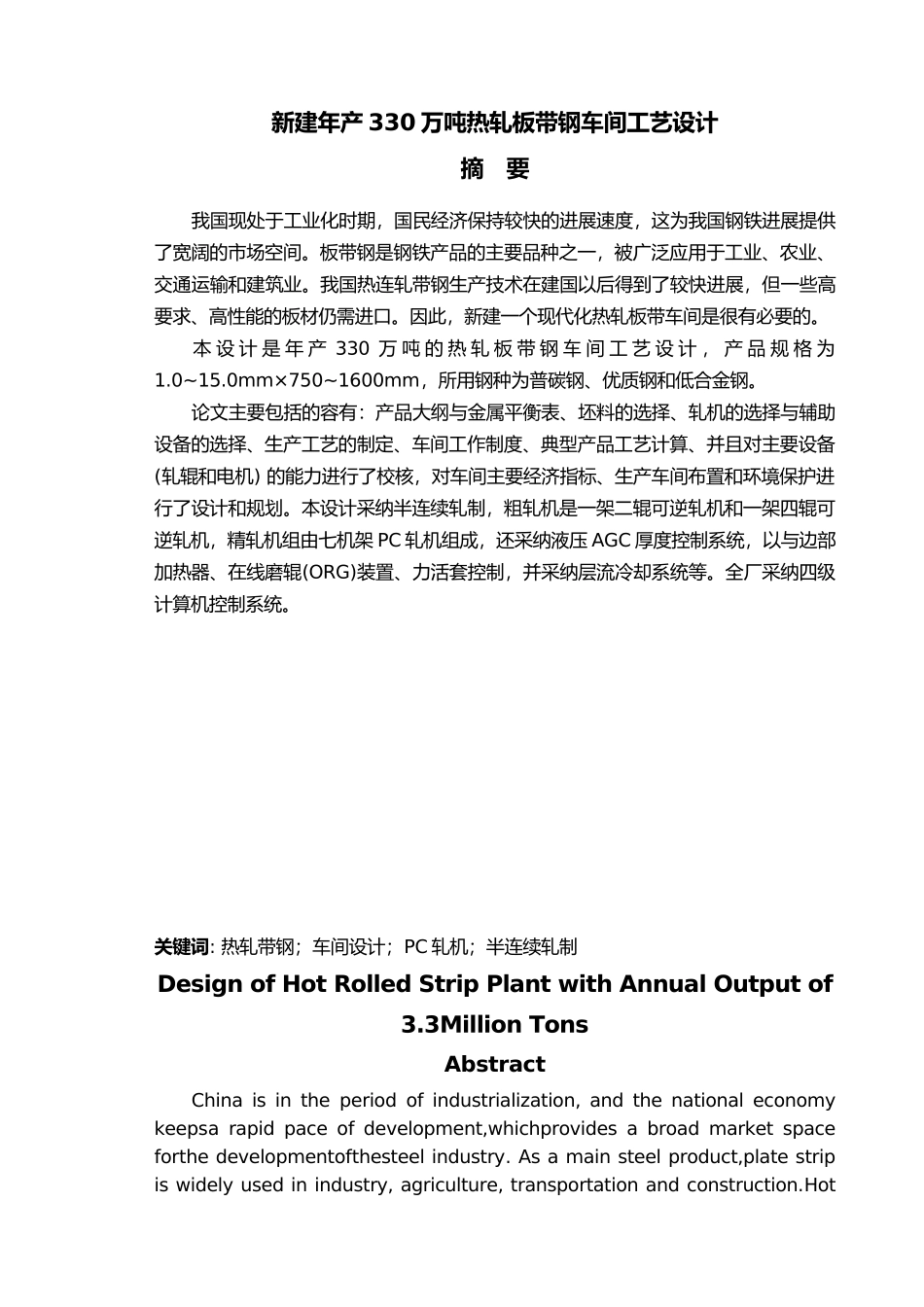

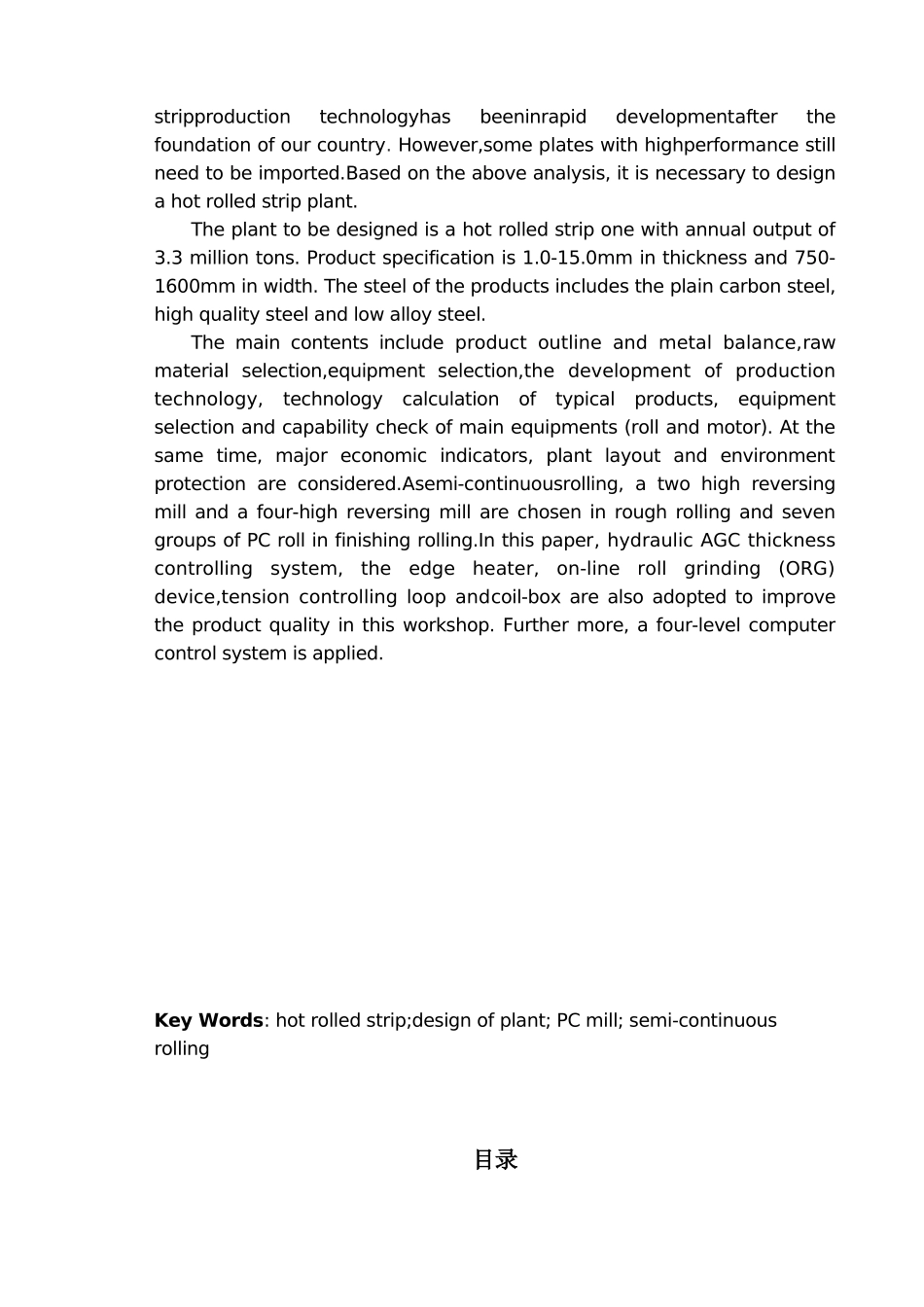

新建年产 330 万吨热轧板带钢车间工艺设计摘 要我国现处于工业化时期,国民经济保持较快的进展速度,这为我国钢铁进展提供了宽阔的市场空间。板带钢是钢铁产品的主要品种之一,被广泛应用于工业、农业、交通运输和建筑业。我国热连轧带钢生产技术在建国以后得到了较快进展,但一些高要求、高性能的板材仍需进口。因此,新建一个现代化热轧板带车间是很有必要的。 本 设 计 是 年 产 330 万 吨 的 热 轧 板 带 钢 车 间 工 艺 设 计 , 产 品 规 格 为1.0~15.0mm×750~1600mm,所用钢种为普碳钢、优质钢和低合金钢。论文主要包括的容有:产品大纲与金属平衡表、坯料的选择、轧机的选择与辅助设备的选择、生产工艺的制定、车间工作制度、典型产品工艺计算、并且对主要设备(轧辊和电机) 的能力进行了校核,对车间主要经济指标、生产车间布置和环境保护进行了设计和规划。本设计采纳半连续轧制,粗轧机是一架二辊可逆轧机和一架四辊可逆轧机,精轧机组由七机架 PC 轧机组成,还采纳液压 AGC 厚度控制系统,以与边部加热器、在线磨辊(ORG)装置、力活套控制,并采纳层流冷却系统等。全厂采纳四级计算机控制系统。关键词: 热轧带钢;车间设计;PC 轧机;半连续轧制Design of Hot Rolled Strip Plant with Annual Output of 3.3Million TonsAbstractChina is in the period of industrialization, and the national economy keepsa rapid pace of development,whichprovides a broad market space forthe developmentofthesteel industry. As a main steel product,plate strip is widely used in industry, agriculture, transportation and construction.Hot stripproduction technologyhas beeninrapid developmentafter the foundation of our country. However,some plates with highperformance still need to be imported.Based on the above analysis, it is necessary to design a hot rolled strip plant.The plant to be designed is a hot rolled strip one with annual output of 3.3 million tons. Product specification is 1.0-15.0mm in thickness and 750-1600mm in width. The steel of the products includes the plain carbon steel, high quality steel and low...
