毕业设计太阳能热水器智能控制系统方案

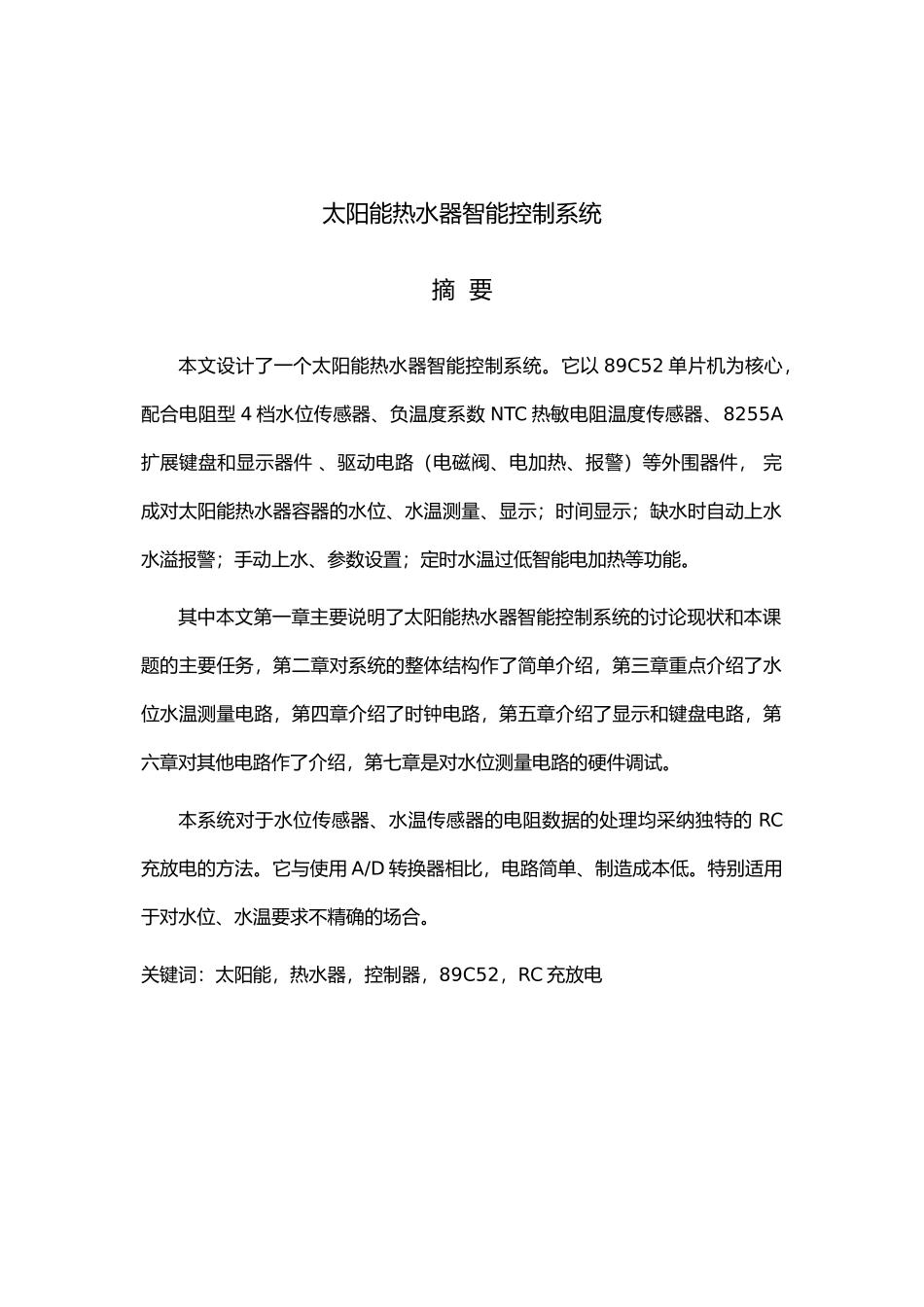

毕业设计太阳能热水器智能控制系统方案_第1页
1/62

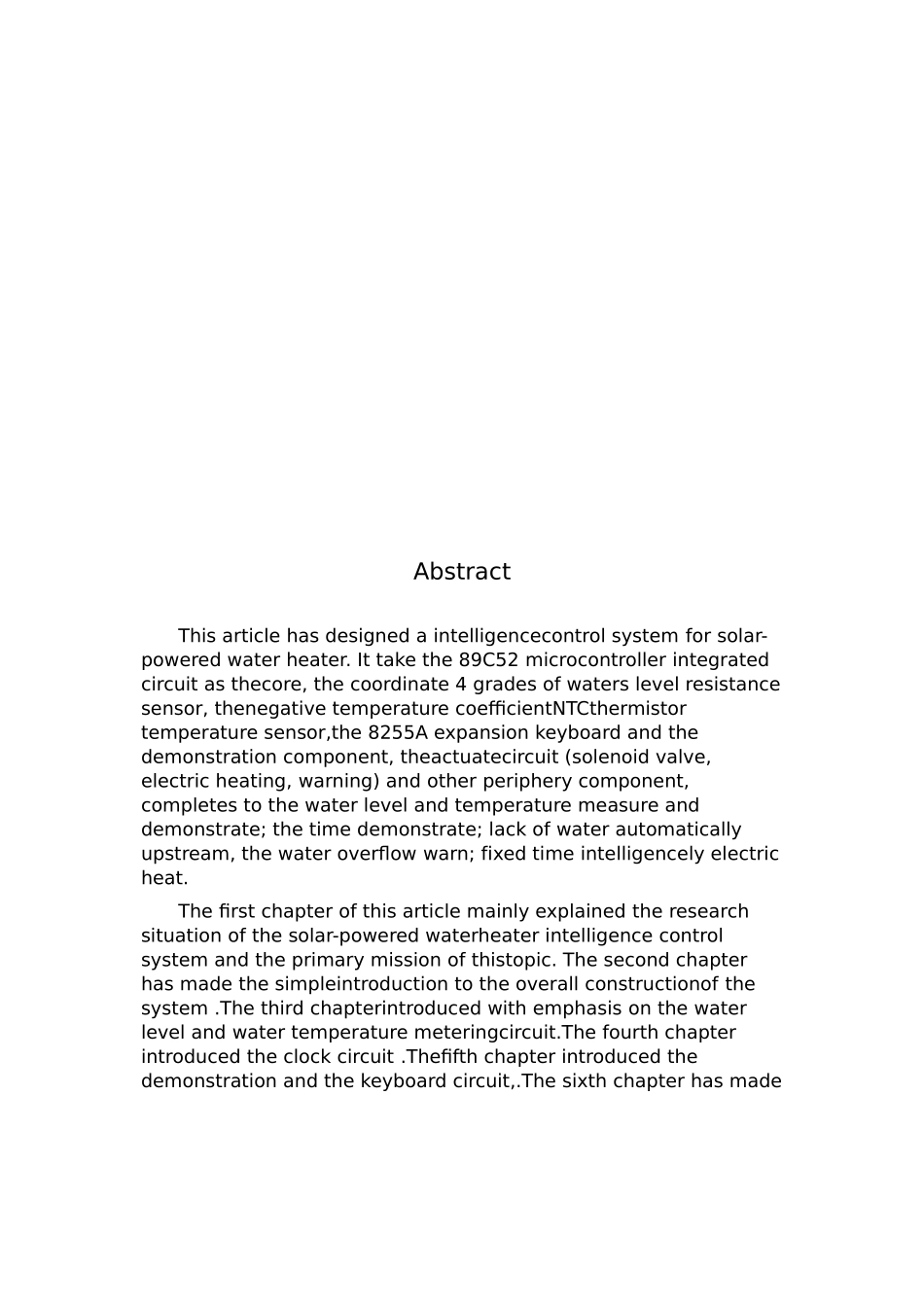

毕业设计太阳能热水器智能控制系统方案_第2页
2/62

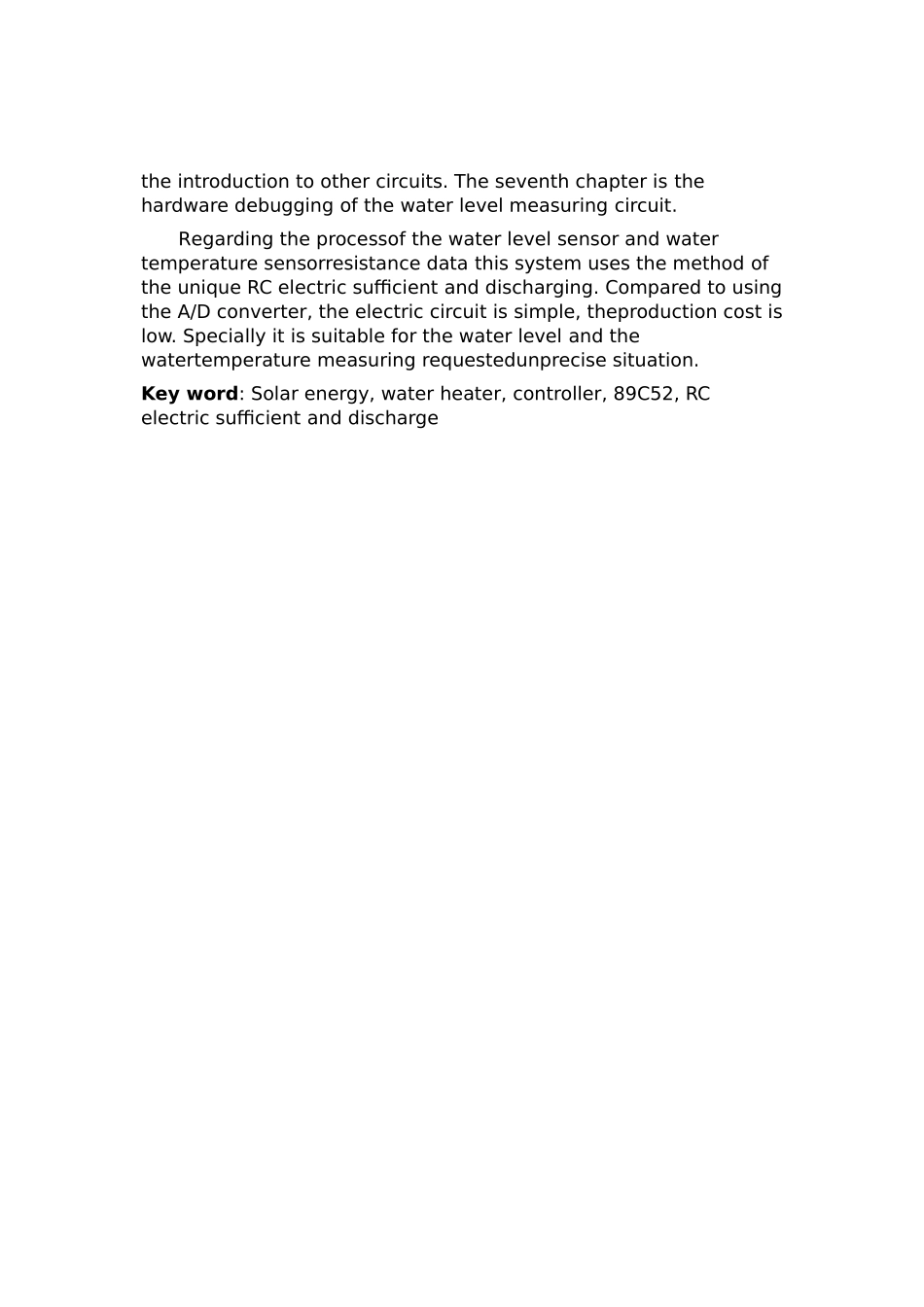

毕业设计太阳能热水器智能控制系统方案_第3页
3/62
太阳能热水器智能控制系统摘 要本文设计了一个太阳能热水器智能控制系统。它以 89C52 单片机为核心,配合电阻型 4 档水位传感器、负温度系数 NTC 热敏电阻温度传感器、8255A扩展键盘和显示器件 、驱动电路(电磁阀、电加热、报警)等外围器件, 完成对太阳能热水器容器的水位、水温测量、显示;时间显示;缺水时自动上水水溢报警;手动上水、参数设置;定时水温过低智能电加热等功能。其中本文第一章主要说明了太阳能热水器智能控制系统的讨论现状和本课题的主要任务,第二章对系统的整体结构作了简单介绍,第三章重点介绍了水位水温测量电路,第四章介绍了时钟电路,第五章介绍了显示和键盘电路,第六章对其他电路作了介绍,第七章是对水位测量电路的硬件调试。本系统对于水位传感器、水温传感器的电阻数据的处理均采纳独特的 RC充放电的方法。它与使用 A/D 转换器相比,电路简单、制造成本低。特别适用于对水位、水温要求不精确的场合。关键词:太阳能,热水器,控制器,89C52,RC 充放电AbstractThis article has designed a intelligencecontrol system for solar-powered water heater. It take the 89C52 microcontroller integrated circuit as thecore, the coordinate 4 grades of waters level resistance sensor, thenegative temperature coefficientNTCthermistor temperature sensor,the 8255A expansion keyboard and the demonstration component, theactuatecircuit (solenoid valve, electric heating, warning) and other periphery component, completes to the water level and temperature measure and demonstrate; the time demonstrate; lack of water automatically upstream, the water overflow warn; fixed time intelligencely electric heat.The first chapter of this article mainly explained the research situation of the solar-powered waterheater intelligence control system and the primary mission of thistopic. The second chapter has made the simpleintroduction to the overall constructionof the system .The third chapterintroduced with emphasis on the water level and water temperature meteringcircuit.The fourth chapter introdu...
