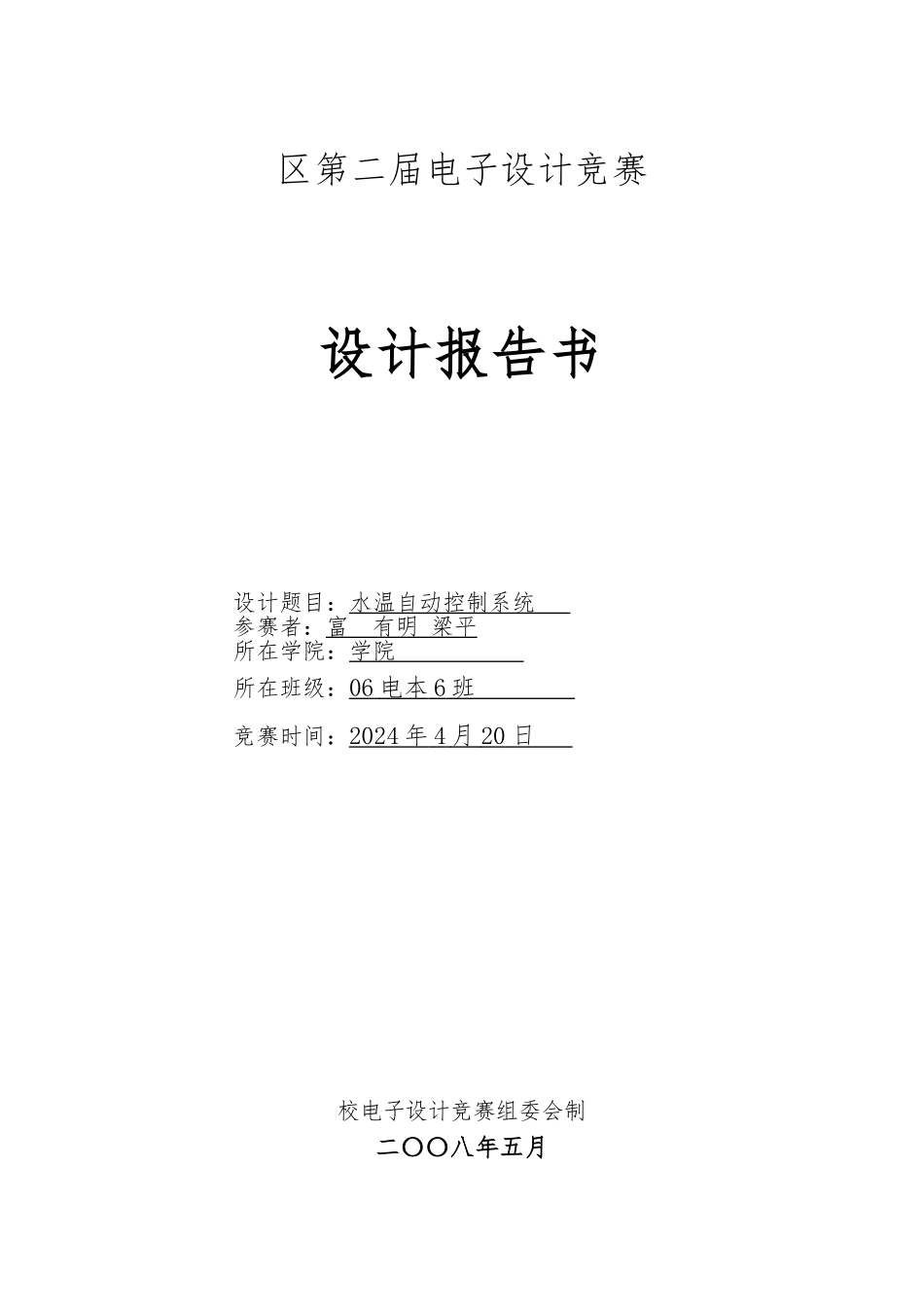

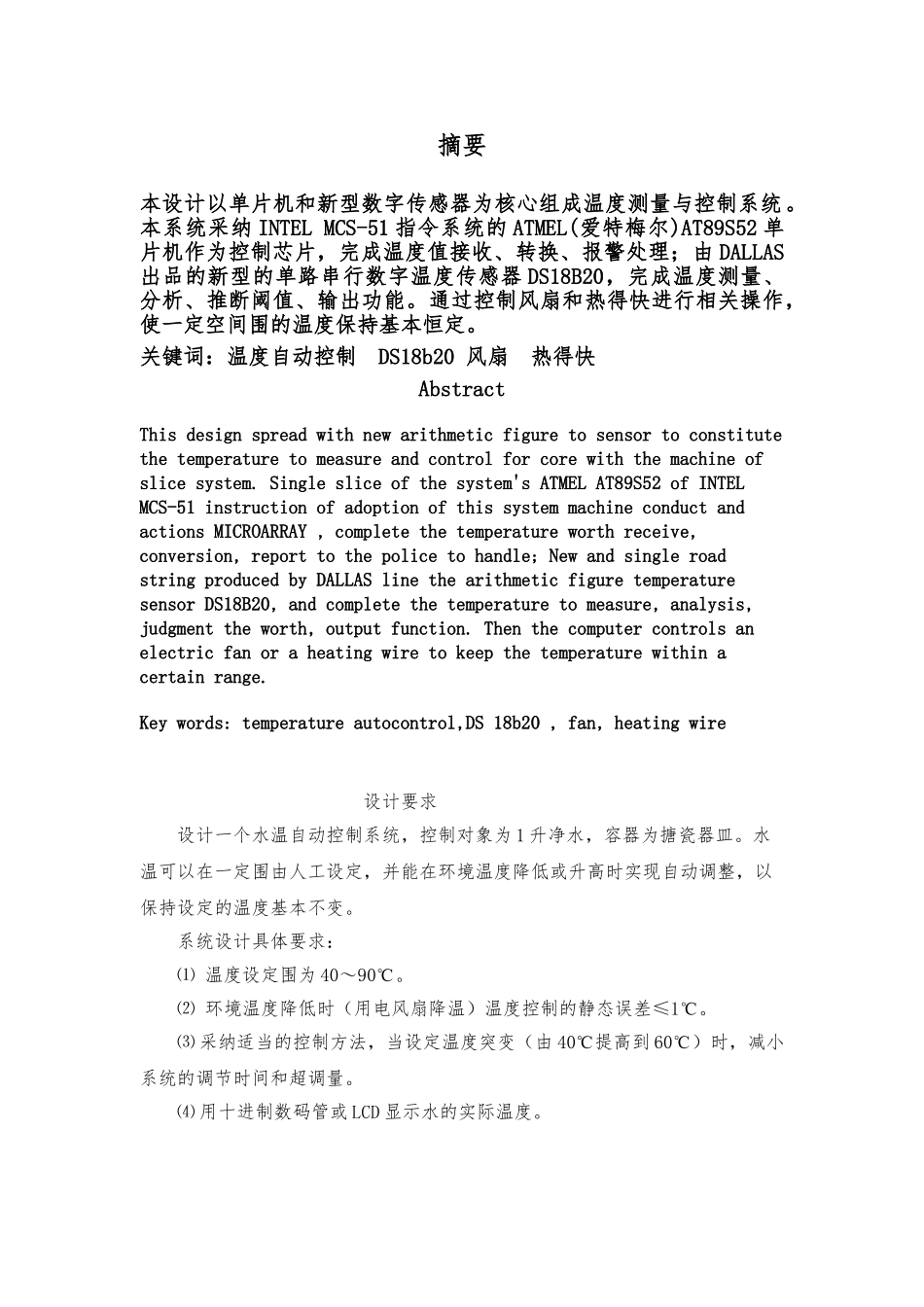

区第二届电子设计竞赛设计报告书设计题目:水温自动控制系统 参赛者:富 有明 梁平所在学院:学院 所在班级:06 电本 6 班 竞赛时间:2024 年 4 月 20 日 校电子设计竞赛组委会制二〇〇八年五月摘要本设计以单片机和新型数字传感器为核心组成温度测量与控制系统。本系统采纳 INTEL MCS-51 指令系统的 ATMEL(爱特梅尔)AT89S52 单片机作为控制芯片,完成温度值接收、转换、报警处理;由 DALLAS出品的新型的单路串行数字温度传感器 DS18B20,完成温度测量、分析、推断阈值、输出功能。通过控制风扇和热得快进行相关操作,使一定空间围的温度保持基本恒定。关键词:温度自动控制 DS18b20 风扇 热得快AbstractThis design spread with new arithmetic figure to sensor to constitute the temperature to measure and control for core with the machine of slice system. Single slice of the system's ATMEL AT89S52 of INTEL MCS-51 instruction of adoption of this system machine conduct and actions MICROARRAY , complete the temperature worth receive, conversion, report to the police to handle; New and single road string produced by DALLAS line the arithmetic figure temperature sensor DS18B20, and complete the temperature to measure, analysis, judgment the worth, output function. Then the computer controls an electric fan or a heating wire to keep the temperature within a certain range.Key words: temperature autocontrol,DS 18b20 , fan, heating wire设计要求设计一个水温自动控制系统,控制对象为 1 升净水,容器为搪瓷器皿。水温可以在一定围由人工设定,并能在环境温度降低或升高时实现自动调整,以保持设定的温度基本不变。系统设计具体要求:⑴ 温度设定围为 40~90℃。 ⑵ 环境温度降低时(用电风扇降温)温度控制的静态误差≤1℃。⑶ 采纳适当的控制方法,当设定温度突变(由 40℃提高到 60℃)时,减小系统的调节时间和超调量。⑷ 用十进制数码管或 LCD 显示水的实际温度。1、总体方案设计与论证根据题目的要求,我们提出了以下的两种方案:方案 1:此方案是采纳传统的二位模拟控制方法,选用模拟电路,用电位器设定给定值,采纳上下限...
