汽车随车起重机设计概述

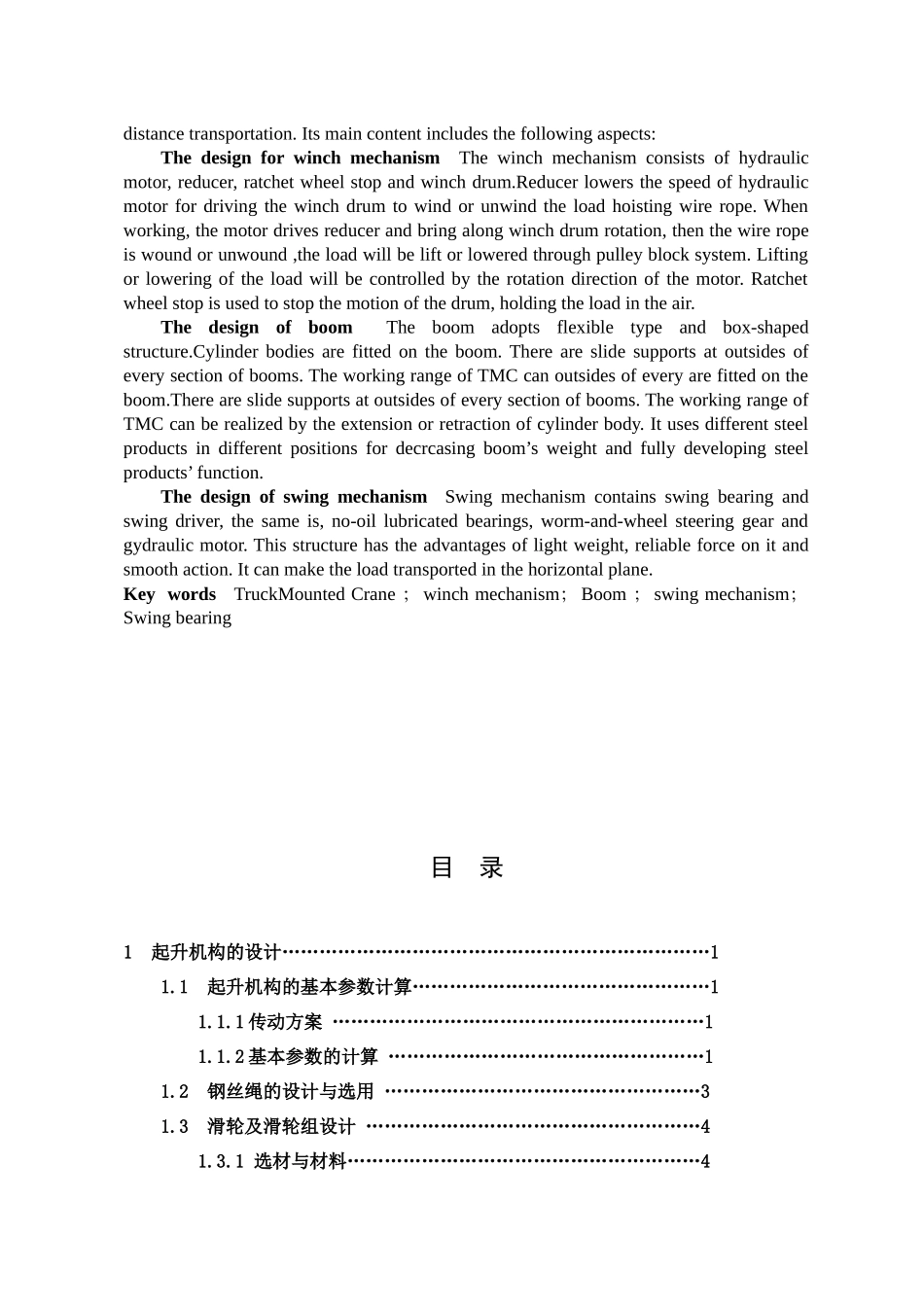

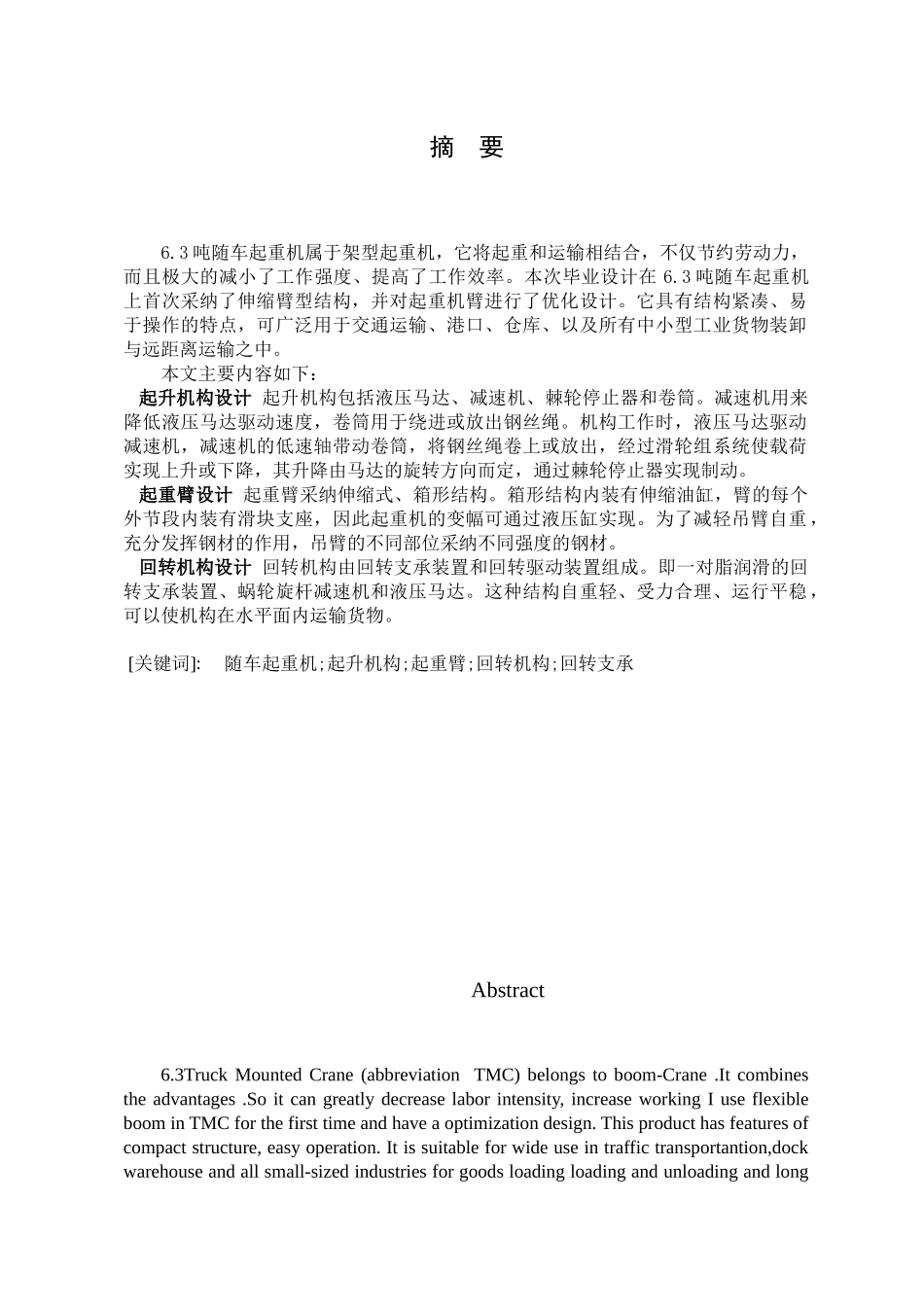

摘 要6.3 吨随车起重机属于架型起重机，它将起重和运输相结合，不仅节约劳动力，而且极大的减小了工作强度、提高了工作效率。本次毕业设计在 6.3 吨随车起重机上首次采纳了伸缩臂型结构，并对起重机臂进行了优化设计。它具有结构紧凑、易于操作的特点，可广泛用于交通运输、港口、仓库、以及所有中小型工业货物装卸与远距离运输之中。本文主要内容如下：起升机构设计 起升机构包括液压马达、减速机、棘轮停止器和卷筒。减速机用来降低液压马达驱动速度，卷筒用于绕进或放出钢丝绳。机构工作时，液压马达驱动减速机，减速机的低速轴带动卷筒，将钢丝绳卷上或放出，经过滑轮组系统使载荷实现上升或下降，其升降由马达的旋转方向而定，通过棘轮停止器实现制动。起重臂设计 起重臂采纳伸缩式、箱形结构。箱形结构内装有伸缩油缸，臂的每个外节段内装有滑块支座，因此起重机的变幅可通过液压缸实现。为了减轻吊臂自重 ，充分发挥钢材的作用，吊臂的不同部位采纳不同强度的钢材。回转机构设计 回转机构由回转支承装置和回转驱动装置组成。即一对脂润滑的回转支承装置、蜗轮旋杆减速机和液压马达。这种结构自重轻、受力合理、运行平稳 ，可以使机构在水平面内运输货物。 [关键词]: 随车起重机;起升机构;起重臂;回转机构;回转支承 Abstract6.3Truck Mounted Crane (abbreviation TMC) belongs to boom-Crane .It combines the advantages .So it can greatly decrease labor intensity, increase working I use flexible boom in TMC for the first time and have a optimization design. This product has features of compact structure, easy operation. It is suitable for wide use in traffic transportantion,dock warehouse and all small-sized industries for goods loading loading and unloading and long distance transportation. Its main content includes the following aspects:The design for winch mechanism The winch mechanism consists of hydraulic motor, reducer, ratchet wheel stop and winch drum.Reducer lowers the speed of hydraulic motor for driving the winch drum to wind or unwind the load hoisting wire rope. When working, the motor drives reducer and bring alo...
