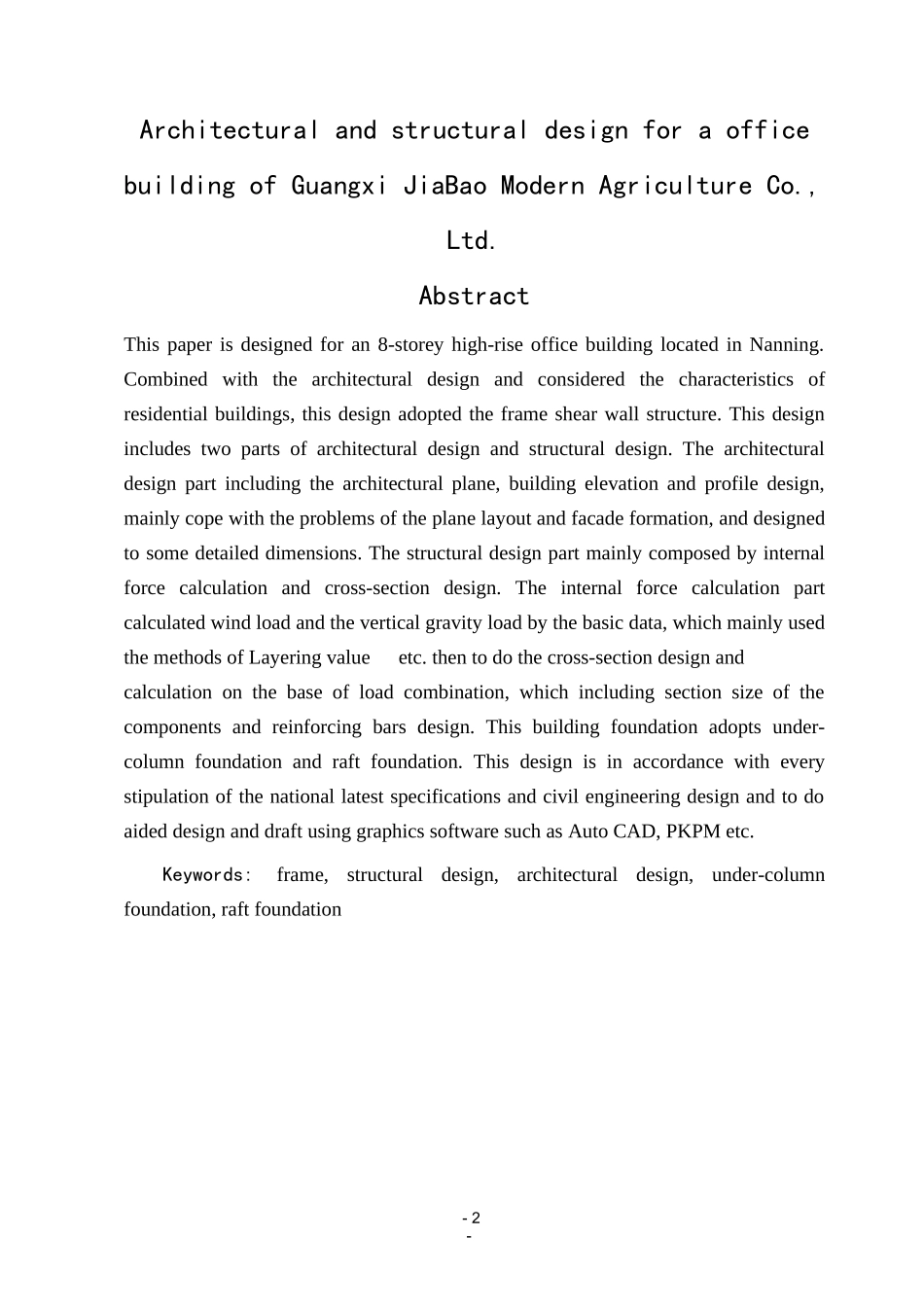

-1-嘉宝集团办公综合楼建筑和结构设计摘要本设计为8层办公楼，位于南宁市。该设计包括建筑设计和结构设计两部分。建筑设计部分包括建筑的平面、立面和剖面设计，主要解决建筑平面布局和立面造型问题，此外对一些细部尺寸进行了设计。结构设计部分主要由内力计算和截面设计组成。内力计算部分首先由基本资料计算风荷载和竖向重力荷载，主要运用了“分层法”、“D值法”等方法。本建筑基础形式选用柱下独立基础和筏形基础。在设计过程中，根据国家最新规范和土木工程设计中的各种要求进行计算，并运用AutoCAD和PKPM等制图软件进行辅助设计和绘图。关键词：框架建筑设计结构设计柱下独立基础筏形基础-2-ArchitecturalandstructuraldesignforaofficebuildingofGuangxiJiaBaoModernAgricultureCo.,Ltd.AbstractThispaperisdesignedforan8-storeyhigh-riseofficebuildinglocatedinNanning.Combinedwiththearchitecturaldesignandconsideredthecharacteristicsofresidentialbuildings,thisdesignadoptedtheframeshearwallstructure.Thisdesignincludestwopartsofarchitecturaldesignandstructuraldesign.Thearchitecturaldesignpartincludingthearchitecturalplane,buildingelevationandprofiledesign,mainlycopewiththeproblemsoftheplanelayoutandfacadeformation,anddesignedtosomedetaileddimensions.Thestructuraldesignpartmainlycomposedbyinternalforcecalculationandcross-sectiondesign.Theinternalforcecalculationpartcalculatedwindloadandtheverticalgravityloadbythebasicdata,whichmainlyusedthemethodsofLayeringvalueetc.thentodothecross-sectiondesignandcalculationonthebaseofloadcombination,whichincludingsectionsizeofthecomponentsandreinforcingbarsdesign.Thisbuildingfoundationadoptsunder-columnfoundationandraftfoundation.ThisdesignisinaccordancewitheverystipulationofthenationallatestspecificationsandcivilengineeringdesignandtodoaideddesignanddraftusinggraphicssoftwaresuchasAutoCAD,PKPMetc.Keywords:frame,structuraldesign,architecturaldesign,under-columnfoundation,raftfoundation-3-目录建筑设计部分..................................................-5-第一部分设计要求.............................................-5-第一节总则...............................................-5-一、设计的目的和要求...................................-5-第二节设计的原始资料.....................................-5-一、规模...............................................-5-二、建设地点...........................................-5-三、建筑工程造价.......................................-5-四、气候水文地质条件...................................-5-第三节建筑设计部分设计要求...............................-6-一、方案设计阶段.......................................-6-二、施工图设计阶段.....................................-8-第二部分设计成果.............................................-9-第一节设计过程...........................................-9-一、初步构想..........................................-9-二、参考资料...........................................-9-三、平面设计...........................................-9-四、剖面设计...........................................-10-五、立面设计...........................................-10-第二节设计成果...........................................-11-结构设计部分..................................................-12-第一部分整体设计.............................................-12-第一节整体设计...........................................-12-一、结构分区...........................................-12-二、结构形式...........................................-12-第二节结构布置及选型.........
