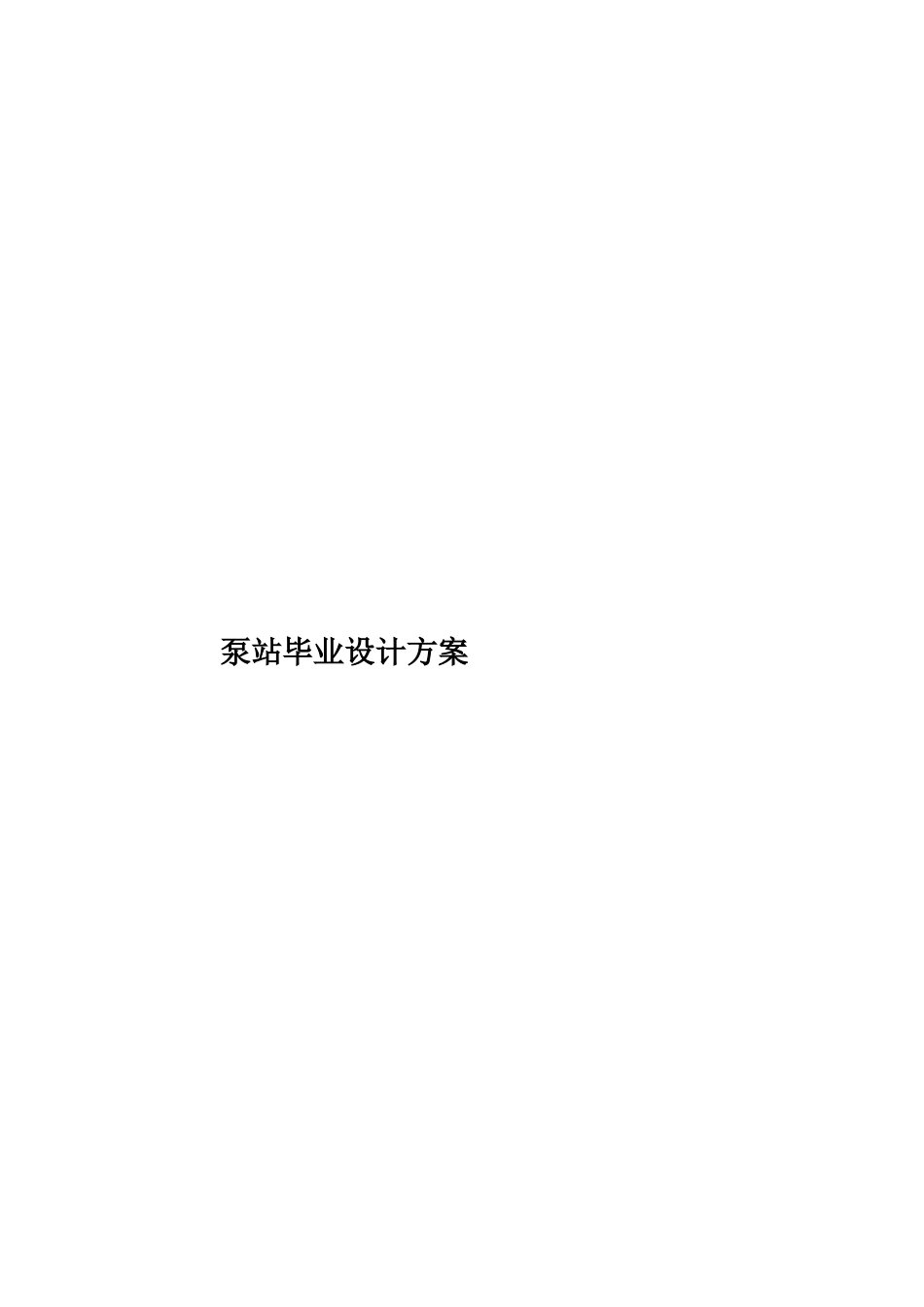

泵站毕业设计方案样本

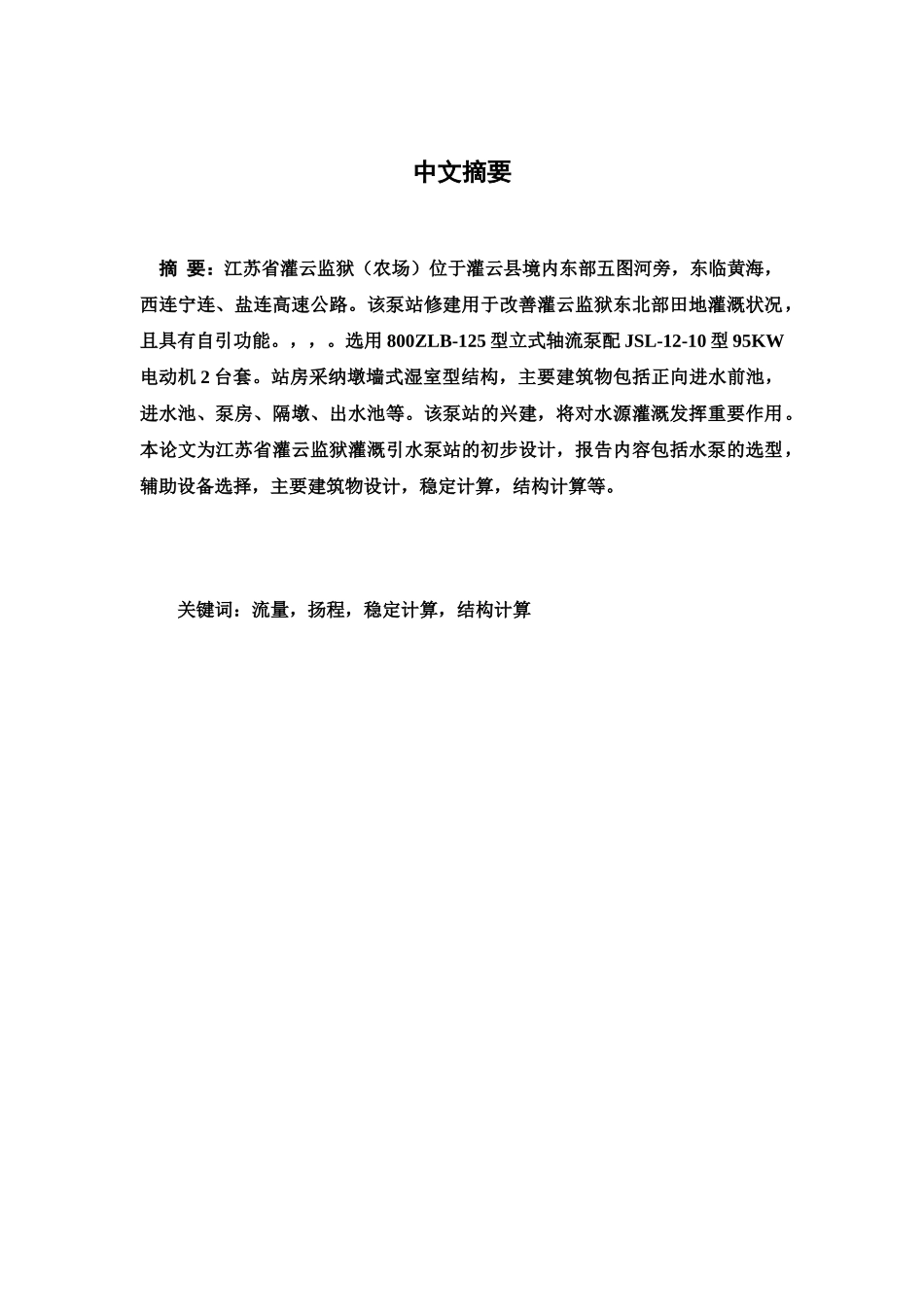

泵站毕业设计方案中文摘要 摘 要：江苏省灌云监狱（农场）位于灌云县境内东部五图河旁，东临黄海，西连宁连、盐连高速公路。该泵站修建用于改善灌云监狱东北部田地灌溉状况，且具有自引功能。，，。选用 800ZLB-125 型立式轴流泵配 JSL-12-10 型 95KW电动机 2 台套。站房采纳墩墙式湿室型结构，主要建筑物包括正向进水前池，进水池、泵房、隔墩、出水池等。该泵站的兴建，将对水源灌溉发挥重要作用。本论文为江苏省灌云监狱灌溉引水泵站的初步设计，报告内容包括水泵的选型，辅助设备选择，主要建筑物设计，稳定计算，结构计算等。关键词：流量，扬程，稳定计算，结构计算Abstract Pick to: jiangsu province irrigation cloud (farm) is located at the prison visit guanyun county territory east five figure beside the river, the yellow sea in the east, the west even better even, salt even highway. The pump station built improve irrigation cloud prison fields are irrigated northeast condition, and has since led function. The pump station design flow rate is m3 / s, design head m, the biggest head m. Choose 800 ZLB-125 type vertical with axial JSL-12-10 type 95 KW motor 2 sets. The wet room wall type pier station type structure, main buildings including positive before the water pool, into the pool, pump room, the pier, a pool, etc. The construction of pumping station, will play an important role for water irrigation. This paper in jiangsu province irrigation water pumping station prison irrigation cloud of preliminary design, the report shall include water pump selection, auxiliary equipment choice, main building design, stability analysis, structural calculation.Key Words: irrigation drainage flow head structure type selection stability analysis stress analysis1 综合说明江苏省灌云监狱（农场）位于灌云县境内东部五图河旁，东临黄海，西连宁连、盐连高速公路。北倚《西游记》中的花果山，紧邻久负盛名的亚欧大陆桥桥头堡—连云港。监狱始建于 1951 年 9...
