土木工程计算书斯坦中学办公楼设计学士学位论文

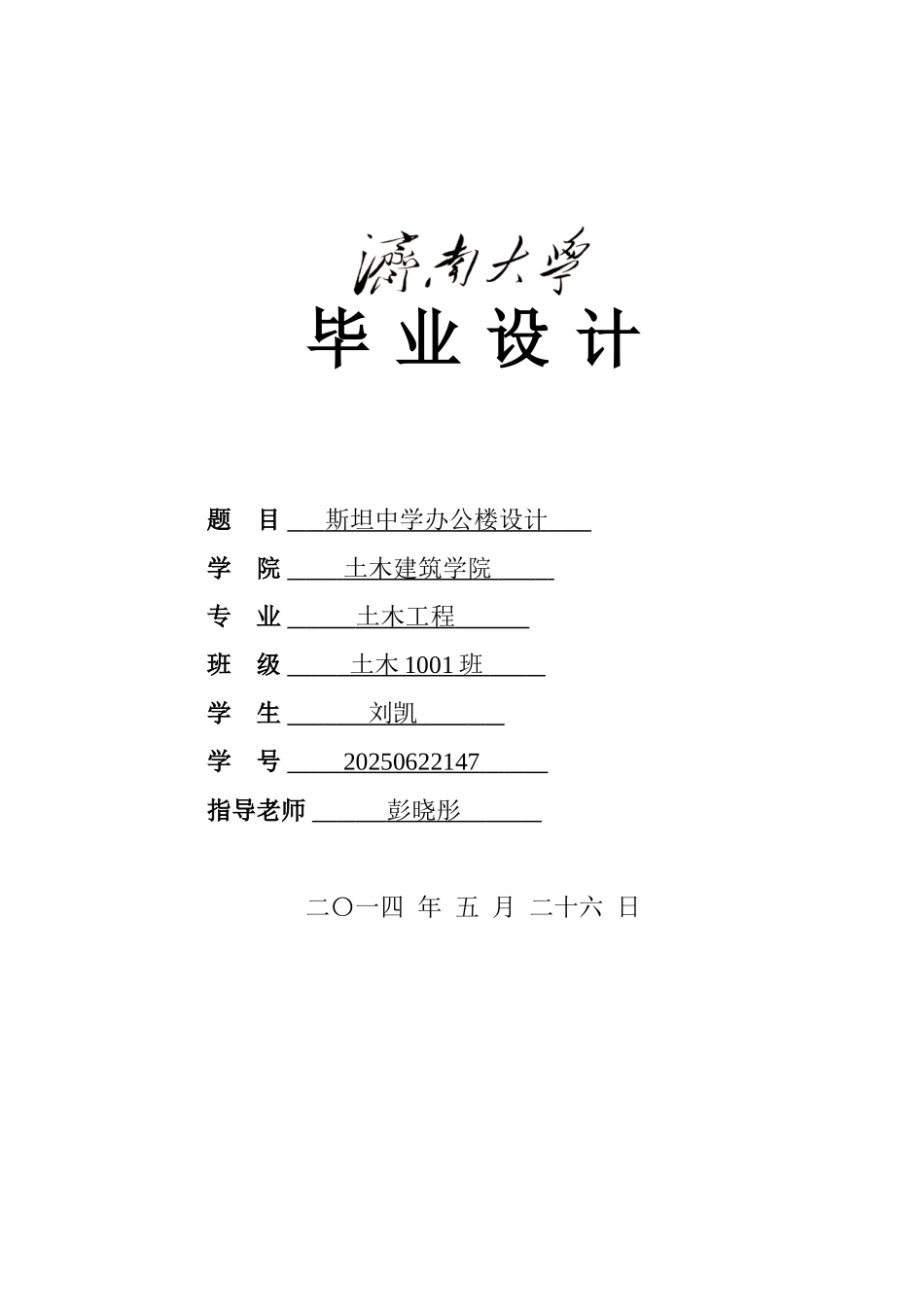

土木工程计算书斯坦中学办公楼设计学士学位论文_第1页
1/88

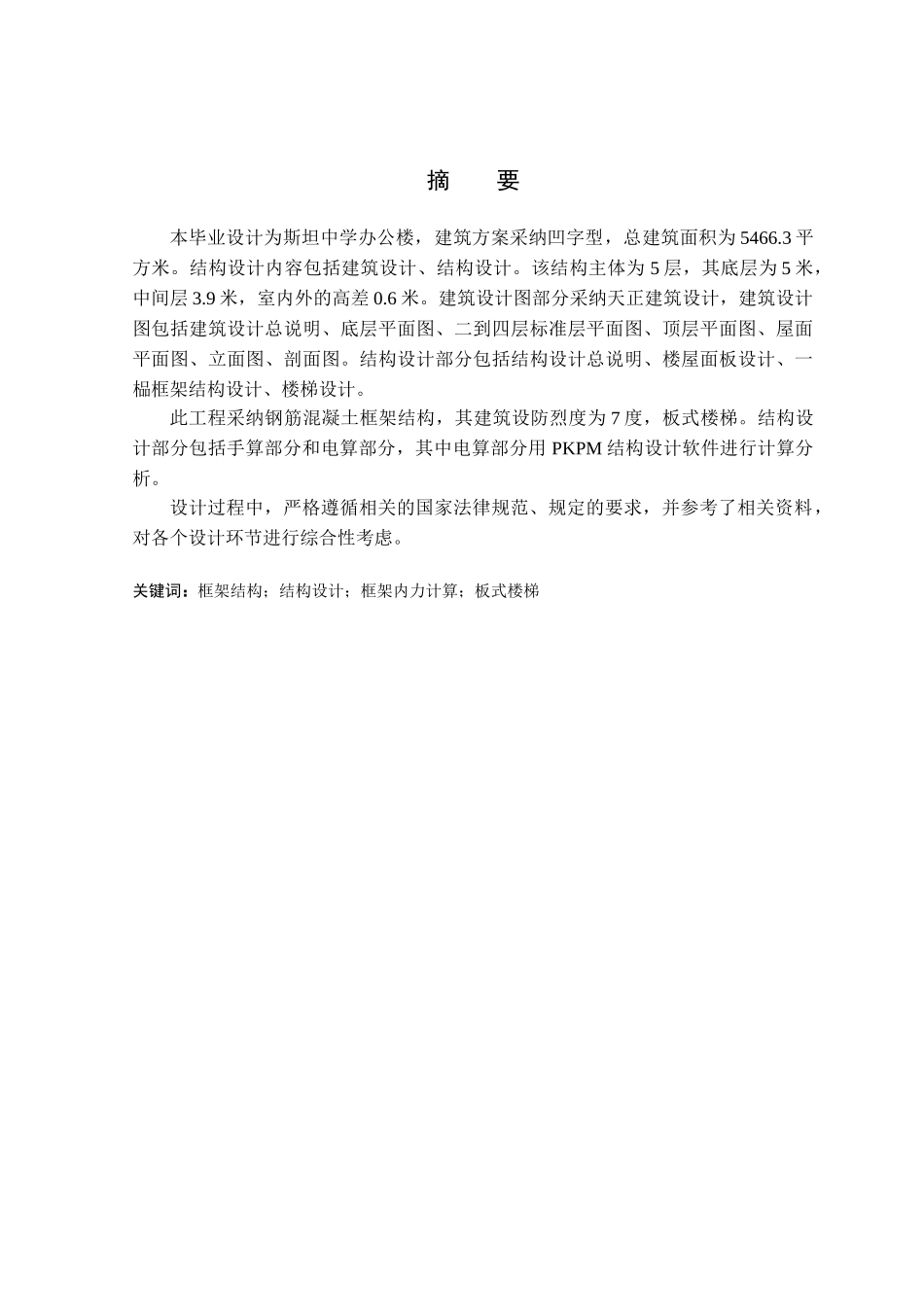

土木工程计算书斯坦中学办公楼设计学士学位论文_第2页
2/88

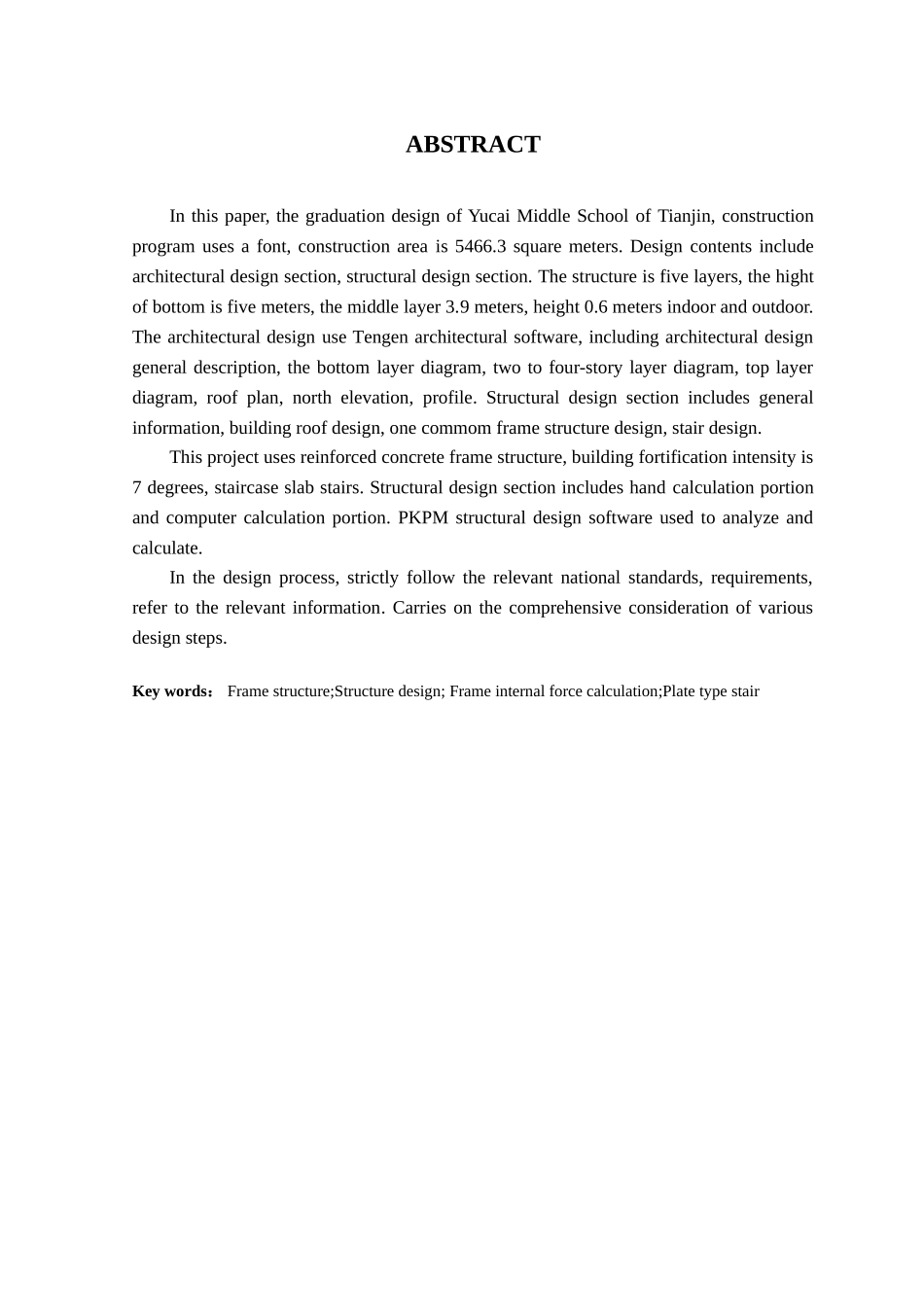

土木工程计算书斯坦中学办公楼设计学士学位论文_第3页
3/88
毕 业 设 计题 目 斯坦中学办公楼设计 学 院 土木建筑学院 专 业 土木工程 班 级 土木 1001 班 学 生 刘凯 学 号 20250622147 指导老师 彭晓彤 二〇一四 年 五 月 二十六 日摘 要本毕业设计为斯坦中学办公楼,建筑方案采纳凹字型,总建筑面积为 5466.3 平方米。结构设计内容包括建筑设计、结构设计。该结构主体为 5 层,其底层为 5 米,中间层 3.9 米,室内外的高差 0.6 米。建筑设计图部分采纳天正建筑设计,建筑设计图包括建筑设计总说明、底层平面图、二到四层标准层平面图、顶层平面图、屋面平面图、立面图、剖面图。结构设计部分包括结构设计总说明、楼屋面板设计、一榀框架结构设计、楼梯设计。此工程采纳钢筋混凝土框架结构,其建筑设防烈度为 7 度,板式楼梯。结构设计部分包括手算部分和电算部分,其中电算部分用 PKPM 结构设计软件进行计算分析。设计过程中,严格遵循相关的国家法律规范、规定的要求,并参考了相关资料,对各个设计环节进行综合性考虑。关键词:框架结构;结构设计;框架内力计算;板式楼梯ABSTRACTIn this paper, the graduation design of Yucai Middle School of Tianjin, construction program uses a font, construction area is 5466.3 square meters. Design contents include architectural design section, structural design section. The structure is five layers, the hight of bottom is five meters, the middle layer 3.9 meters, height 0.6 meters indoor and outdoor. The architectural design use Tengen architectural software, including architectural design general description, the bottom layer diagram, two to four-story layer diagram, top layer diagram, roof plan, north elevation, profile. Structural design section includes general information, building roof design, one commom frame structure design, stair design.This project uses reinforced concrete frame structure, building fortification intensity is 7 degrees, staircase slab stairs. Structural design section includes hand calculation portion and computer calculation portion. PKPM structural design soft...
