基于单片机电子摇摇棒系统设计--毕业设计

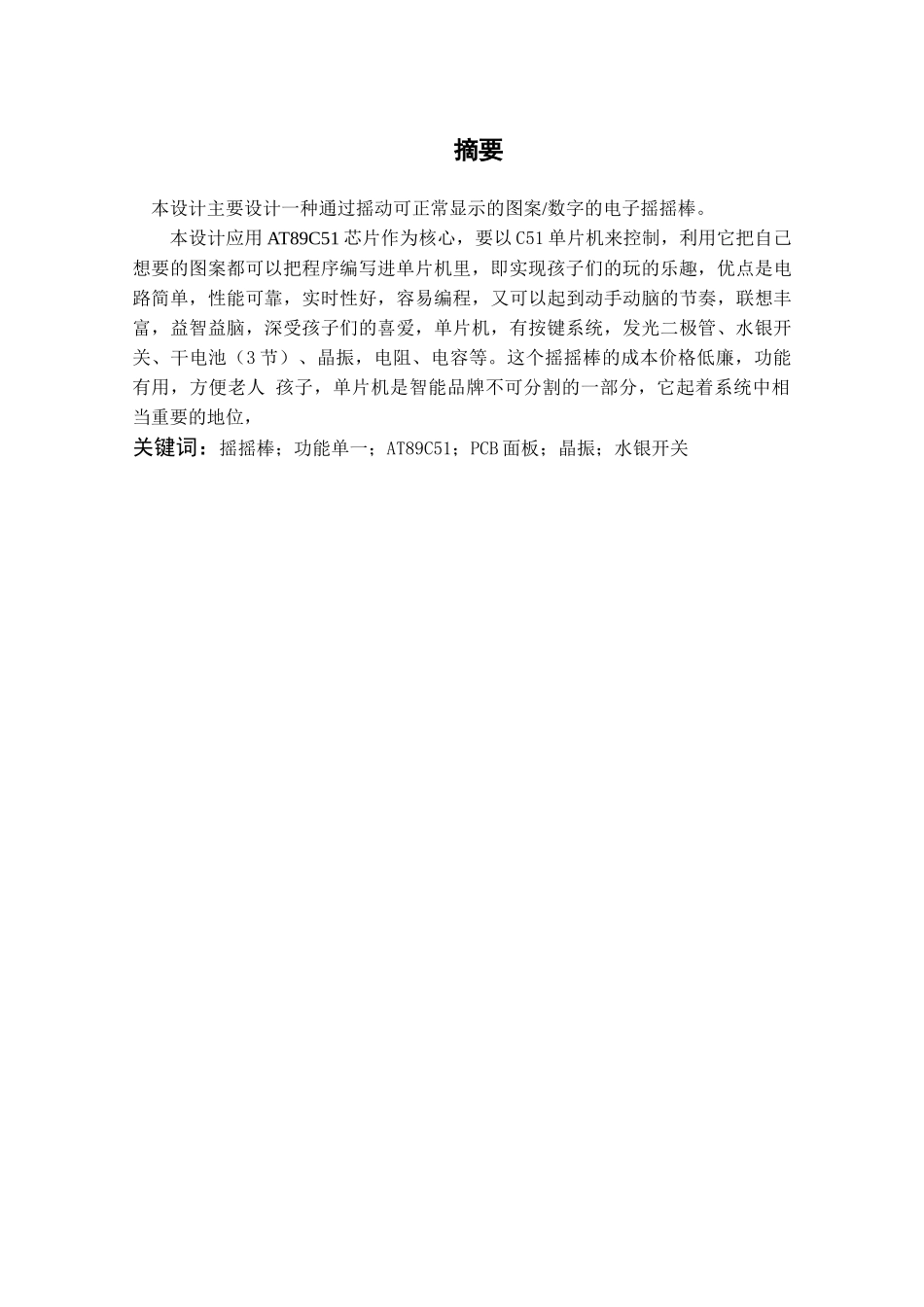

摘要 本设计主要设计一种通过摇动可正常显示的图案/数字的电子摇摇棒。本设计应用 AT89C51 芯片作为核心，要以 C51 单片机来控制，利用它把自己想要的图案都可以把程序编写进单片机里，即实现孩子们的玩的乐趣，优点是电路简单，性能可靠，实时性好，容易编程，又可以起到动手动脑的节奏，联想丰富，益智益脑，深受孩子们的喜爱，单片机，有按键系统，发光二极管、水银开关、干电池（3 节）、晶振，电阻、电容等。这个摇摇棒的成本价格低廉，功能有用，方便老人 孩子，单片机是智能品牌不可分割的一部分，它起着系统中相当重要的地位，关键词：摇摇棒；功能单一；AT89C51；PCB 面板；晶振；水银开关AbstractThe design of the main design of a pattern can be displayed by shaking the normal / digital electronic stick Design and application of the AT89C51 chip as the core, to control the MCU C51, use it to want to design their own can put the program into the MCU, which realize the children's fun, has the advantages of simple circuit, reliable performance, good real-time performance, easy programming, and can play a DIY rhythm. Lenovo rich, brain puzzle, popular children's favorite, microcontroller, key system, light emitting diode, a mercury switch, 5 batteries (Section 3), crystal, resistors, capacitors and so on. The shake great low cost, practical function, convenient for the elderly children, SCM is the smart brand can not be separated Part of the cutting, which plays a very important role in the system,Key words: rocking rod; single function; AT89C51; PCB panel; crystal oscillator; mercury switch摘要..................................................................IABSTRACT.........................................................................II绪论...............................................................................11 系统设计原理.................................................................31.1 基于摇摇棒设计原理.................................
